Wheel Fitment & Question Thread

mazzer

Banned
May 3, 2005
438
0
0
43
st.louis,mo
91T breezen';920906 said:
18x9.5", w/ a 43mm offset is pretty good. You could run a 285/30, or maybe even a 295/35 on there w/o any problems. The 18x8 with a 43mm offset, will however, look a little "sucked in". The ideal offset for an 8" rim is about 30mm. I would get a good set of 10mm H&R hubcentric spacers, and run a 245/35-18 tire on it. Should be just about right.:icon_bigg


cool. thanks..

i'm lookin at two sets of wheels.

these


they are the +43

then there are these


those are the same size as the last , but in a +35

on this car



91T breezen'

ROMNEY/RYAN 2012
Apr 4, 2005
1,149
0
0
NOYFB!
^ Either set would look good.:icon_bigg Although the 35mm offset would be better for the front fitment. Personally, I prefer the top set. Bottom set looks like BBS LM's (kinda'!):icon_razz
However, if you are considering a bbk in the future, the BBS lookalikes might be a better choice. I might have just changed my mind too, on which one's look better!:biglaugh:


mazzer

Banned
May 3, 2005
438
0
0
43
st.louis,mo
91T breezen';920921 said:
^ Either set would look good.:icon_bigg Although the 35mm offset would be better for the front fitment. Personally, I prefer the top set. Bottom set looks like BBS LM's (kinda'!):icon_razz

the bottoms are Manary Vertec VR5 wheels

the pretty ones are Speed Star Racing Velbret Lo's

both the same price

would it be stupid to use the spacers on each of the +43 ?


91T breezen'

ROMNEY/RYAN 2012
Apr 4, 2005
1,149
0
0
NOYFB!
mazzer;920941 said:
the bottoms are Manary Vertec VR5 wheels

the pretty ones are Speed Star Racing Velbret Lo's

both the same price

would it be stupid to use the spacers on each of the +43 ?

No, it wouldn't be stupid. It kinda' depends on what look you are after. If you wanted a more aggressive offset, then you could step down your tire size, and still make them clear the fenderlip. Or, you could roll the fenders, space them 10-15mm, and run a larger tire for a totally mean look! I had 18x9.5", with a 35mm, and 275/35's, with no rubbing issues. But, that was as far as I could go on offset, (and tire size) w/o a fender roll.

Last edited:

Sawbladz

Supramania Contributor
Mar 14, 2006
1,727
0
0
Oshawa, ON, CA
I personally ran an 8" wheel, +42 offset with a 225 and it looked sucked in. I am currently running an 8" +25 and it fits PERFECTLY. I would recommend this offset to anyone but anywhere from 25-30 would look great.

IMO, go with the top rims and run the 10mm spacer on the front(any more and you need extended studs). I doubt you would need the spacer on the rear but you can decide after.


tweak666

New Member
May 11, 2006
152
0
0
boca raton, FL




18*8.5 +22 offset 245/40 F+R

this is the first time the car has been on the ground on the new suspension, and it hasn't driven yet, so i'm not sure if its gonna rub anything. it looks to have plenty of space. sorry for the pic quality, i need a new camera


applesauce

Banned Scammer
Aug 24, 2006
705
0
0
Virginia

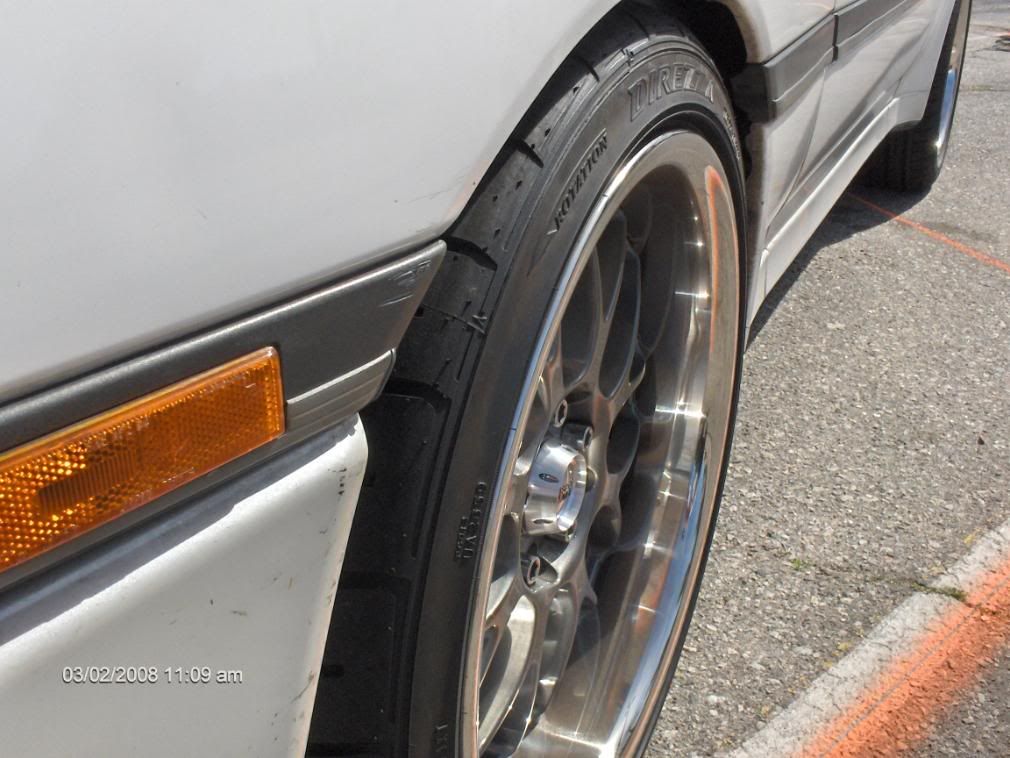

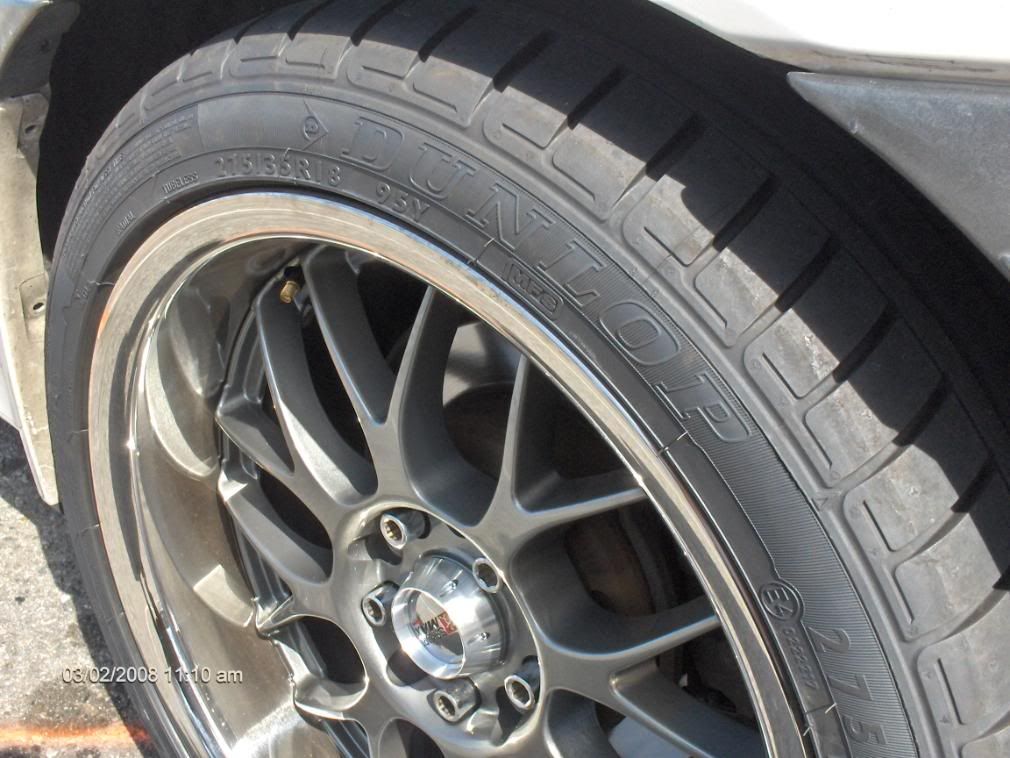

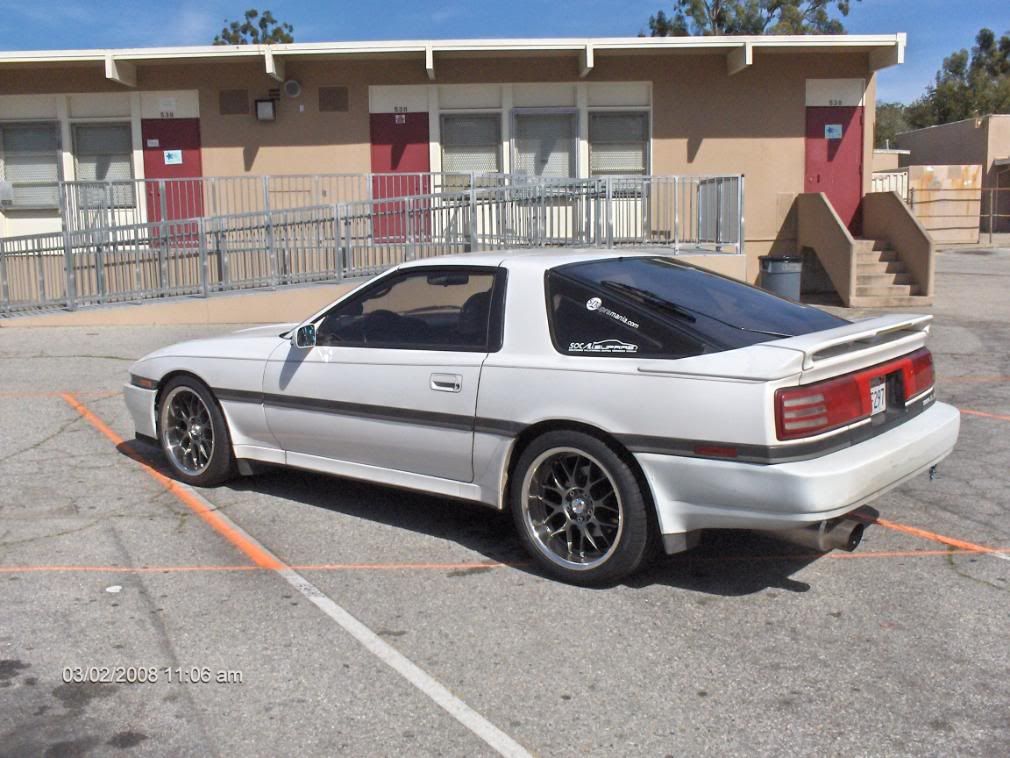

I just caught this thread... There are some nice wheels up here. Im running
19x8.5f/19x10r... 235-35-19/265-30-19. No rolling of the fenders, no camber adjustment or anything. These are 1997 Rays Sebring Edition rims...


Attachments

  • Copy of IMG_0650 (Medium).JPG
    Copy of IMG_0650 (Medium).JPG
    46 KB · Views: 183
Last edited:

BorHor

2JZ-GZE
Jan 10, 2006
6,181
1
38
35
San Jose, CA
TurboFreak;944264 said:
I love em! If they didn't have the bolts they'd be perfect IMO!

Offsets?

Yup not to bad over all. I have been thinking of going 18/19 for the last few weeks maybe I will.... :)


cool chuck

I like rims!
Nov 15, 2007
179
0
0
Maryland
applesauce;944216 said:
I just caught this thread... There are some nice wheels up here. Im running
19x8.5f/19x10r... 235-35-19/265-30-19. No rolling of the fenders, no camber adjustment or anything. These are 1997 Rays Sebring Edition rims...

Oh that's nice!

I forgot about them wheels. They used to be the sh*t and they are still looking good.


Jenya

SupraBoii
Feb 8, 2007
69
0
0
Edmonton, AB
I was looking through this thread, and i noticed a lot of 17" wheel guys are running side wall of 45 in the front, and 40 in the back. What does this achieve, does it get you some stretch or?


BorHor

2JZ-GZE
Jan 10, 2006
6,181
1
38
35
San Jose, CA
Nope. It keeps the over all tire height close to stock. The side wall size is based on the % of the the sidewall #. so a 225/45/17 means that the side wall is 45% of the 225.


Jenya

SupraBoii
Feb 8, 2007
69
0
0
Edmonton, AB
BorHor;944332 said:
Nope. It keeps the over all tire height close to stock. The side wall size is based on the % of the the sidewall #. so a 225/45/17 means that the side wall is 45% of the 225.

Oh makes sense.. Should I get 40's too like you guys if my rear tires are going to be 245/../17?


BorHor

2JZ-GZE
Jan 10, 2006
6,181
1
38
35
San Jose, CA
Doesn't matter. But 40 will keep your speedo close to accurate, which is why we usually get close to stock stock tire height.


Techno Supra

Hardcore DJ
I just picked up a set of four 3-spoke volk c-ultra's 17x9 +22 all around. I'm currently sitting at the stock 4x4 height, but will be lowering the car in a couple months and using it for auto x and road course almost entirely. Putting down close to 500RWHP once it's tuned. I prefer the squared off look over the stretched look. Performance is my main concern.

I was thinking 255/40/17-all around or 245/40/17(F) and 255/40/17(R) based on some info from another member with similar wheel size and offset.

Does that sound right for the intended use?
Will I have any issues with rubbing if lowered between 1-1.5 inches?

Thanks

-Scott


steven89

Member
Jul 8, 2006
892
0
16
Houston, TX
Techno Supra;946458 said:
I just picked up a set of four 3-spoke volk c-ultra's 17x9 +22 all around. I'm currently sitting at the stock 4x4 height, but will be lowering the car in a couple months and using it for auto x and road course almost entirely. Putting down close to 500RWHP once it's tuned. I prefer the squared off look over the stretched look. Performance is my main concern.

I was thinking 255/40/17-all around or 245/40/17(F) and 255/40/17(R) based on some info from another member with similar wheel size and offset.

Does that sound right for the intended use?
Will I have any issues with rubbing if lowered between 1-1.5 inches?

Thanks

-Scott

I have 255/40/17 on 17x9 +35 and I have the same intentions with my supra as you do. I also just lowered my car about 1.5"/1" [F/R]. In my book, the side-wall is perfect. Leaves enough side-wall incase you hit a bump or whatever. This tiresize is also only a few more millimeters larger than stock and my speedo is gonna be off by like .7%. I'll send ya some pics of my setup lowered if you're interested. LMK
