northwestsupra's 500hp build

[northwestsupra]

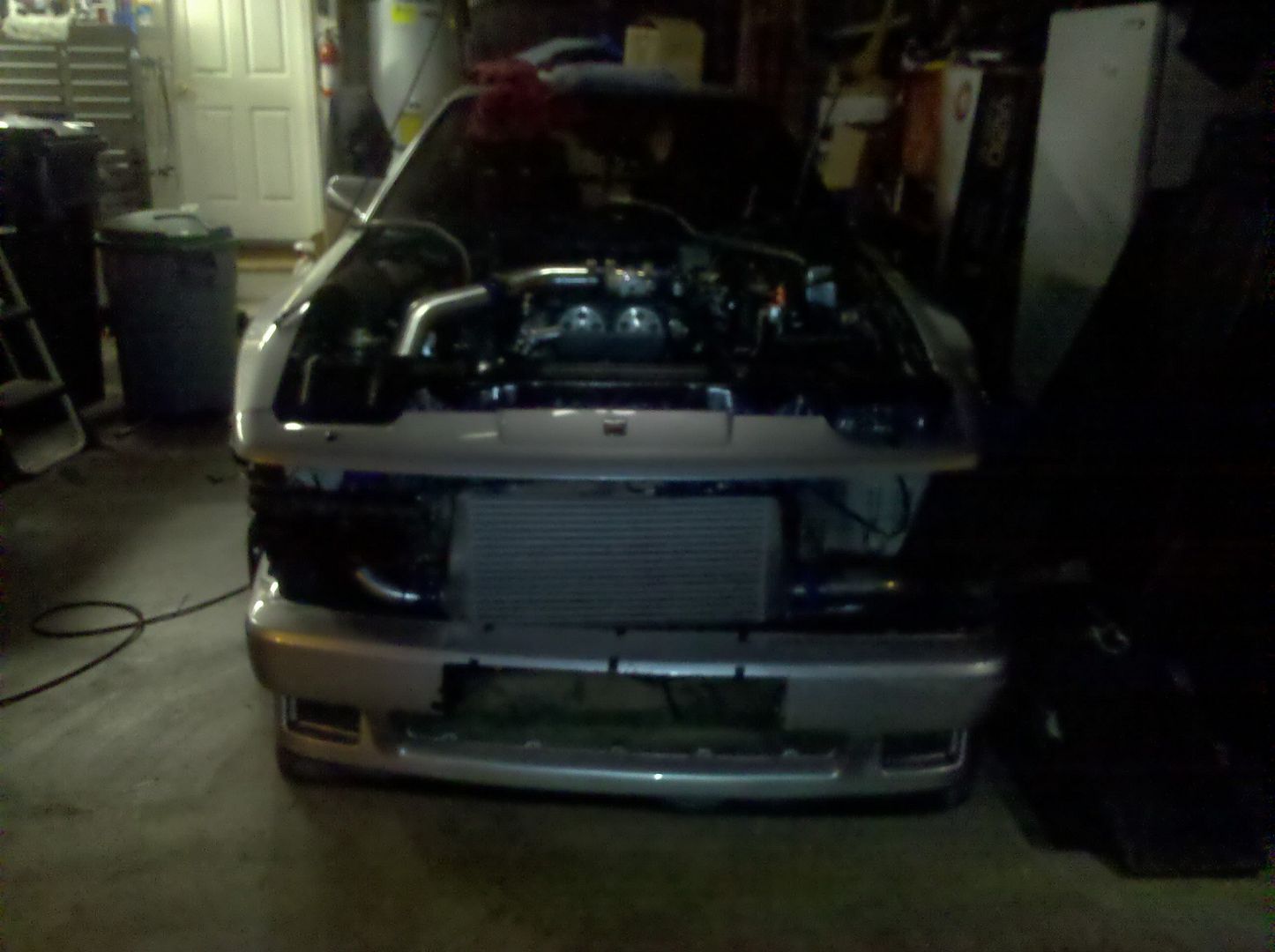

oh the great news i have but with bad pictures to follow ITS IN!! again!! for the 4Th time lol and everything fits WOOO

its super dark here so all my pictures are trash as of now, plus i didnt even plug my new harness in or anything so i got wires all over the place, but ill get more pictures after all the mounts are tightened down and things are fully fitted wish me luck



[87turbosupra]

Nice progress. I like how your builds coming along, I just read through your whole thread.
I'm going down the long endless road you are. goodluck, keep the pics coming.



[SURUKO]

In for startup video



[northwestsupra]

In for startup video

thats still going to be a while lol but ill make sure you have first view lol



[northwestsupra]

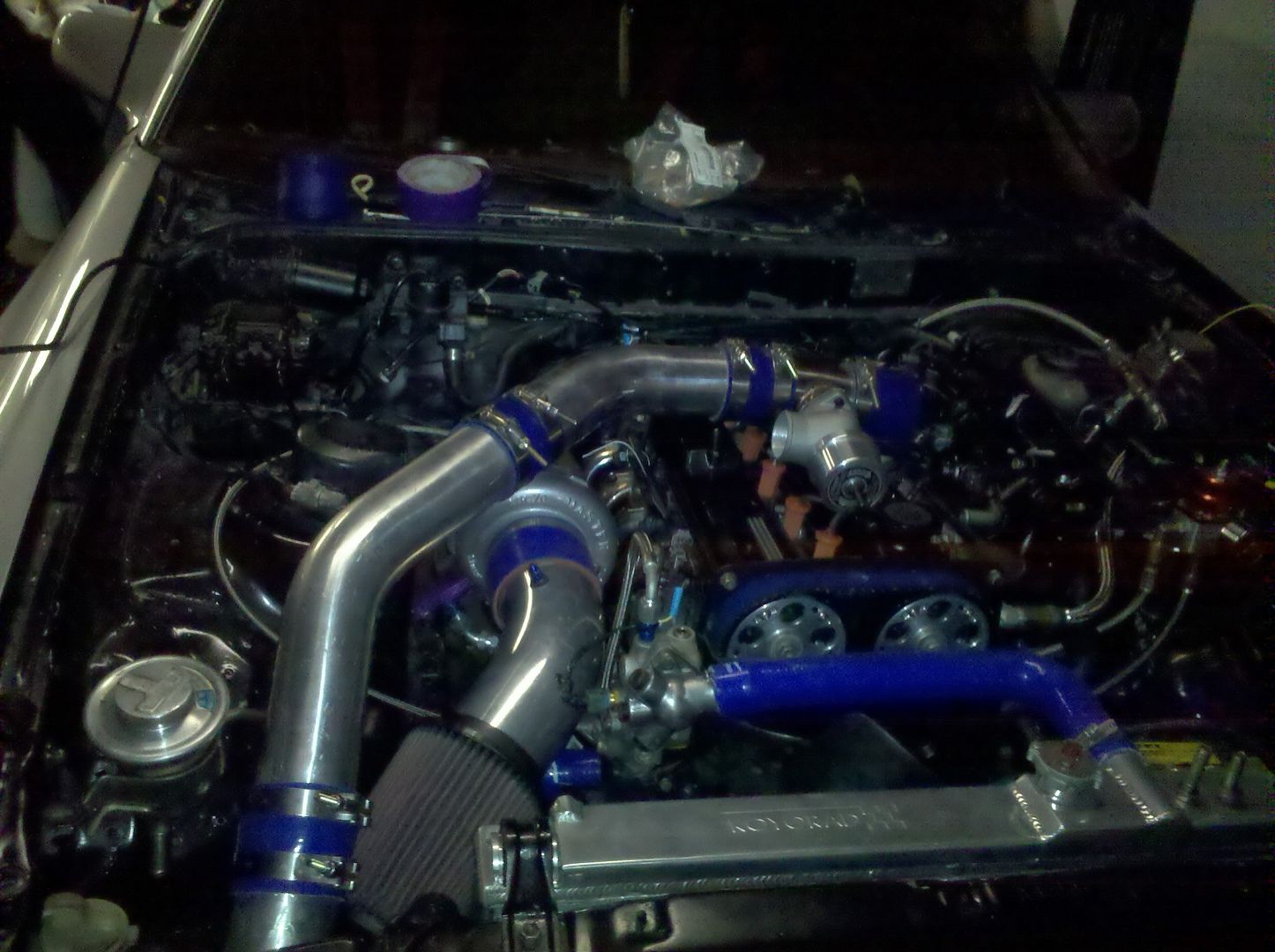

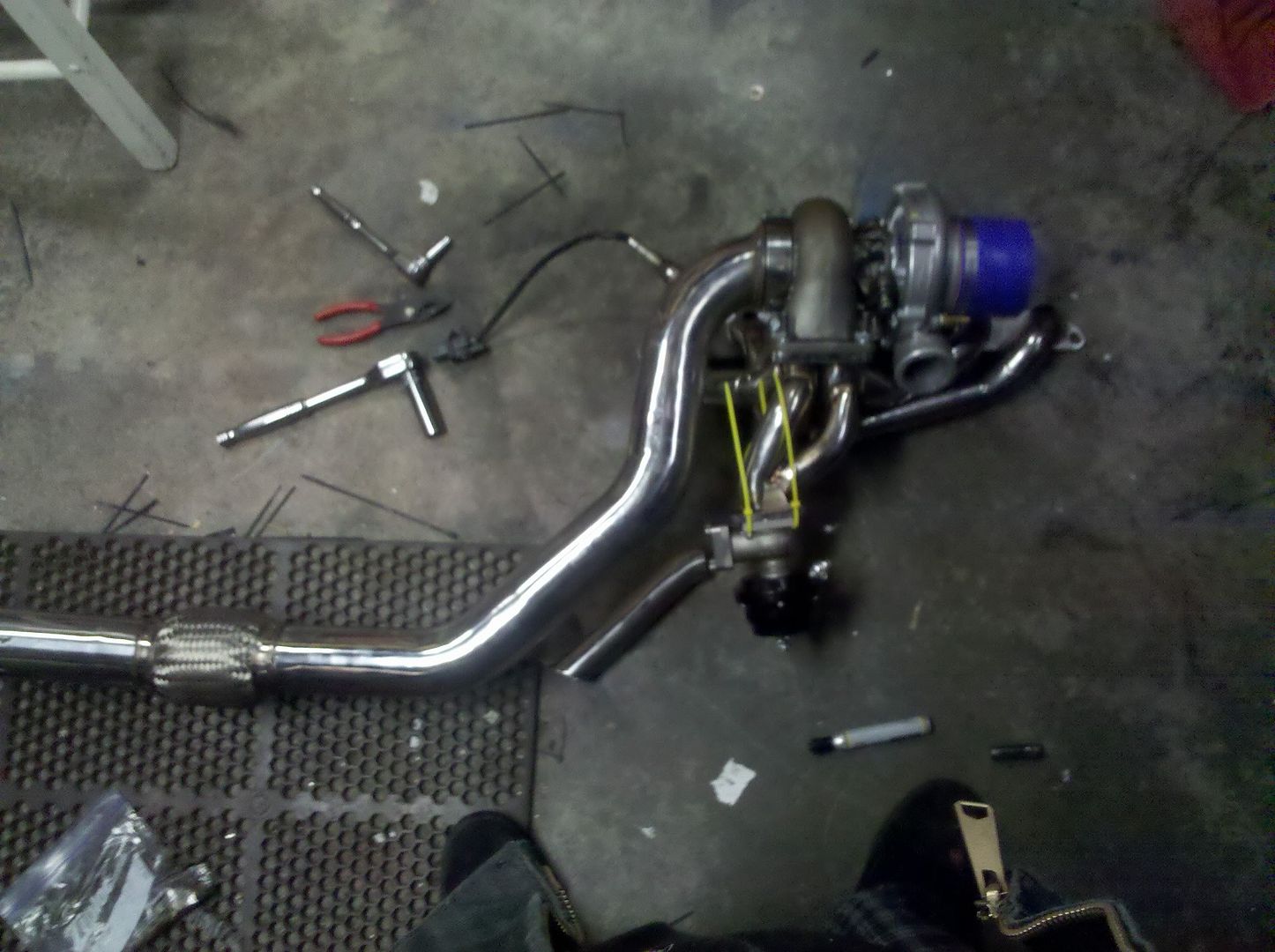

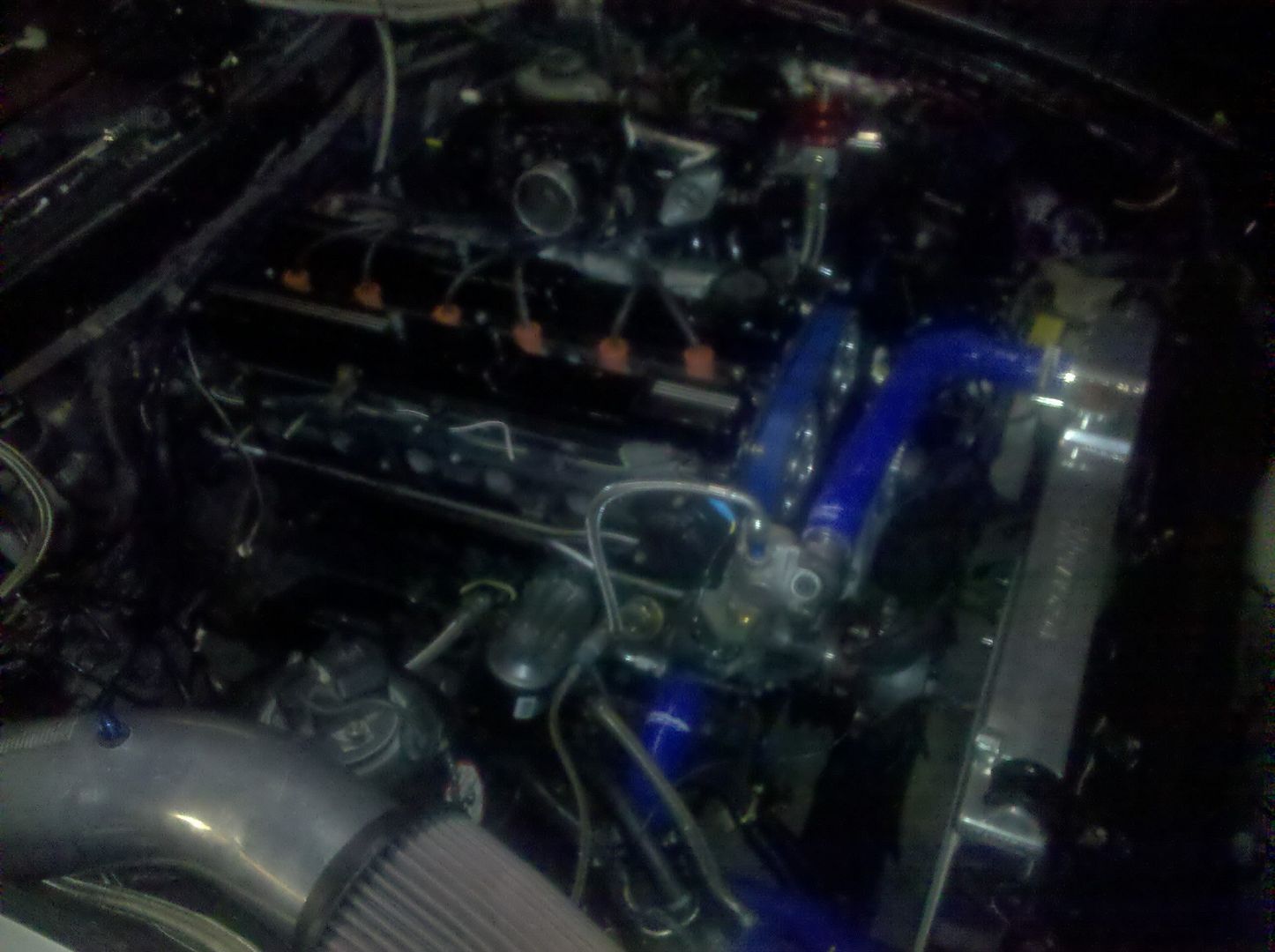

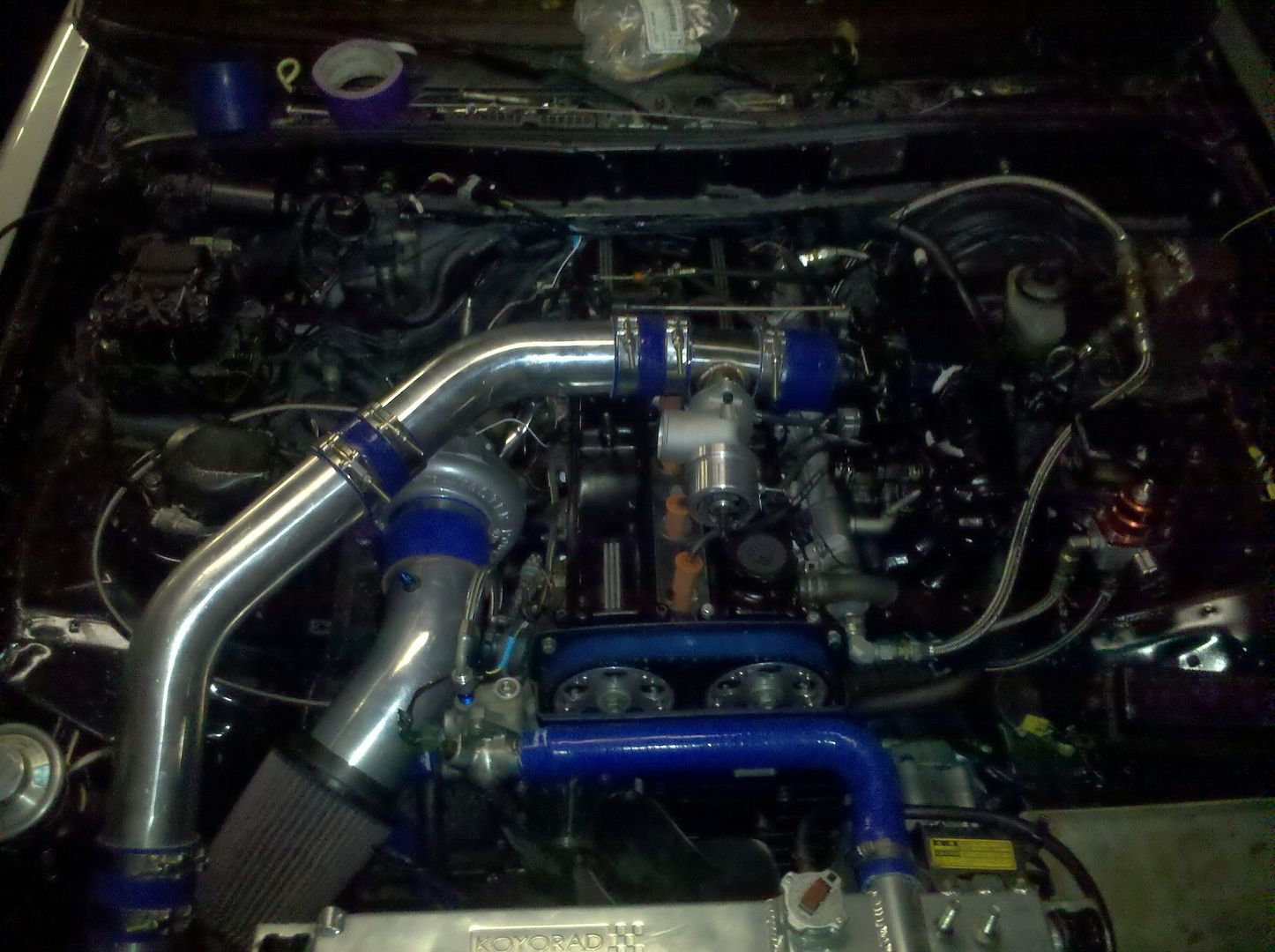

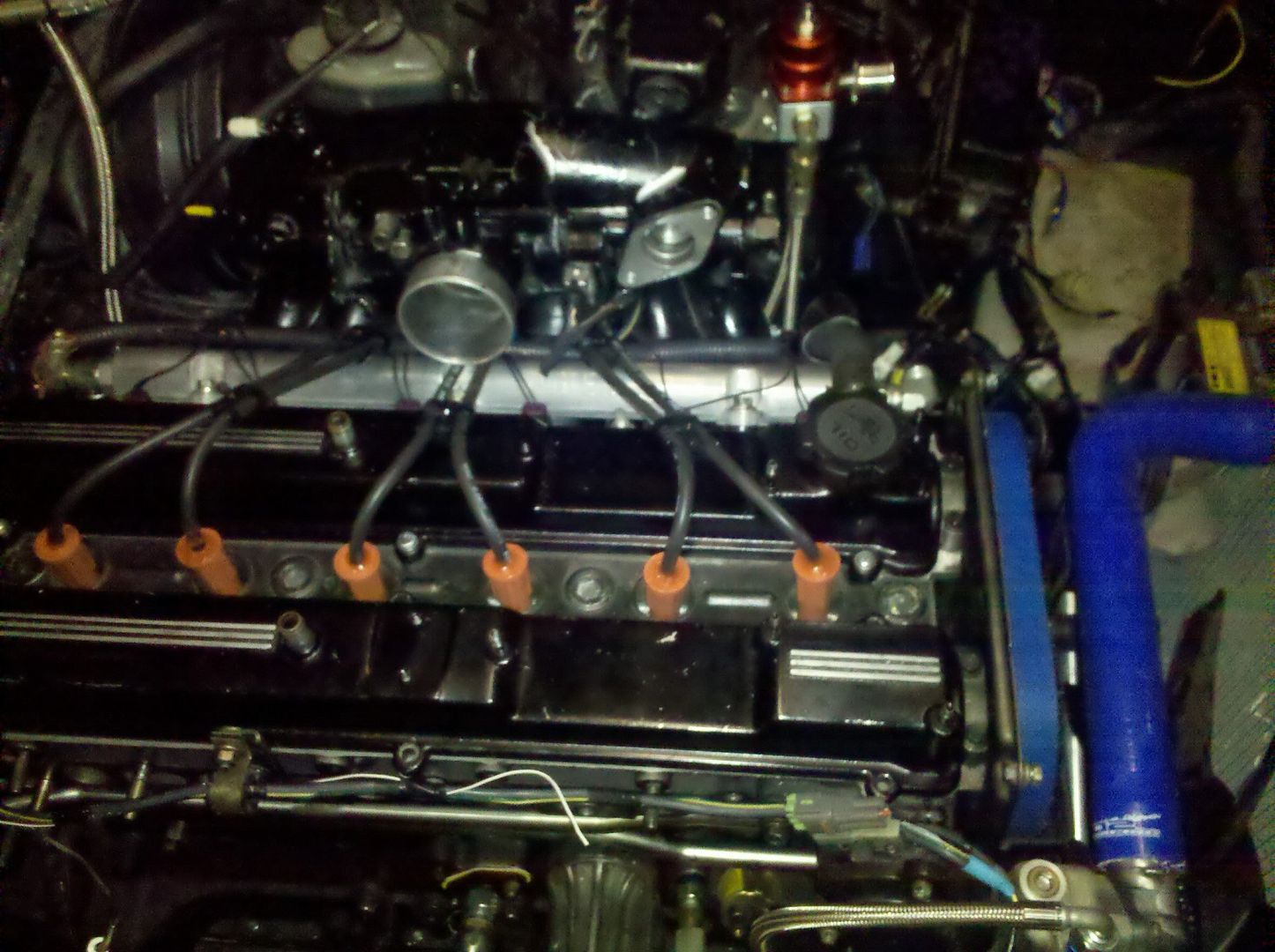

nothing special, got the harness fully connected now trying to make it work for the bay. had to mart some things out, find good spots for the grounds and what not, gonna start running power wires soon. also got my tial flange for the outlet, waiting for the inlet flange still. got the radiator and fan in, was working on the PS pump till i noticed i lost the super long bolt need length and thread if anyone knows it. heres the pictures



[bioskyline]

the bottom ps bolt??



[northwestsupra]

yup about 3-4 inch long bolt



[northwestsupra]

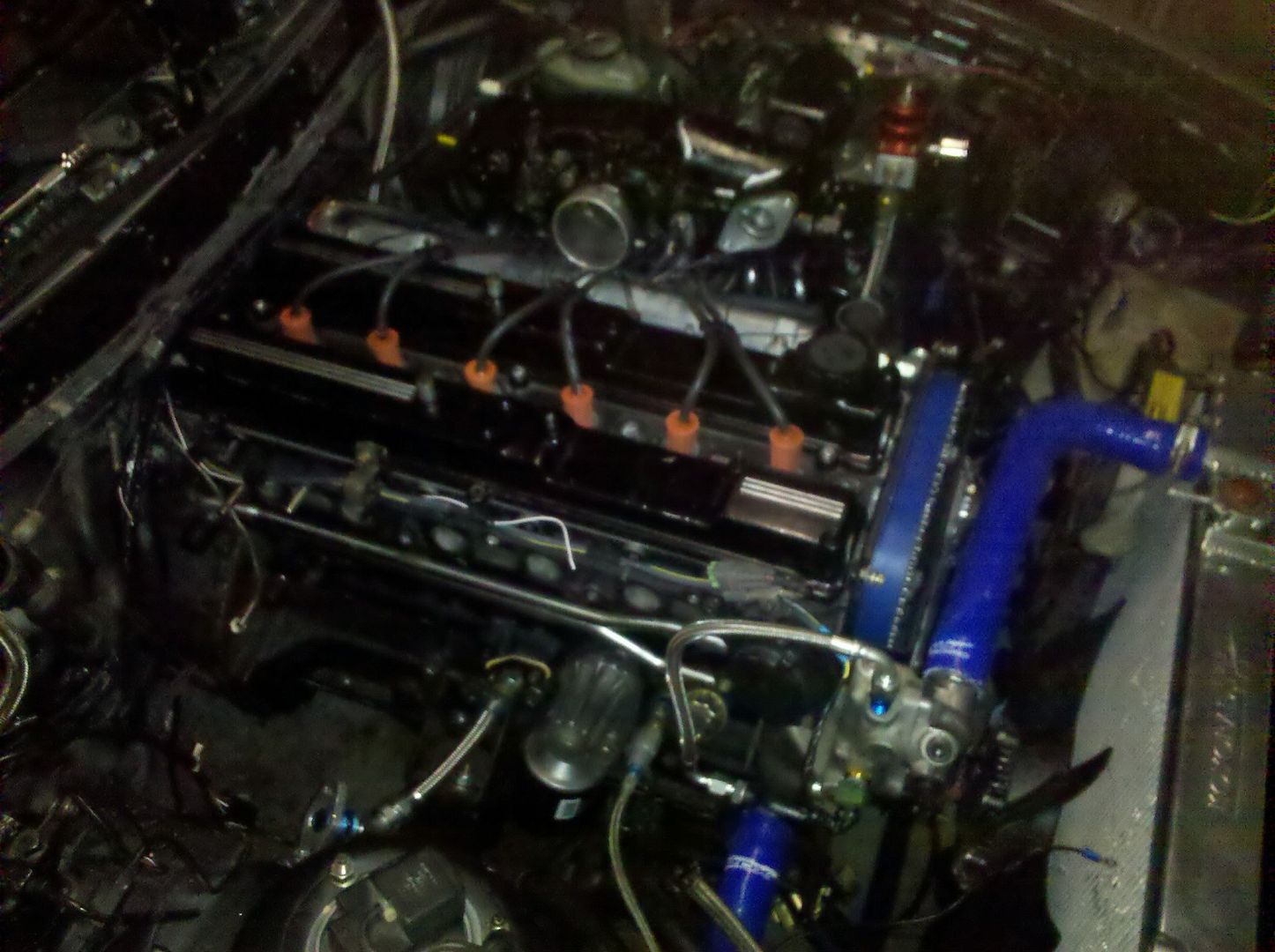

pics from yesterday



[thedave925]

I have been MIA for awhile, and its beautiful!!
Hope your check off list is going smooth!



[SURUKO]

Almost there my friend Keep it up



[northwestsupra]

My check off list is still pretty big. I'm doing as much as i can and plan to do some work on it a little bit later tonight



[northwestsupra]

lol here is my list of crap


Still need to get done
• Get turbo housing welded
• Get wastegate flange machined
• Fabricate lower fuel pump braket
•
•
•
Need to do
• Power steering pump mounted
o Need new long upper mounting bolt
• Tighten engine mounting nuts
o 55 Ft. Lbs
• Install front cross member
• Install rear cross member ground strap
• Connect fuel lines
• Install Throttle body Gasket
o TB torque 9 ft. lbs.
• Exhaust manifold
o Torque spec: 30 Ft. Lbs.
• Turbo
o Torque spec. 33 ft. lbs
• Install Starter
o Torque spec.
• Remove driveshaft center support bearing to install drive shaft
o Bearing Torque spec: 36 Ft. Lbs.
• Install Rear differential
o Drive shaft x differential: 51 Ft. Lbs.
o Body X differential
 Stud bolts: 58 Ft. Lbs.
 Nuts: 67 Ft. Lbs.
 Rear bolts: 67 Ft. Lbs.
 Front bolts: 122 Ft. Lbs
o Axle x Differential: 51 Ft. Lbs
• Tighten front seats
o Torque spec: 21 Ft. Lbs
•
•
Electrical
• Ground strap to the engine rear side “transmission”
• Alternator connector and wire
• Main relay connector
• Install backup light switch”transmission”
• Install rear speed sensor “transmission”
•
•
•
•
Stand alone
• Check LS2 coils settings
•
•
•
Hoses
• Heater Control hose
• Heater core Hoses “attached diagram”
• Brake booster
• Engine oil cooler hoses
• Figure out hose setup for power steering reservoir
•
•
•

Fluids
• Engine oil
o 5.1L 5.4Q
• Manual transmission fluid
o 3.0L 3.2Q
o API GL-4 or GL-5
o SAE 75W-90
• Power steering fluid
o 1,000 CC
o AFT Dexron II
• Brake Fluid
o SAE J1703 or FMVSS No. 116, DOT3
• Anti-freeze
o Anti-rust type Ethylene-glycol base coolant



[HKS_TRD]

Good to see I'm not the only one that writes lists!



[spencyg]

You could have knocked off 3/4 of those chores in the amount of time it took you to jot it all down!

Keep up the good work though...looking forward to the end result.

SG in NE



[northwestsupra]

well process is going slower than i hoped for
1. had no feedback from ls2 coils when i went to test them via vipec
2. injectors stopped working but after tinkering around i found out it was due to the update of firmware i had done.
3. its been just cold and crappy to work outside lol about 30-35 degrees,



[markcrazy9]

SO your staying with the stock rods and valves. and you want to run 500hp. Let me know if its still up and running . Would make me feel great about what i am about to do to my 7mgte. I plan on putting eagle rods ARP bolt kit, king rod bearings, and washers. just for the lower half. i bought engine with rebuilt valves and cams . etc.. Your engine looks great .



[markcrazy9]

ya ignor the last blog for some reason i thought the first page was the latest ...lol fool i am. anyway. are you still running stock valves after so many years.



[northwestsupra]

ya ignor the last blog for some reason i thought the first page was the latest ...lol fool i am. anyway. are you still running stock valves after so many years.

Yes I am. They are im great condition still. I honestly don't think stock valves will be an issue at 500. But id worry more about the springs first. But my car is yet to run. I was outta money for a long time. But now its slowly chugging along again



[northwestsupra]

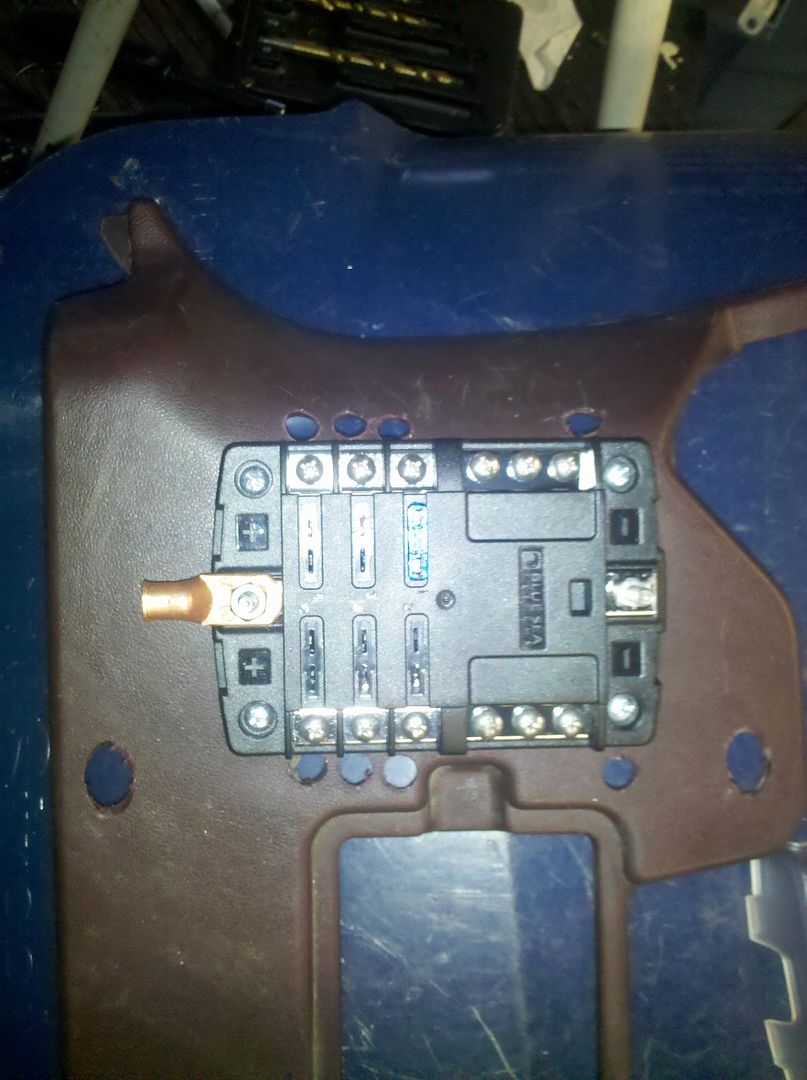

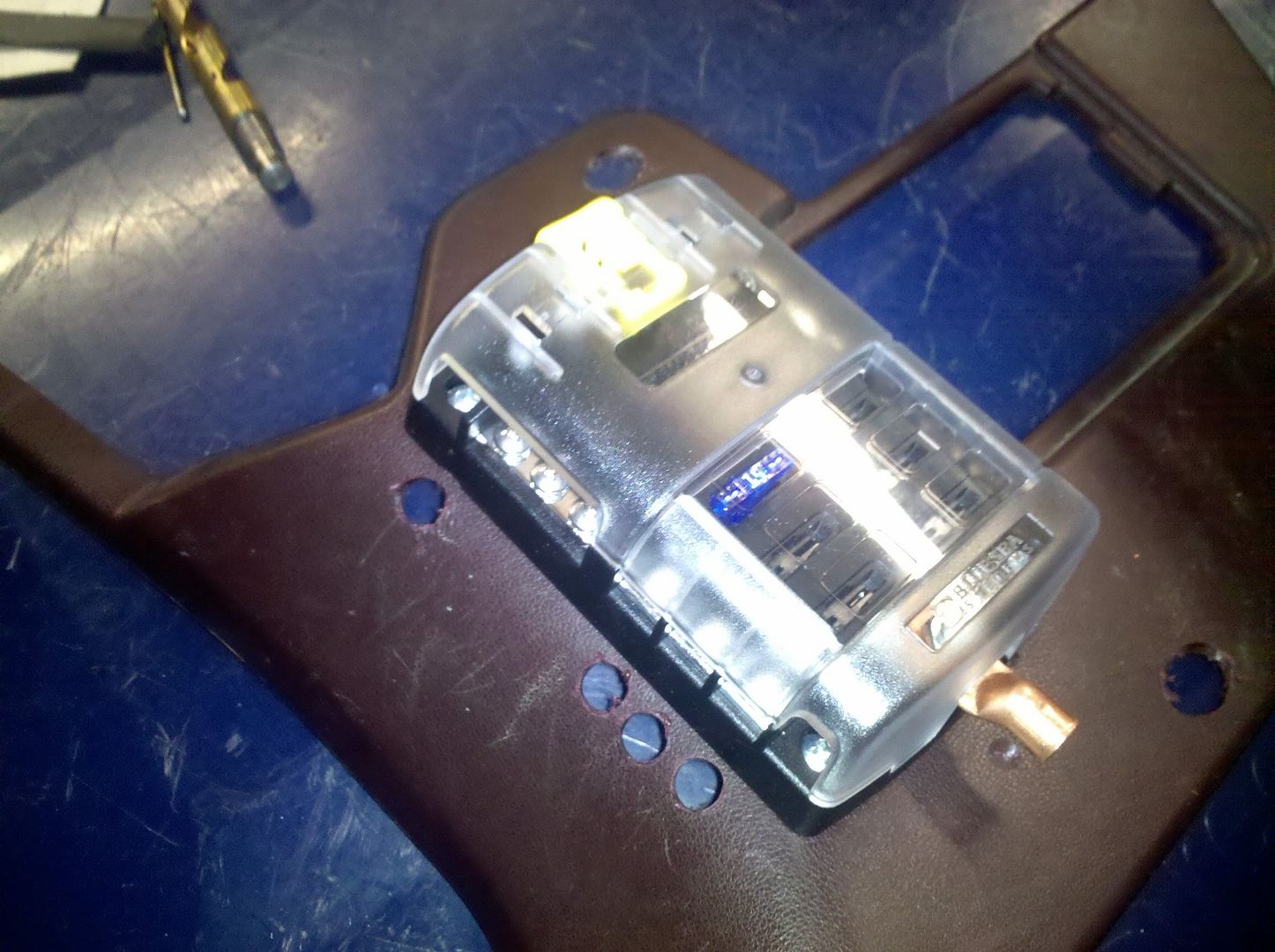

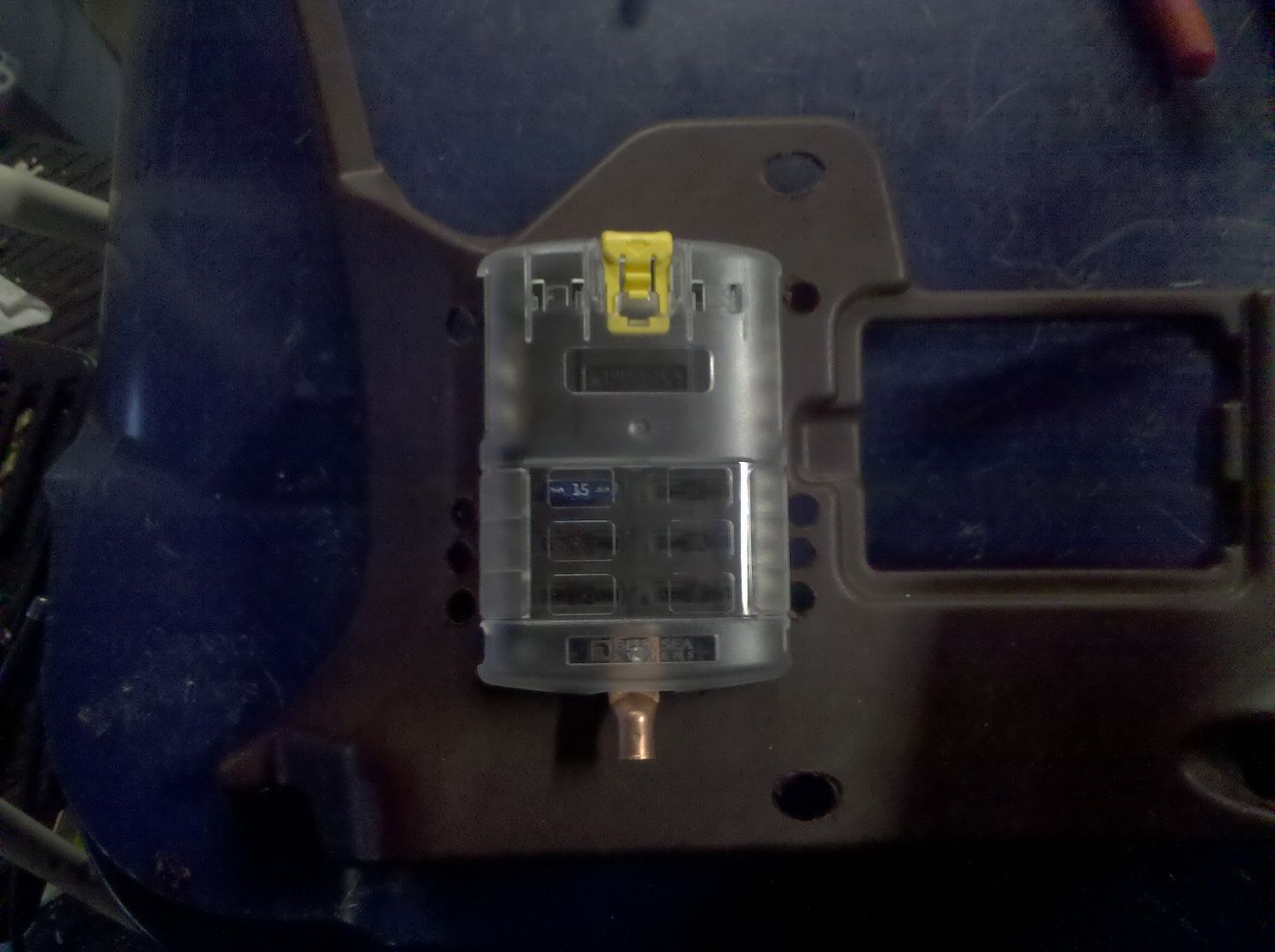

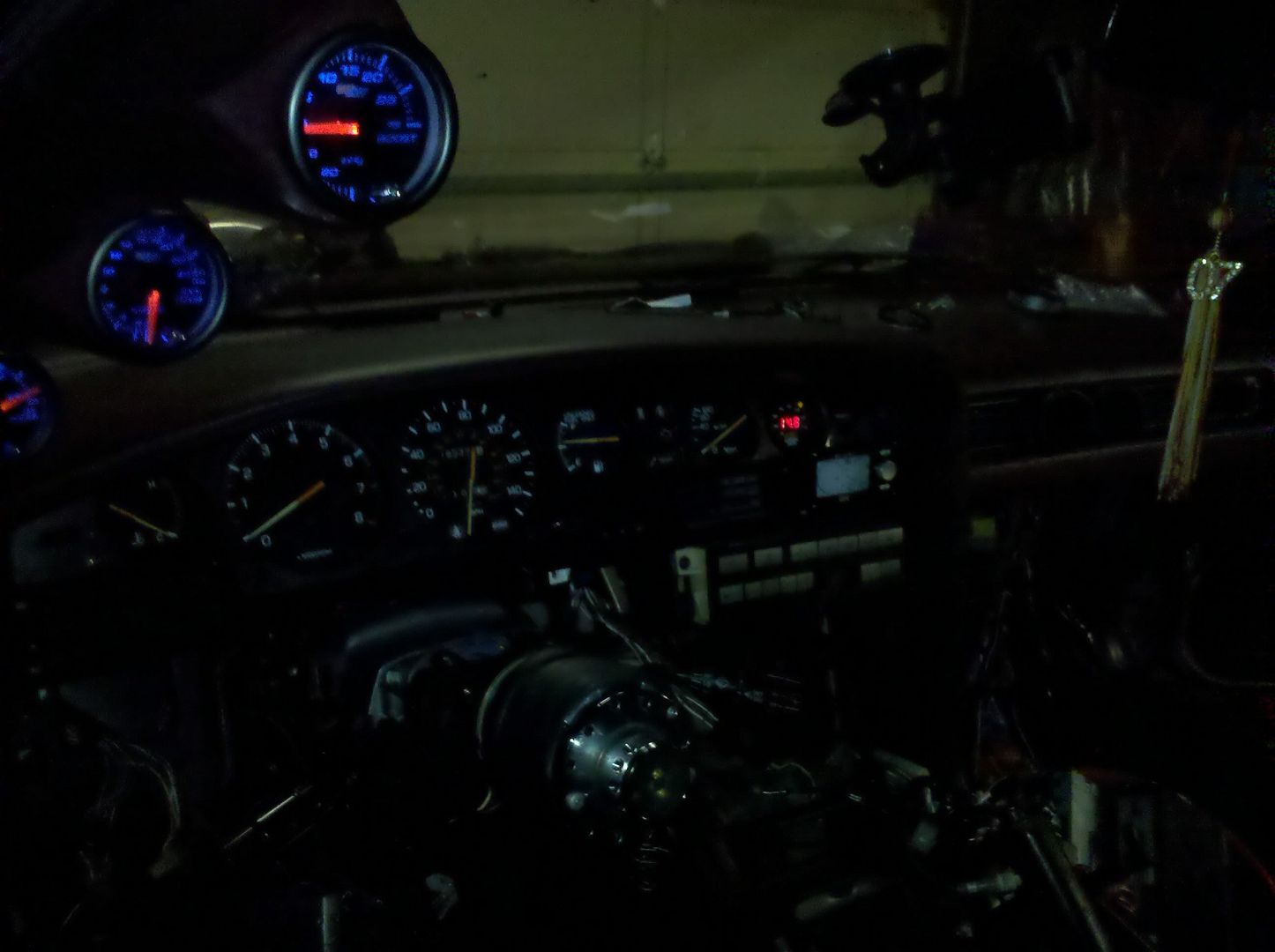

wiring wiring and more wiring ill put more pictures up tomorrow but so far what i've done i got myself a new fusebox just for the aftermarket crap, and I was able to get a couple of the circuits knocked out tonight. So far i have all my gauges/boost controller and turbo timer up and running.

ill also make sure to get a good picture of the AEM UEGO afr gauge in the stock boost gauge location

tomorrow my goal is to have my relays wired up for my fuel pump/ injectors and ignition coils, wire in the circuits for those plus the stand alone's power. Saturday I will run down to NAPA and get a key'd battery switch which i shall secretly hide



[mytmk3]

interested to see how this comes along same turbo, brand wastegate and recently found out pretty much the same ecu Vipec-Link ive got cams but you have a shitload more fuel than me interested to compare power/torque at what psi ect keep it coming
