We'll see how far it gets me . I have timing control wired in, so it's about as close as I can get to a standalone for now.



[CarlosPTR210]

any up date



[CarlosPTR210]

any up date :biglaugh:



[arknotts]

Engine is back from the machine shop! I've just been super busy with some other stuff in addition to prepping everything for assembly. Pictures to come soon!



[CarlosPTR210]

Engine is back from the machine shop! I've just been super busy with some other stuff in addition to prepping everything for assembly. Pictures to come soon!



[arknotts]

I have a LOT of catching up to do in this thread. I've been busy, but lazy about updating this thread.

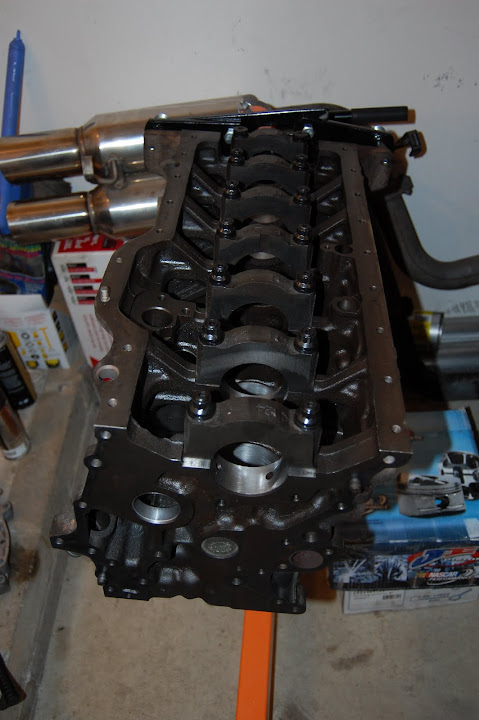

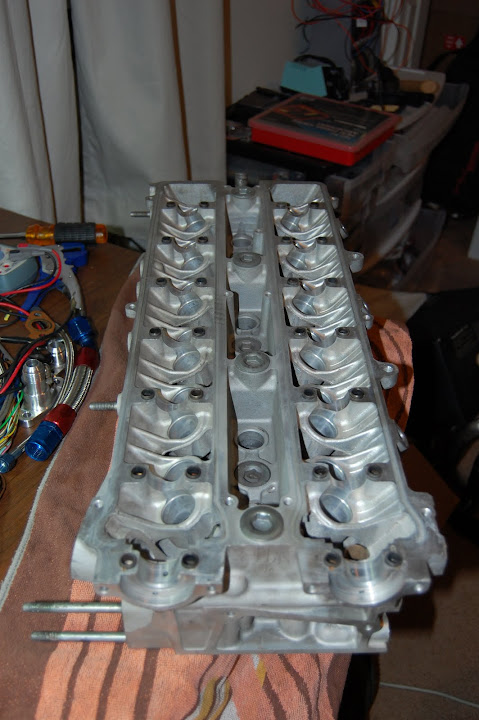

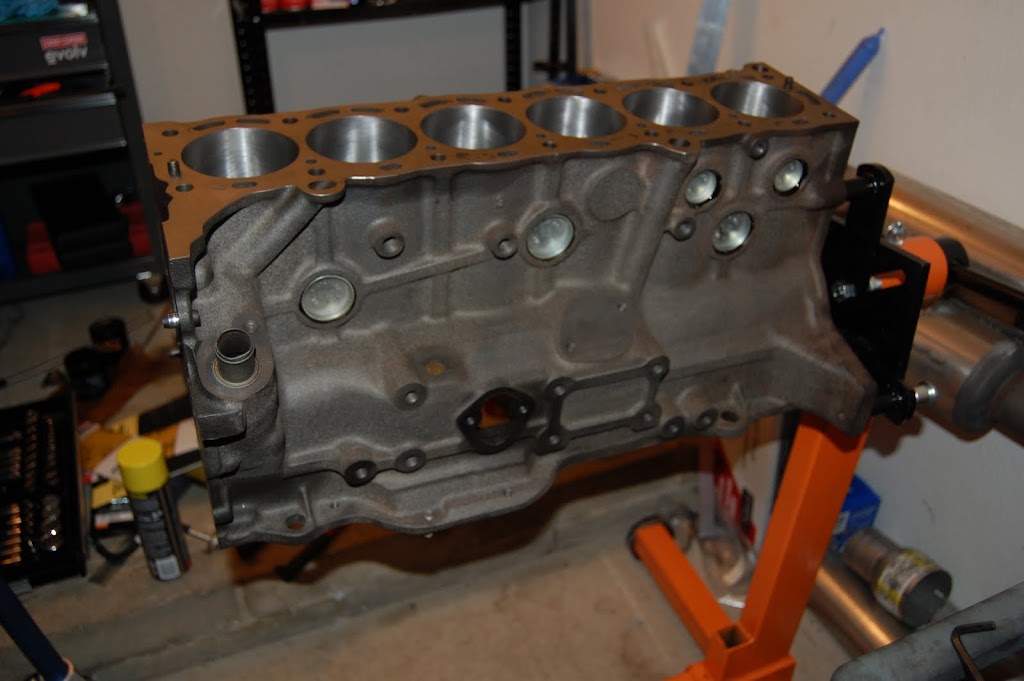

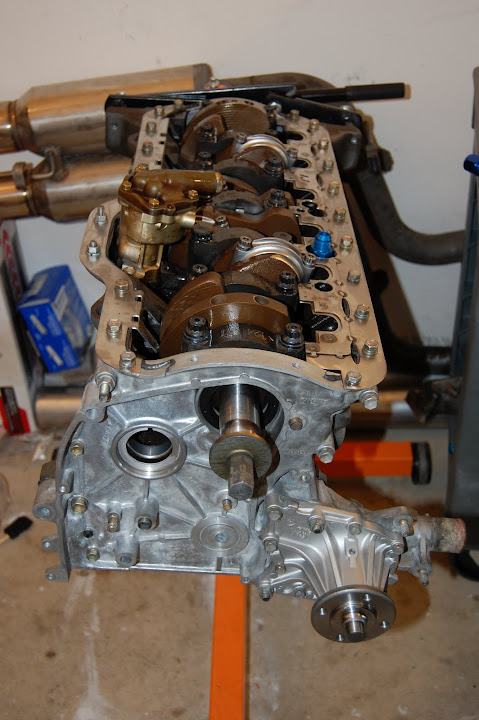

Block, head, and flywheel back from the machine shop:

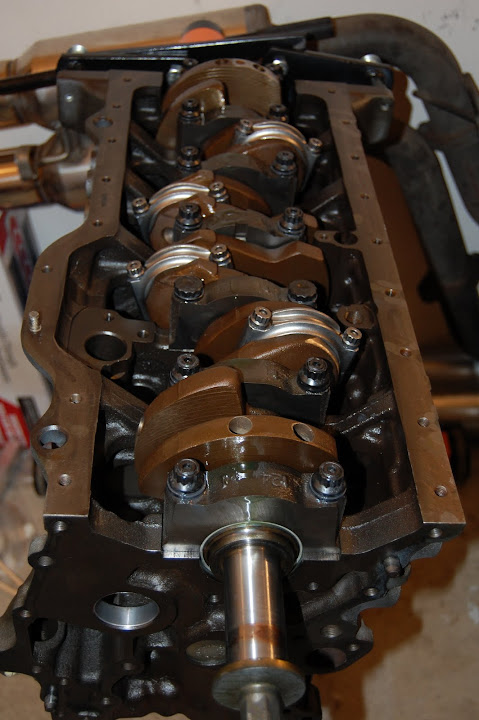

Bottom end assembly:

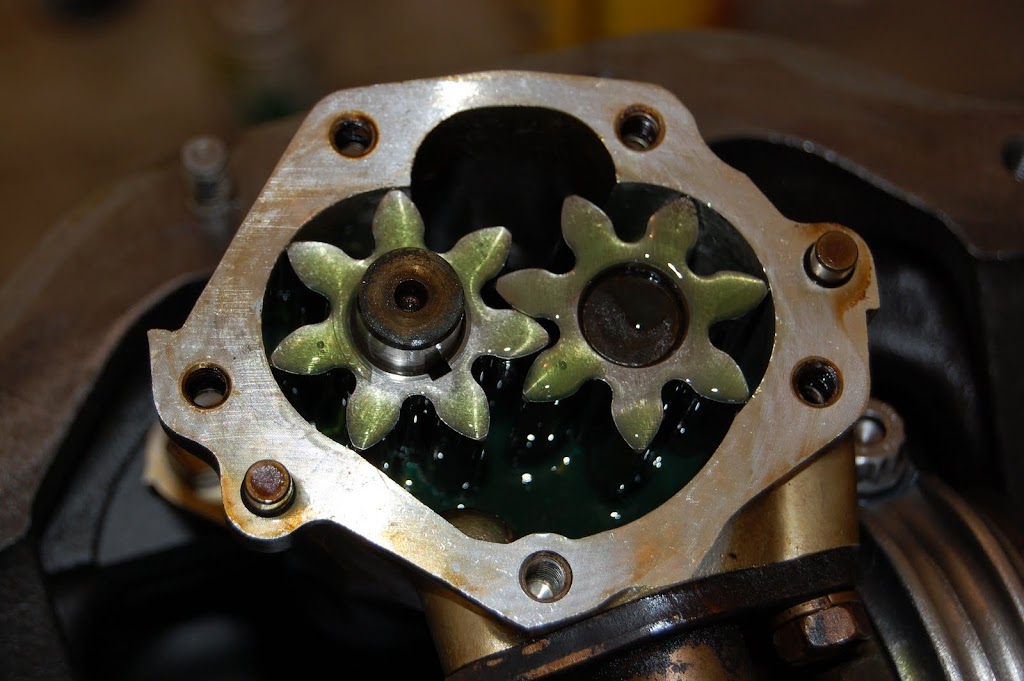

Oil pump primed with assembly lube:

Larger bearing clearances per request (going to run thicker oil):

Pistons, rings, and rods assembled:

These snap rings are a PAIN to install. Fingers hurt for days afterwards:



[arknotts]

Oil squirters installed with new bolts:

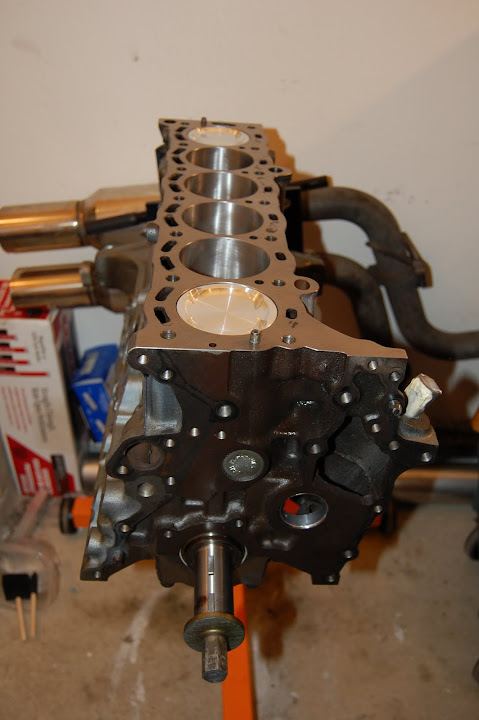

Pistons and rods installed in the block:

Oil pump, and crank scraper clearanced and installed:

VERY little clearance here. Made it fit with some massaging though:

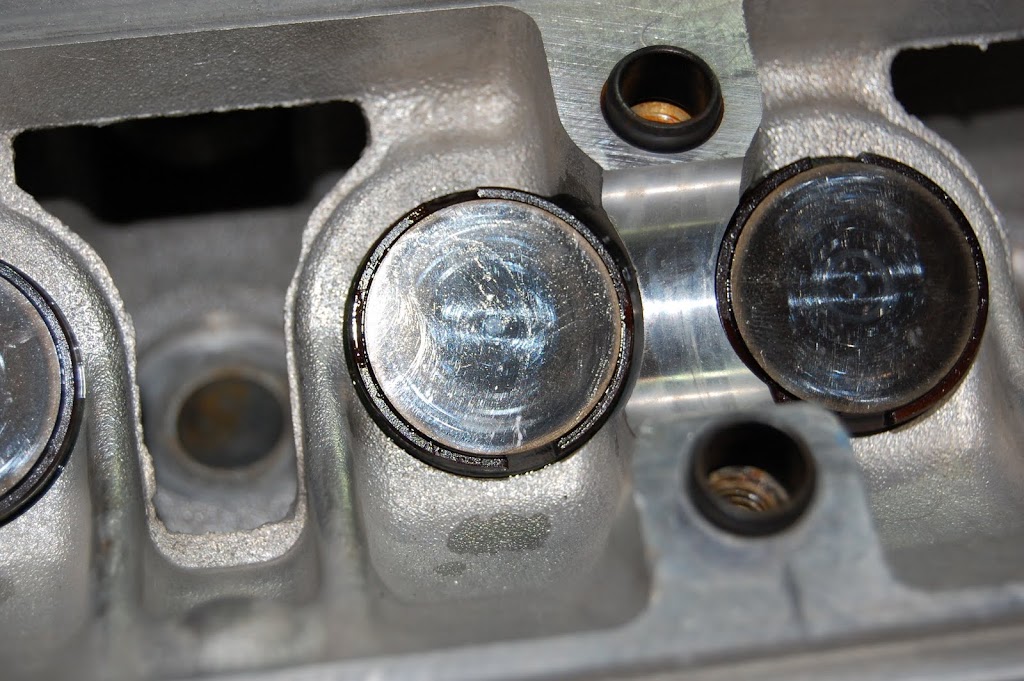

All valves adjusted:



[arknotts]

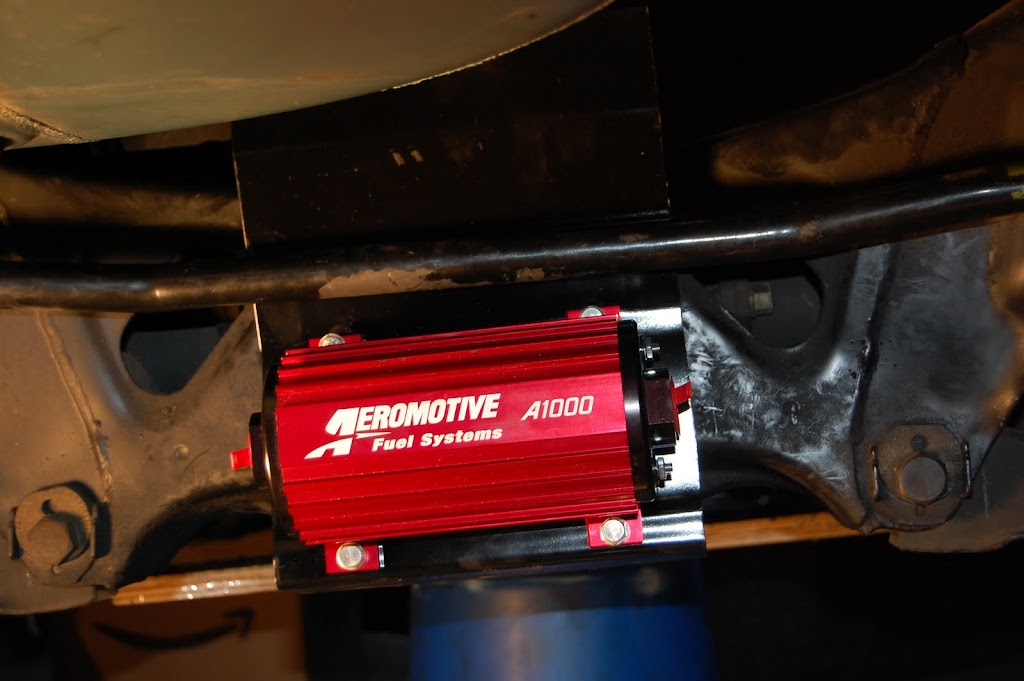

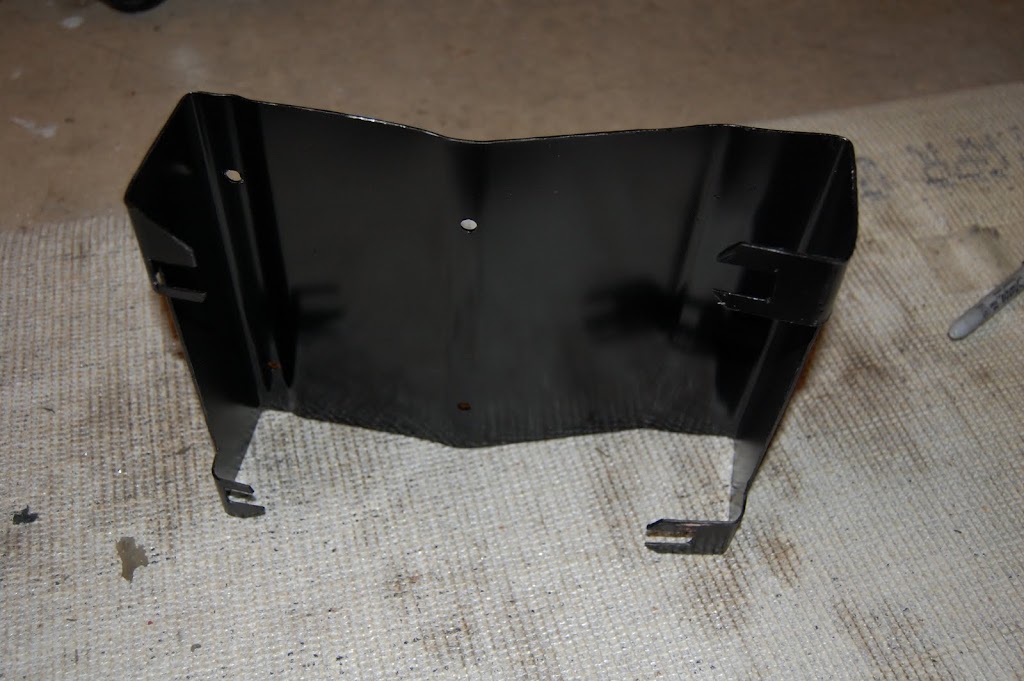

Custom bracket for Aeromotive A1000 (thanks to Gurley for the idea):

Crank bolt turned down to fit the ATI damper:

Getting closer...

Intake manifold and fuel rail installed:

Turbo is on!

Finished product:



[arknotts]

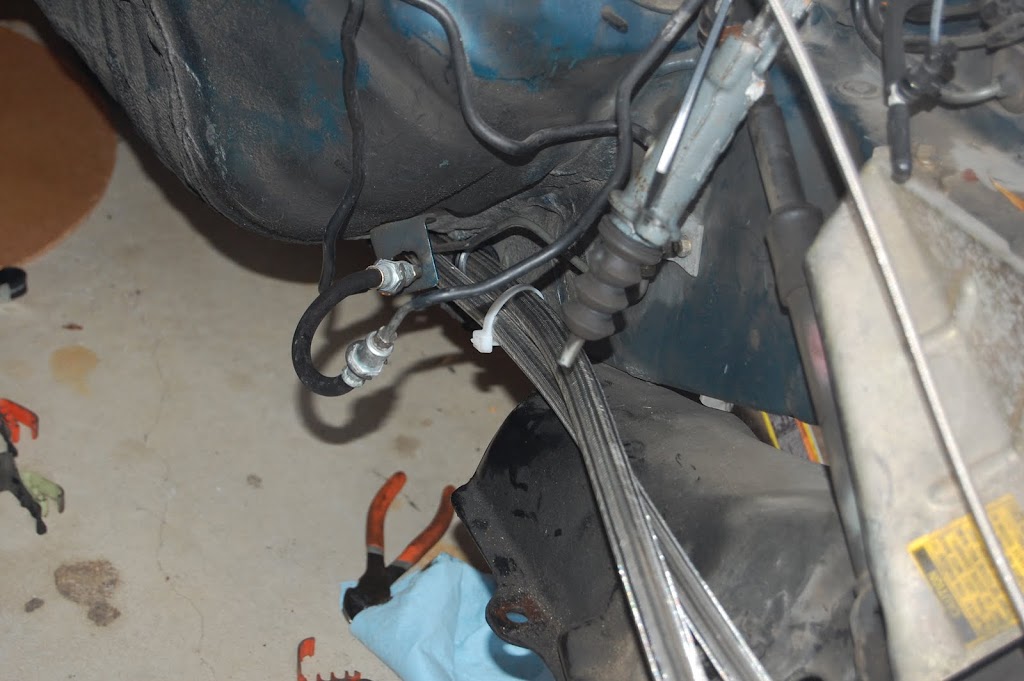

Getting the fuel system wired up:

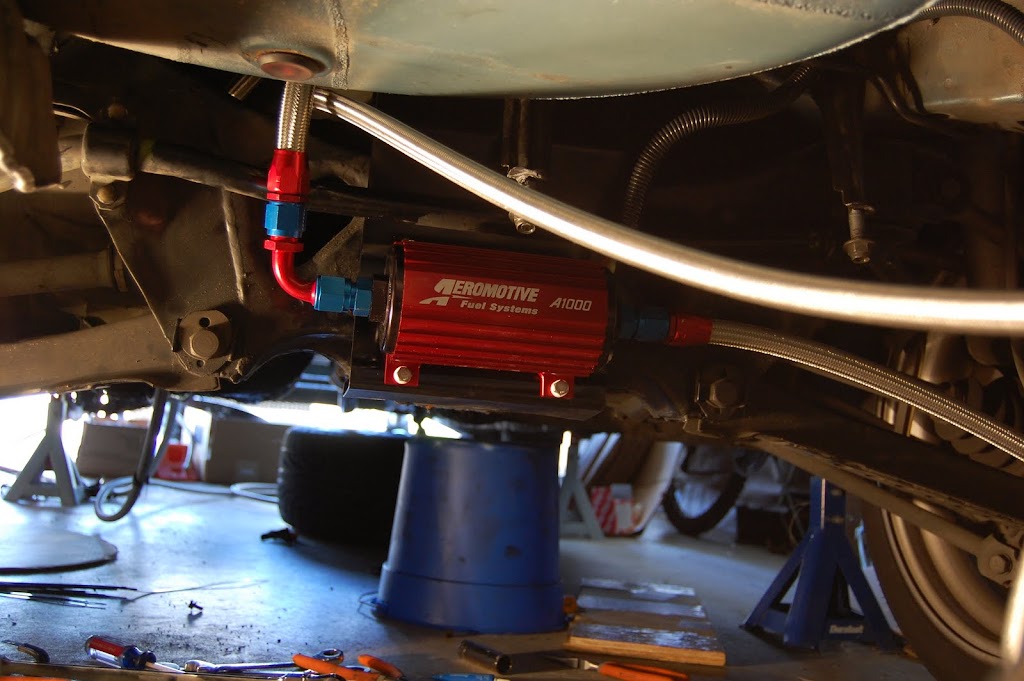

-10 AN for the feed, -8 AN return:



[arknotts]

The bay is painted! Not bad for my first time spraying with an HVLP gun (if I do say so myself ):

Sanded:

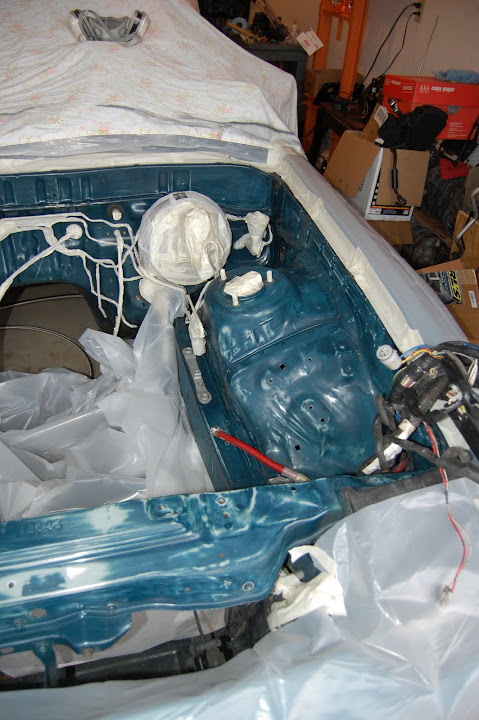

Primed:

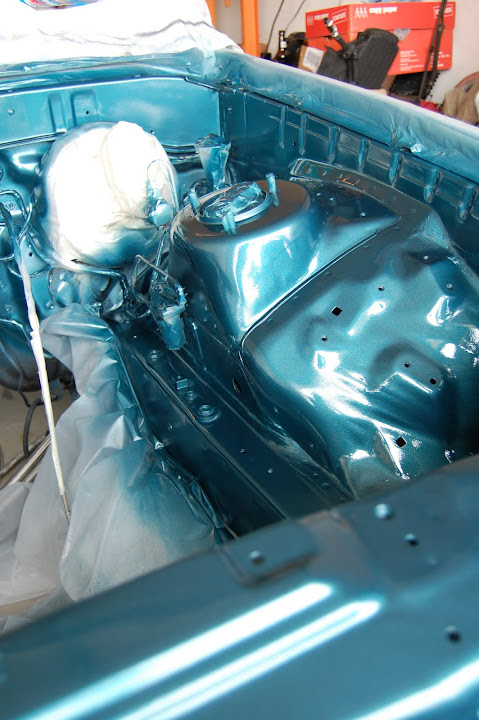

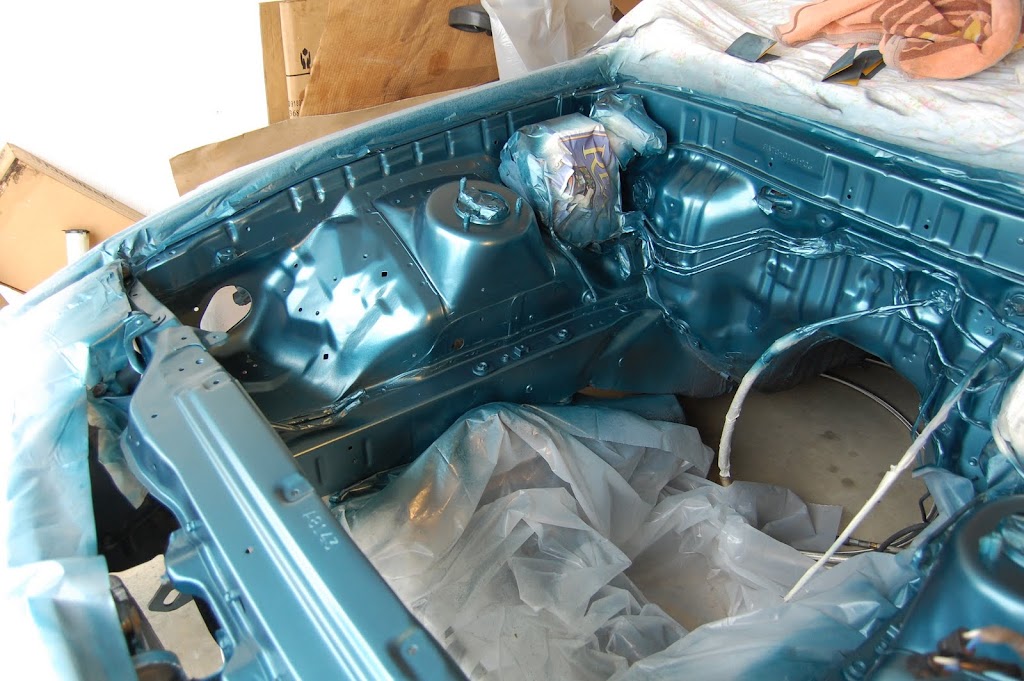

Laying down the base coat:

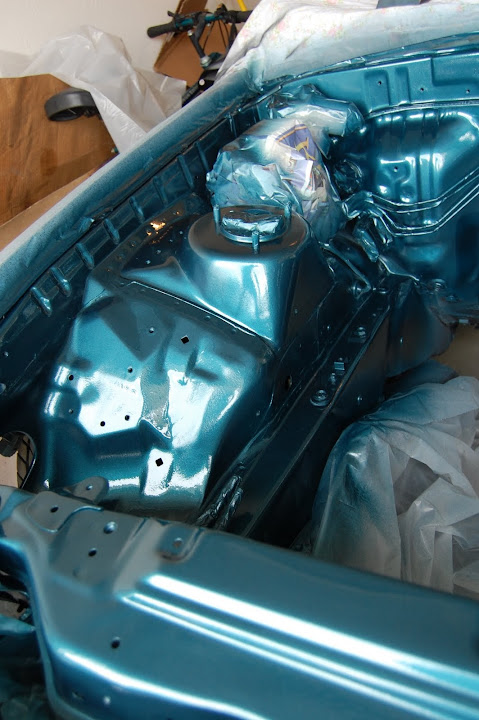

...and after the clear coat!



[gurley0916]

Awesome job!! Too bad we didnt live closer I feel like our teals would look good in a photoshoot together.



[7mLove]

wow super jelous this thing looks phenominal...



[MK3FISH]

I am doing a 91 build so its nice to see a clean build like this! nice job so far!



[arknotts]

Awesome job!! Too bad we didnt live closer I feel like our teals would look good in a photoshoot together.

For sure! Who knows, maybe I'll make it out west someday . Thanks for the compliments guys! Hope to have it dropped in either this weekend or next.



[arknotts]

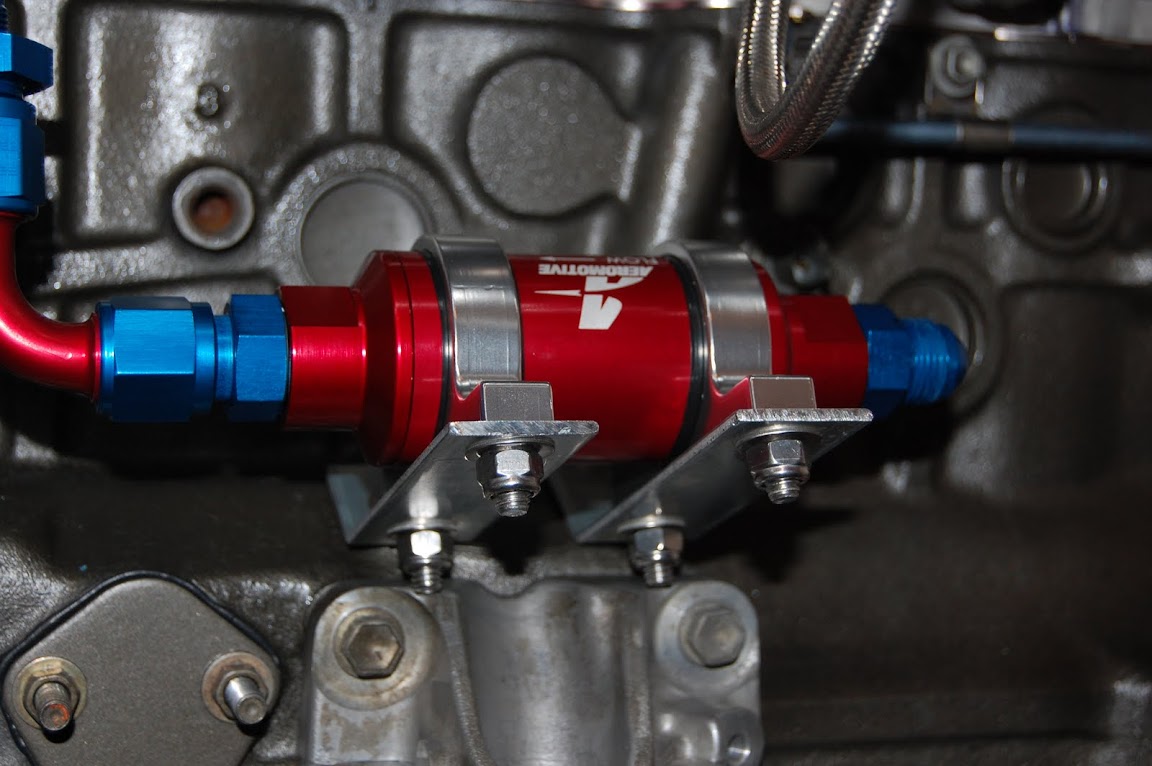

Custom mount for the fuel filter:

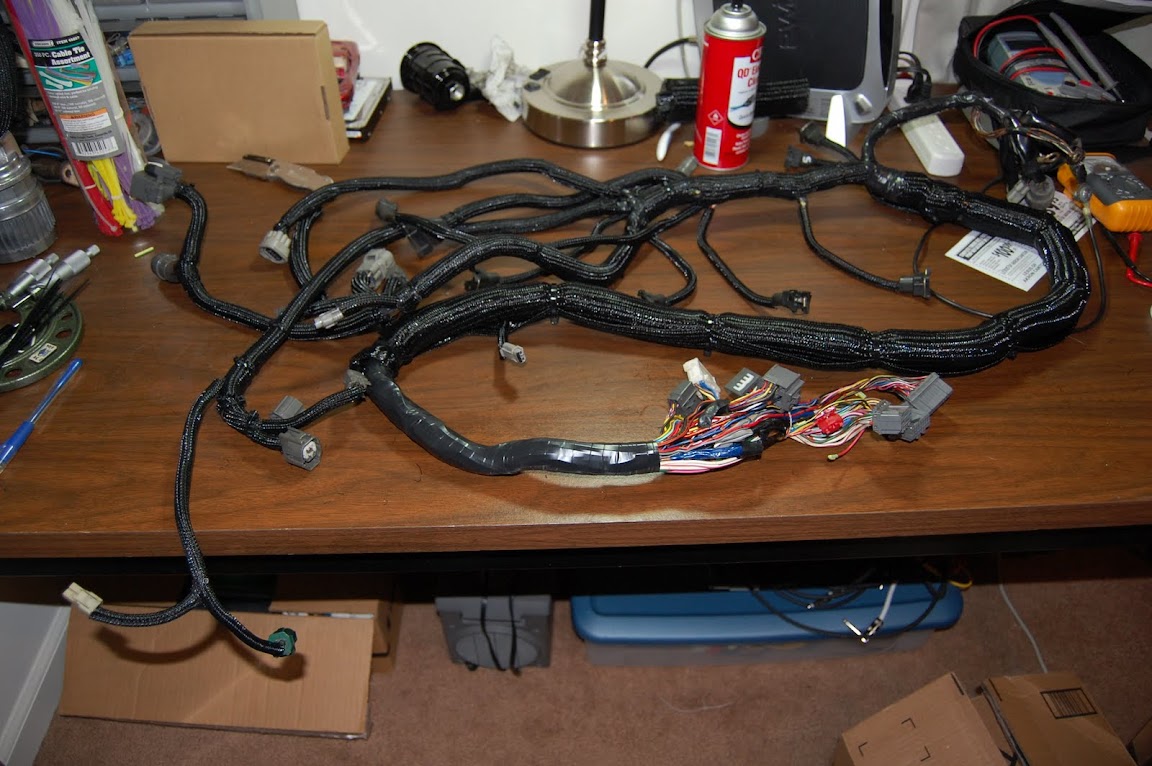

Wiring harness finished (it was fully stripped down, cleaned up and stripped out things not being used like the VSVs, EGR, A/C temp sensor, etc):
