Yes, the Lex meter input can be arbitrarily scaled. The routines for reading that meter are complex, so I have not unraveled the whole computation process, but plan to keep working on it.
There is a lot to do before this could be considered ready for general use. The software, in particular, needs a lot of work to make it do what it needs to.
There is a lot to do before this could be considered ready for general use. The software, in particular, needs a lot of work to make it do what it needs to.
To bad this isn't 1988 when HKS decided they would just scale the input signal and charge like they gave you an ECU that is programmed.
3p141592654;1676224 said:
this is more a curiosity than anything but what is the likelihood of being able to convert to speed density?
Yup, I should have a video soon. It is finally running properly. Had some issues with the G1/G2 signals , and how we implemented their detection in the FPGA causing an intermittent miss. All sorted out now.

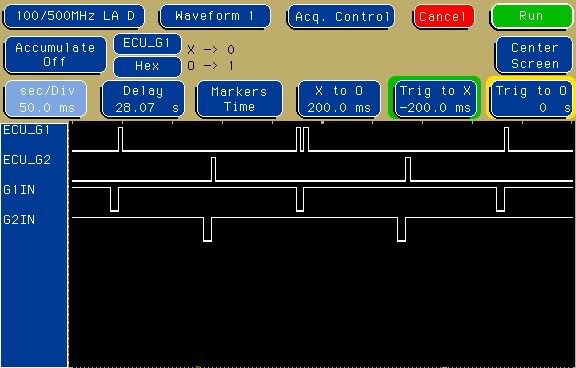

This shows the issue, every so often we would latch the G1 or G2 signal twice in a row, both edges, causing the cranksector variable to be reset and a slight miss. I believe something similar happens to other people who experience a random miss at idle, but their problem is more likely a weak CPS signal.
This shows the issue, every so often we would latch the G1 or G2 signal twice in a row, both edges, causing the cranksector variable to be reset and a slight miss. I believe something similar happens to other people who experience a random miss at idle, but their problem is more likely a weak CPS signal.
