only tried testing cylinders 1&4 paired, and not getting any response hrmmmmmm. i got ray over at the vipec forums trying to help me with this issue.

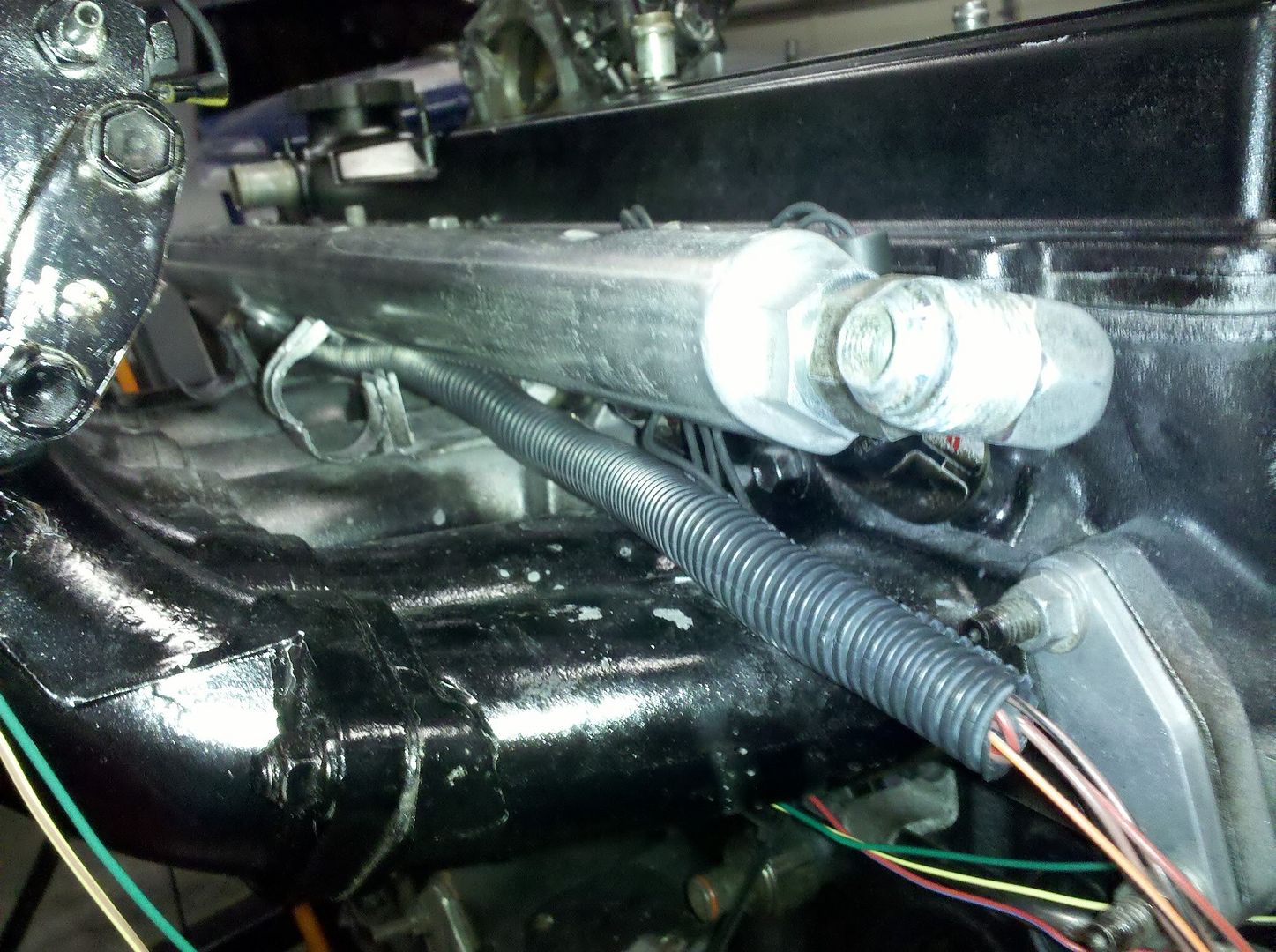

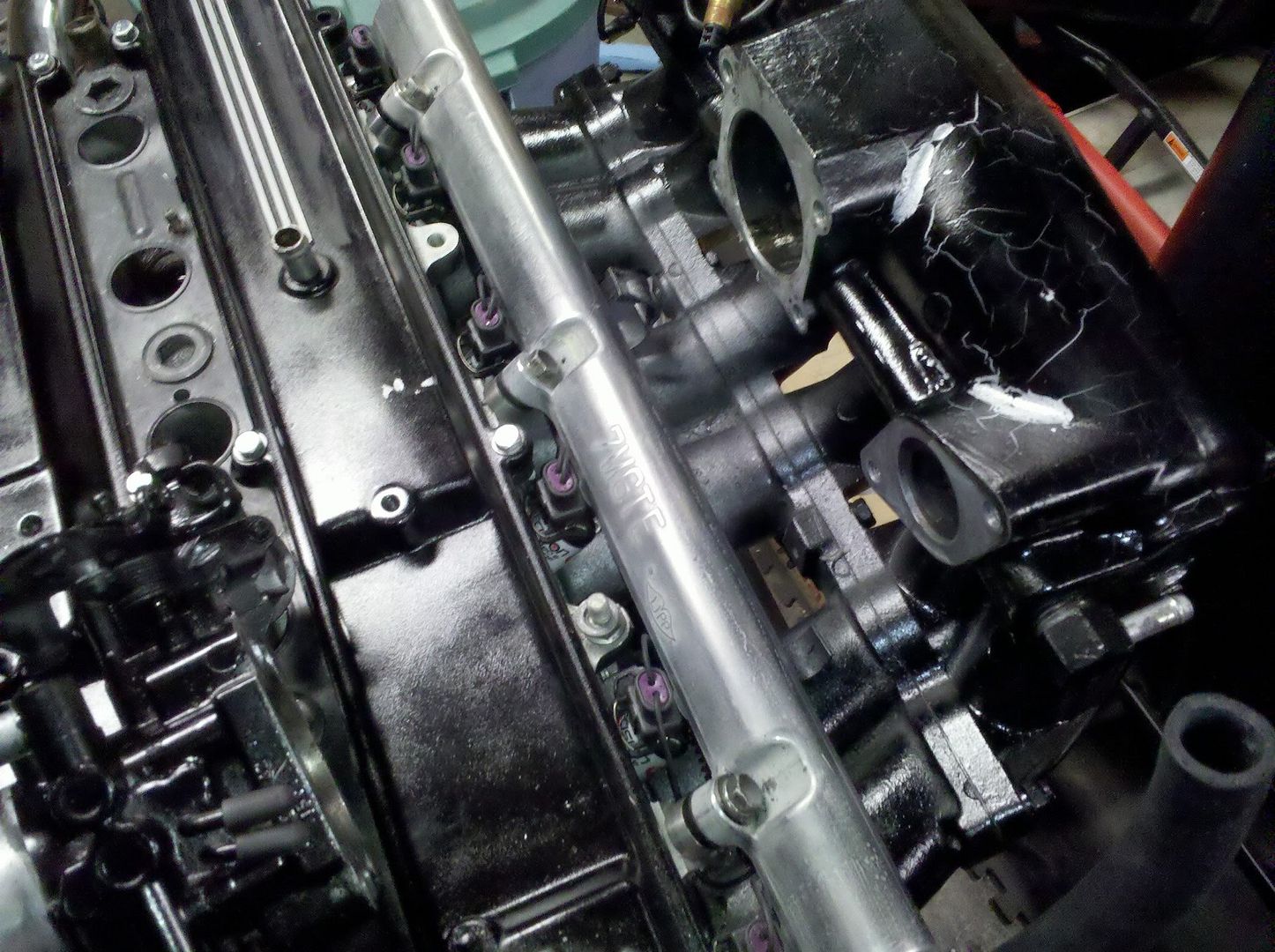

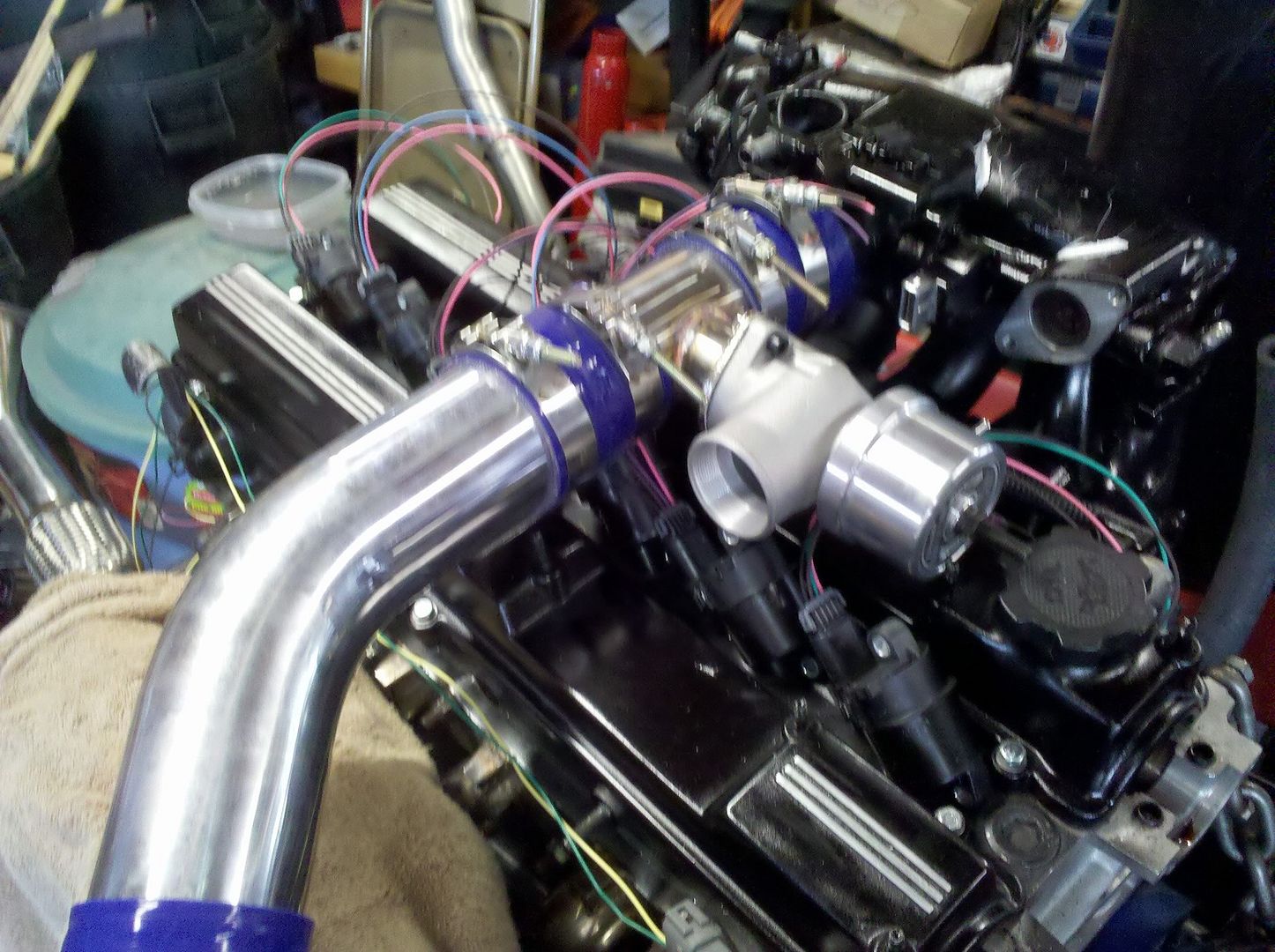

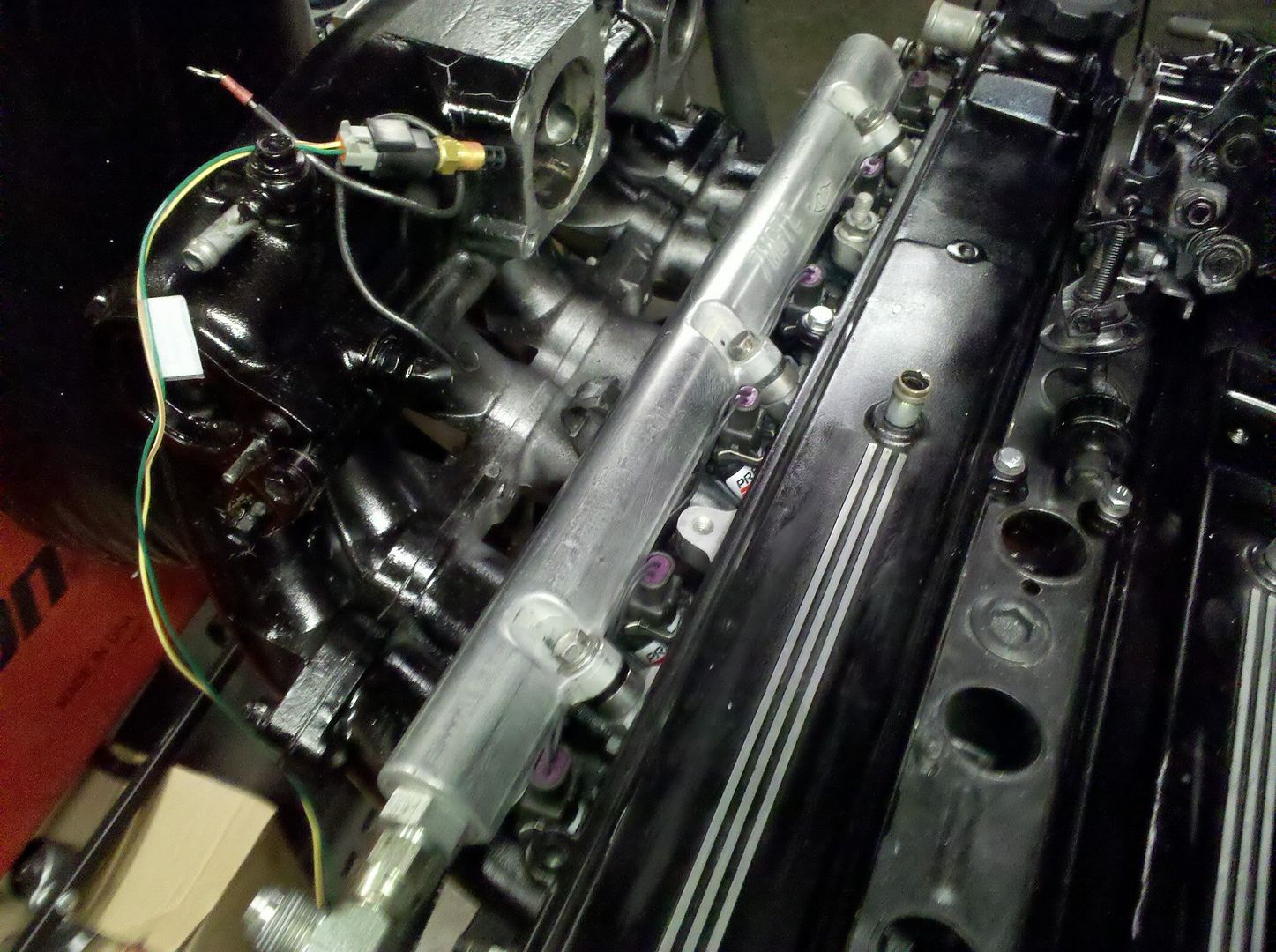

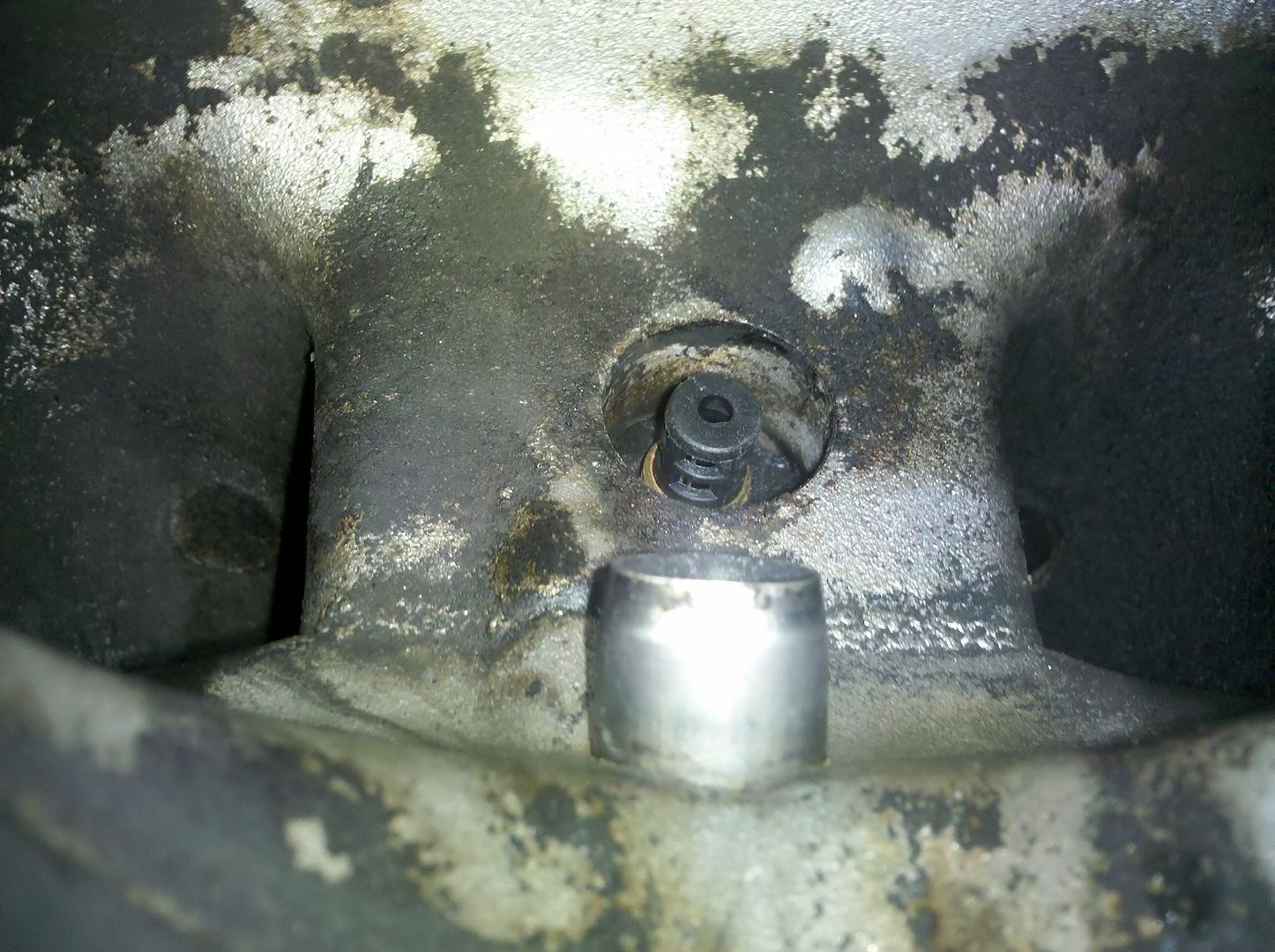

pictures of the injector side of wiring
almost like there wasnt anything there.
ignore the paint on the intake, it was a bad paint over on my part, didnt take the time like i did on the valve covers to strip off the old paint and now it was 2 different types of paints mixed so it started to crack and bubble grrrr.
almost like there wasnt anything there.
ignore the paint on the intake, it was a bad paint over on my part, didnt take the time like i did on the valve covers to strip off the old paint and now it was 2 different types of paints mixed so it started to crack and bubble grrrr.
more parts are ordered

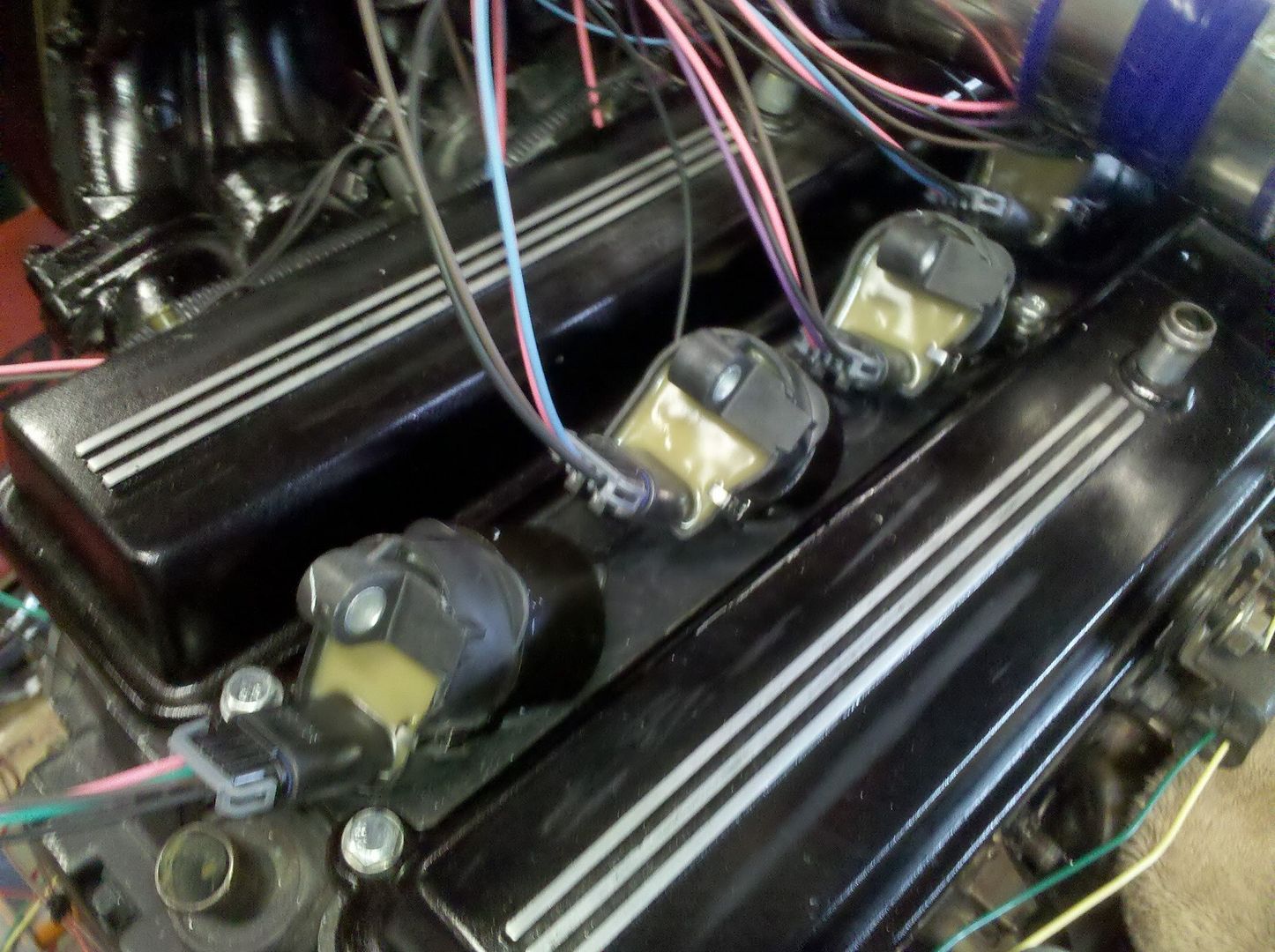

lsx coils
harness
and lots of wire sleeving.
prices:
x8 lsx coils =$150.00 USD
x6 lsx pig tails =$53.25 USD
wire sleeves =$14.67 USD
total = $217.92 USD
not bad for all the above. wire sleeves i found are used for computer wiring but its the same as what i was looking for. plus intstead of just 1 size of wire sleeve it comes with a huge variety of sizes in great lengths. gonna be a nice looking engine harness now when im done with it
links for what i ordered
http://cgi.ebay.com/ws/eBayISAPI.dll?ViewItem&item=350171455039
http://cgi.ebay.com/ebaymotors/ws/eBayISAPI.dll?ViewItem&item=260354952934
http://cgi.ebay.com/ebaymotors/ws/eBayISAPI.dll?ViewItem&item=160438406216
lsx coils
harness
and lots of wire sleeving.
prices:
x8 lsx coils =$150.00 USD
x6 lsx pig tails =$53.25 USD
wire sleeves =$14.67 USD
total = $217.92 USD
not bad for all the above. wire sleeves i found are used for computer wiring but its the same as what i was looking for. plus intstead of just 1 size of wire sleeve it comes with a huge variety of sizes in great lengths. gonna be a nice looking engine harness now when im done with it
links for what i ordered
http://cgi.ebay.com/ws/eBayISAPI.dll?ViewItem&item=350171455039
http://cgi.ebay.com/ebaymotors/ws/eBayISAPI.dll?ViewItem&item=260354952934
http://cgi.ebay.com/ebaymotors/ws/eBayISAPI.dll?ViewItem&item=160438406216
not really, mainly still waiting on the coils to arrive, im expecting it to be monday. once i get those i can wire them up, test them out on a unsuspecting victim then i just got some bolts and other sensors to test, reinstall the rear diff (going to just have to be gentle with the cracked rear sub frame) make a lower bracket for the fuel pump, and lines. install the engine/trans, fill it with fluids and give it a go i guess . its time is finally near, but when i have no idea im gong to say 2-3 months still due to lack of time to work on it recently. But i will update as soon as i got somthing new
then i just got some bolts and other sensors to test, reinstall the rear diff (going to just have to be gentle with the cracked rear sub frame) make a lower bracket for the fuel pump, and lines. install the engine/trans, fill it with fluids and give it a go i guess . its time is finally near, but when i have no idea im gong to say 2-3 months still due to lack of time to work on it recently. But i will update as soon as i got somthing newUmmm, why not pull your rear subframe and either weld it up or replace it? I should have a replacement subframe for you shortly.
Really. You know I wont have money. I just don't have the welder or the money for welding equipment. I wanted to do reinforcement to the frame but can't afford steel lol but its not needed to run or drive but will for hard launches and possibly pulls. But call or text me later bout the frame

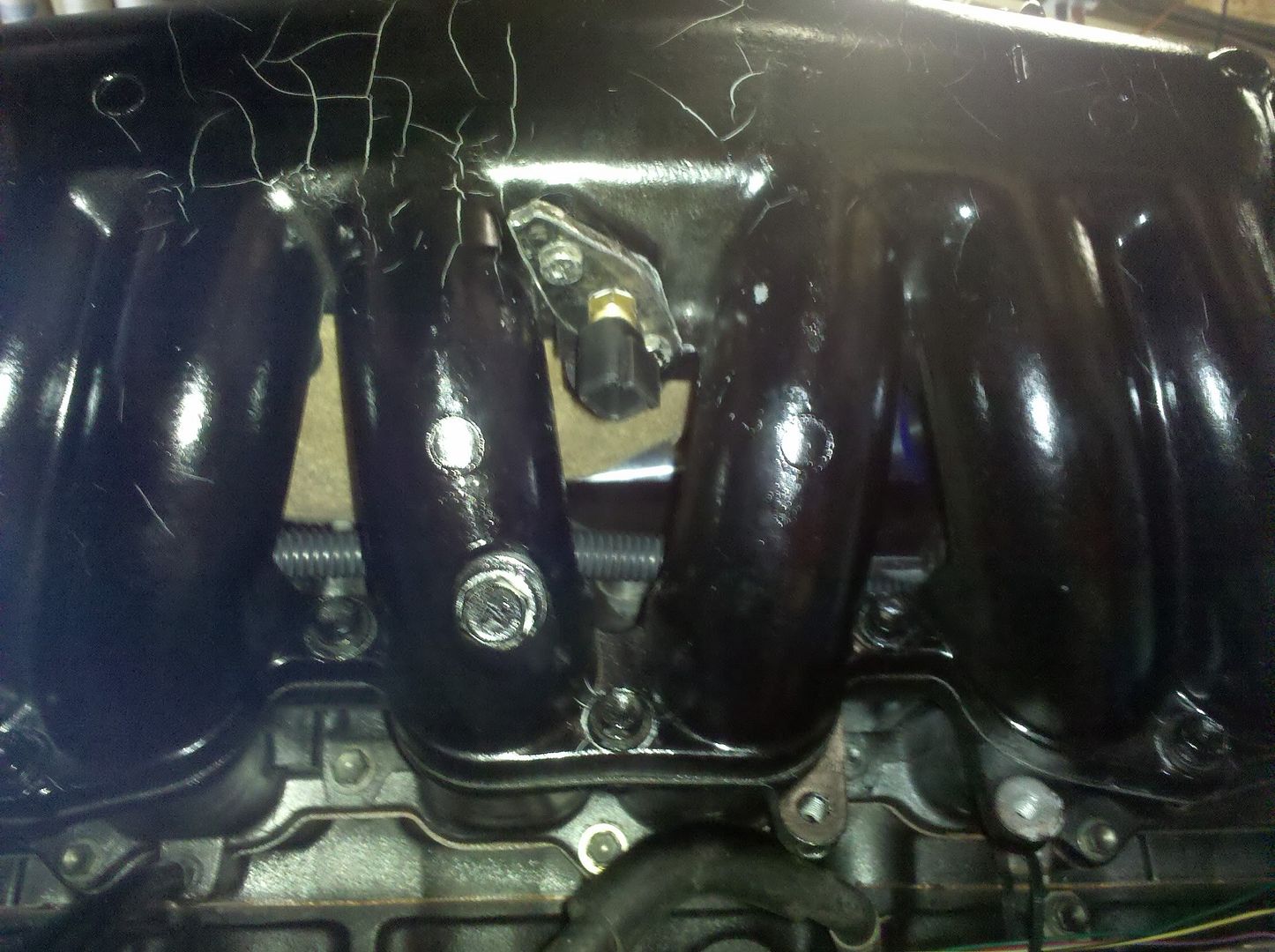

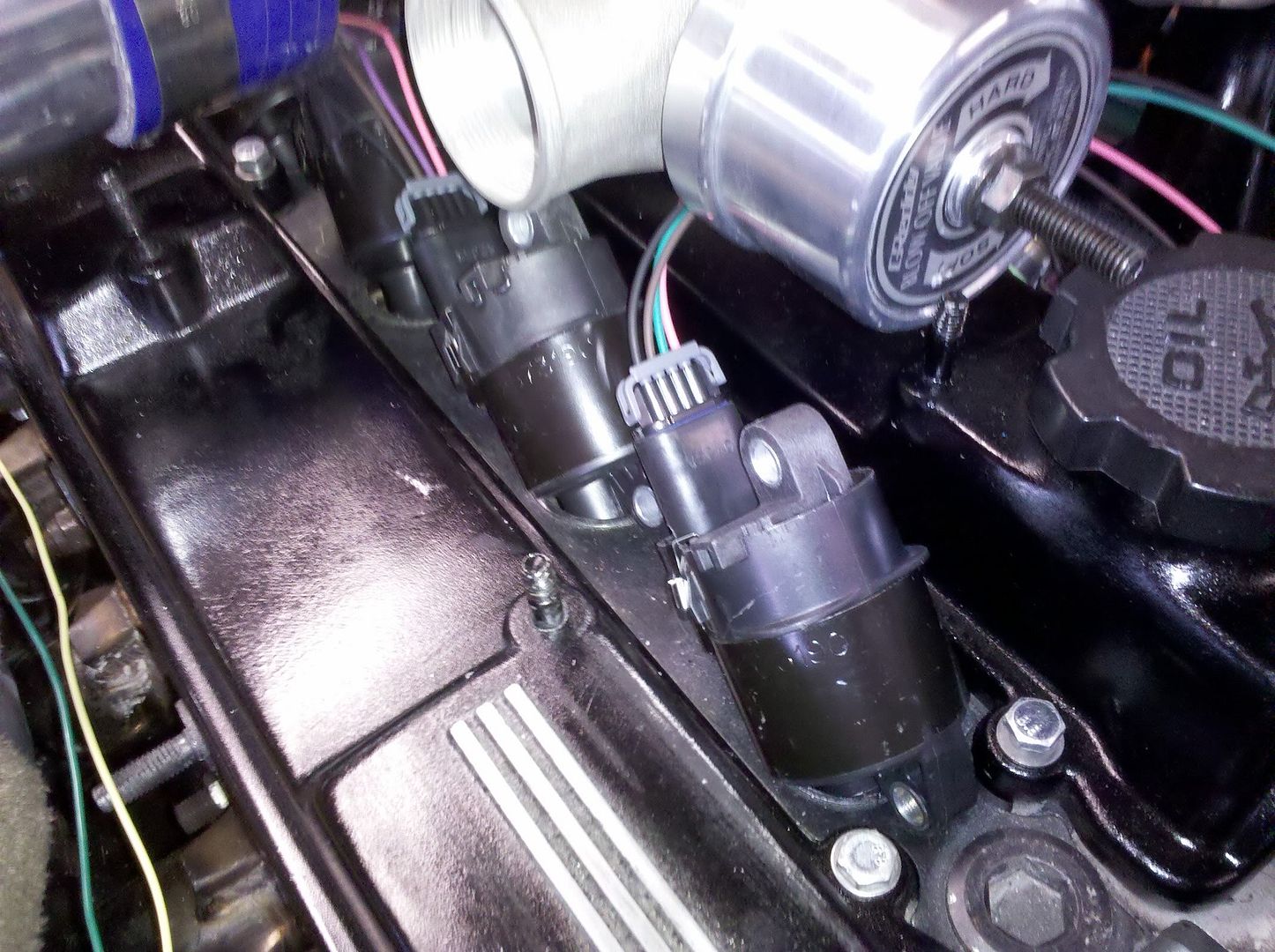

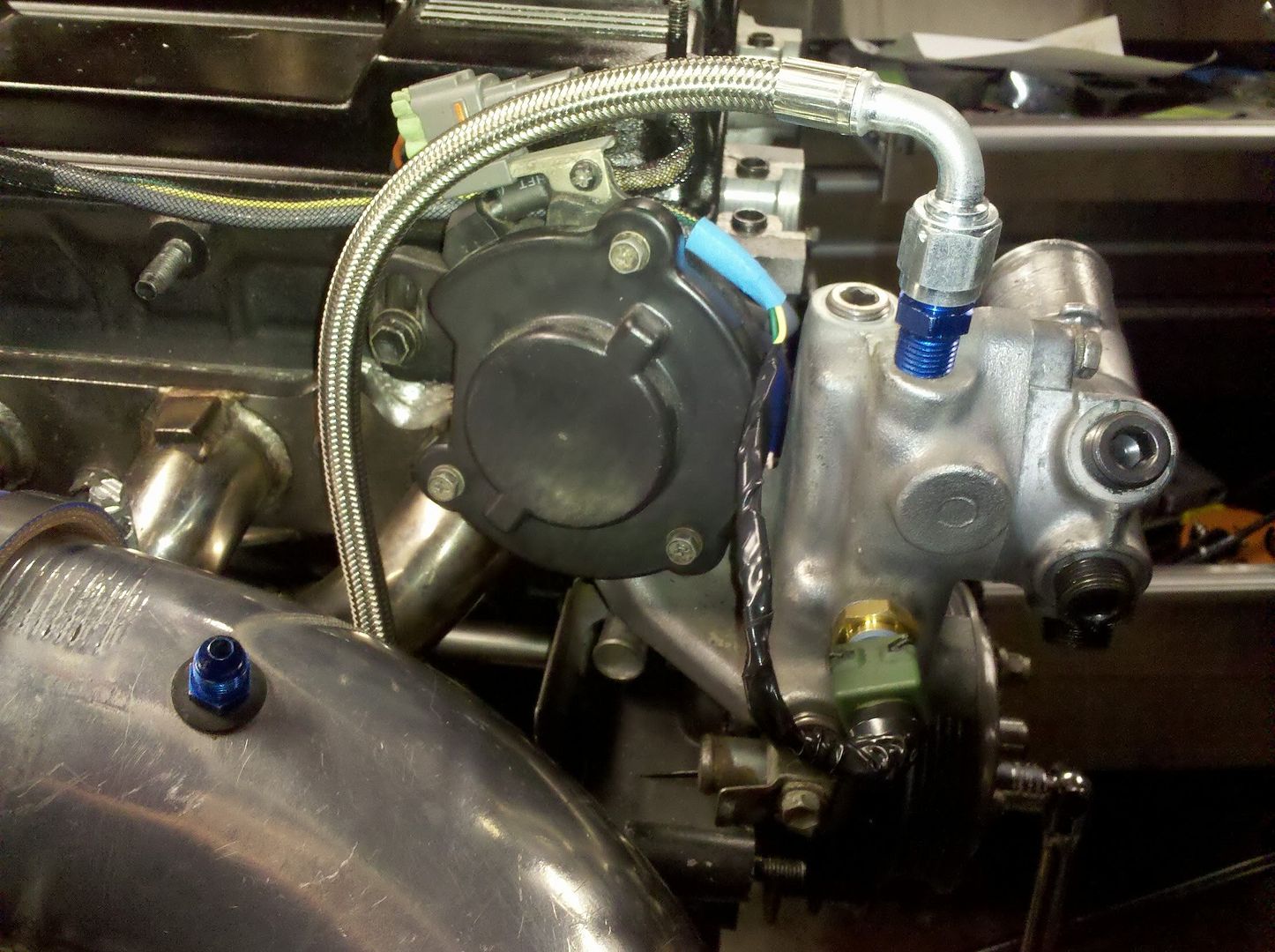

newest update, the coils came yesterday. and i got all the plugs for the themostat housing and coolant neck, gonna need to order secondary wire boot connectors for the ls2 "to coil" so i can use my magnacore wires still. The location of the coils are still kinda in the unknown and its going to be hard to wire anything up untill i know that, but i can at least get it started again. i also got my IAT sensor mounted, only problem i could see is moister buildup but someone else will butt in about it.

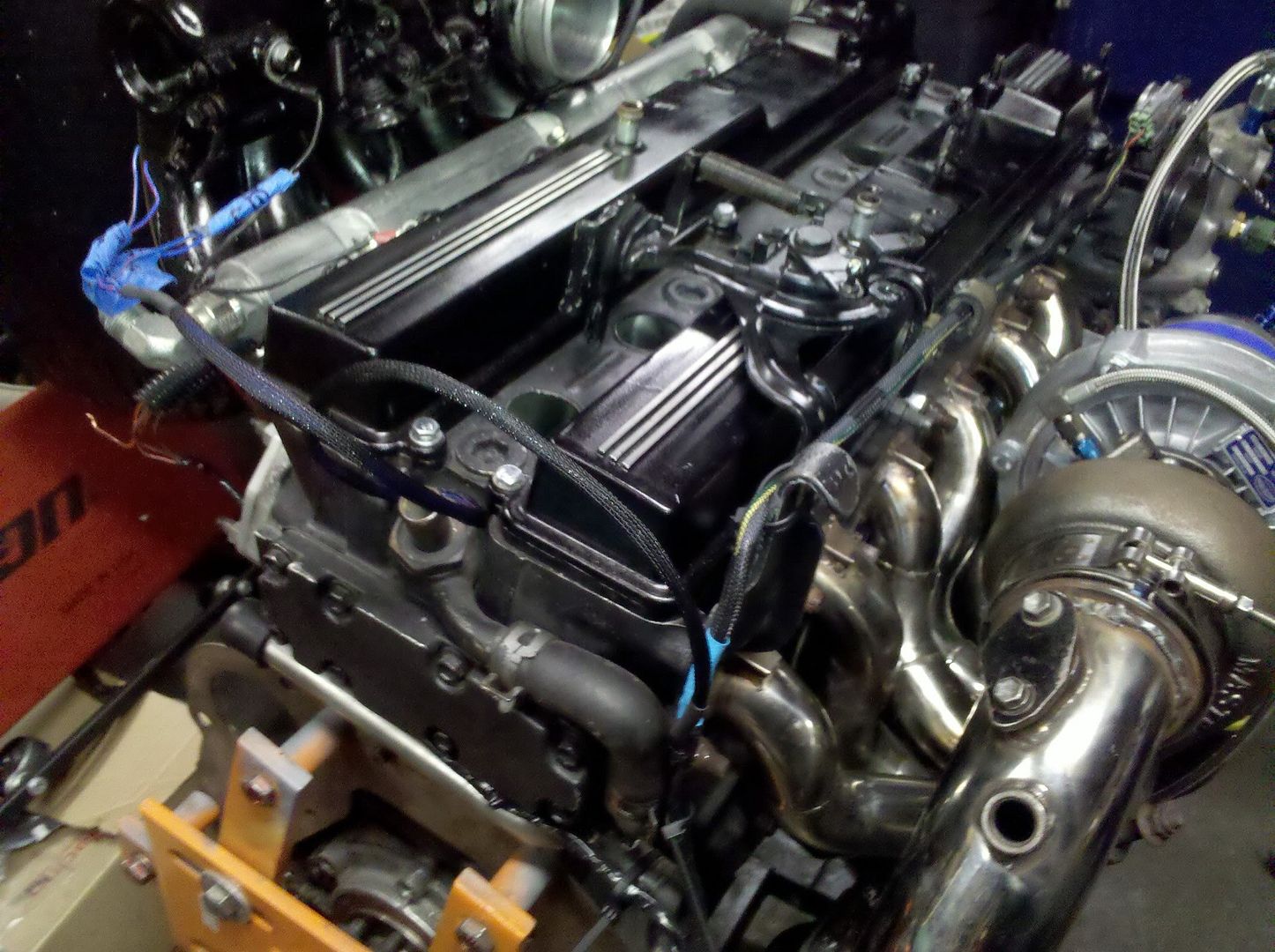

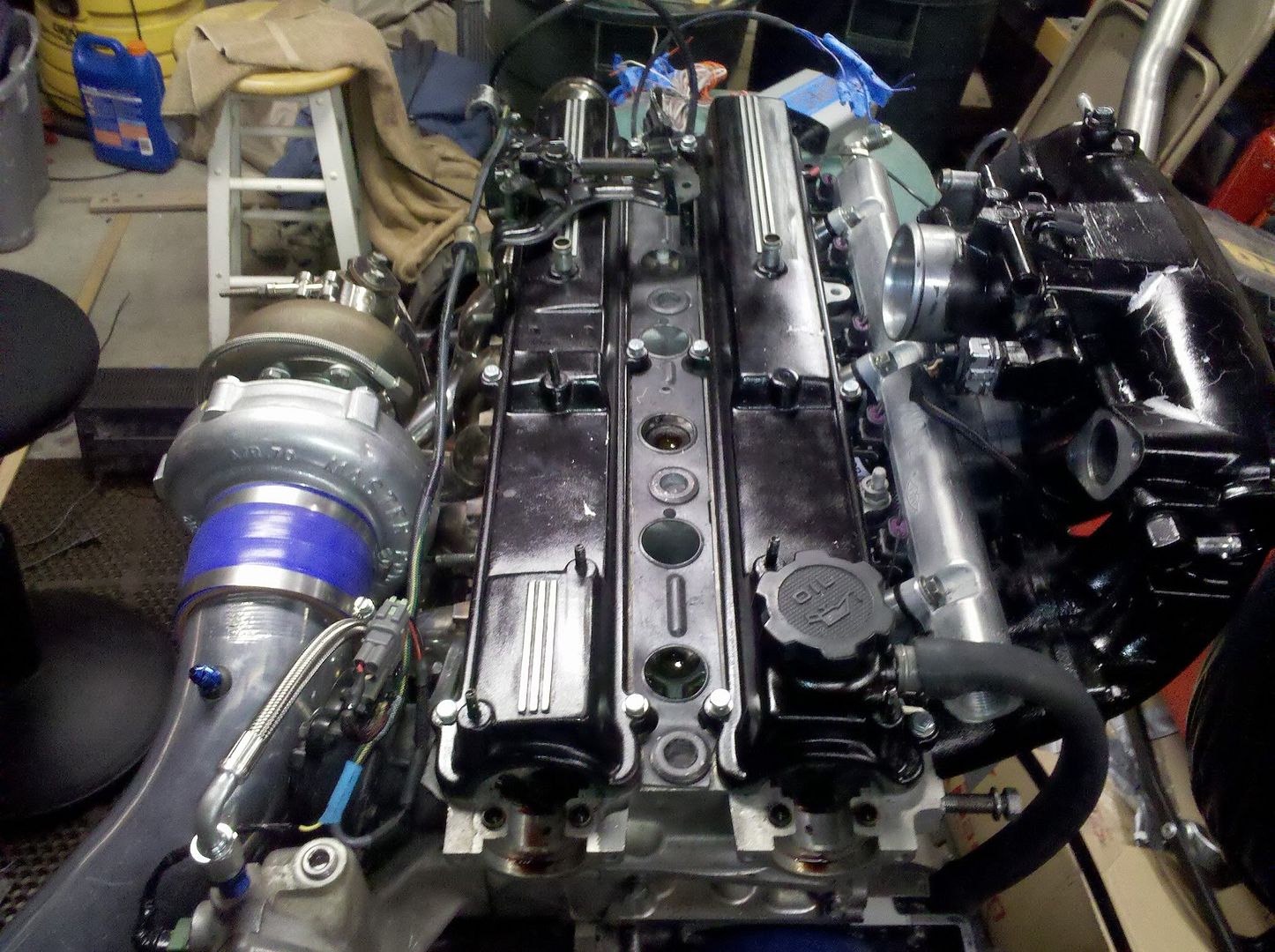

pictures

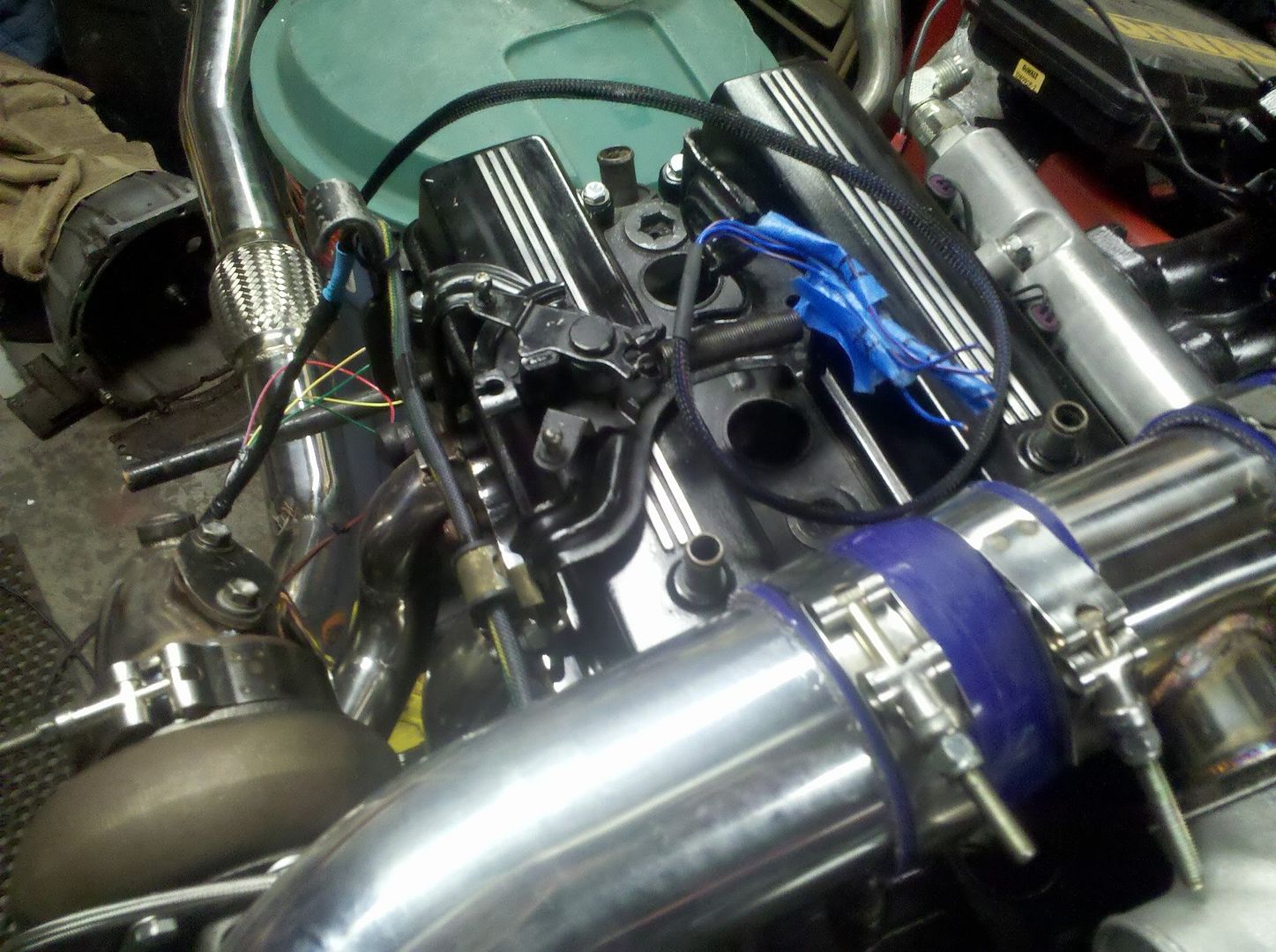

pictures
Very nice Trevor. You know you really should pull that intake manifold off and strip the paint off.
making it run is my #1 priority right now, paint isnt on the list i can do that whenever i want
jus sat here and read through your entire thread............very nice. i wisj i had the money to do all that to my car. im jus tryin to get it runnin at this point. ill be keeping up on your thread. great job man
suprastroker88;1601488 said:
thanks man, its always nice to hear that someone took the time to read the entire thread. its well worth it, loads of info, and good times and bad times, and alot of WTF was i thinking times lol.
update, did sleeving of the coils pigtails and started to get some of the paralell wiring done, like the ground and switched 12v side of the coils, only thing i was confused was there are 2 other wires one was a signal ground and the other was signal power, so which goes where? i confused lol. from my understanding the standalone sends a 12v signal to the ignition coils, but where is the ground signal coming from?
???? ian i know you know the answer since you have worked with these coils lol
---------- Post added at 04:23 PM ---------- Previous post was at 04:22 PM ----------
fixed the sig also btw
---------- Post added at 04:23 PM ---------- Previous post was at 04:22 PM ----------
fixed the sig also btw
nm just posted this in the lsx thread
* A = Coil Primary Ground
* B = Ignition low noise ground from ECU (ground)
* C = Ignition digital signal from ECU (+5V)
* D = +12V Supply to Coil Primary
* A = Coil Primary Ground
* B = Ignition low noise ground from ECU (ground)
* C = Ignition digital signal from ECU (+5V)
* D = +12V Supply to Coil Primary

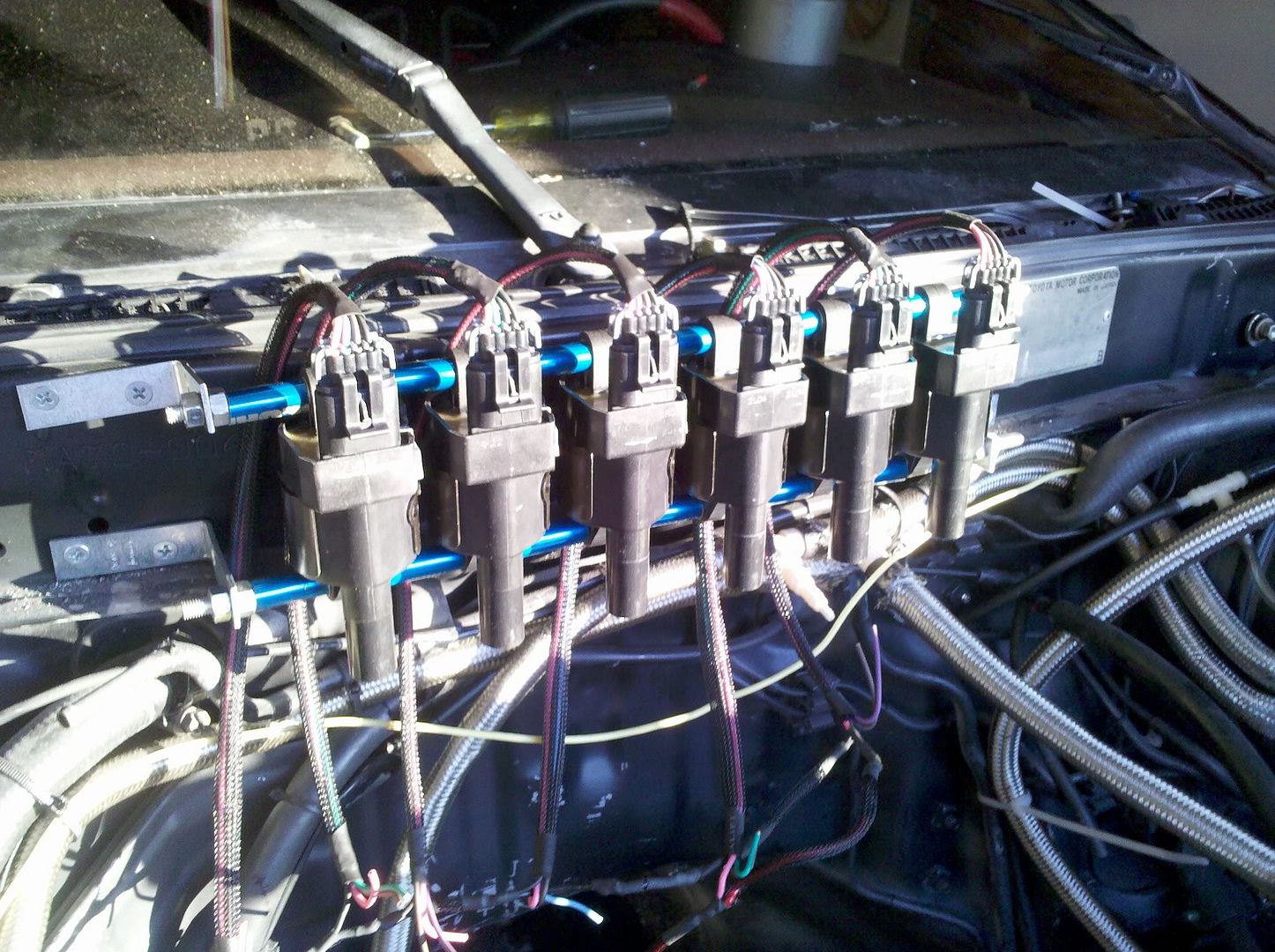

ok so i just made up some brakets for the LS2 coils super cheap to, and it was a test of my ghetto abilitys lol parts list
3ft 1/4" fine thread stud $4
8 1/4" nuts $4
2 7/11 Slurpee aluminum straws cut 1 1/2" inbetween coils, and 1" for the end pieces $2
L bracket "pack of 2 with screws" $4
total price = $14

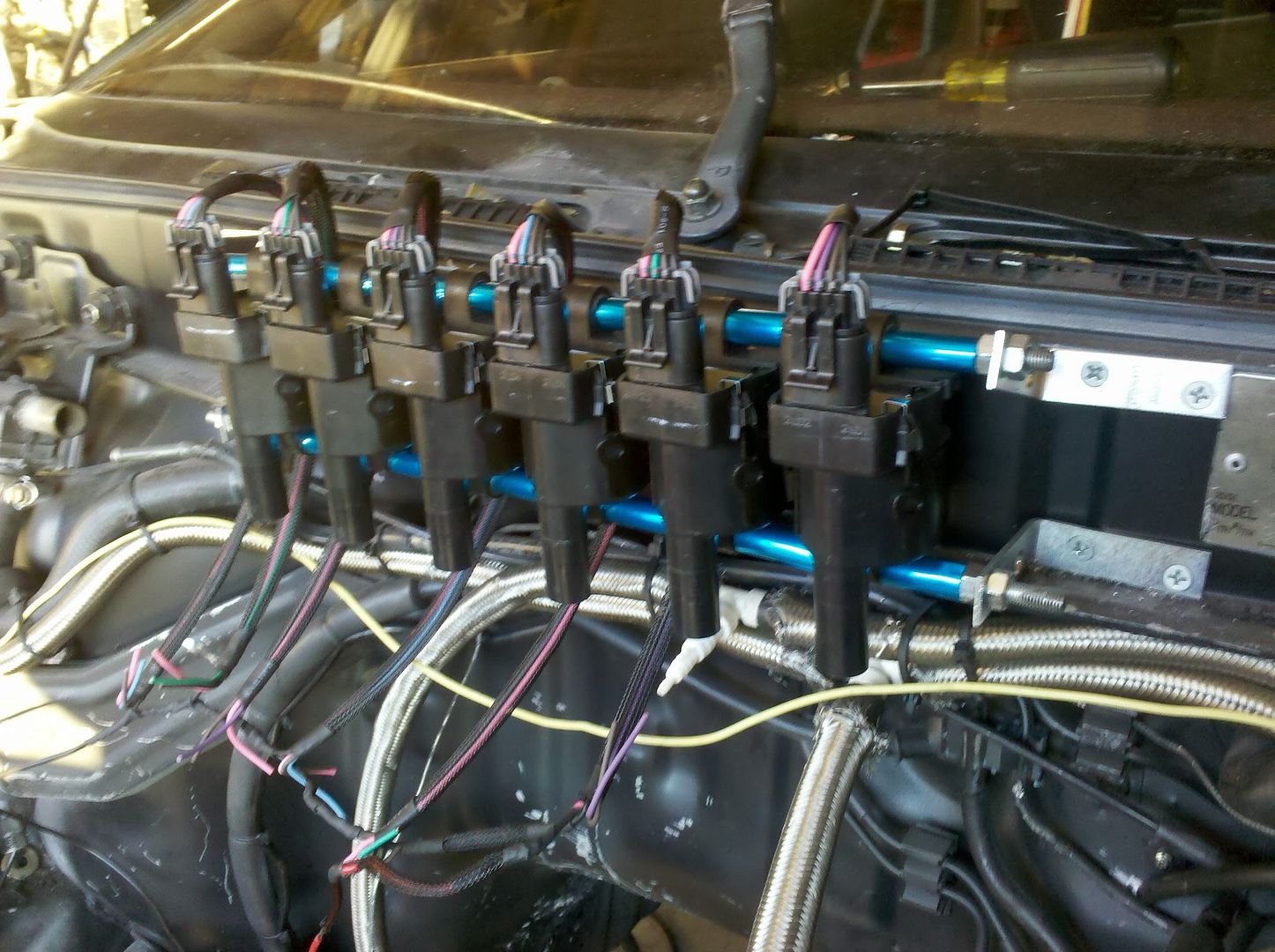

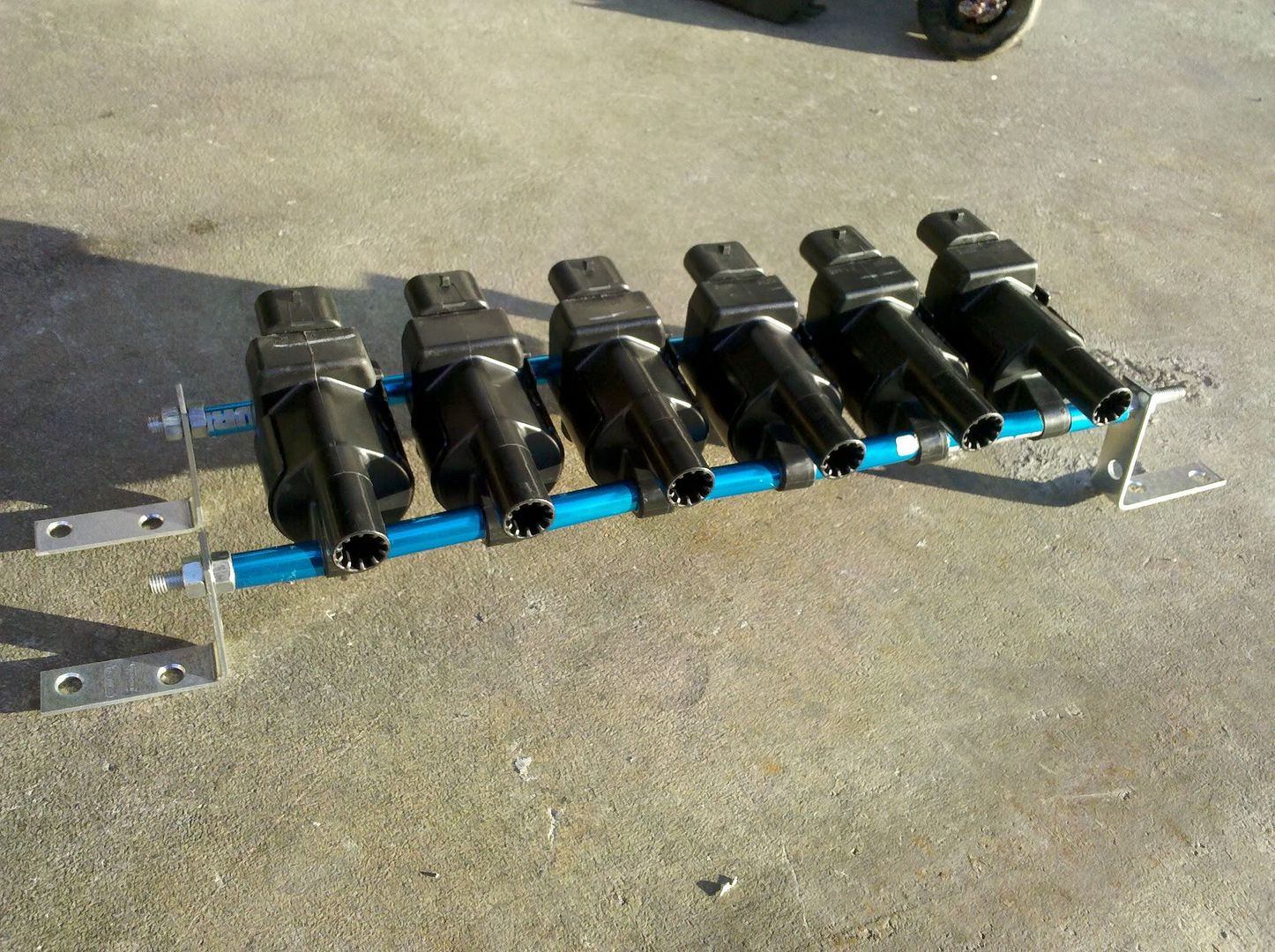

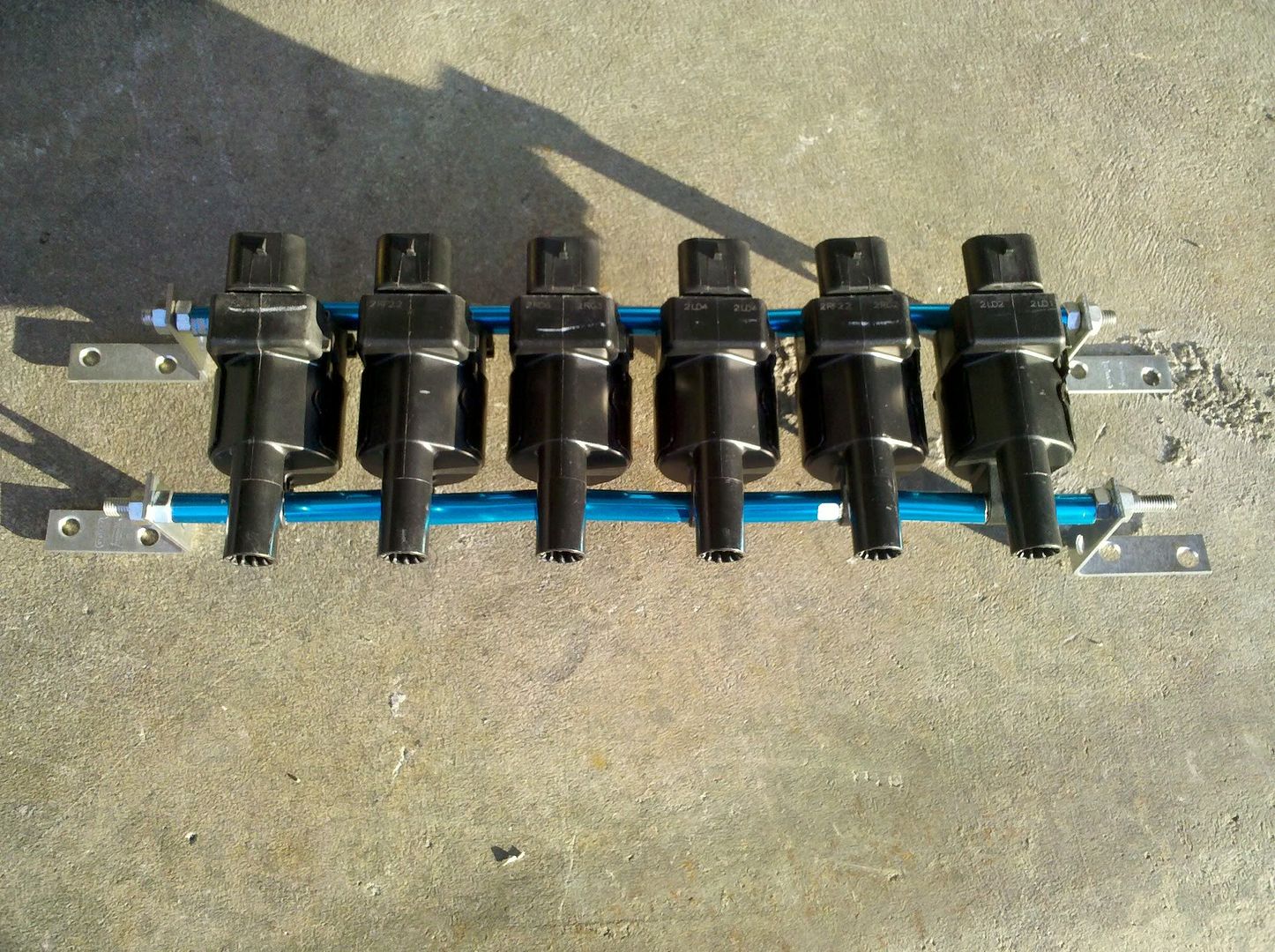

put all that together and do a little eye balling this is what you get
since i knew you all would be asking will the hood close yes it will, with a couple of washers at the hood mount to lift it off of the sexy coil harness i still am making lol
and just for a laugh, these will work just as good as these moroso part# 72395 ls2 brackets priced at $144.99
super cheap to, and it was a test of my ghetto abilitys lol parts list 3ft 1/4" fine thread stud $4
8 1/4" nuts $4
2 7/11 Slurpee aluminum straws cut 1 1/2" inbetween coils, and 1" for the end pieces $2
L bracket "pack of 2 with screws" $4
total price = $14
put all that together and do a little eye balling this is what you get
since i knew you all would be asking will the hood close yes it will, with a couple of washers at the hood mount to lift it off of the sexy coil harness i still am making lol
and just for a laugh, these will work just as good as these moroso part# 72395 ls2 brackets priced at $144.99

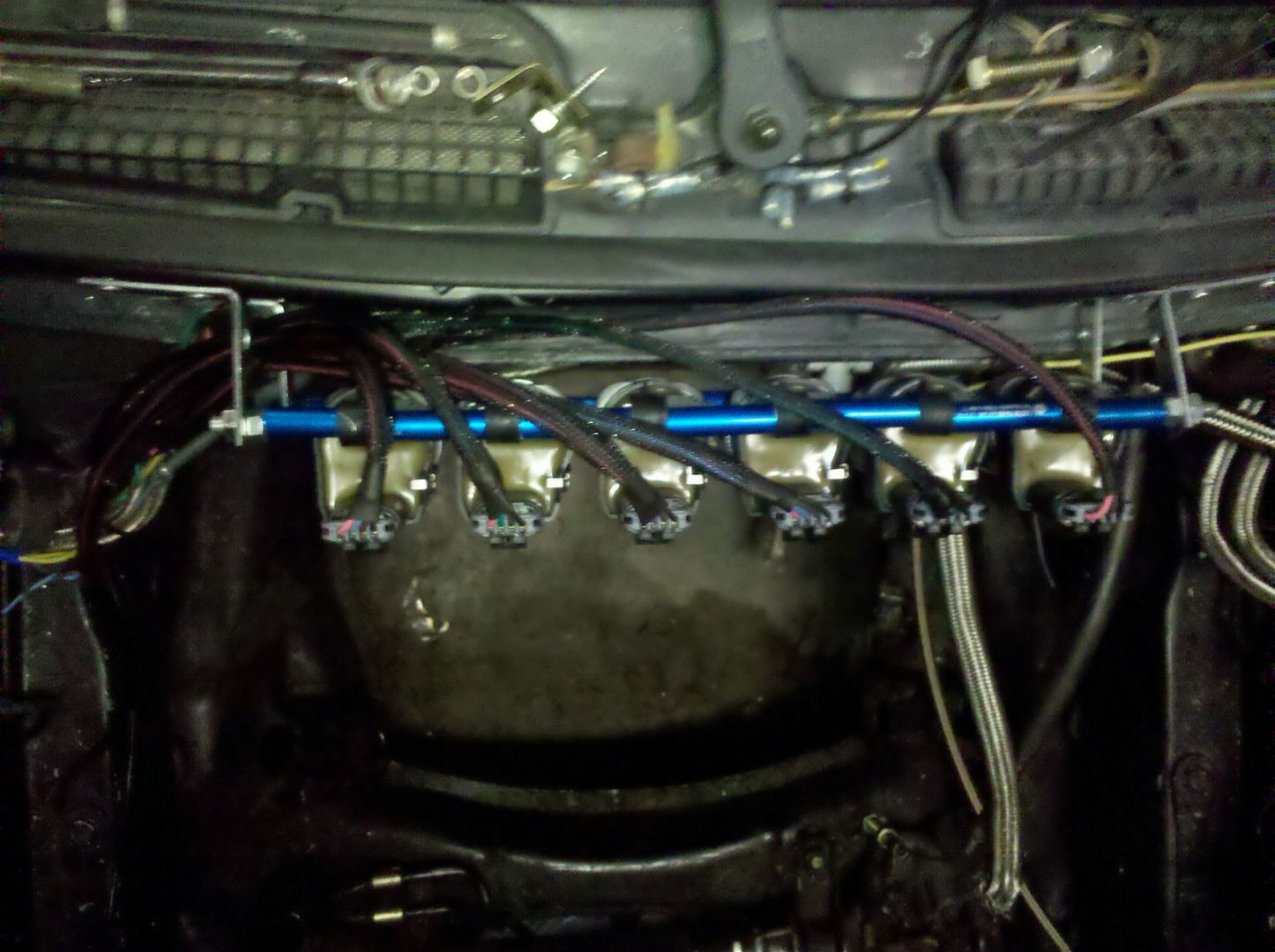

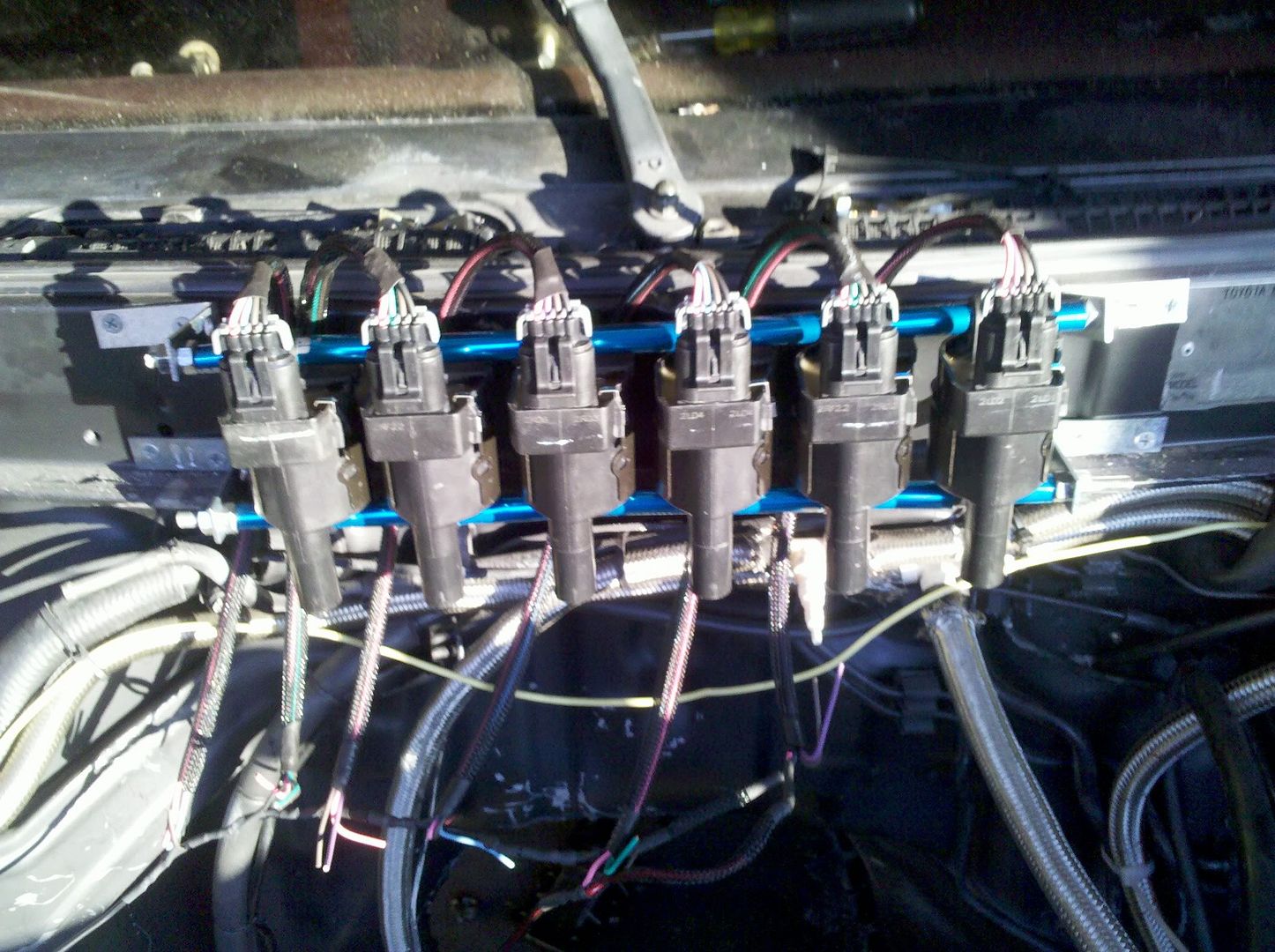

some more pictures

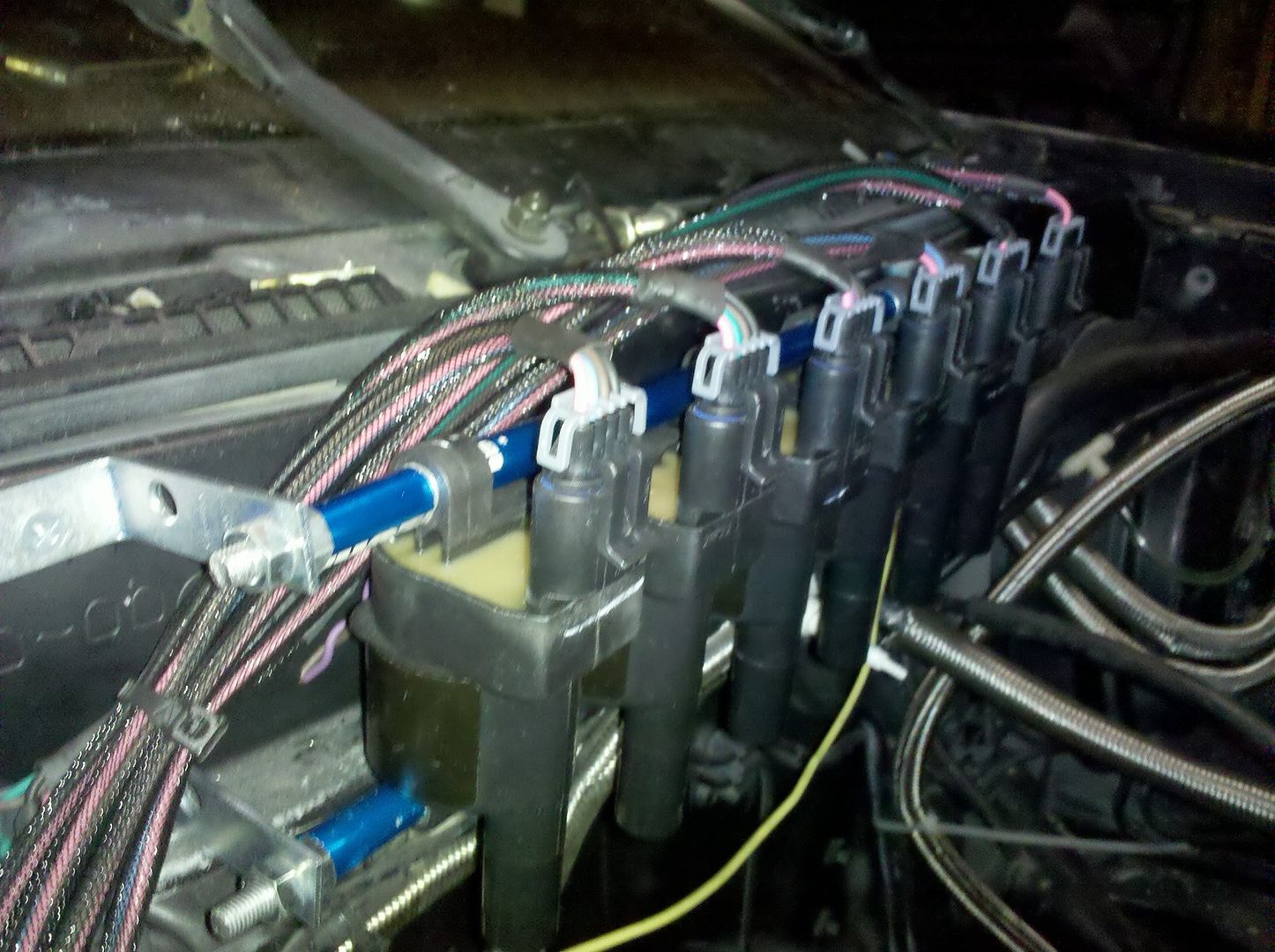

all of the main bulk is now taped up, all the spots that it splits to different parts of the engine is where the tape stops and sleeving starts. every group of wires is sleeved except for the injectors, that is due to the fact that i had already wired the injectors before i had recieved the sleeving. May i also put that the sleeving is very nice stuff, its just really kinda tricky to work with when wiring things into parallel or you have a big group of wires that have alot of heat shrink..
tip for future reminder, use electrical tape to cover any imperfections on heat shrink or else sleeving will just catch onto it, also use tape for the ends asap or else it will start to fray up making it impossible to put heat shrink on it.
all of the main bulk is now taped up, all the spots that it splits to different parts of the engine is where the tape stops and sleeving starts. every group of wires is sleeved except for the injectors, that is due to the fact that i had already wired the injectors before i had recieved the sleeving. May i also put that the sleeving is very nice stuff, its just really kinda tricky to work with when wiring things into parallel or you have a big group of wires that have alot of heat shrink..
tip for future reminder, use electrical tape to cover any imperfections on heat shrink or else sleeving will just catch onto it, also use tape for the ends asap or else it will start to fray up making it impossible to put heat shrink on it.
LOL at the slurpee straws. I like your bracket, it looks pretty good Looks like your beast is coming along good Trevor.
