Furious But Lazy 7M owner who gave Up.

[Turbo Habanero]

Thanks

I'm thinking about getting the this clutch


http://store.driftmotion.com/static/i-ts2-xtg6.php
.



[hvyman]

I had to take off maybe an inch off the wastegate tube on that Mani it also has to be angled so it doesn't hit the motor mount and so you can bolt it on.

I'm using the dm stage 2 clutch. 2800lb pp and 6 puck disc. I love it. Very street able and not very stiff but holds power.



[Turbo Habanero]

I had to take off maybe an inch off the wastegate tube on that Mani it also has to be angled so it doesn't hit the motor mount and so you can bolt it on.

I'm using the dm stage 2 clutch. 2800lb pp and 6 puck disc. I love it. Very street able and not very stiff but holds power.

Thanks Hvyman i went a head and purchased the Stage 4 i posted previously might not be street friendly but ill man up



[Turbo Habanero]

Also Albert told me today my turbo will be a T3 Divided T67 .75 A/R Can't wait



[Turbo Habanero]

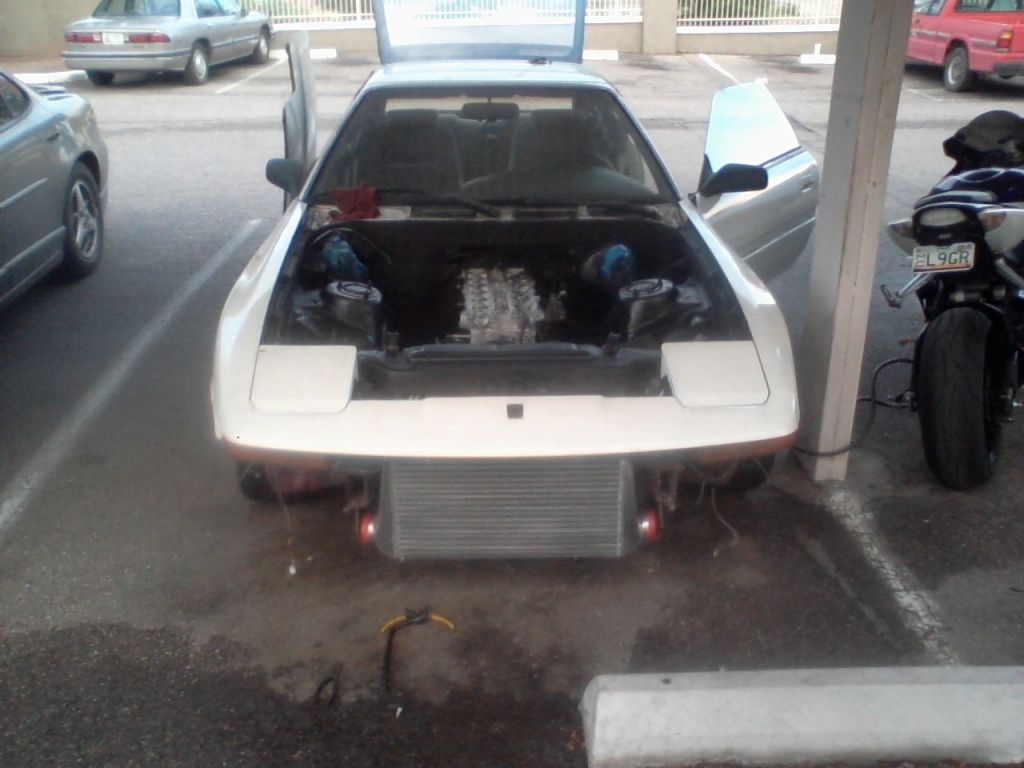

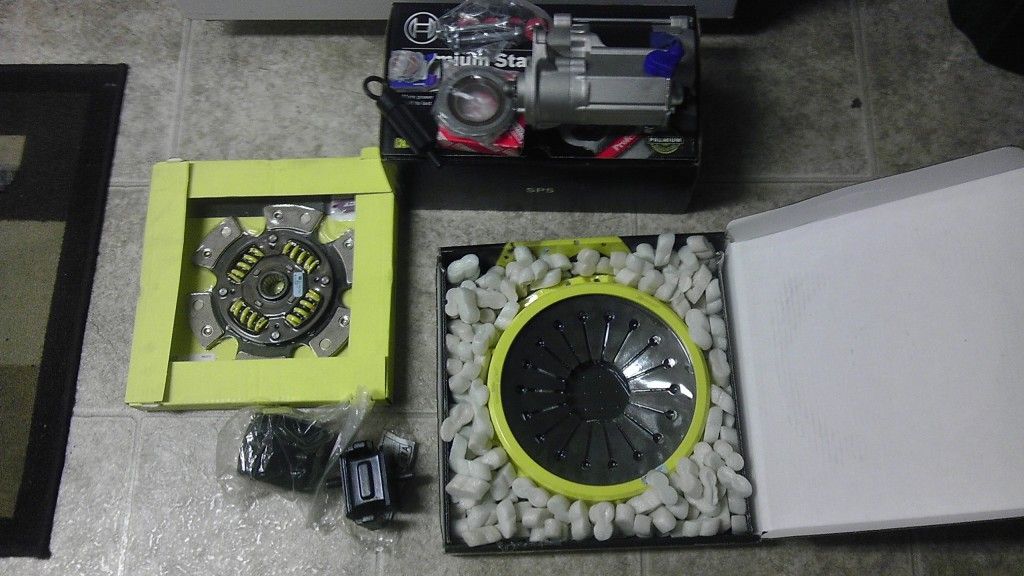

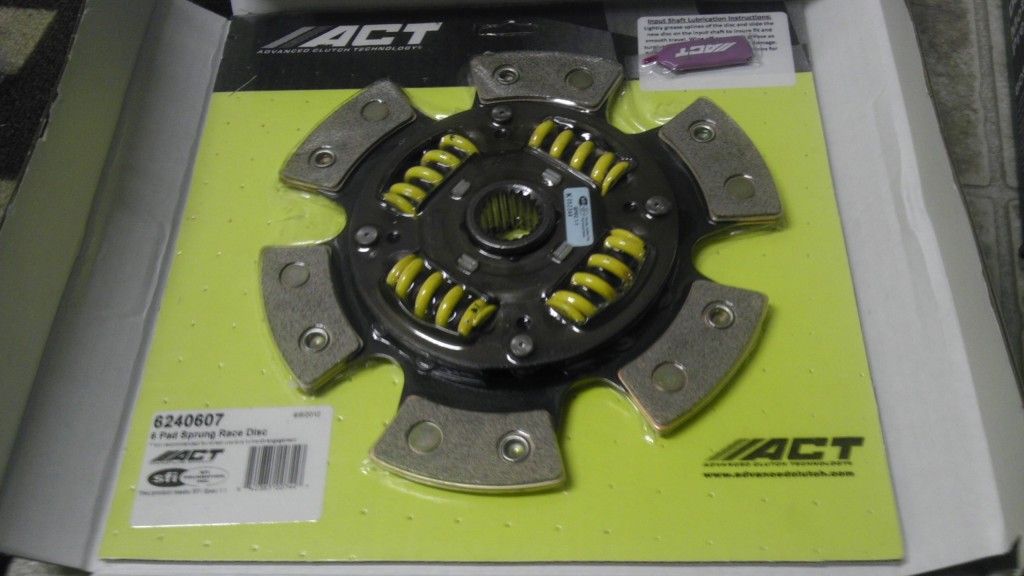

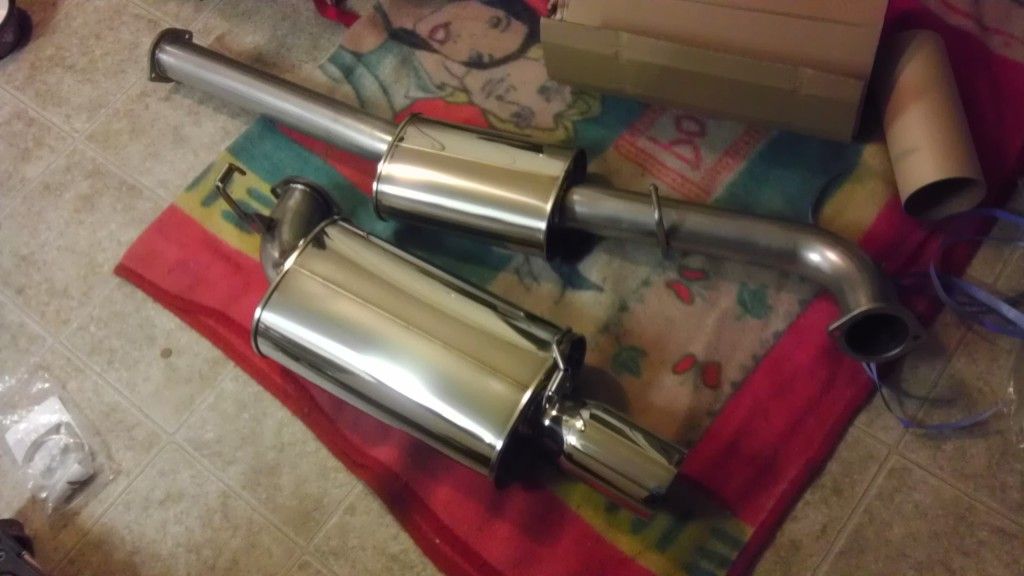

Here are some pics

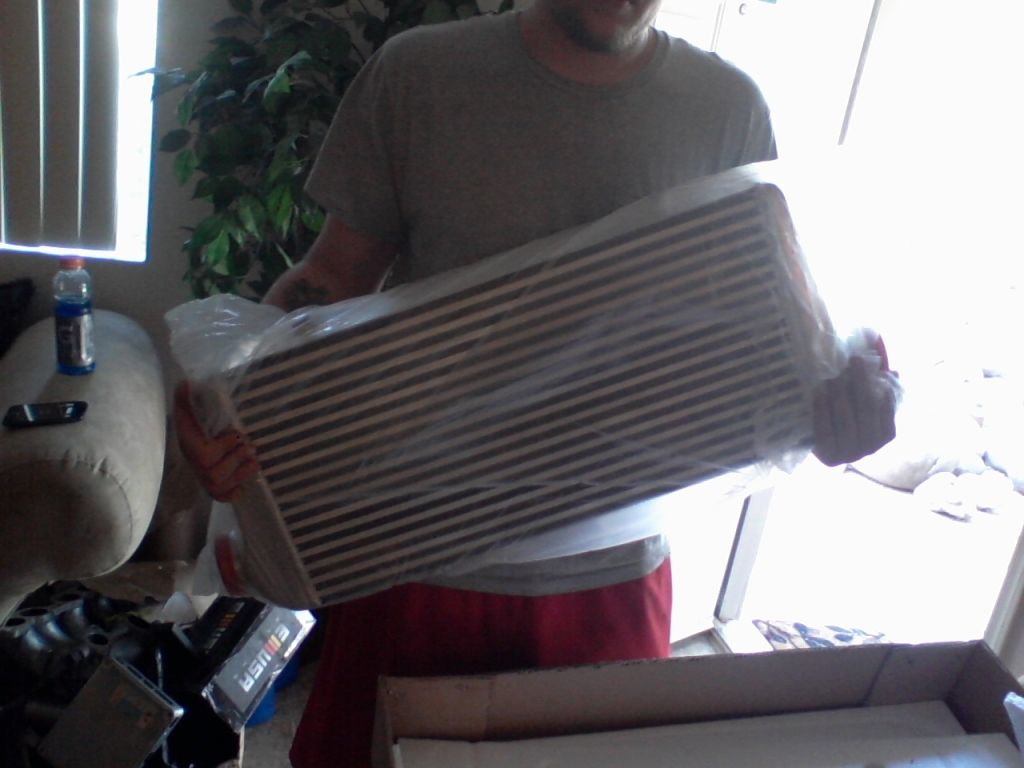

New intercooler



[suprakidd]

looking good.

hows the 1jz coming?

and what about pics of all the other parts :naughty:



[Turbo Habanero]

thanks Should have the 1J back from the complete rebuild in a week.

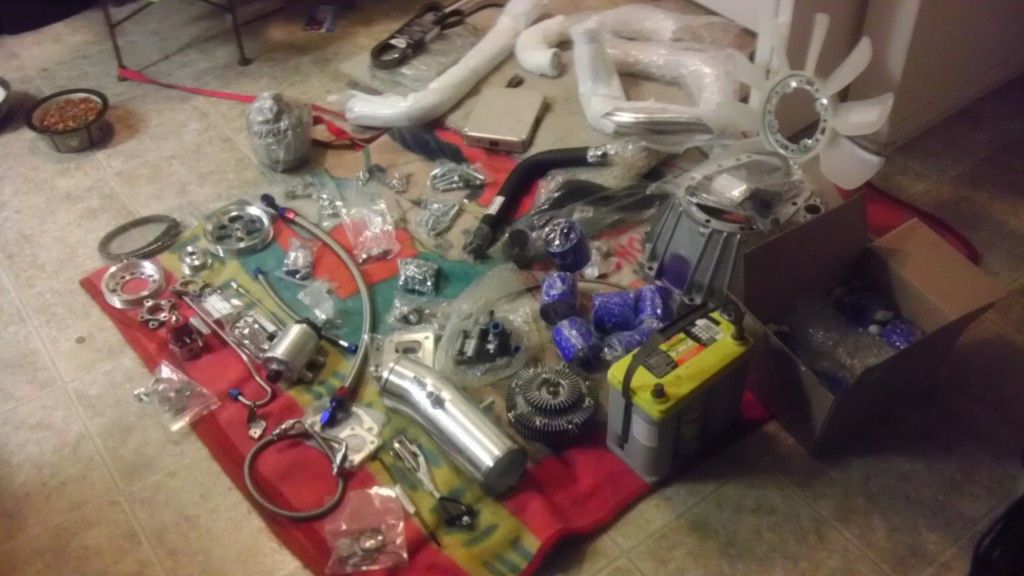

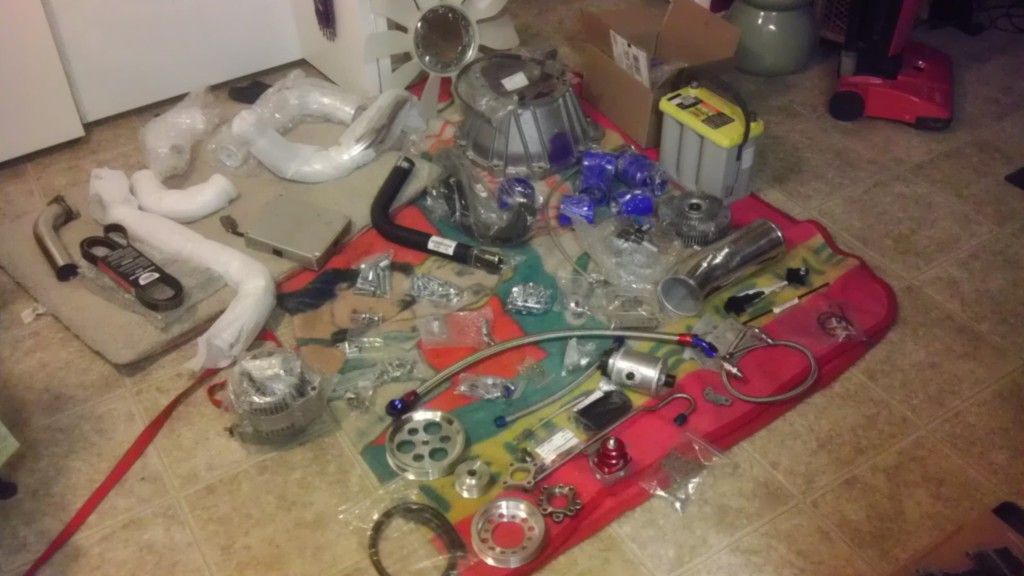

Parts not in pictures are at the shop

New oil pan
Light weight flywheel

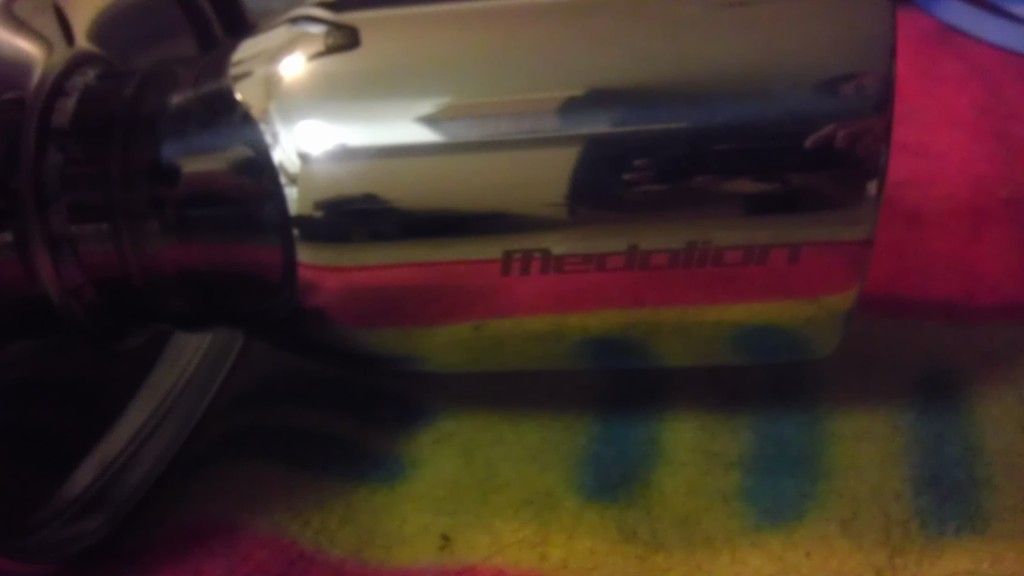

Downpipe
T4 manifold/tial wastgate



[Turbo Habanero]

Ok so i'm still lost on this wastegate situation kind of anyways..

Just Trying to be positive on what flange i should have welded on the manifold and the correct way to mount the wastegate also where to find a gasket for the square flange.

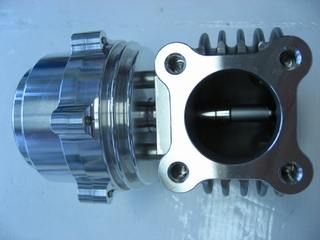

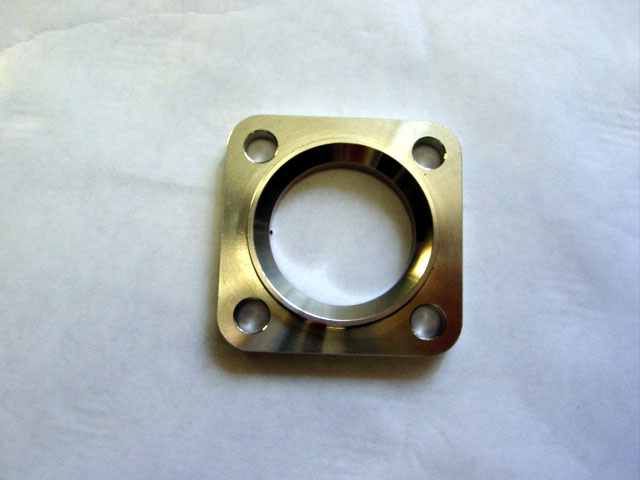

So here in this photo is the flange driftmotion uses on there manifold it matches the flange on the side of the wastegate (which i think is for the screamer pipe)

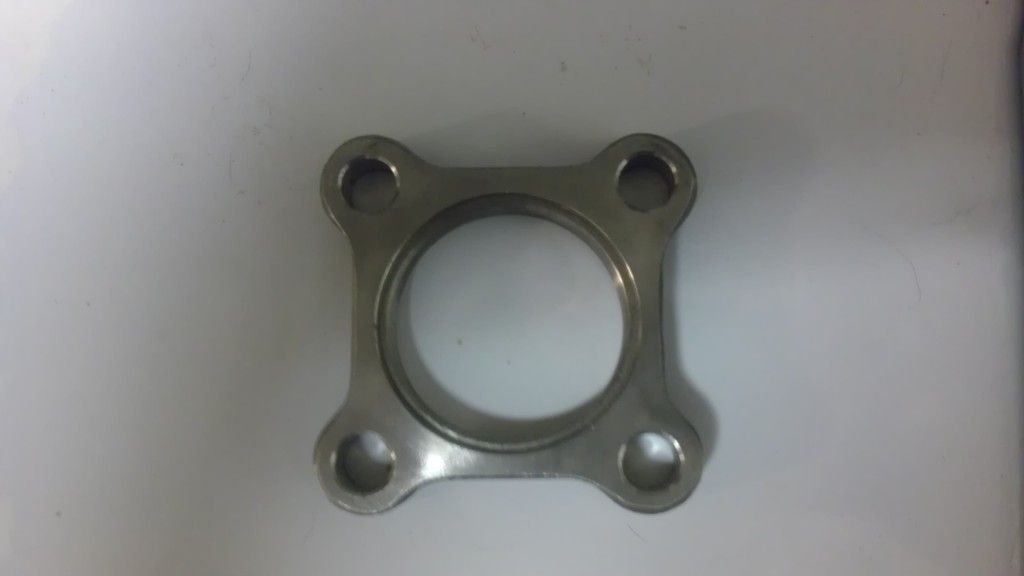

In this photo is the other flange they include with the kit it matches the flange on the bottom of the wastegate (which seems to go to the manifold) Flange that does not come with gasket

Here is the photo of everything that comes with my wastegate and you cane see the two different types of flanges but only one type of gasket.

Here is a link to the photo of the driftmotion Manifold with the flange welded on it.
http://store.driftmotion.com/static/i-driftmotionmodified1jzmanifold.php

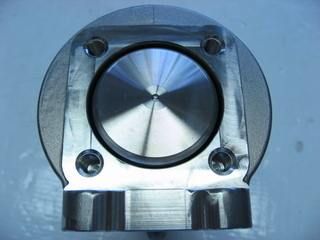

Clear picture of the bottom

Picture of the side of the flange



[87supraguy]

I see why your confused. My experience and understanding is that the side where the valve sits (bottom) goes to the manifold the other side is the dump tube.



[87supraguy]

Either DM had the wrong flange welded on that manifold or it's a different wastegate with a similar flange? Could always call Arron to get a confirmed answer about the flange on that manifold.



[Turbo Habanero]

I can't find a gasket for the bottom flange either :-(



[stevenr816]

I can't find a gasket for the bottom flange either :-(

You do not use a gasket on any, especially the fire ring (the bottom that seals the valve. That's why it has the tapered seat. It also puts the correct preload on the valve as well.
You don't need a gasket for the dump, unless your going to do recirc.


Sent from my iPhone using Tapatalk



[Turbo Habanero]

You do not use a gasket on any, especially the fire ring (the bottom that seals the valve. That's why it has the tapered seat. It also puts the correct preload on the valve as well.
You don't need a gasket for the dump, unless your going to do recirc.


Sent from my iPhone using Tapatalk

Thanks Steven much Appreciated

So the lip on the bottom flange seats around the ring on the bottom ? it's at the shop but if i recall correctly it only sat flush against the bottom if the lip was facing away from the wastegate (or lip welded to manifold another way to look at it) other wise it would not sit flush against the WG and be about 1/4 to 1/2 a inch of the WG surface but i did not try to bolt it closed yet either.



[Turbo Habanero]

So quick question regarding the head gasket in this kit... http://store.driftmotion.com/static/i-1jzenginegasketset.php

Is it OEM ? or should it be thrown out like the 7M engine gasket kit head gaskets?



[suprafanatic]

The flange that is a complete square goes on the manifold, and the little lip goes against the wastegate actuator. When you bolt it together it will push the valve in some and more or less make a seal, and put a little bit of a load on the actuator/spring. And you shouldn't need a gasket from what I remember doing anyway.

As for the head gasket it really depends on what kind of power your going for. That head gasket would hold a decent amount as long as the prep work was done properly and you use ARP hardware. However, since your investing alot into this motor already I personally would get an aftermarket full metal gasket. Its a good piece of mind



[IBoughtASupra]

Stock head gaskets are fine. Throw your 7M mentality out the window.

Stock JZ gaskets are being used in 600-700-800HP cars without issues and even higher.....

When I get home today, I will check in my garage for that pipe for you.

What gasket are you having a hard time finishing?



[Turbo Habanero]

Thanks Andy

I'm only searching for the water bypass pipe ATM other then that I everything I can think of thus far



[Turbo Habanero]



[Turbo Habanero]

Only waiting on the water pump bypass pipe,Albert to get me the turbo and we should be good to go



[Turbo Habanero]

So the last time i ws at Toyota i went ahead and ordered the 2JZ-GE/GTE water pump bypass pipe with the correct o-rings

In my search tonight to find a 1jz bypass pipe i was looking at photo's and trying to find the correct lengths for the pipes.

The pipe i currently have is 3cm or 1 1/8in can anybody tell me the length of the one i need for sure.
