89 Supra n/a DD build

[slowma70]

While that was going on MrsuspectSupra was busy welding some stuff for me:

Timing crank wheel:


Coolant water neck:


water bypass pipe for single conversion:


usdm GTE pump:


He also extended the harness(still need to provide him with my body plugs to finish)




Got to replace serpentine pulley bearing:


Pretty easy i might say:


Engine block paint prep:
degreased and washed the block about 4 times to remove all the grease:





Dried and scuffed with red scotch brite:


After about 3 coats of hight temp paint: :naughty:



[slowma70]

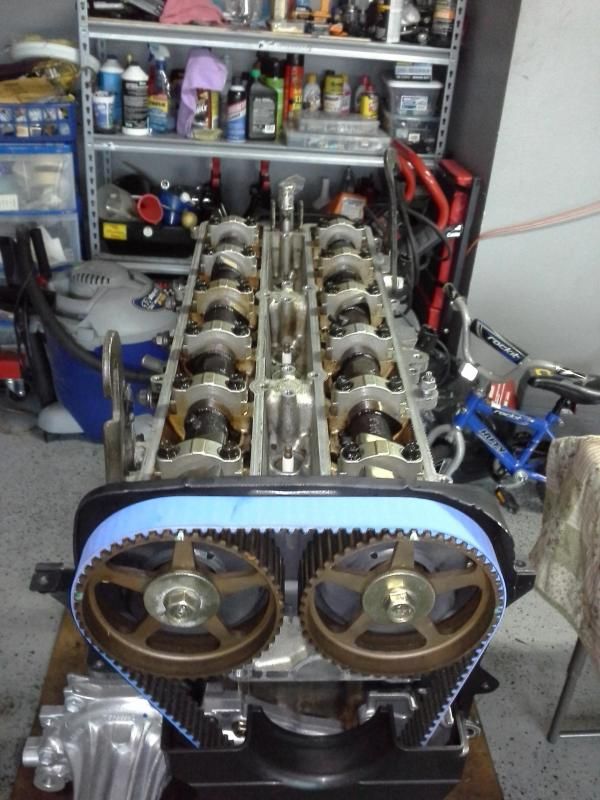

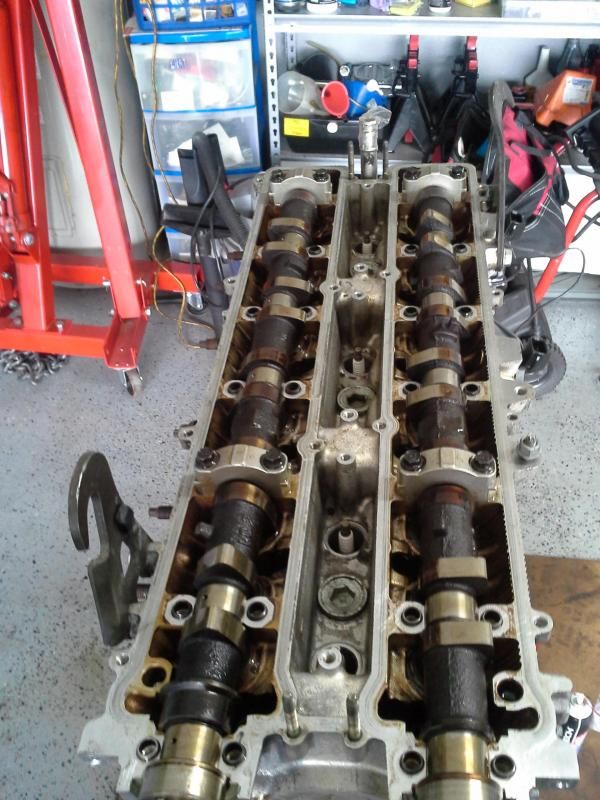

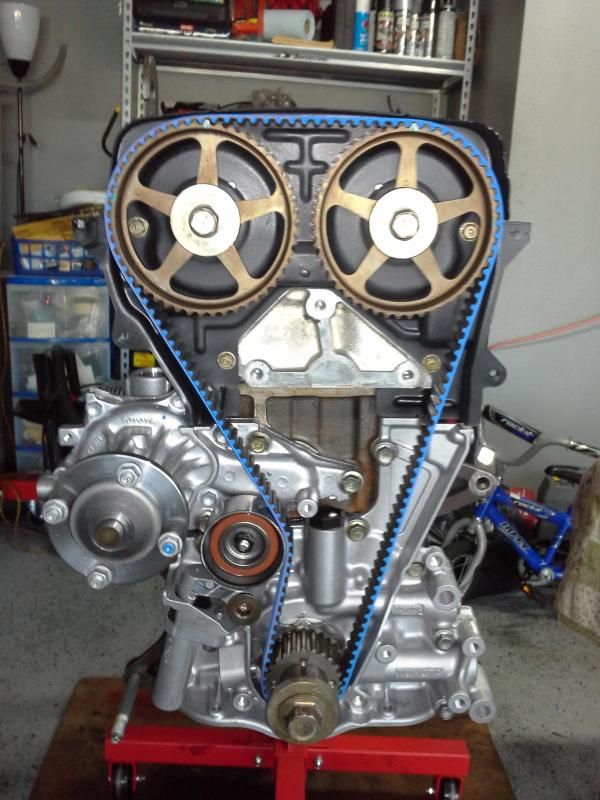

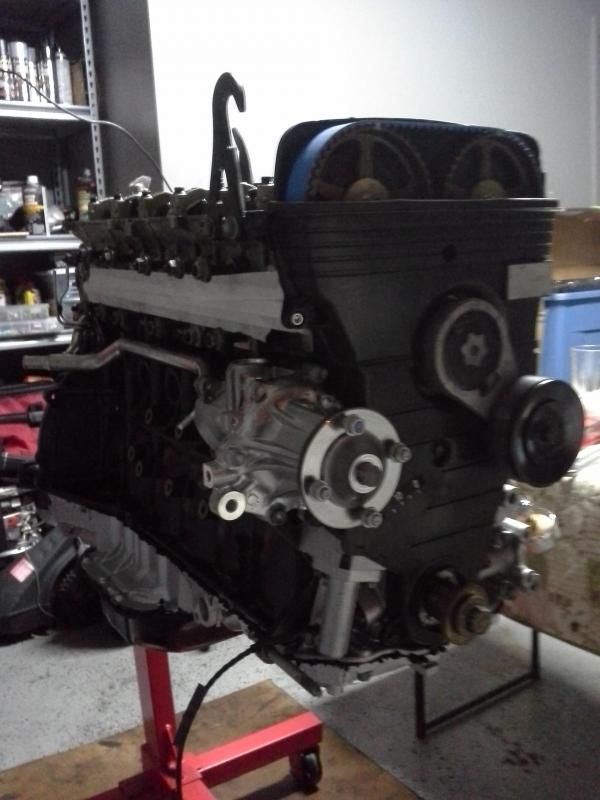

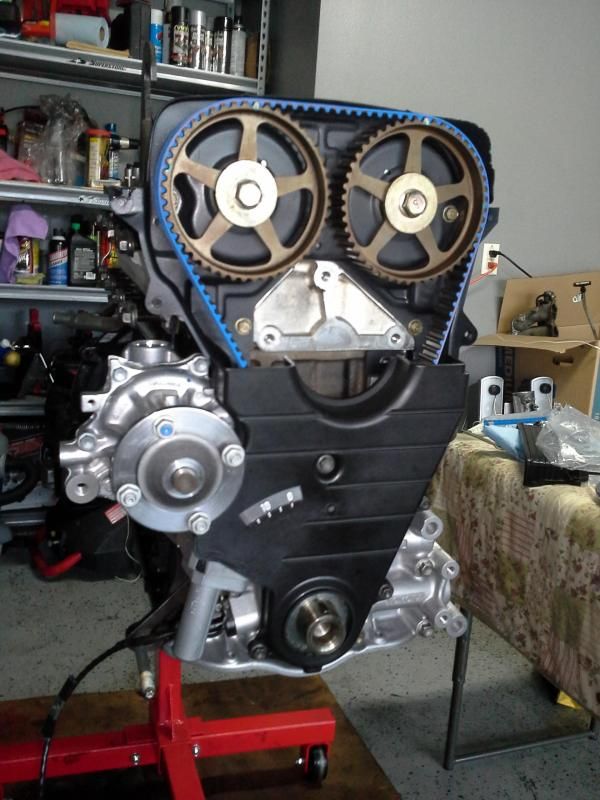

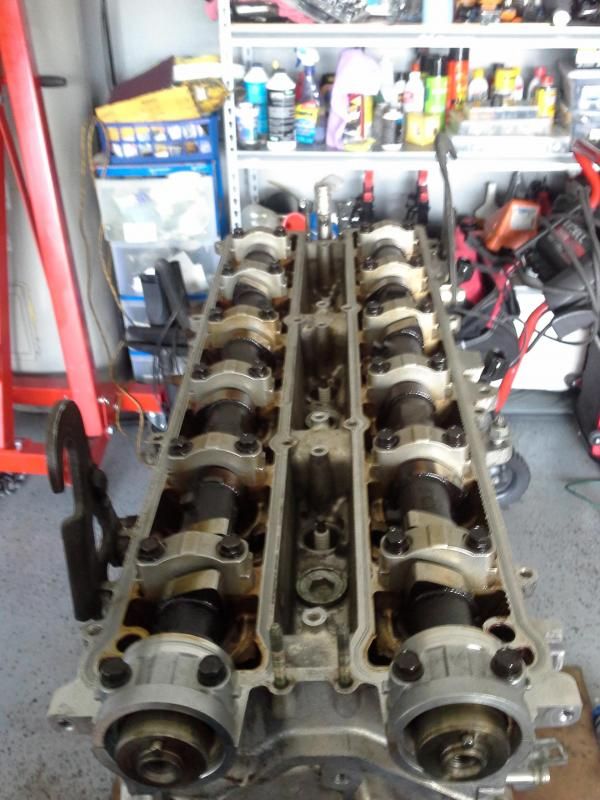

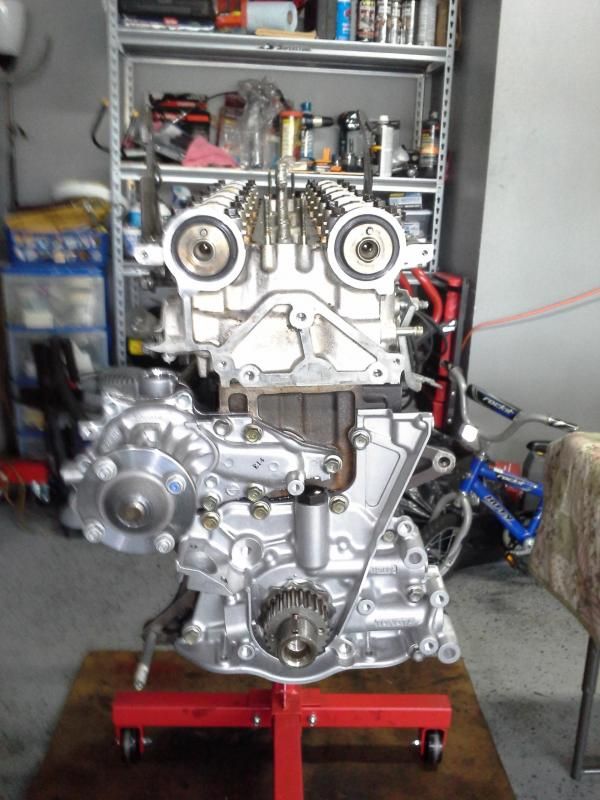

Installing buckets, shims and cams:

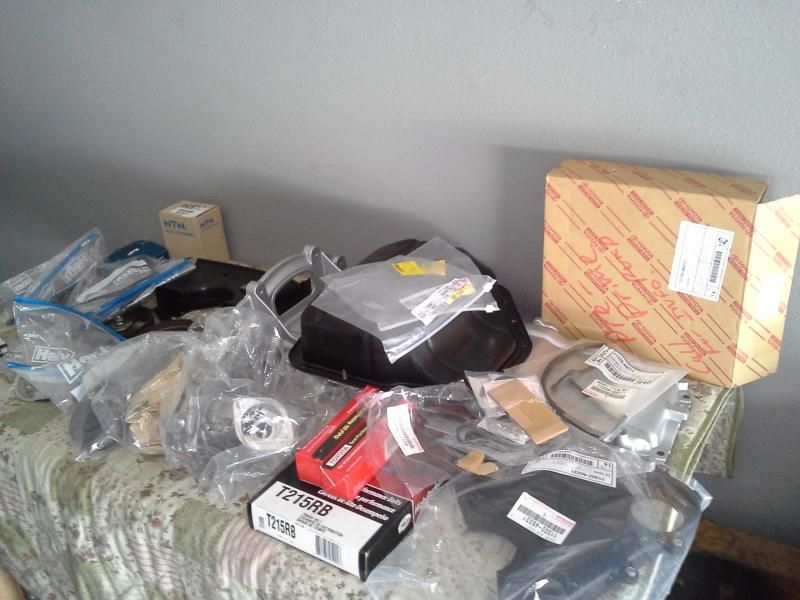

Now the fun begins, Parts being installed are:
-New oem 2jzgte oil pump
-new oem cam seals
-new oem front and rear main seals
-new oem 2jzgte water pump with welded turbo feed line
-new oem timing tensioner
-new oem timing tensioner pulley

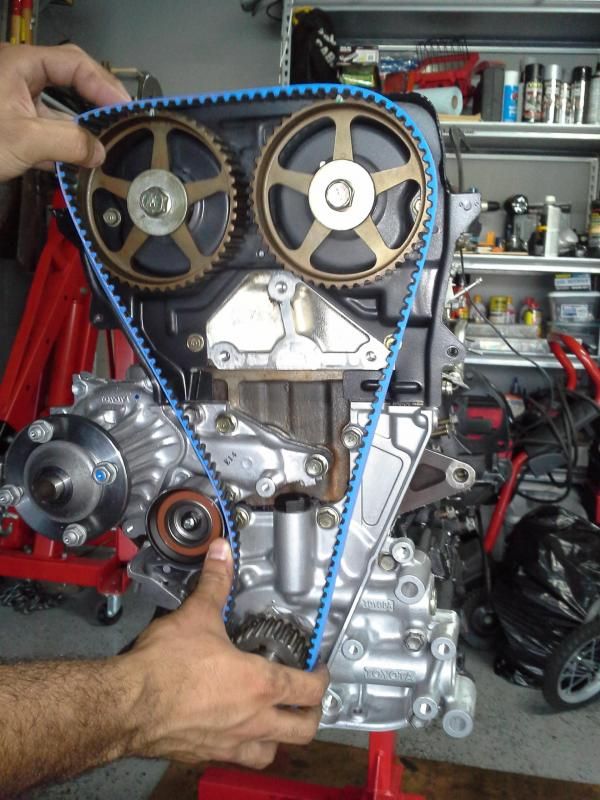

-new gates racing timing belt
-new oem timing cover
-new oem o-rings for pump and rear sump oil pan.

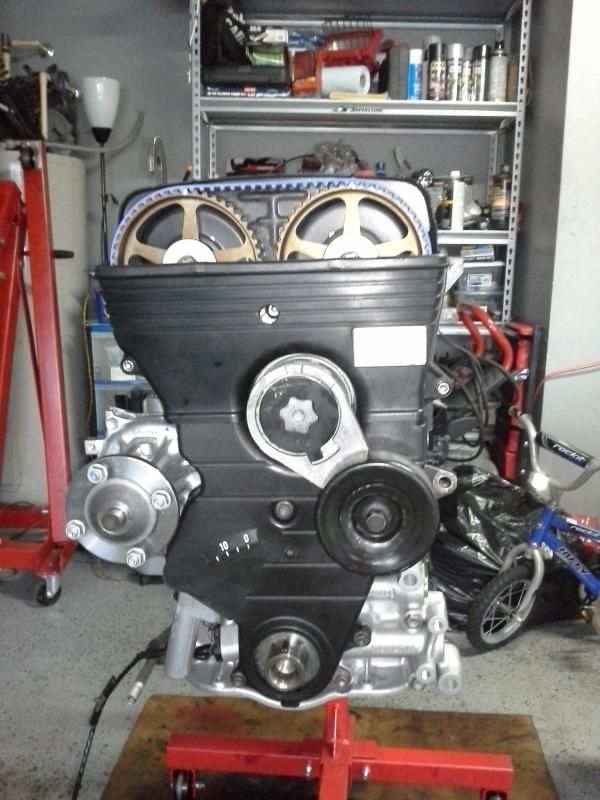

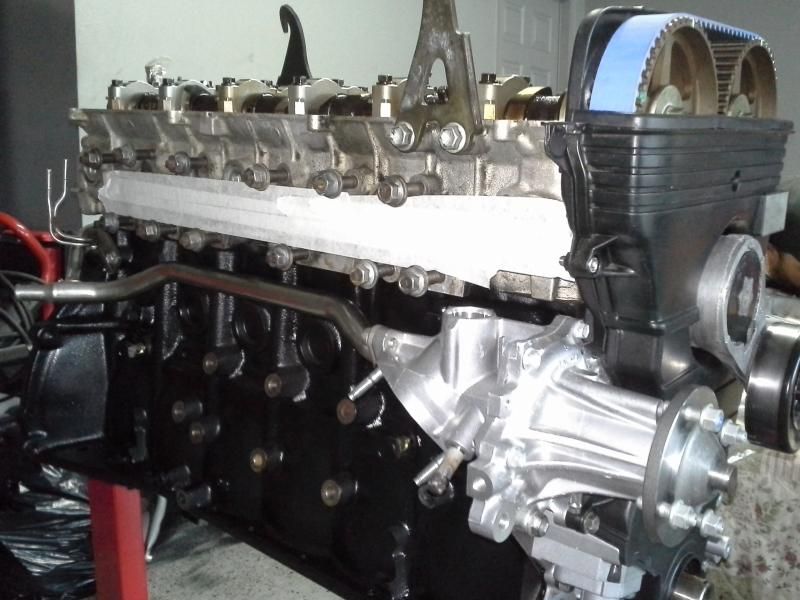

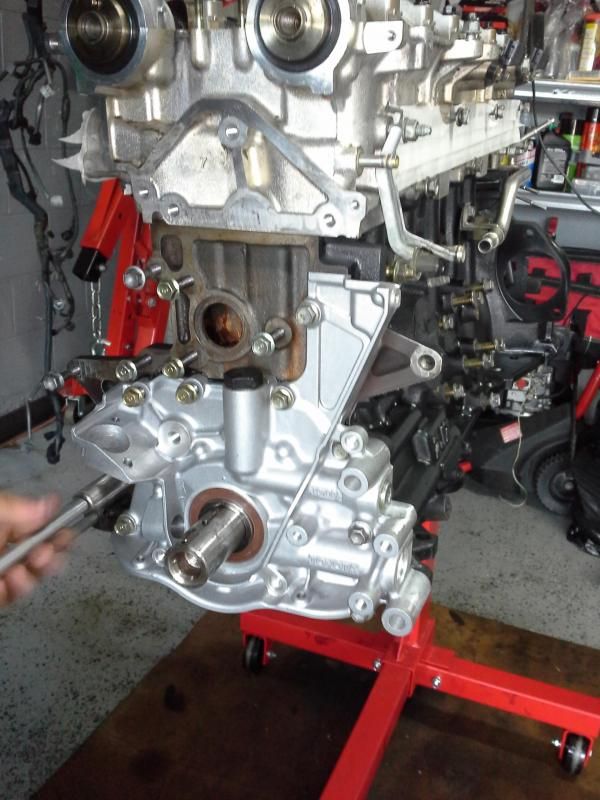

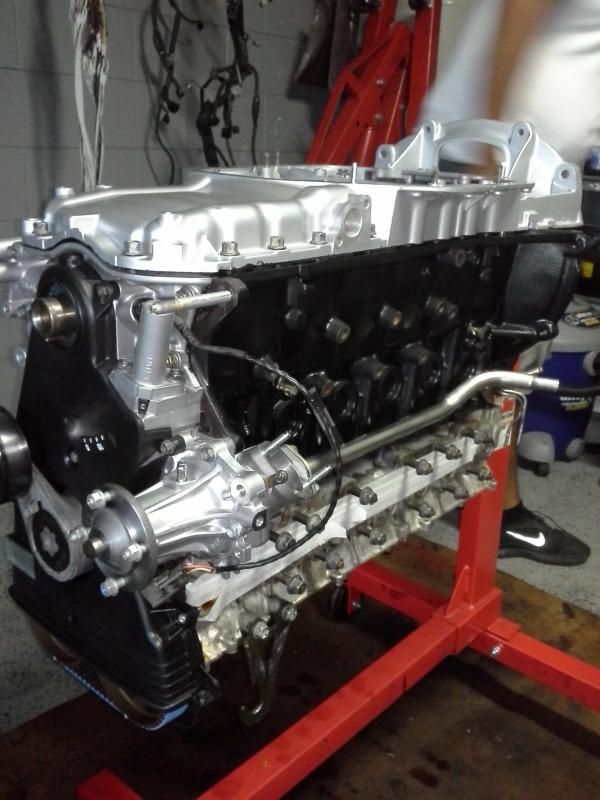

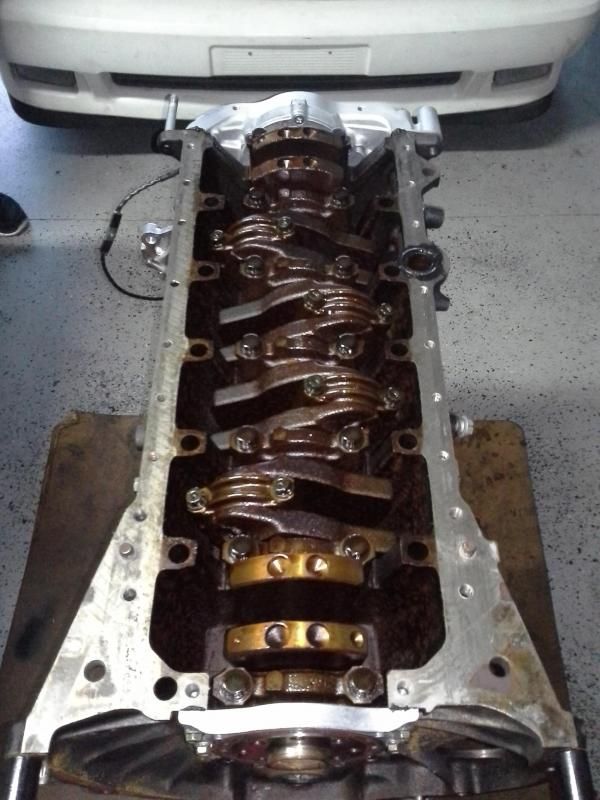

Everything torqued to spec:

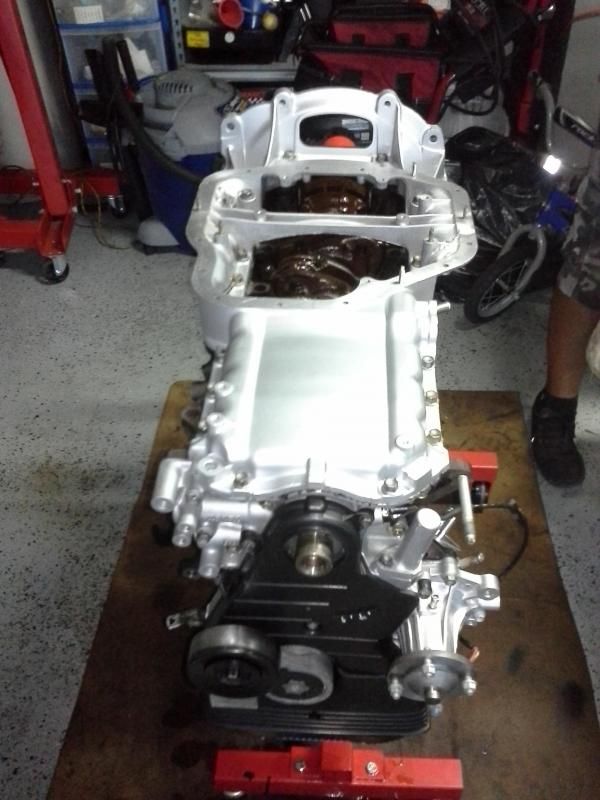

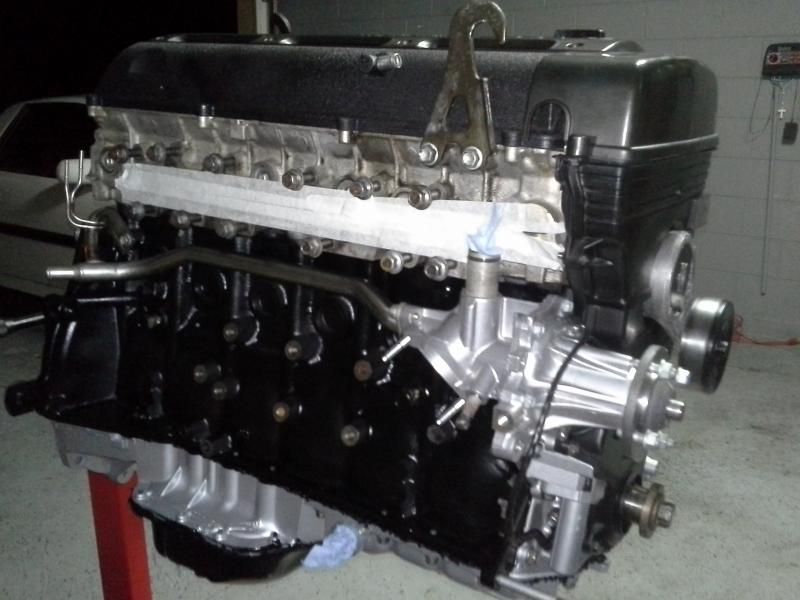

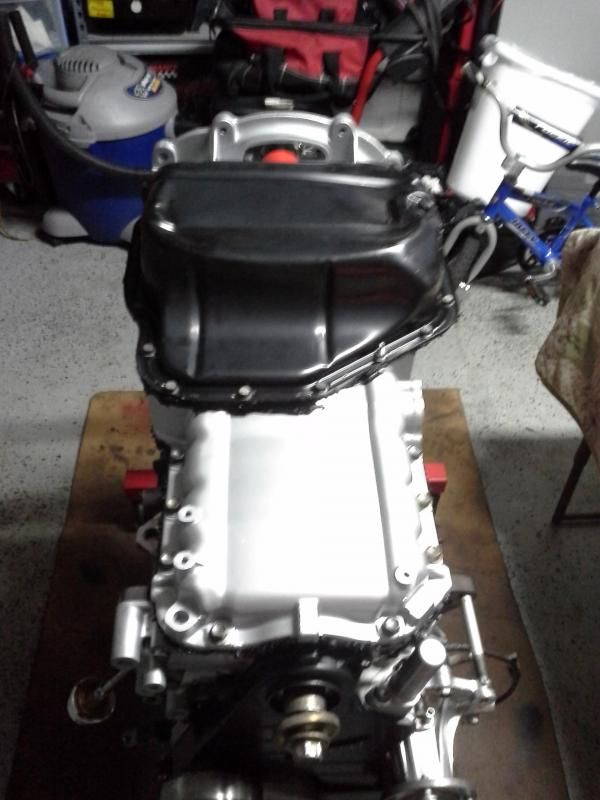

Ready to accept oil pan:







Baffle and oil inlet installed:






Turned back over:

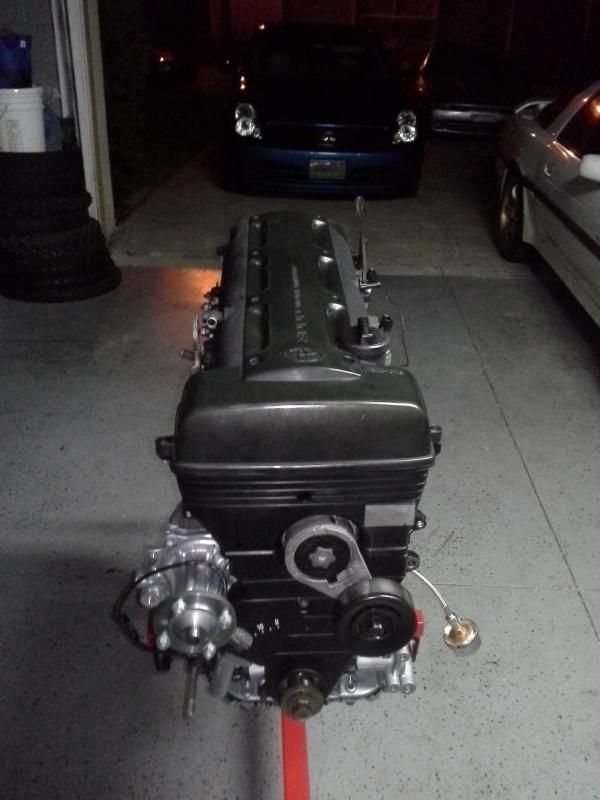

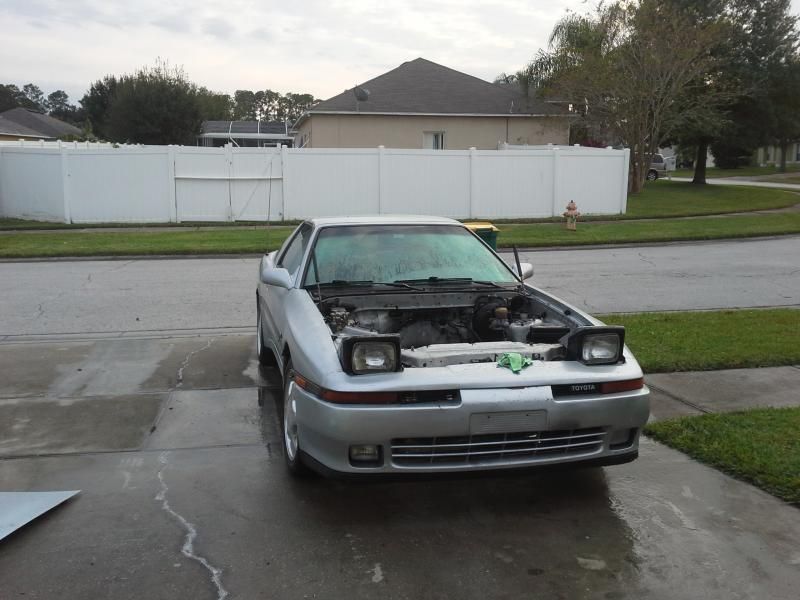

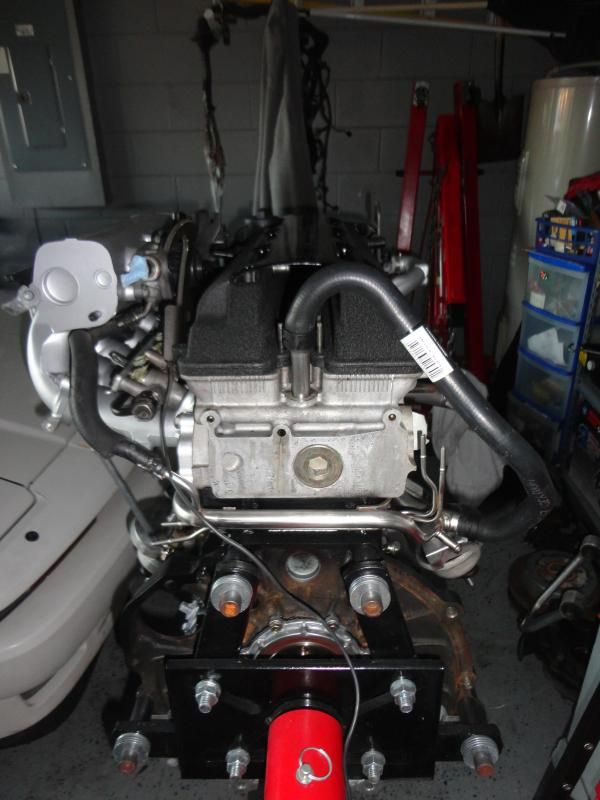

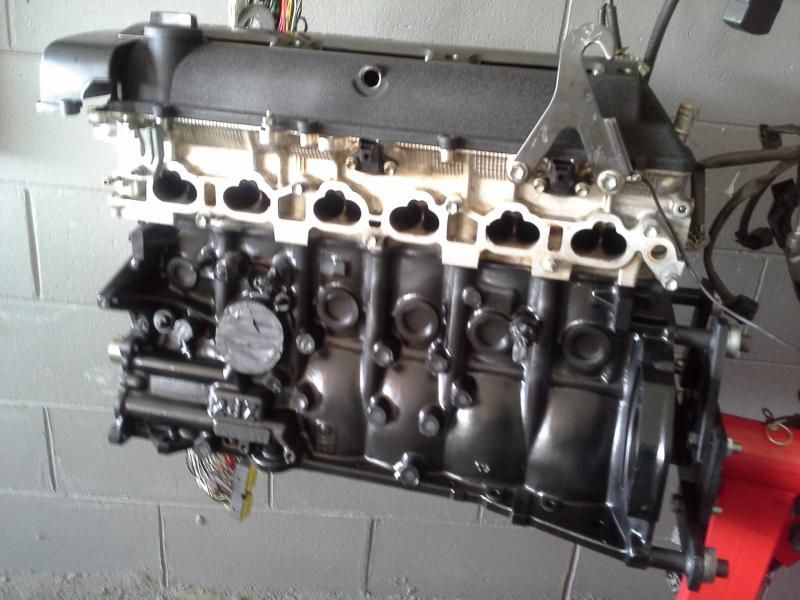

This is how she sits as of now: :icon_razz



The next update will be more cleaning and boring stuff soo stay tuned folks.



[akito]

That's quite and update man. I like where this build is going. Keep it up!



[suspectsupra]

awesome work!!! keep it up



[slowma70]

Thanks for the kind words.



[slowma70]

Small update:

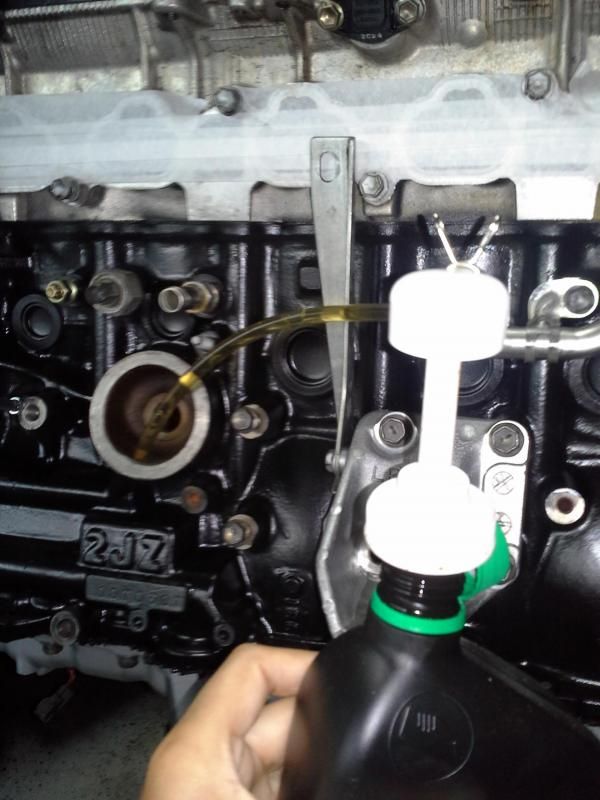

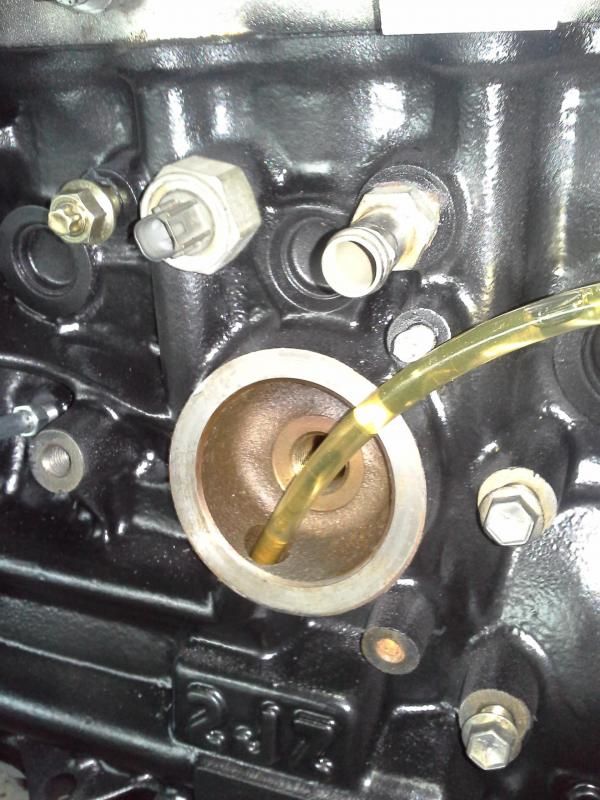

Before putting on the oil cooler back i pumped a bit of oil through the oil pump passage.

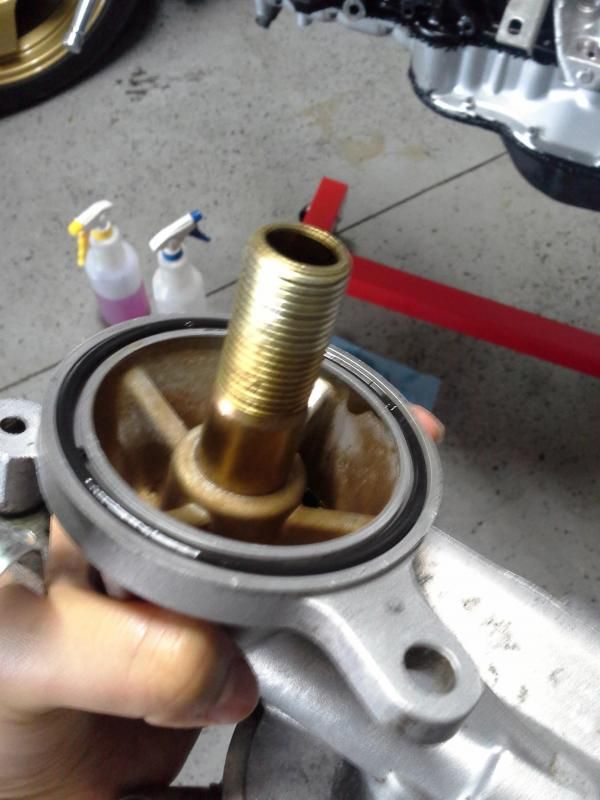

New o-ring and crush washer on the oil cooler:

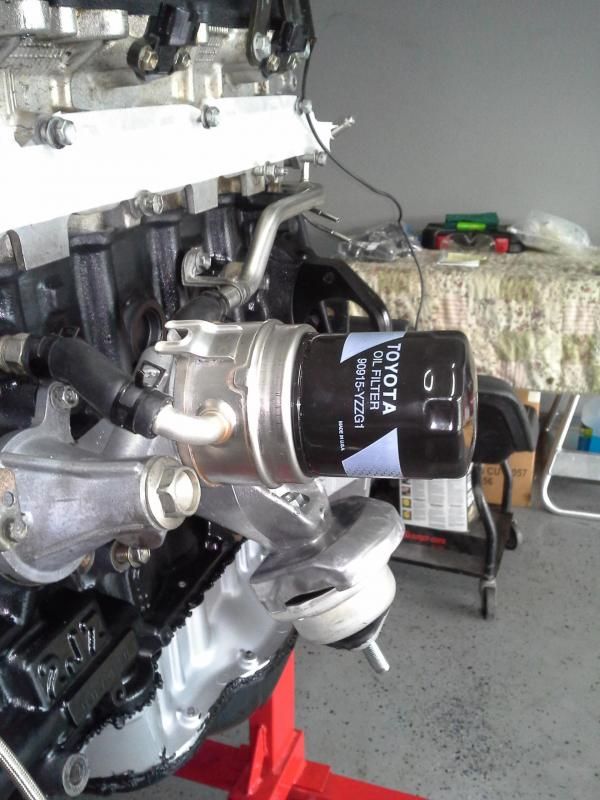

oil cooler installed with new hoses:

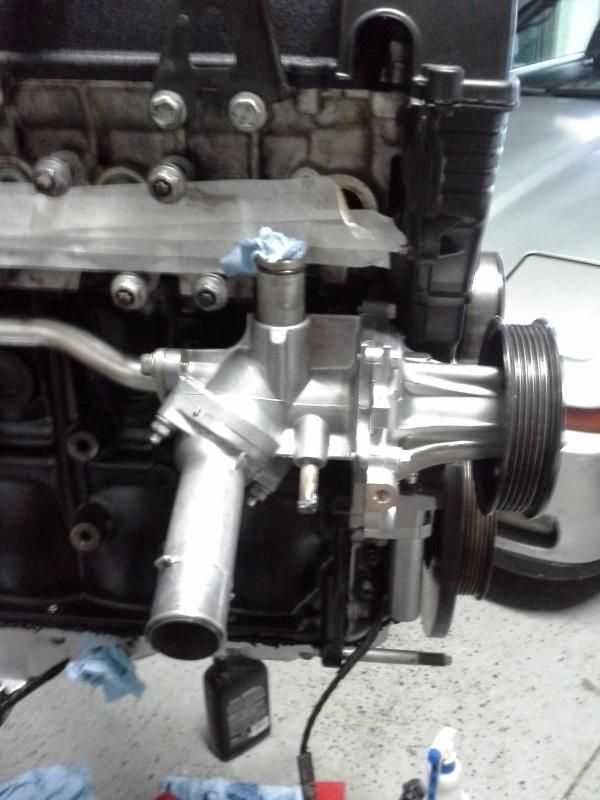

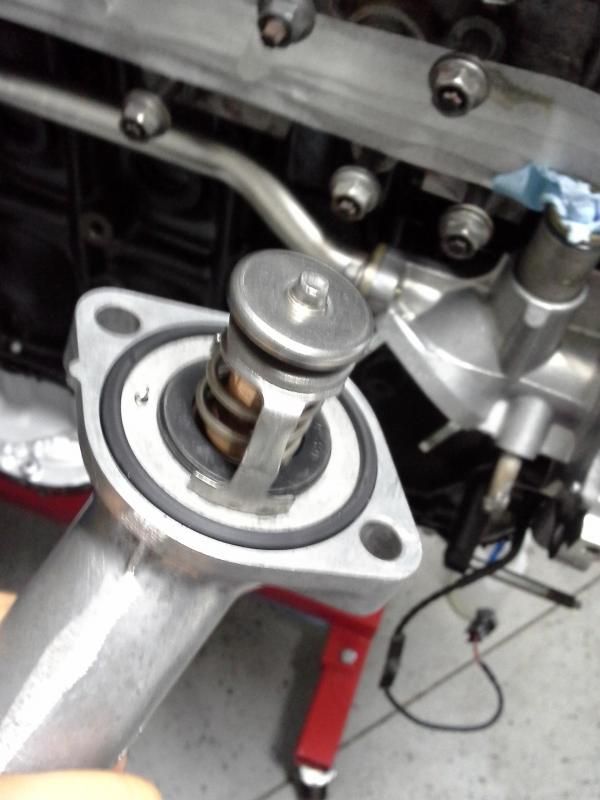

coolant inlet with new thermostat and gasket:

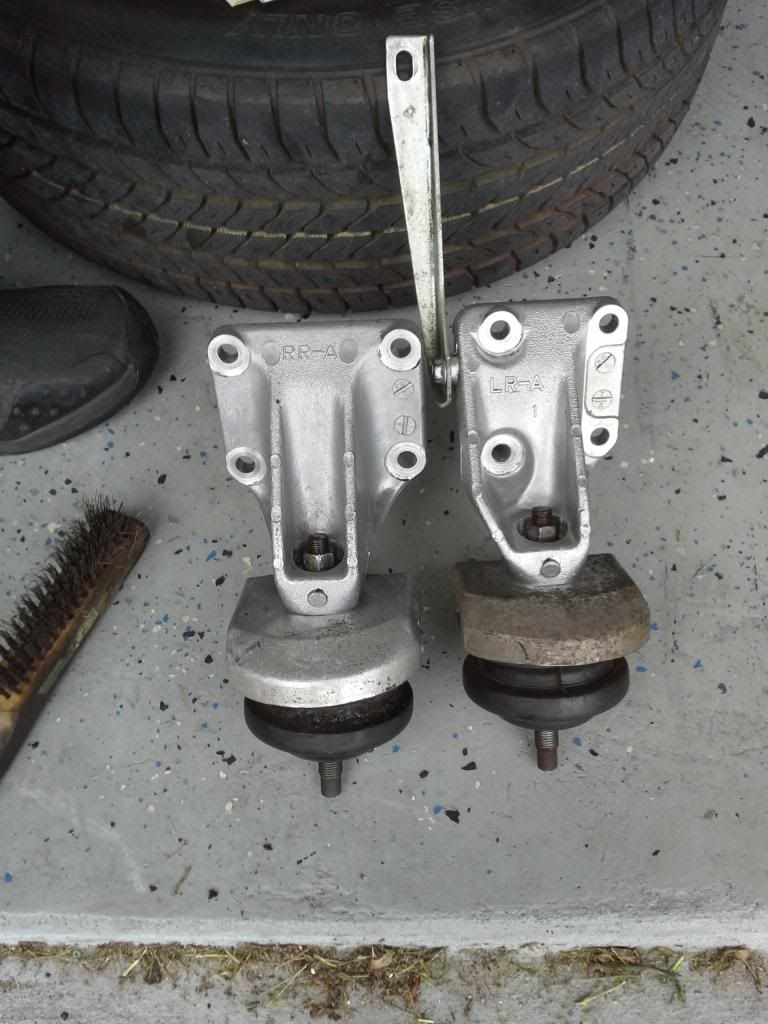

Got me some Jza70 motor brackets:

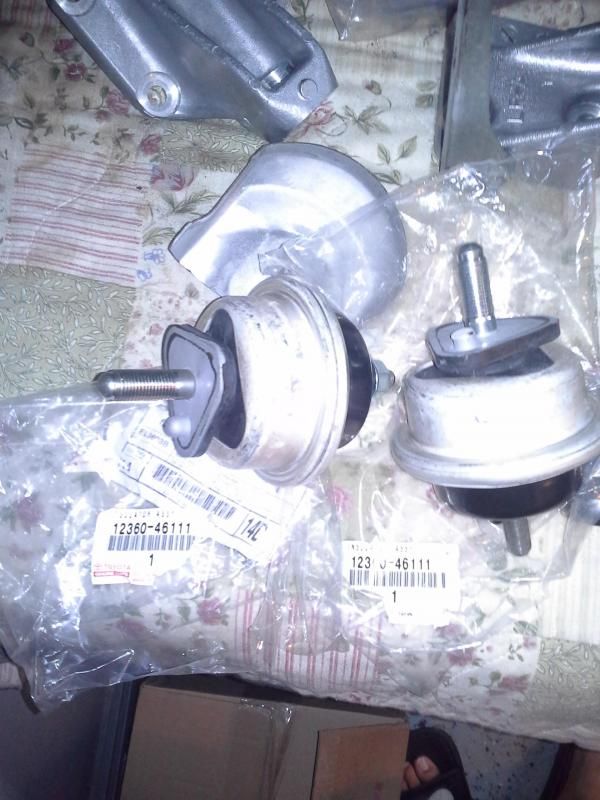

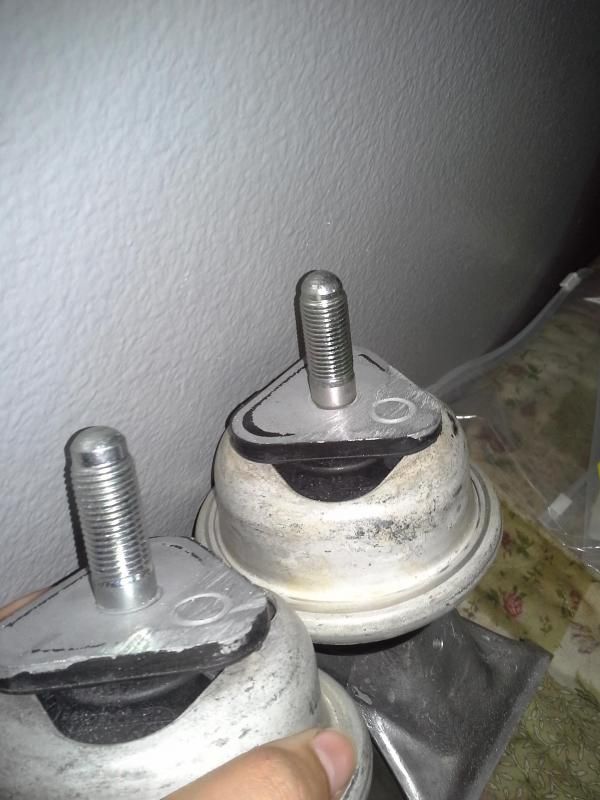

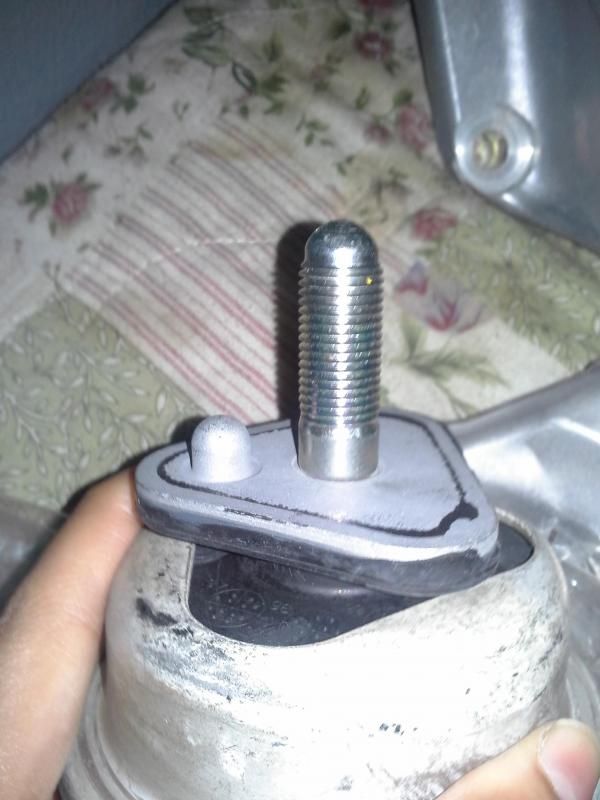

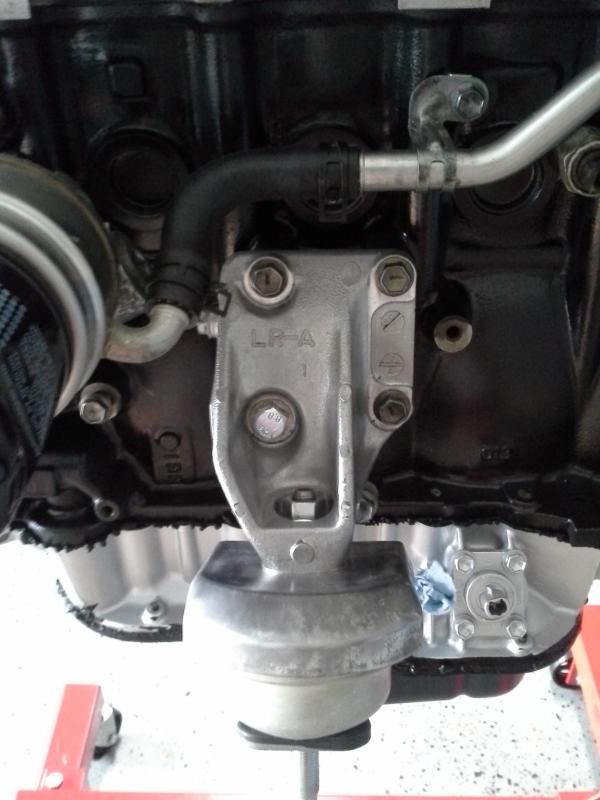

New OEM 97-98 MKIV motor mounts(part #12360-46111). Had to grind the nipples to fit the subframe.

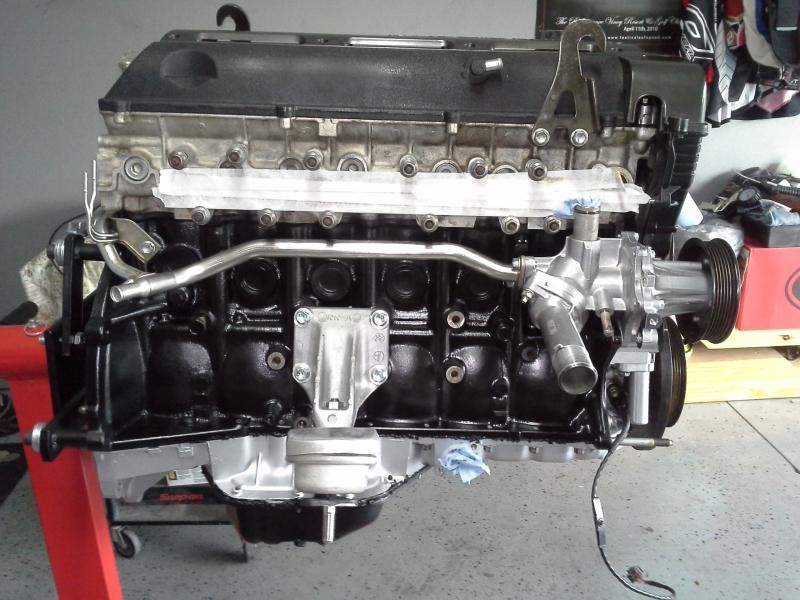

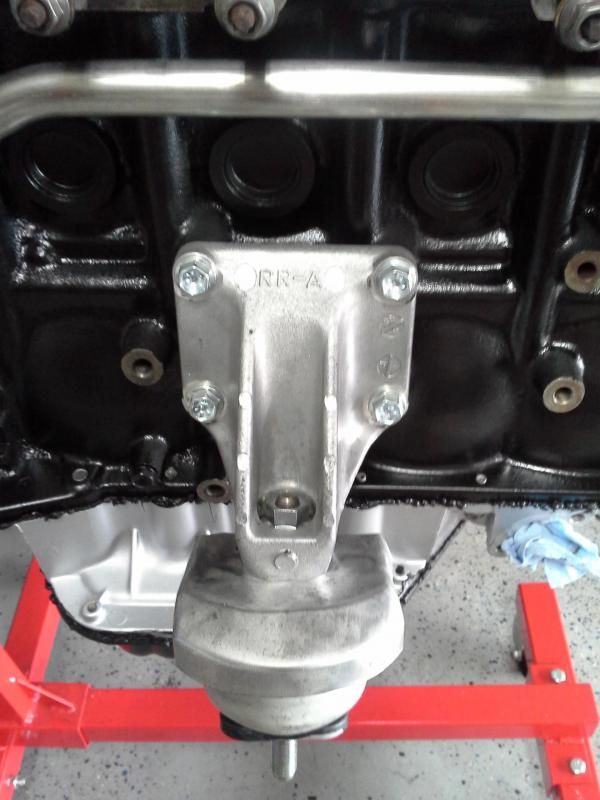

Both installed:






next will be some cleaning and painting of the intake .



[Silver MK3]

Looks like you are making good progress!



[rdaigle44]

Awesome build man! Clean, clean, clean!



['90mk3]

Damn....this thread just gave me the kick in the @$$ that I needed.... Great motivation to get going with my build. Its a 7mgte but still have a lot of work left. Get my block back on monday from the machine shop off goldenrod. I'm out in west Orlando though..you definitely got some wrenching skills so if I have questions I might have to call you up. Its nice to have experienced advise...great build thread....



[suspectsupra]

You got skills mang..



[kakanator]

love the welding job on all the nips I did the same thing to my 7m in a few spots.



[slowma70]

Thanks guys, The more i work on it the more motivation i get.

[QUOTE='90mk3;2015353]Damn....this thread just gave me the kick in the @$$ that I needed.... Great motivation to get going with my build. Its a 7mgte but still have a lot of work left. Get my block back on monday from the machine shop off goldenrod. I'm out in west Orlando though..you definitely got some wrenching skills so if I have questions I might have to call you up. Its nice to have experienced advise...great build thread....[/QUOTE]

Thanks bro, if you have a facebook join our group called: Florida a70 (FLA70). They do bi-weekly meets near UCF

You got skills mang..

lol o please. Gotta give credit to my boy SuspectSupra for his help if it wasn't for him i wouldn't be doing this swap.



[slowma70]

Time for an update:

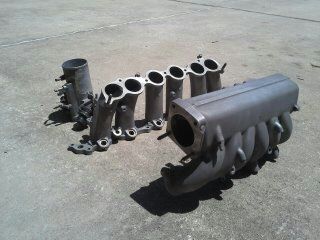

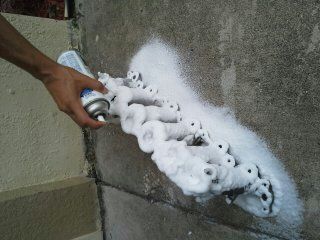

Started to clean the intake manifold, Washed it 4 times to remove all the baked dirt and grime:

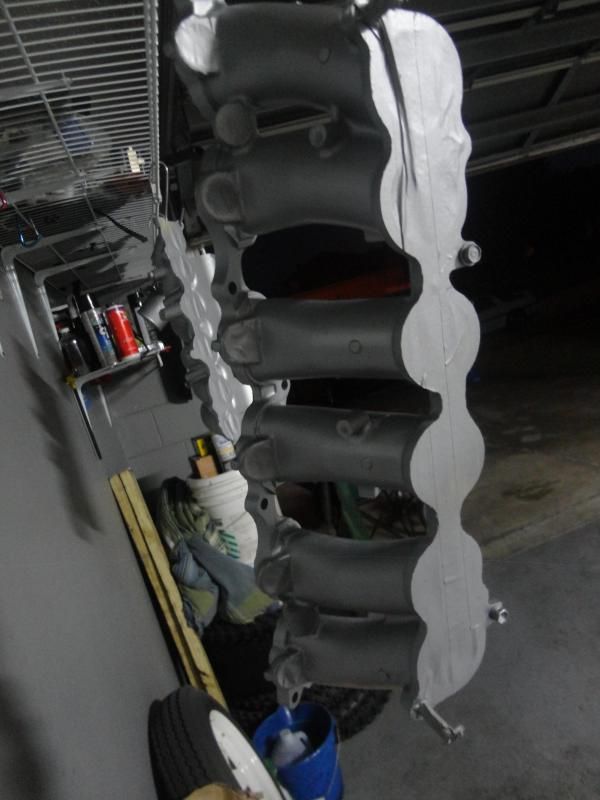

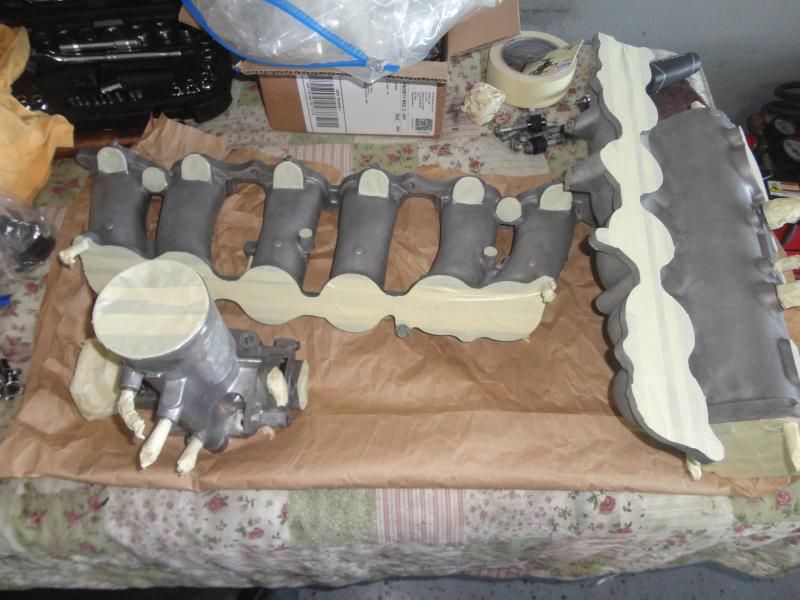

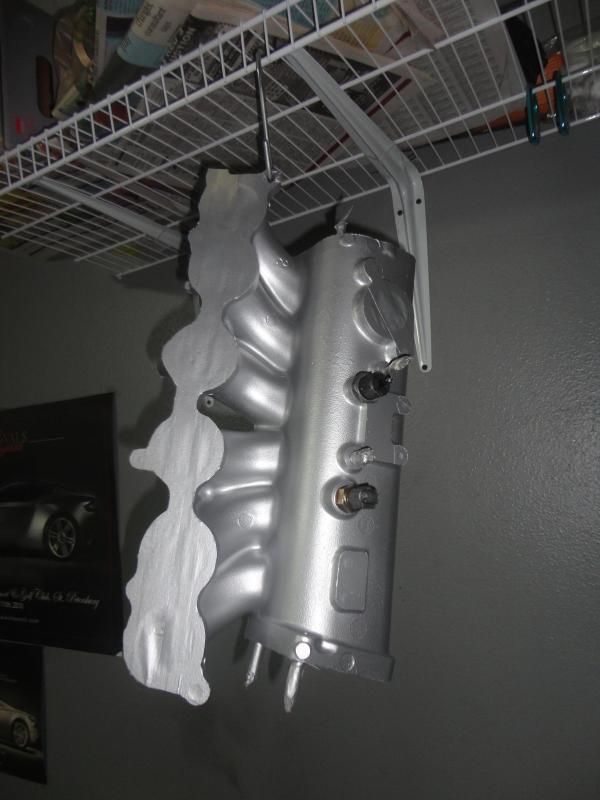

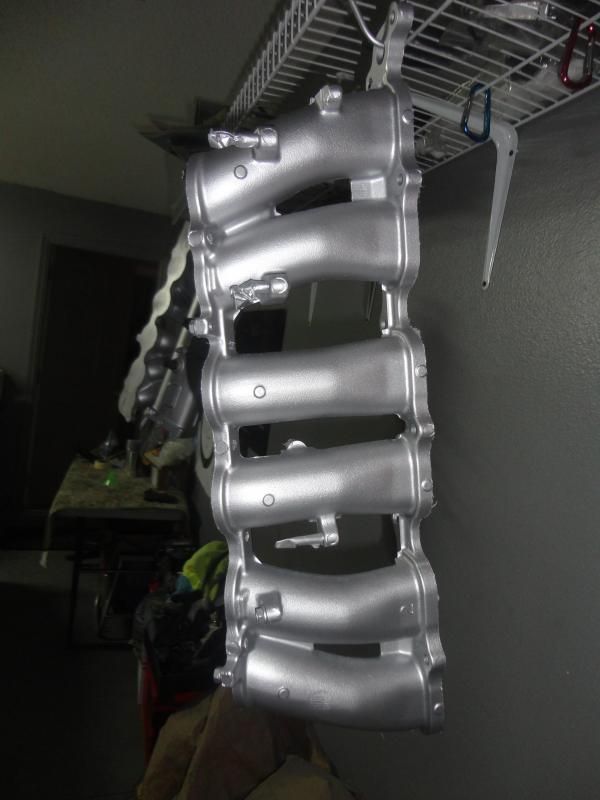

After 2 coats of high temp primer and 3 coats of high temp aluminum paint:

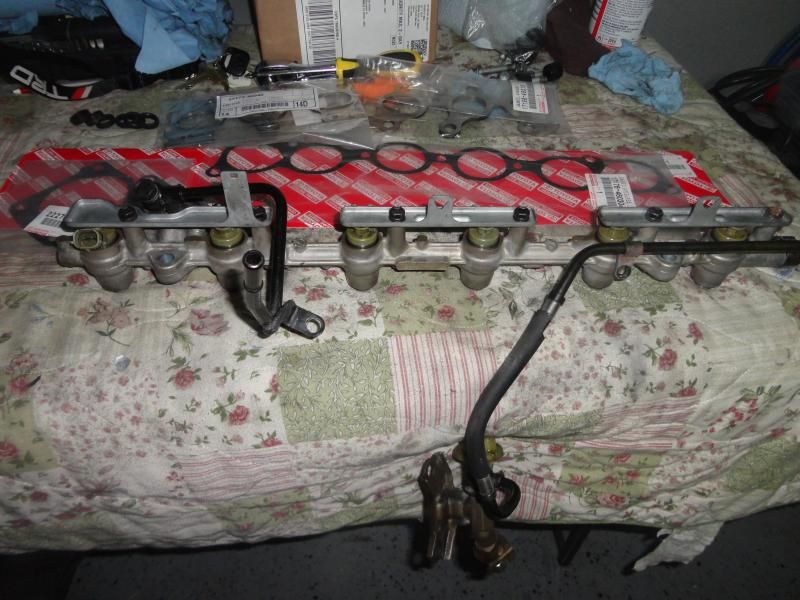

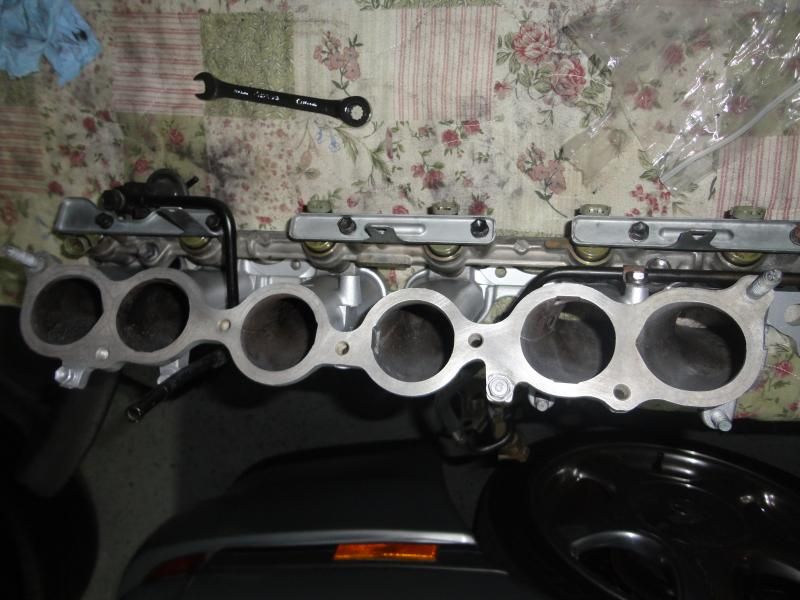

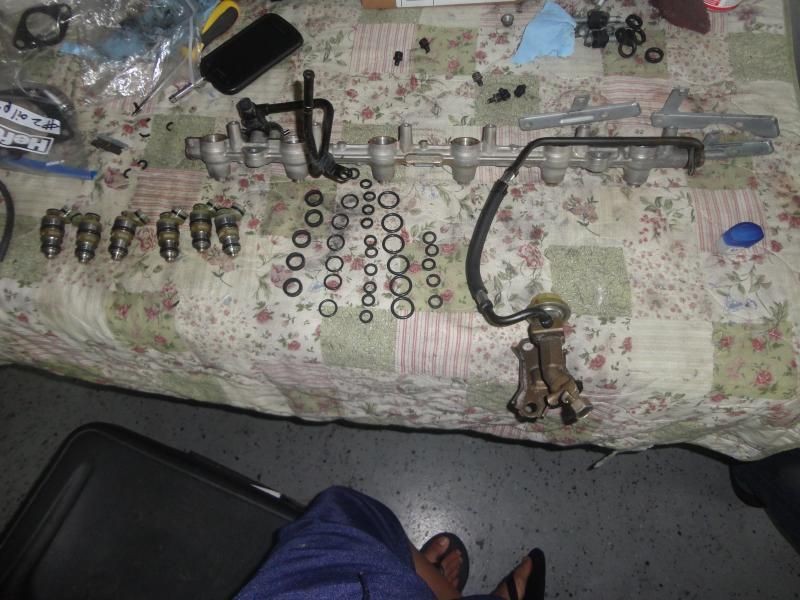

Replaced all the brittle injectors o-rings:











Also painted the coil cover:

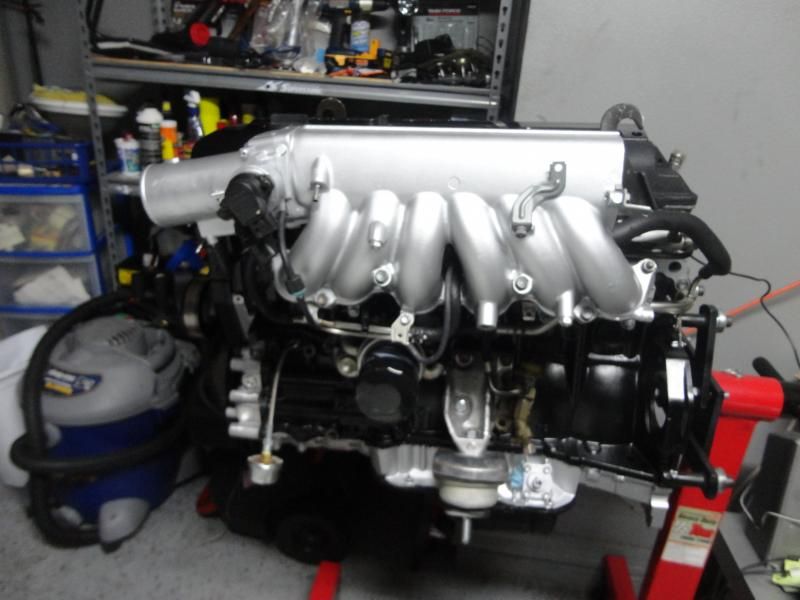

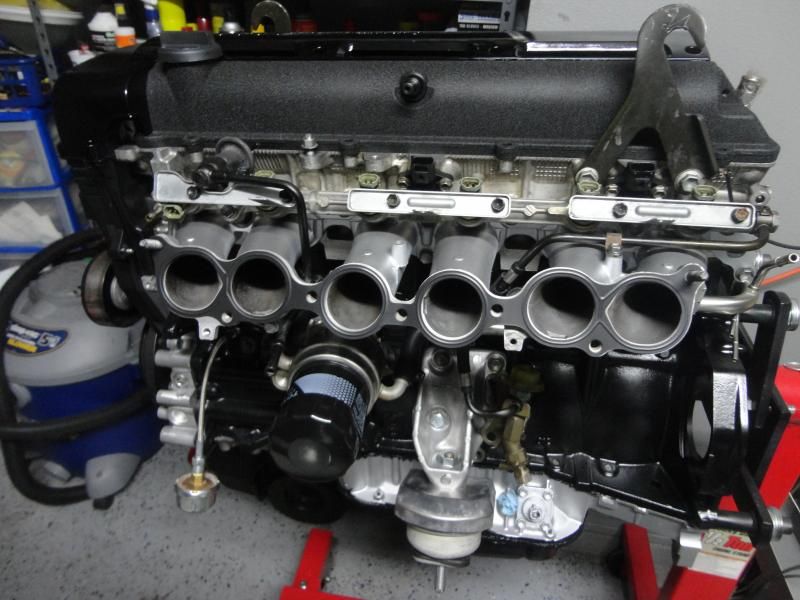

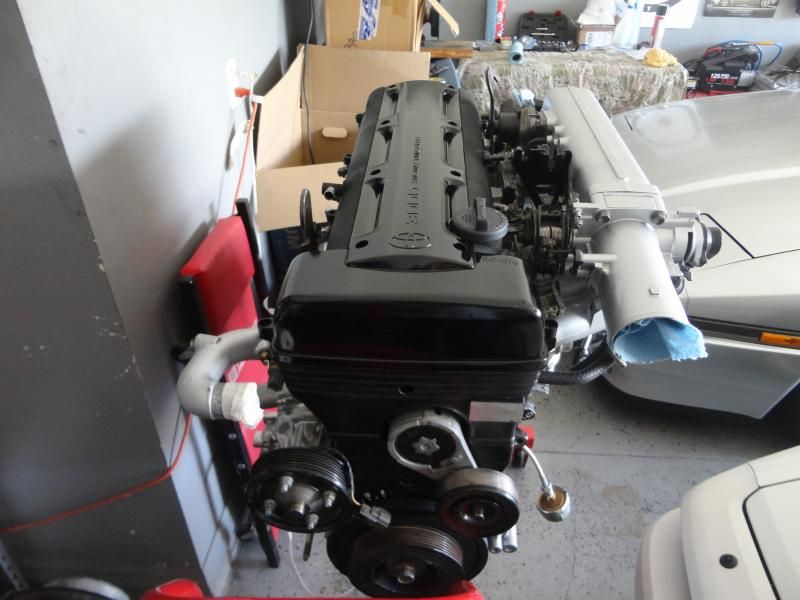

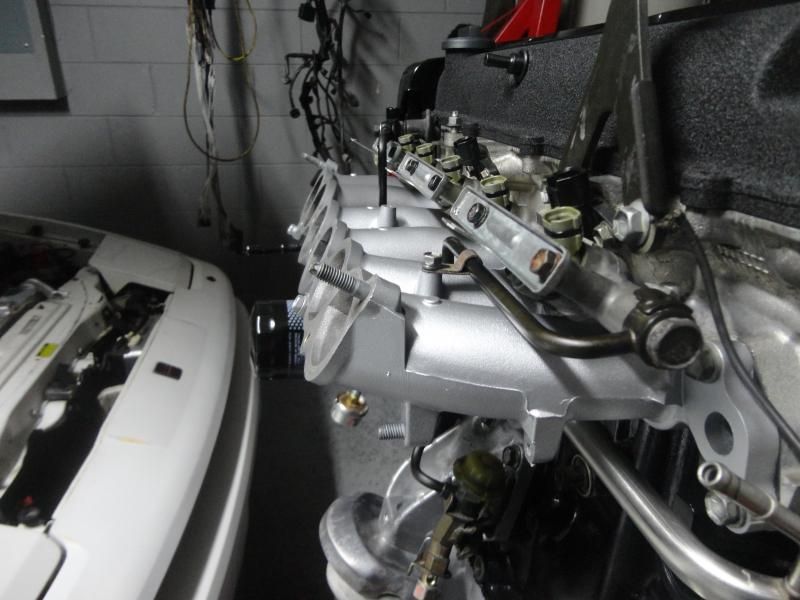

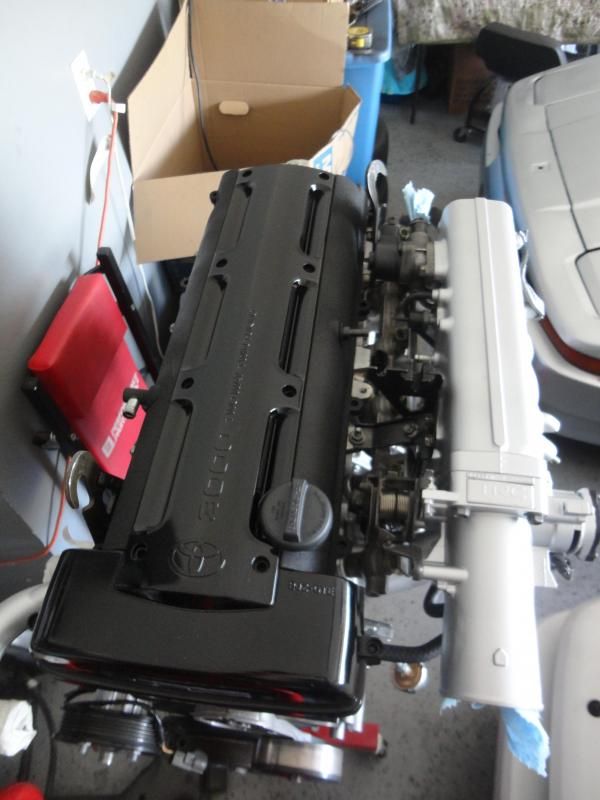

This is how it sits now:

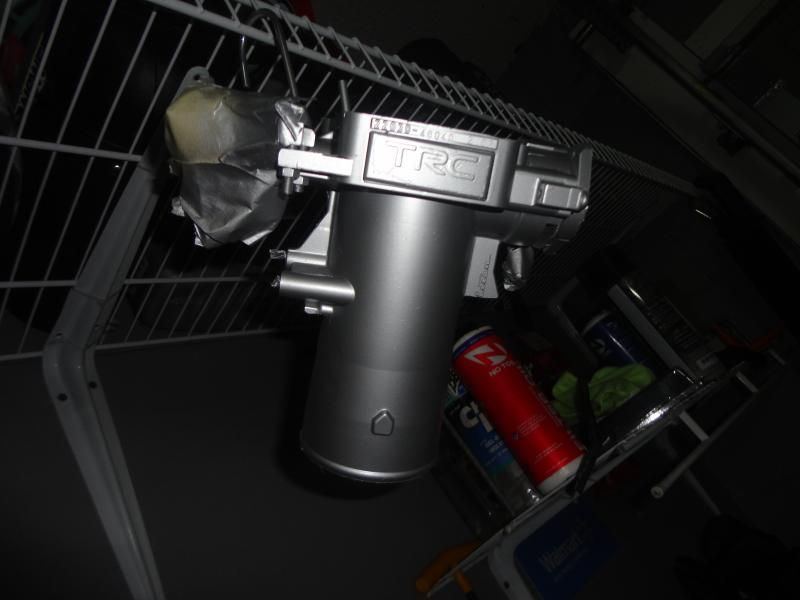

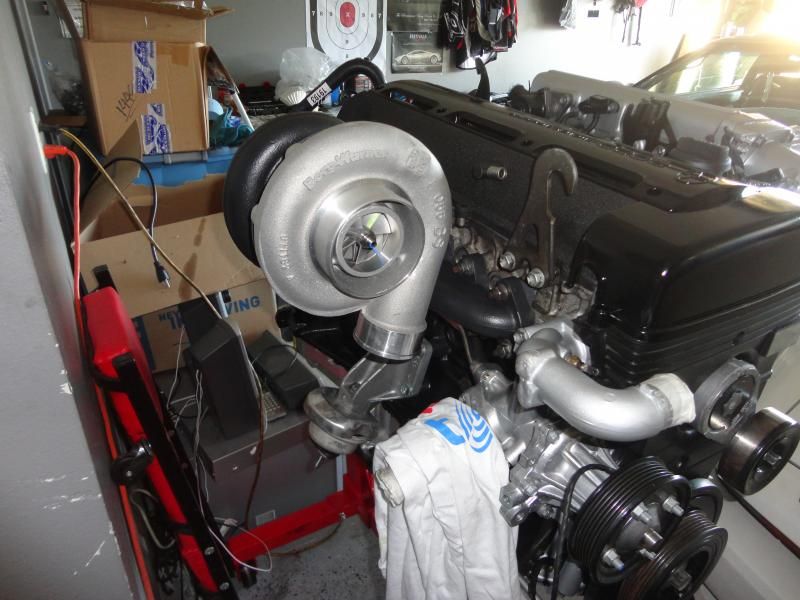

A teaser pic for the next update:



[slowma70]

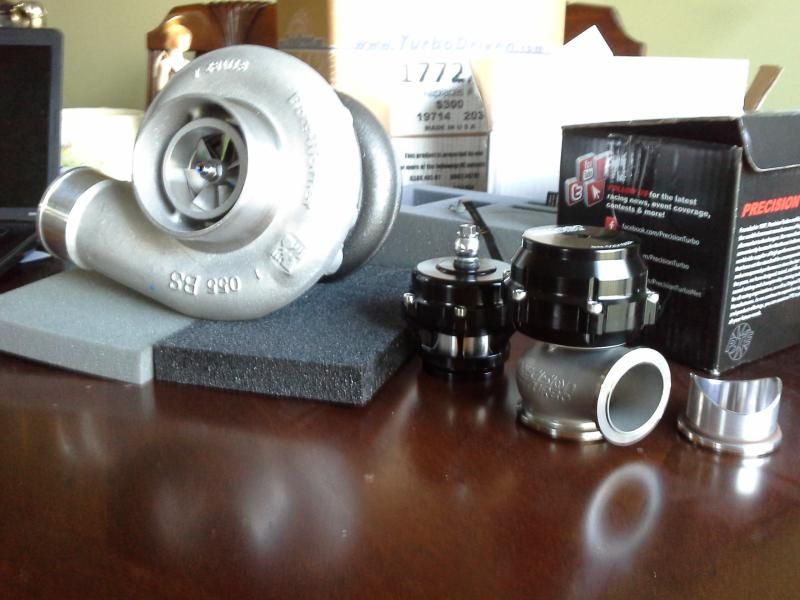

I managed to order a few more parts for the exhaust side:

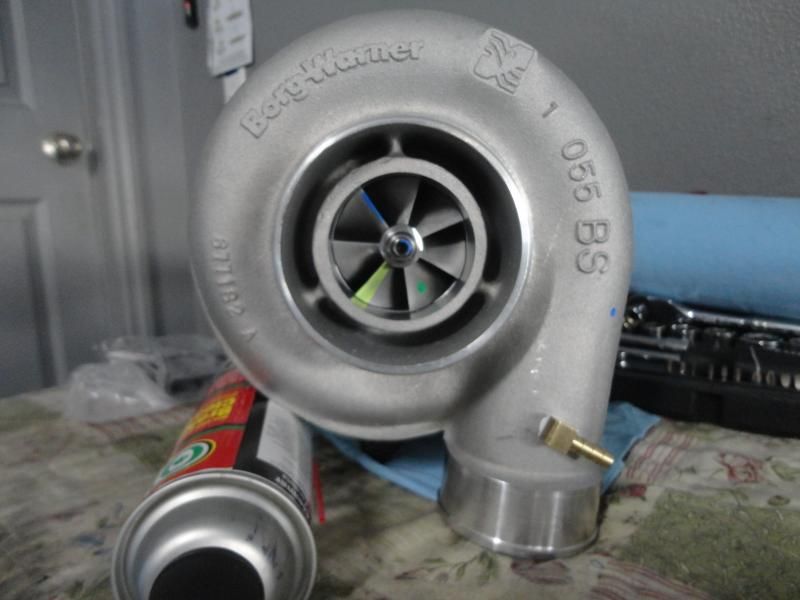

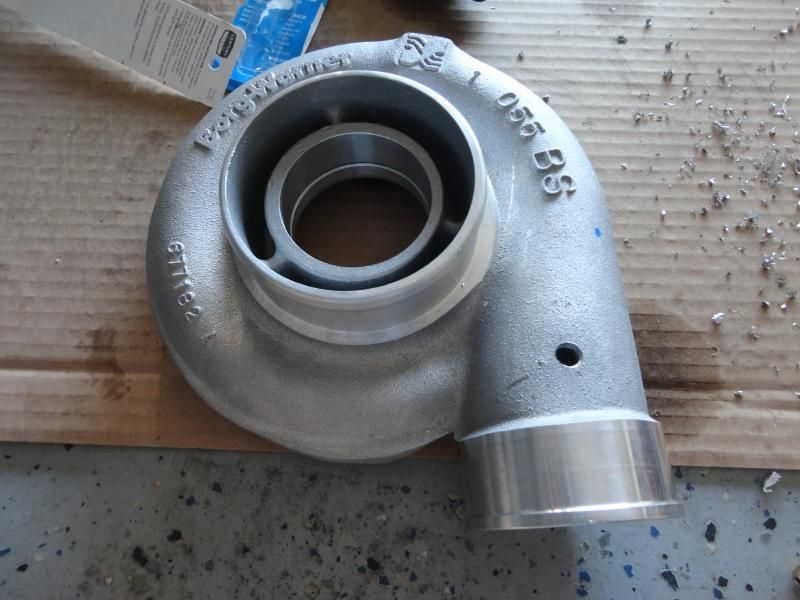

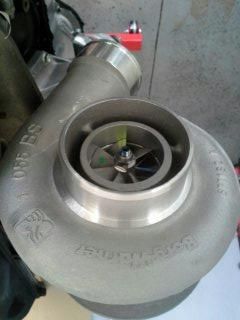

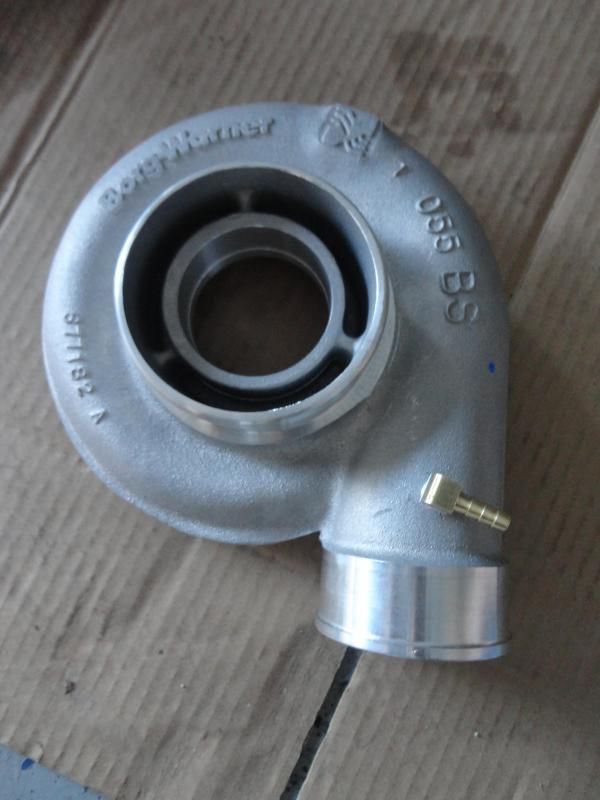

-Borg Warner s360 aka 83-75 with a .88 A/R open T4
-ebay open t4 cast manifold
-Precision 46mm wastegate

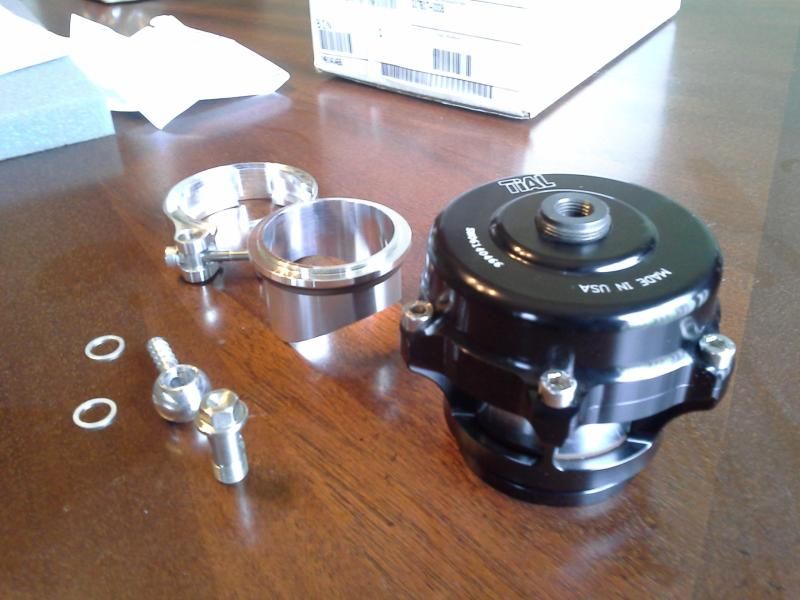

-Tial Q bov with 11psi spring

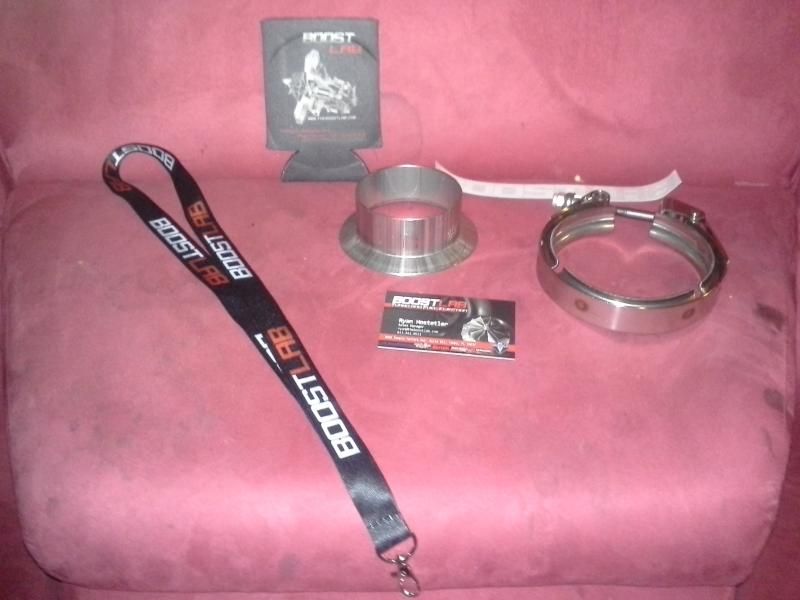

-Boost Lab v-band kit Marmon flange to 3"
-3" 304 stainless steel u-j bend tubing to make downpipe/ 3" flex pipe

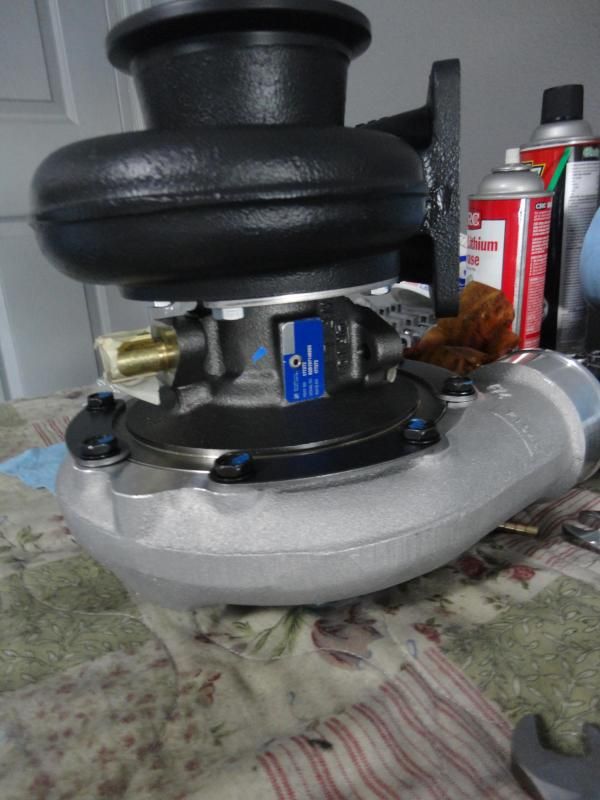

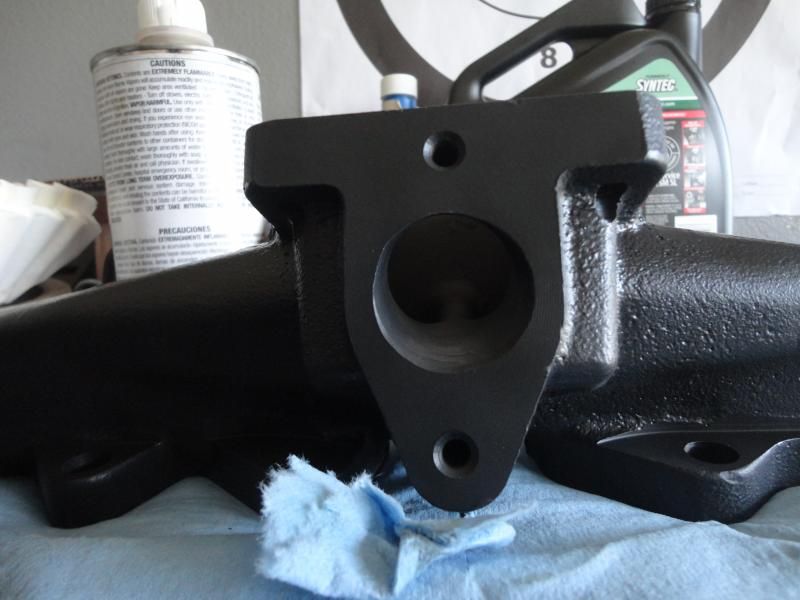

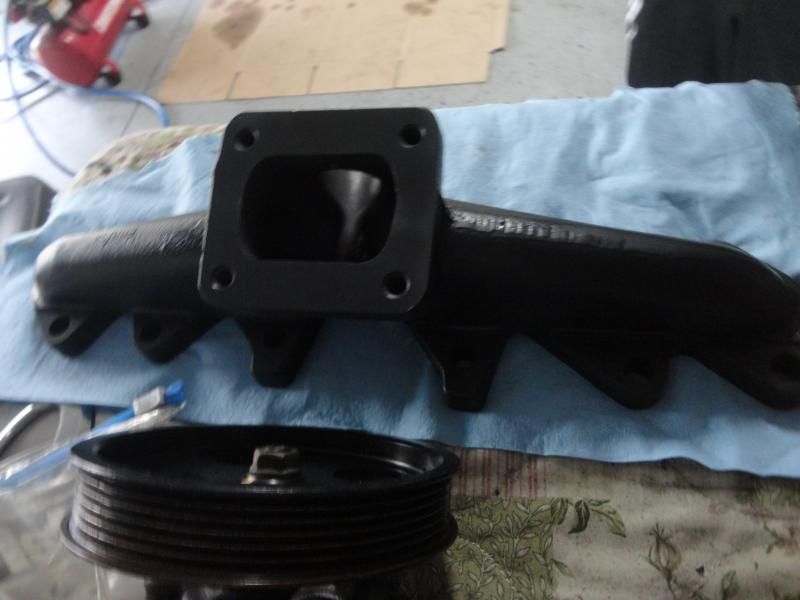

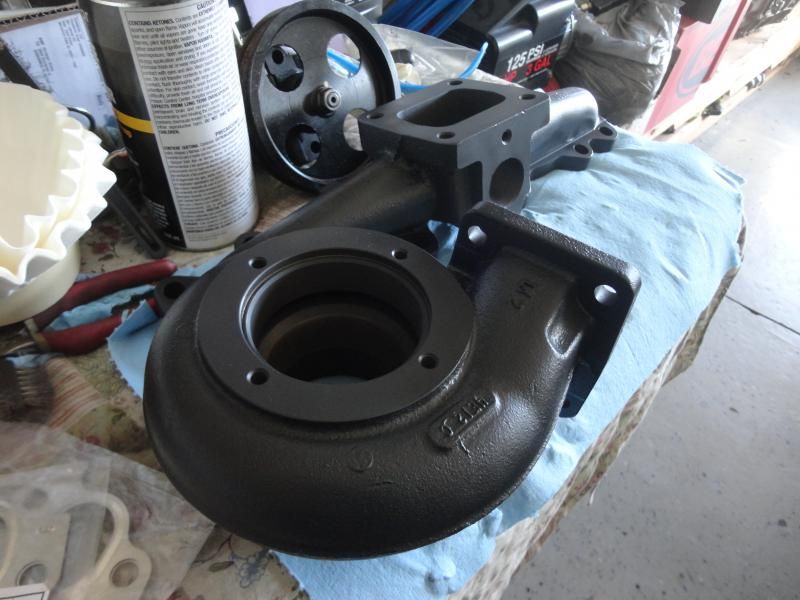

The exhaust mani got ported to match the treadstone 38mm to 44 wastegate adapter Thanks to SuspectSupra, also got it sent out along with the turbo backhousing to get ceramaic coated:

















Was able to find a molded heater hose to loop the rear of the 2jz heater inlet and outlets. Gates Part# 19193



Also got to drill and tap an 1/8 npt elbow to 1/4 barb fitting for a more direct boost reference to the wastegate.

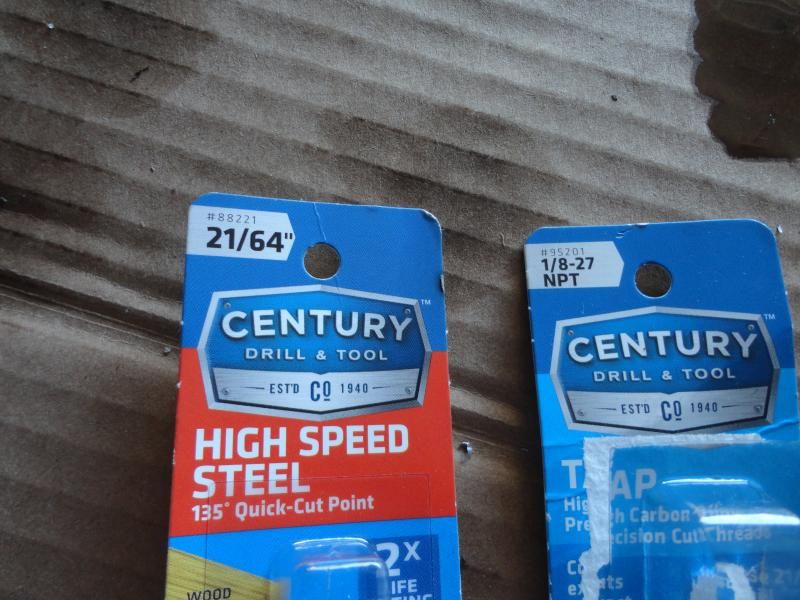

-1/8 27 tap
-21/64" drill bit









More updates coming soon.... :icon_razz



[kakanator]

nice heater core bypass its going to suck in the winter thought sir.



[slowma70]

Your right if anything ill just put it back to normal again



[slowma70]

Another update to add,
Wanted to reseal the trans with some new gaskets before the install:

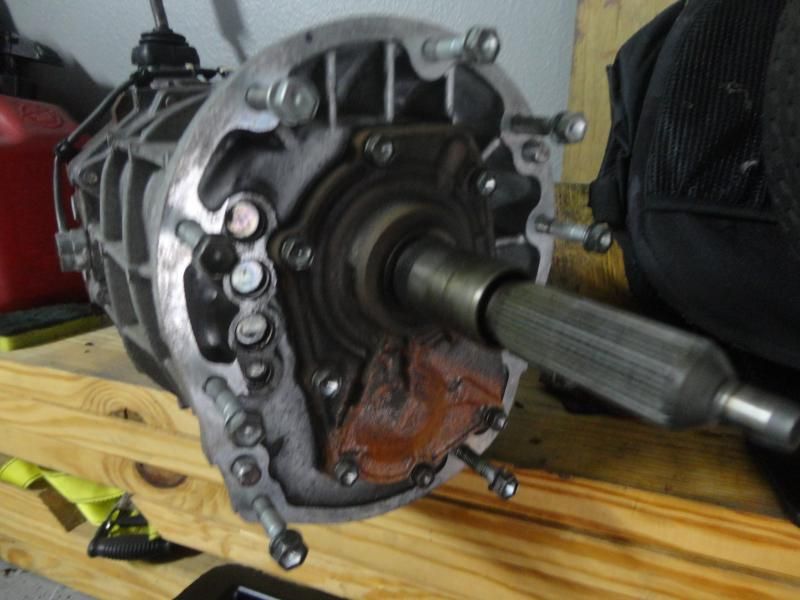

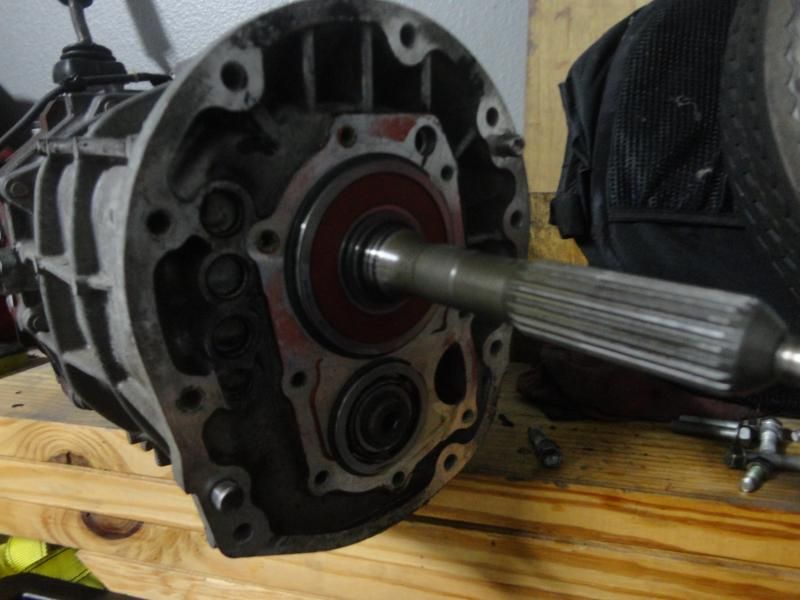

Bearing retainer off

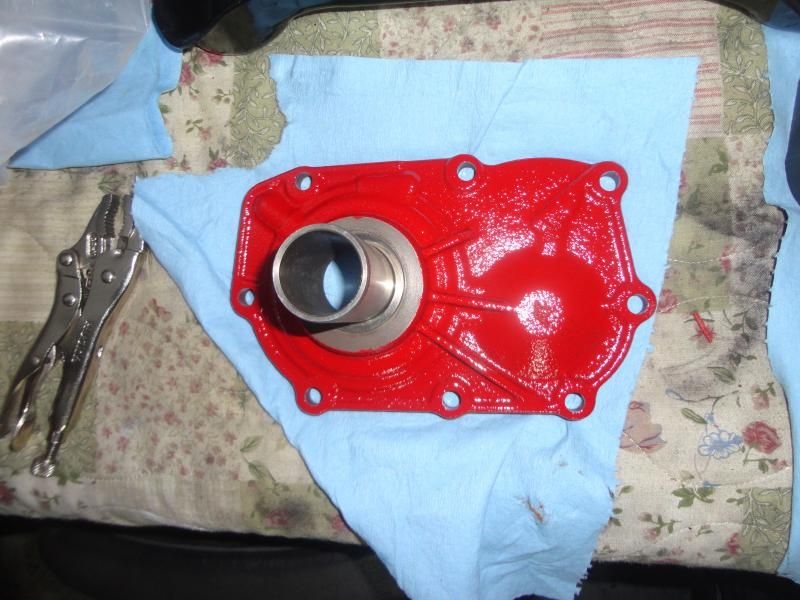

after some paint

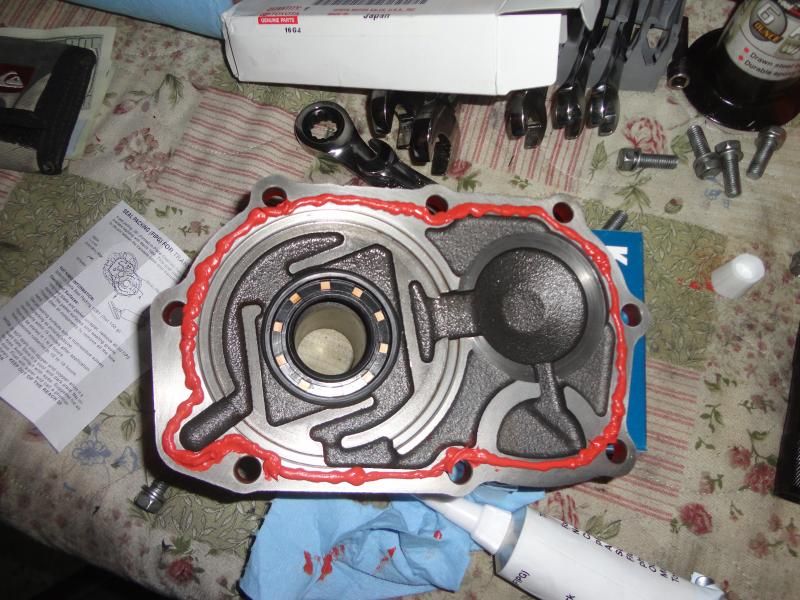

New seal in place and fipg


Also replaced the output shaft seal


forgot to take pics of it put together.



[slowma70]

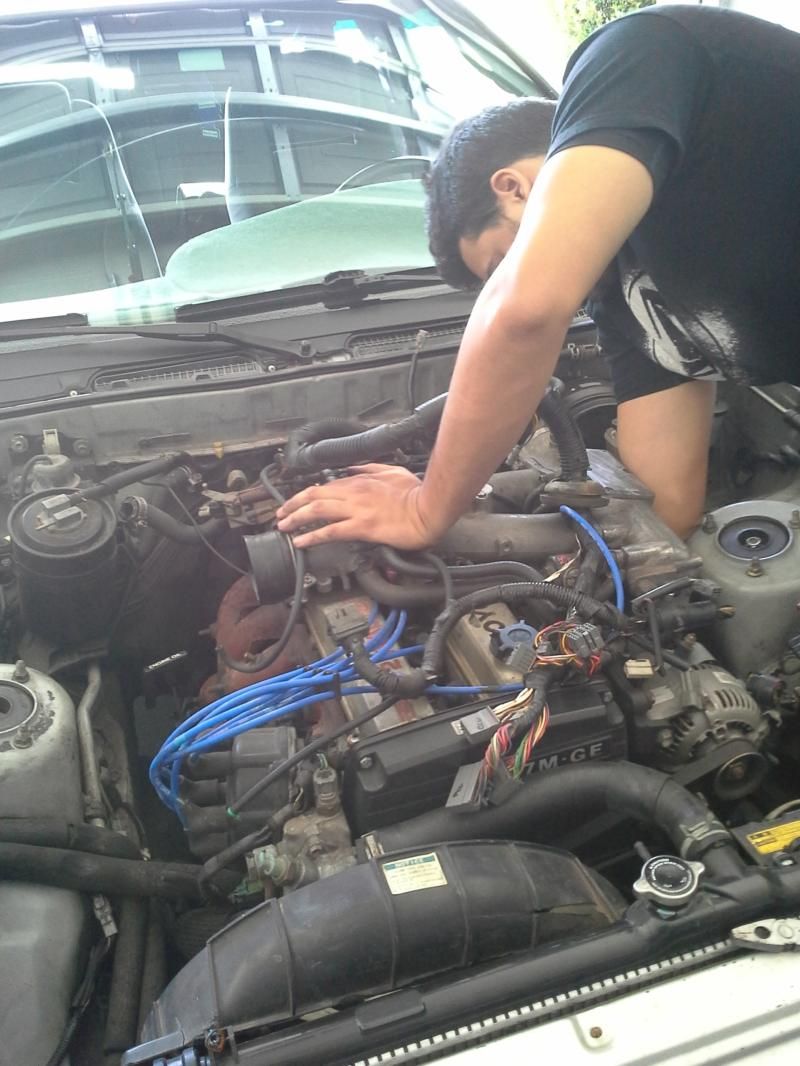

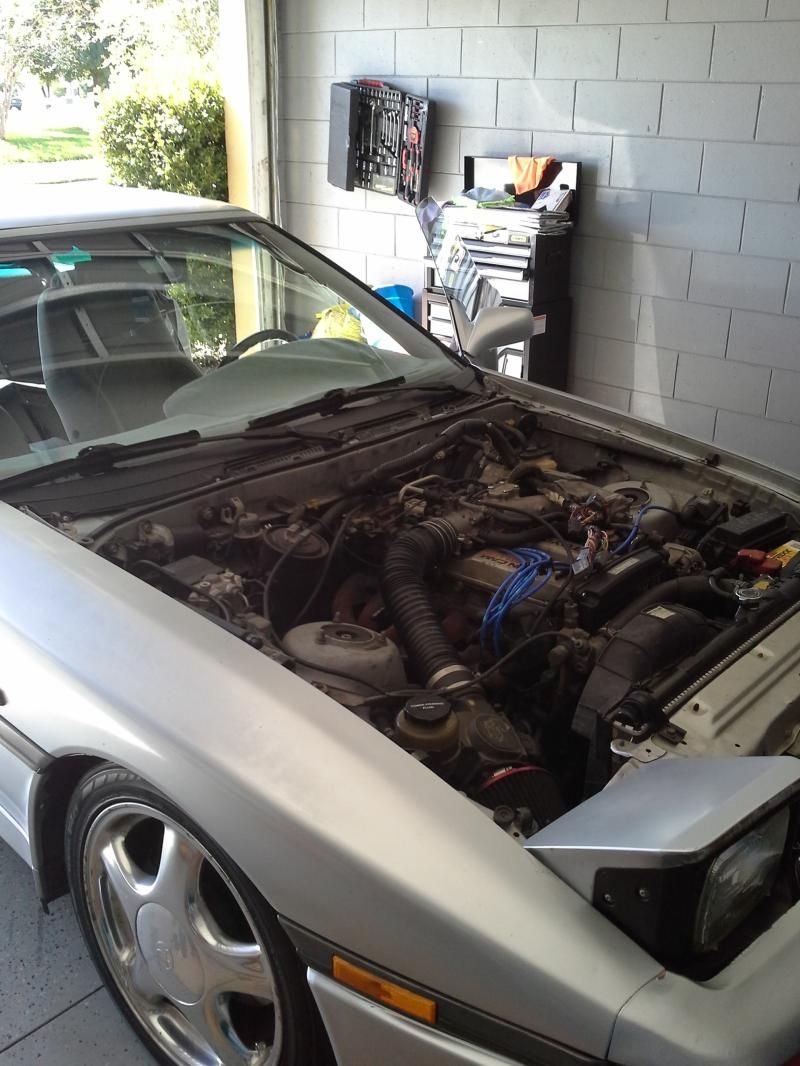

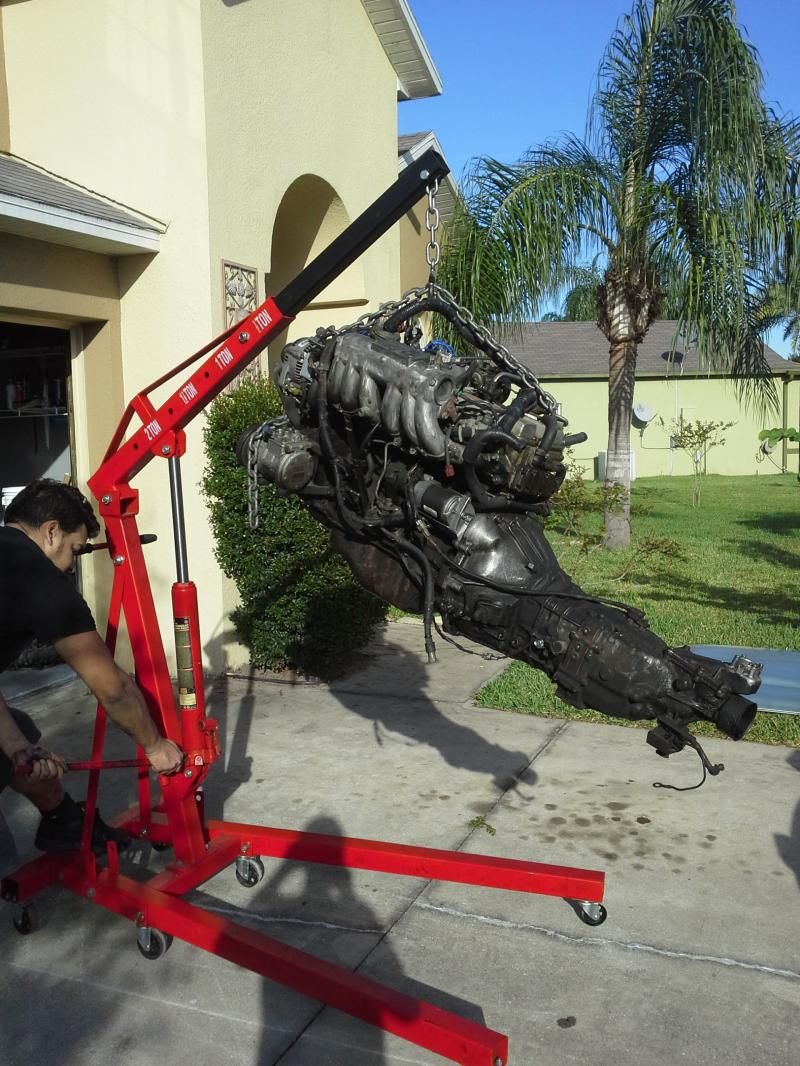

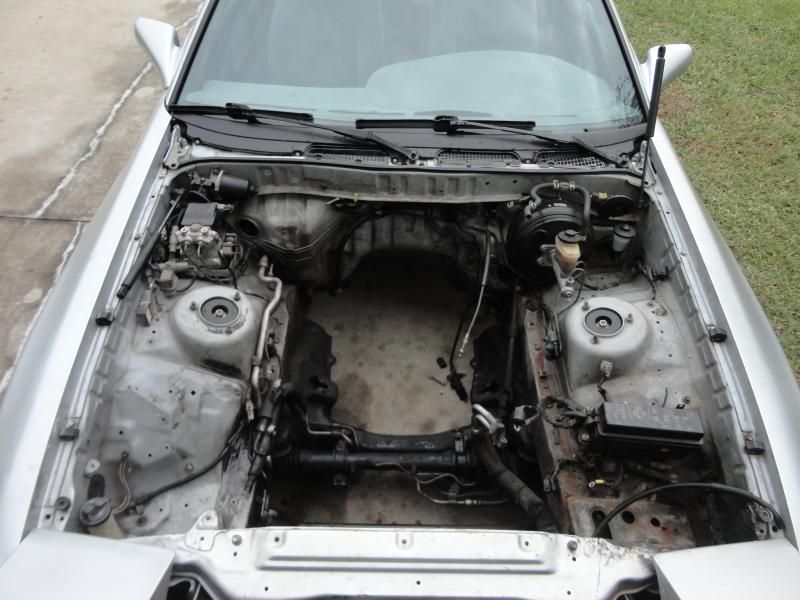

Then this happened

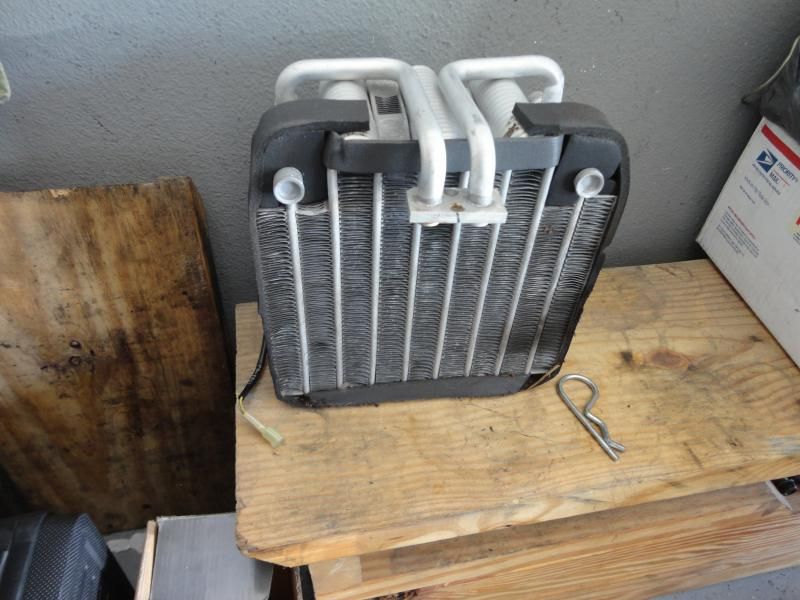

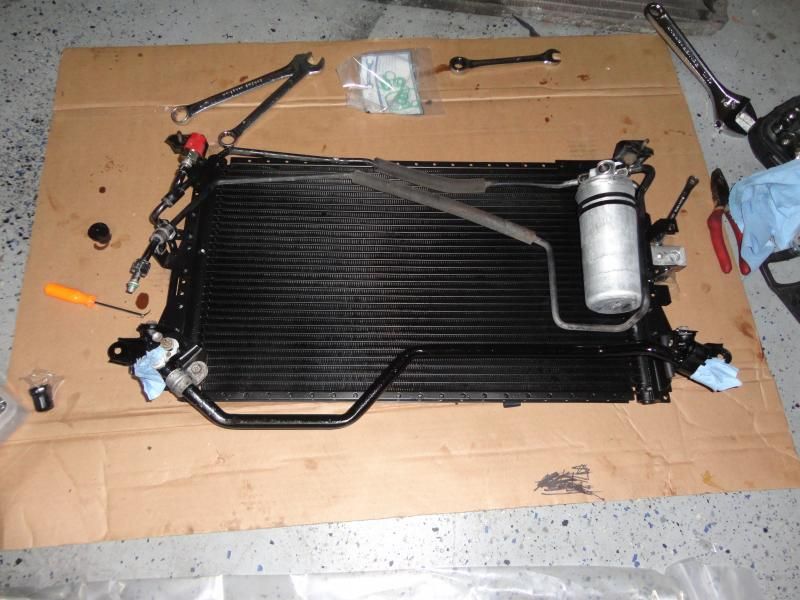

Went ahead and removed the condenser, evaporator and the lines to get it flushed. Replaced all the seals, expansion valve, receiver drier and replaced the condenser with a parallel flow.







Got to replace the bearing for the a/c clutch and added oil to the compressor. Connected all the lines and pulled a vacuum, so far no leaks.

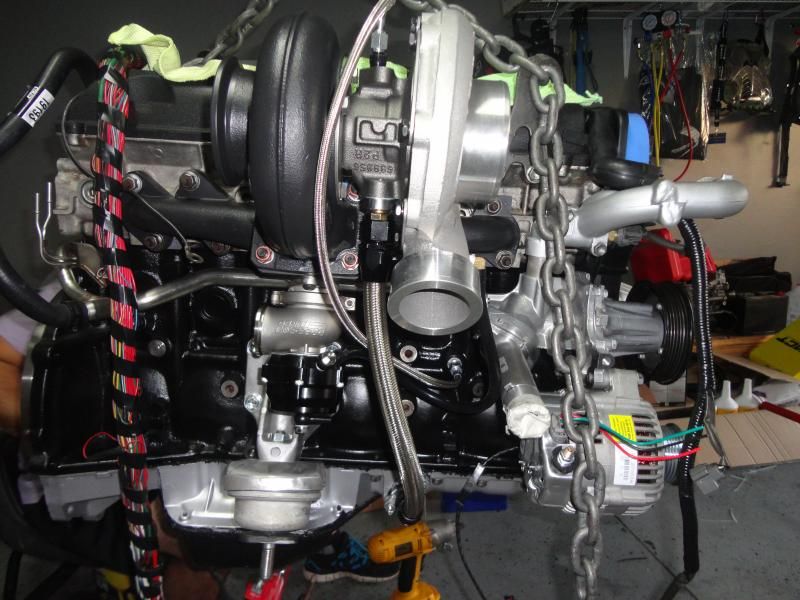

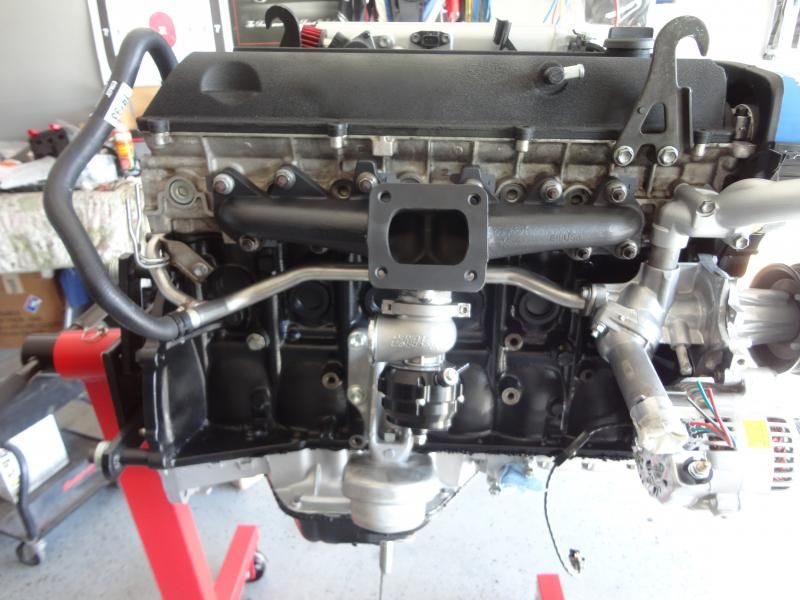

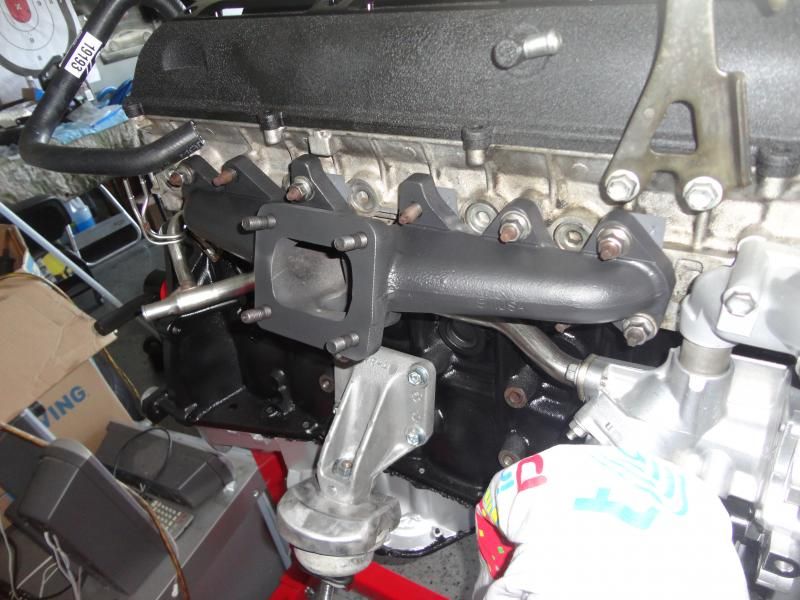

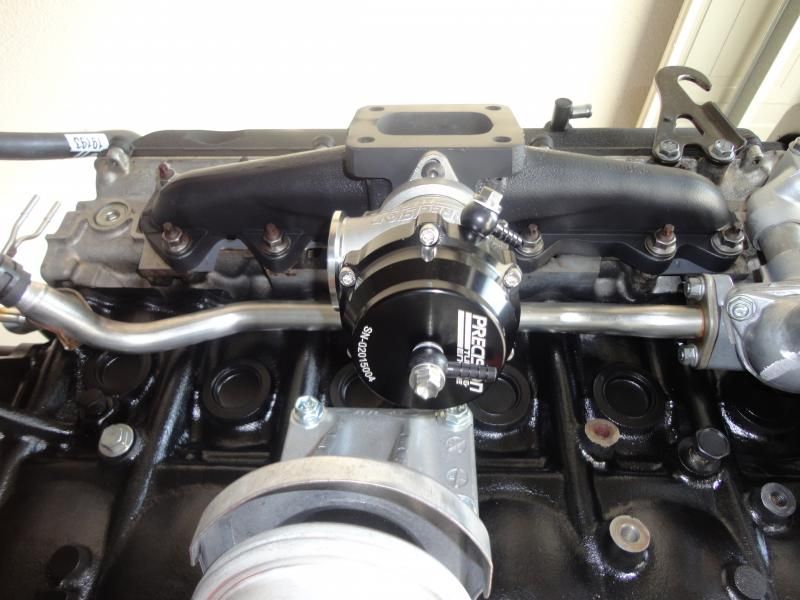

ex mani got installed with the precision wastegate

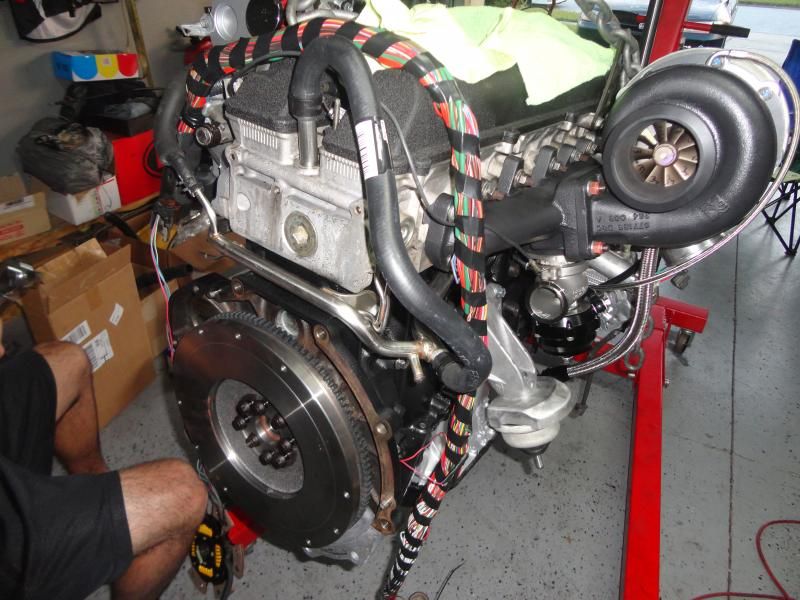

Harness was getting the final touches

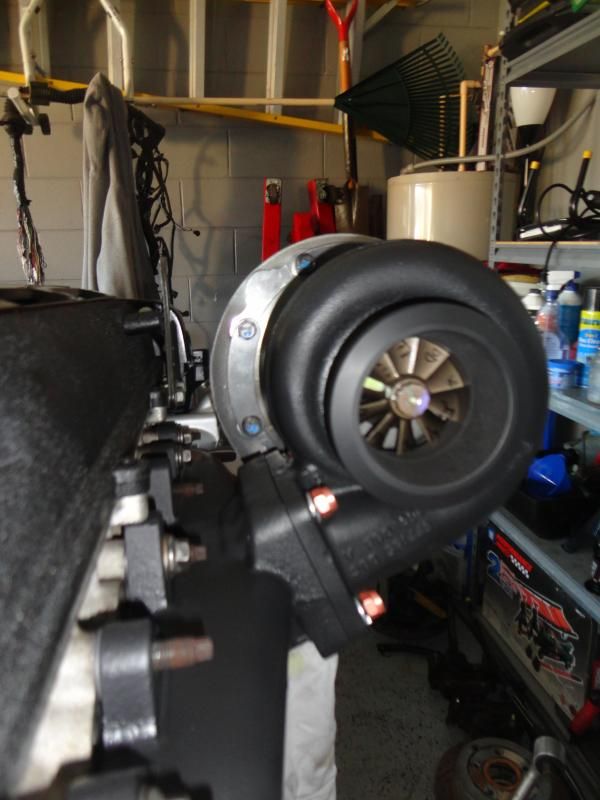

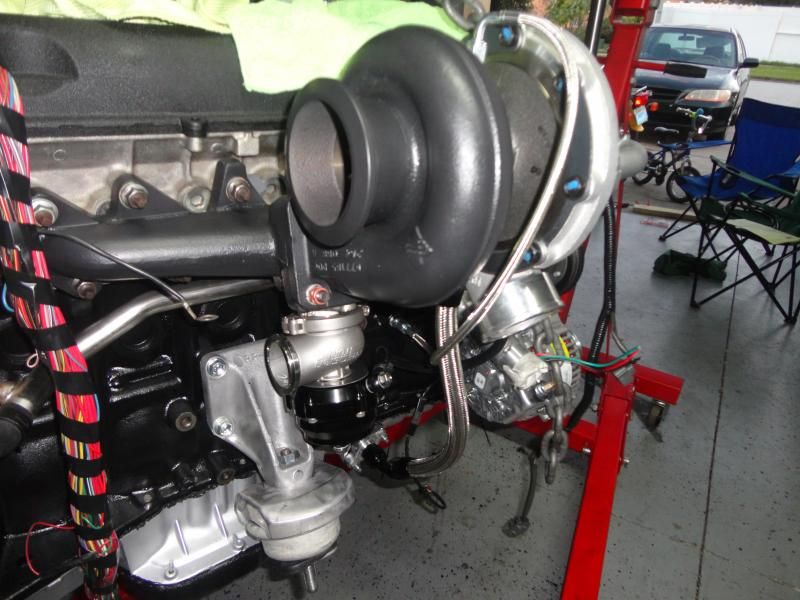

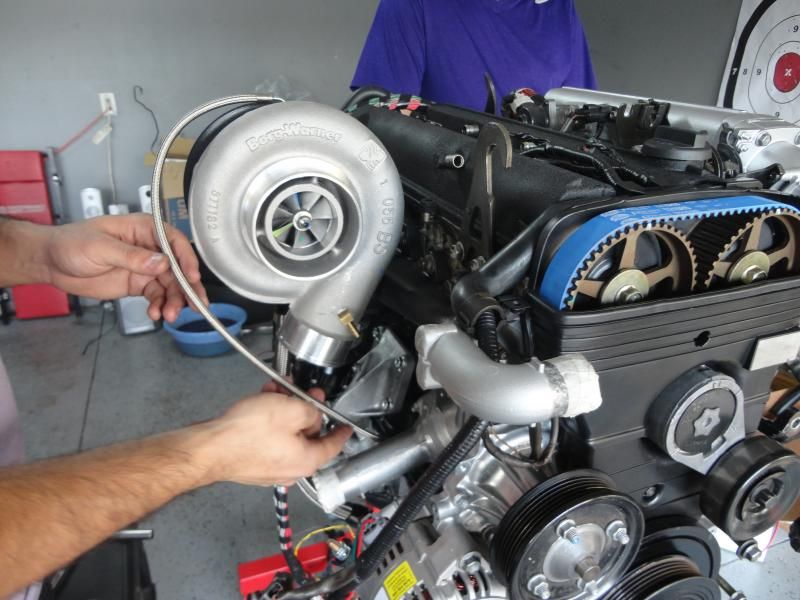

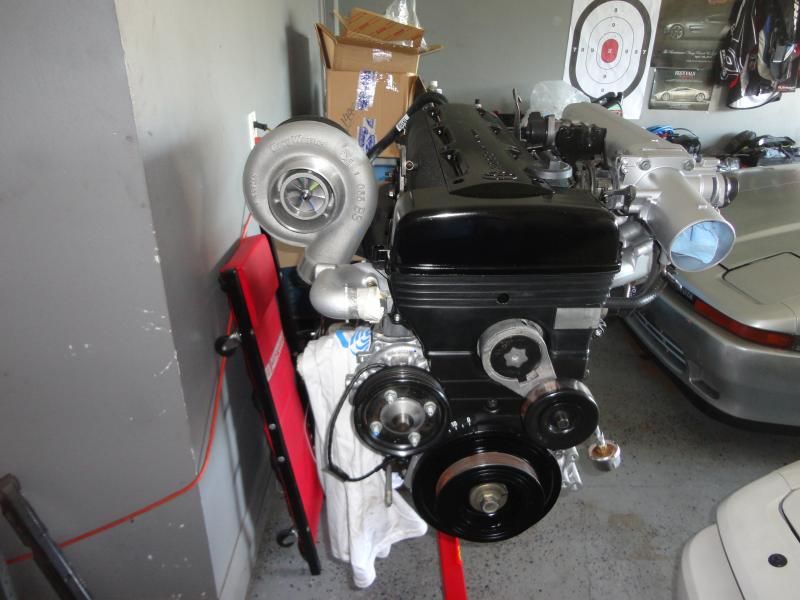

Turbo got clocked and installing oil feed and drain

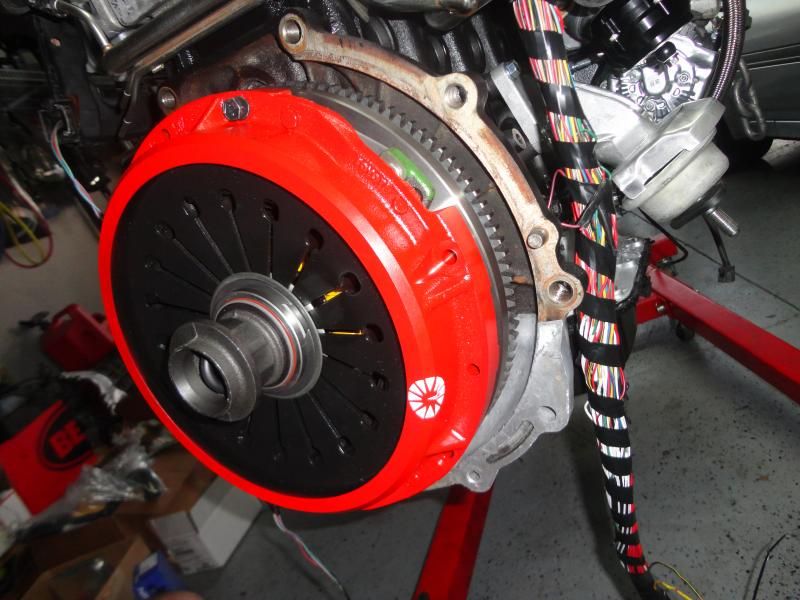

For the clutch setup i went with:
-oem jz to r154 flywheel

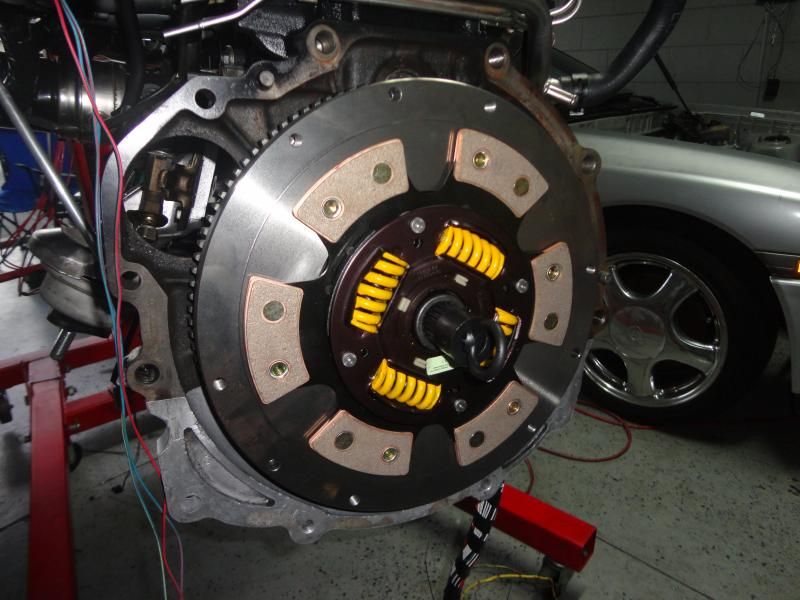

-act 6 puck sprung clutch disc

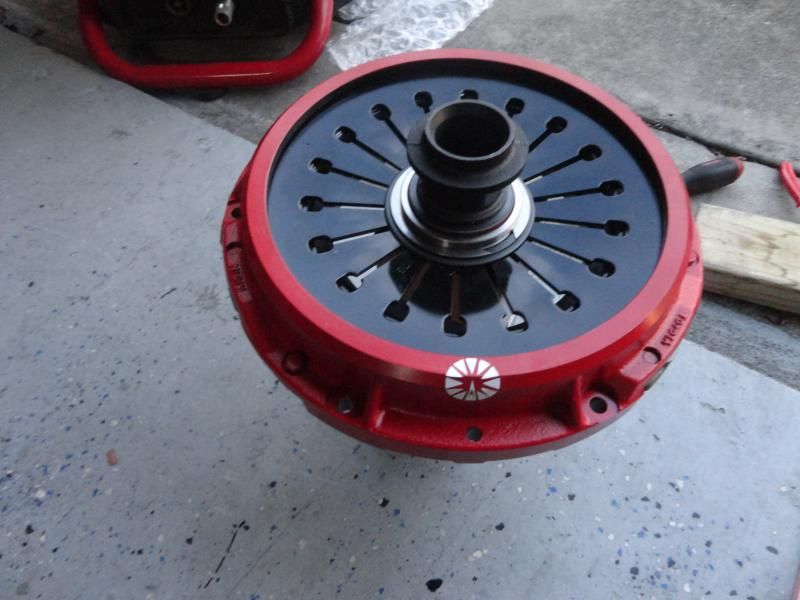

-Action stage 3 2800lbs pressure plate
-oem bearings
-arp flywheel bolts

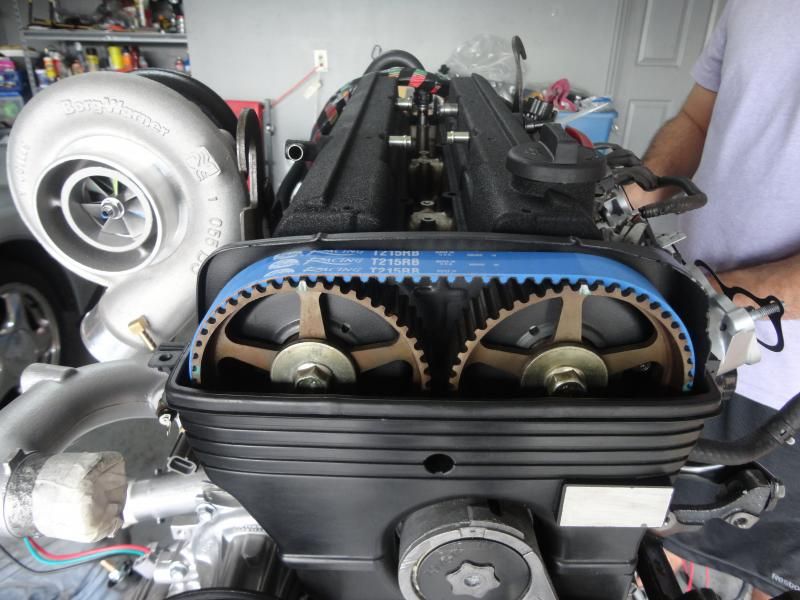

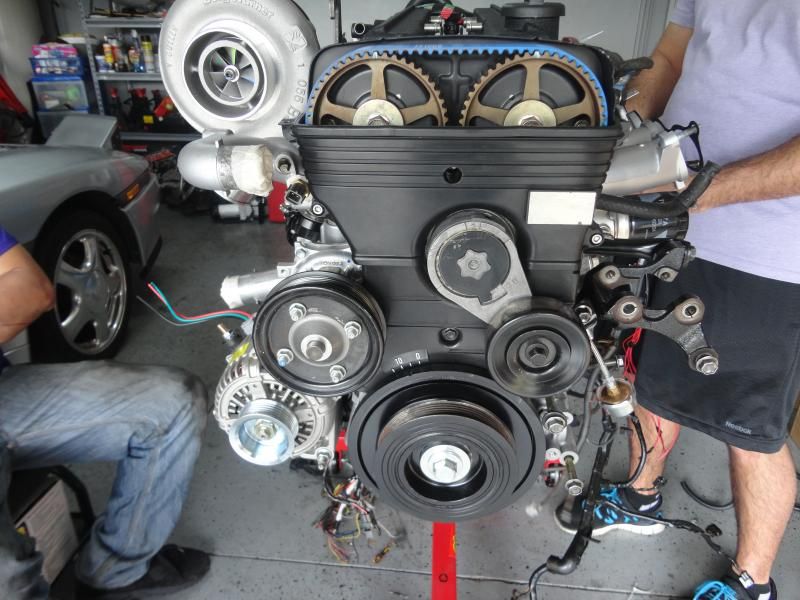

Today the engine got new spark plugs, oil added, valve covers installed and sealed. Just waiting to get dropped in hopefully by the end of this week.



[emiliorescigno]

I love the fact that this thread is still titled "N/A DD Build".

Looks clean! I'm a big fan of keeping A/C with a JZ swap, mine hasn't been charged yet but I'm hoping everything works out nicely this coming spring when I get it charged.



[slowma70]

I love the fact that this thread is still titled "N/A DD Build".

Looks clean! I'm a big fan of keeping A/C with a JZ swap, mine hasn't been charged yet but I'm hoping everything works out nicely this coming spring when I get it charged.

hah Thanks, keeping the a/c is vital here in Florida.

So this just happened yesterday with the help of SuspectSupra.

[video=youtube;YW3Qg79_MNY]https://www.youtube.com/watch?v=YW3Qg79_MNY&list=UUs26de5DDpwLMECfVwybzCQ[/video]
