1uz mkII build/full on resto

[92TealSupra]

Nice build Kevin. I am JDM on Xceed, nice to see the car's build thread is finally at the right place now.



[the ghoul]

man oh man, ive been outta it.
thanks for the offer limequat, but i gotta get my ass out there in person to pull the stuff i need, hate to have some one else freeze to get it for me. but if you see an NA mkIII supra lemme know, i need the shifter still.

92TealSupra;nice to see you on here, I didnt think the two worlds meet all that often!

Well, back at it. Took a bit of a brake to remodle a room in the house for the wife (she needed a library to keep all her books and nick-nacks).

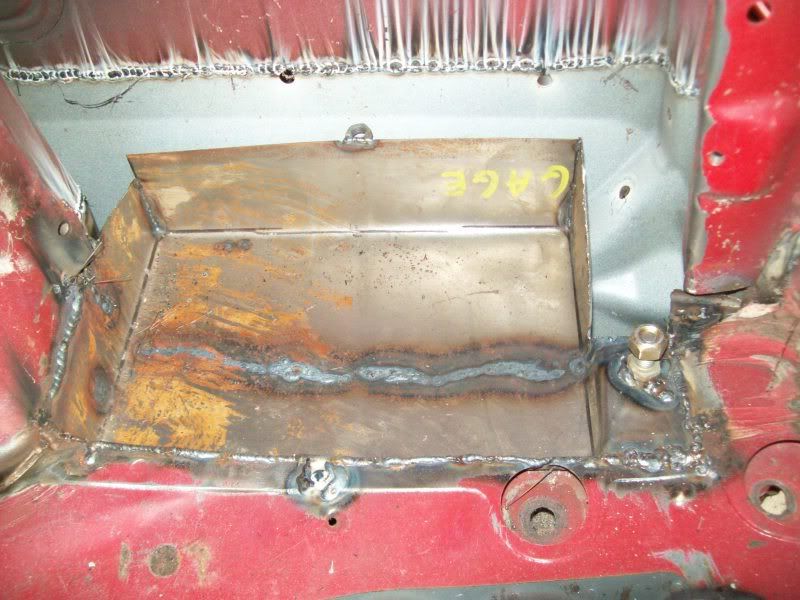

Yesterday I finally finished all the stitch welding, and battery box, and ground peg. I ran out of semi gloss por-15 so it didn’t all get painted yet.

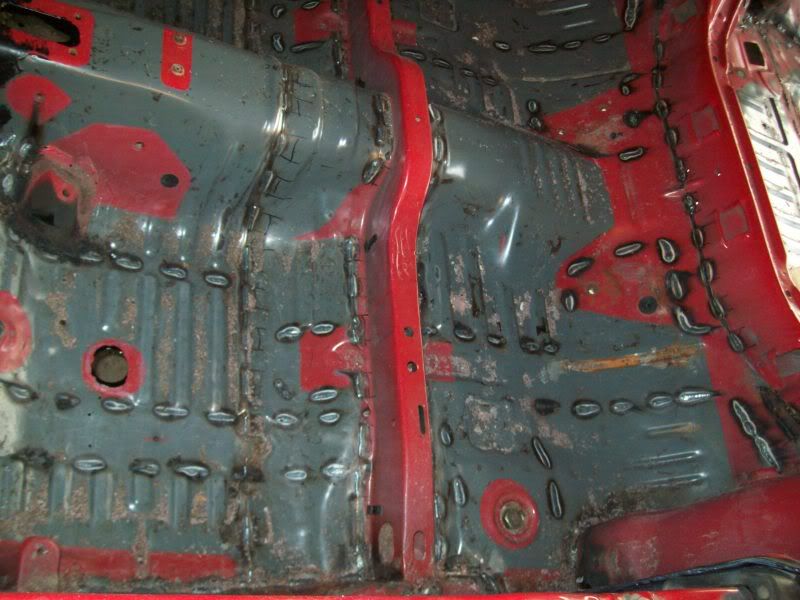

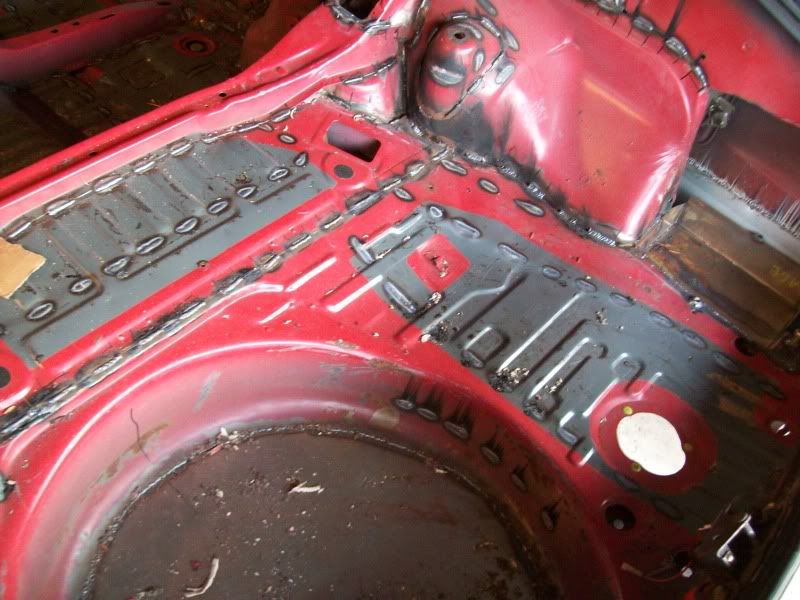

These give you a good idea of the frame rail stitch welding that was done

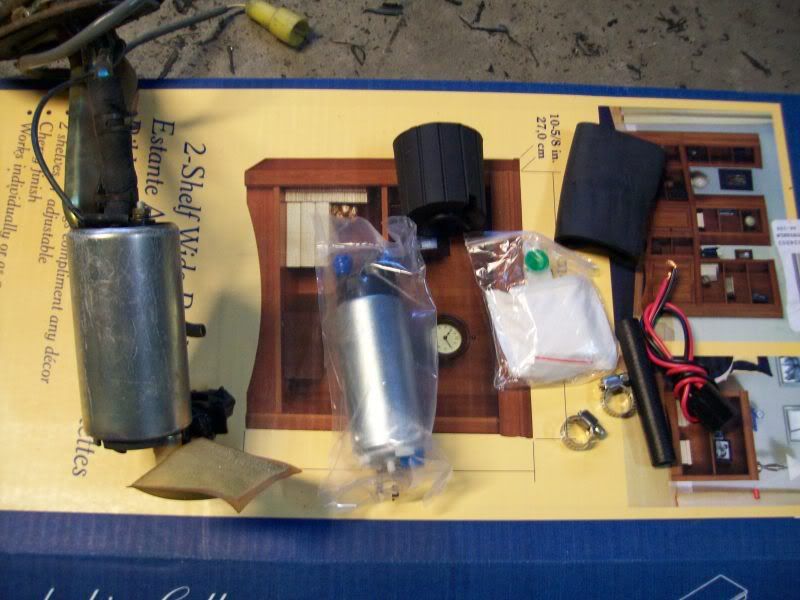

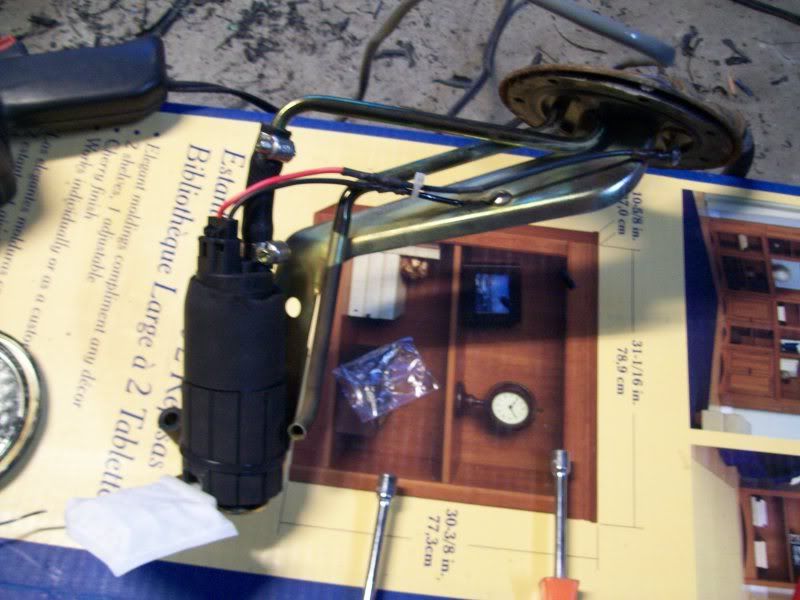

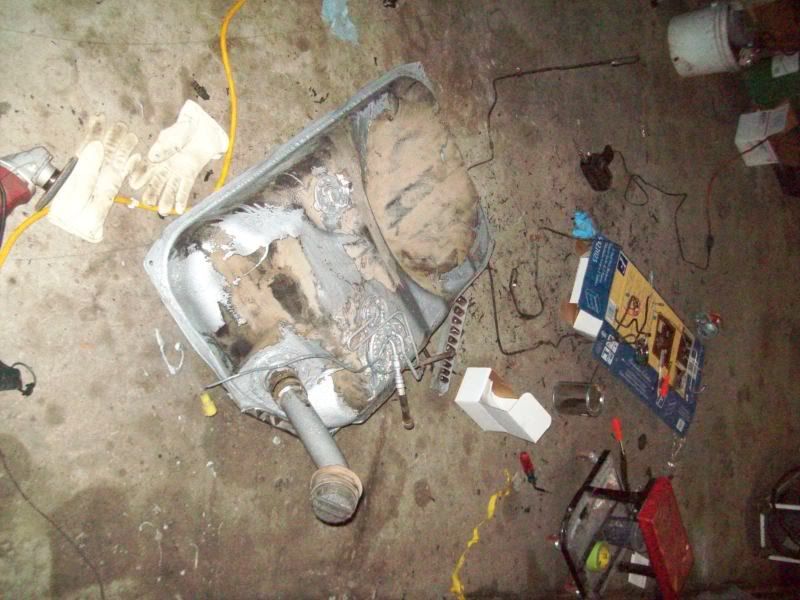

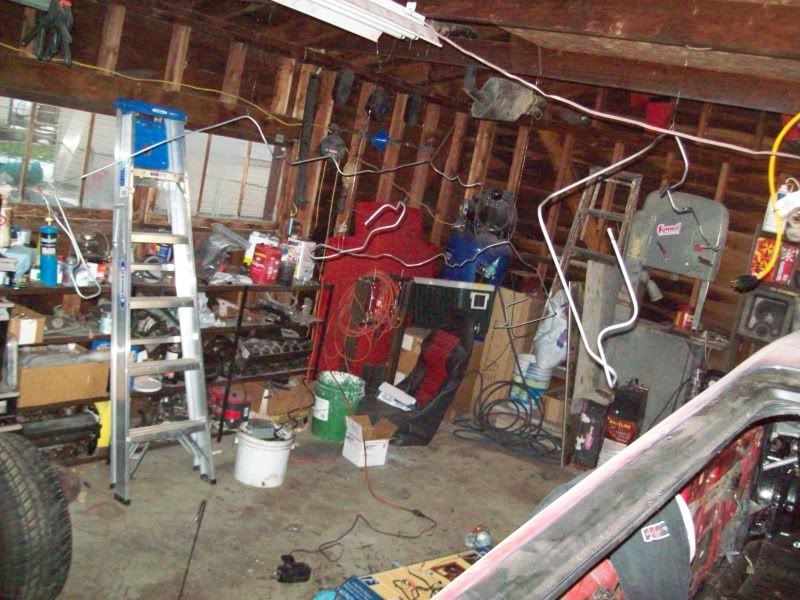

The paint on the fuel lines was really shot so I used a pocket knife to scrape it all off and painted them all with some silver por-15. I also had a bit of time so I installed the xenocron 255lph fuel pump and por-15ed all the surface rust on the tank.

I ordered more semi gloss black por-15 so as soon as that gets here I can finish painting the underbody and install all the lines, tank, and suspension.



[the ghoul]

Can't wait to take a trip over this spring to see the car.

all else fails i plan on being at this show with the car....
http://www.importfaceoff.net/
us131 motorsports park june 6th.



[limequat]

man oh man, ive been outta it.
thanks for the offer limequat, but i gotta get my ass out there in person to pull the stuff i need, hate to have some one else freeze to get it for me. but if you see an NA mkIII supra lemme know, i need the shifter still.

No MKIIIs this time, but there were 2 MKIIs and a cressida.

Also a 928 with intact powertrain. Ya know, if you happen to be jonesing for a Porsche V8 project



[the ghoul]

No MKIIIs this time, but there were 2 MKIIs and a cressida.

Also a 928 with intact powertrain. Ya know, if you happen to be jonesing for a Porsche V8 project

the 928 keeps mocking me along with the fist gen rx7 down the row from it!
Ive been picking the blue mkII clean little by little but i havent seen the other one yet... might have to get down there soon (one on hoover and 8 right?)
It is just 5 miles from my place afterall :naughty:



[limequat]

the 928 keeps mocking me along with the fist gen rx7 down the row from it!
Ive been picking the blue mkII clean little by little but i havent seen the other one yet... might have to get down there soon (one on hoover and 8 right?)
It is just 5 miles from my place afterall :naughty:

Oooh, I saw that RX7 too! It looked clean. Same place on 8 mile.



[the ghoul]

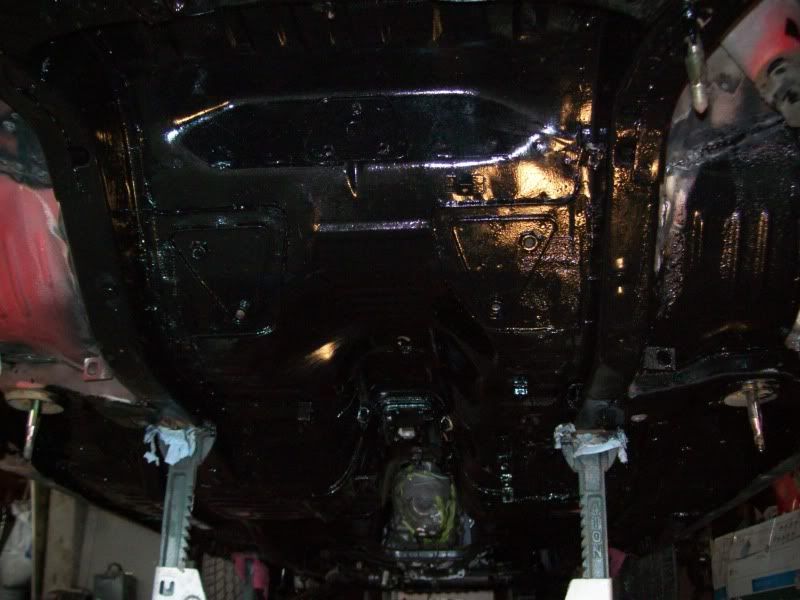

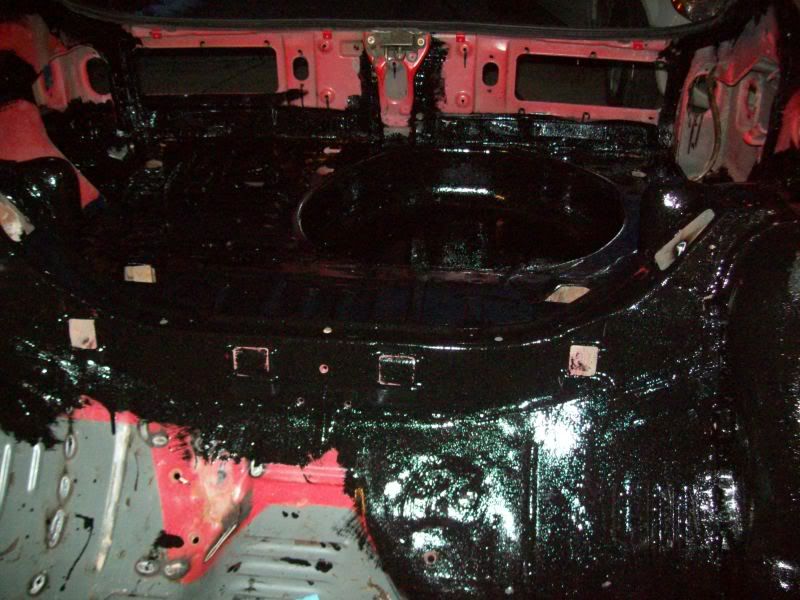

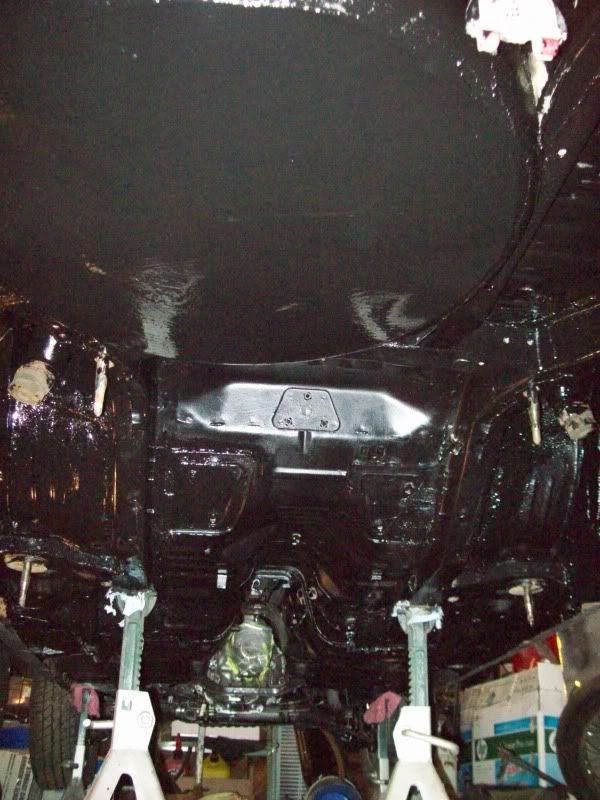

well i got the quart of semi gloss black por-15 and went thru it almost instantly... I only got done the rest of the underbody and the interior trunk area.... i thought it would have gone alot further than that!
well thats it for me this pay check.. ill prolly hang the ridged lines and toss the rear subframe in place but i dont have any more $ till next thursday (spent the last of my money on school books)
ah well i have plenty to keep me busy till then!



[the ghoul]

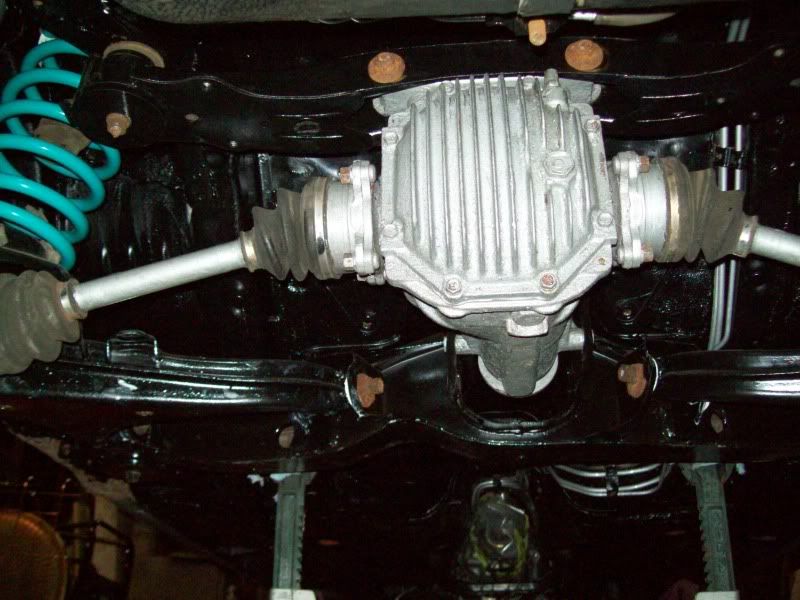

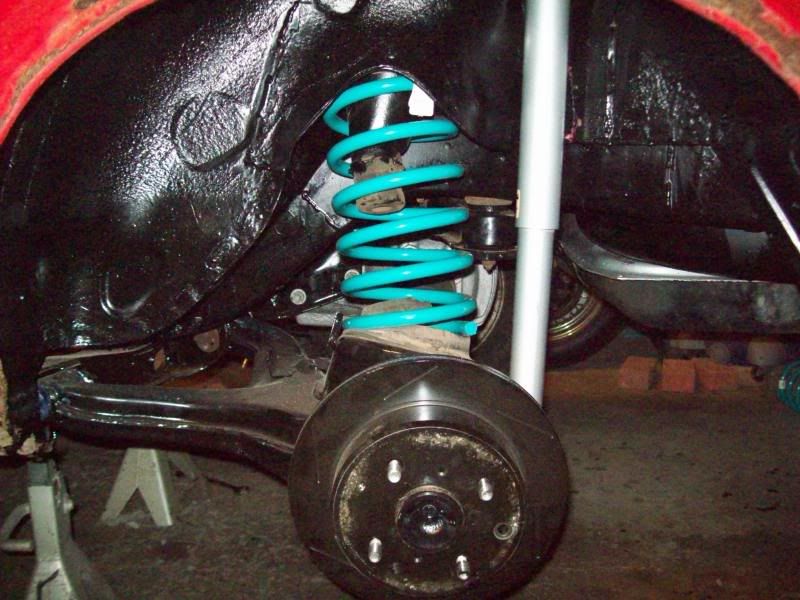

fuel lines are in, gas tank is in, rear suspension is in, and the main rear brake line is in. just need to bolt down the tubing clamps and run the rest of the brake lines....
will probably end up sandblasting the brake components before the end of the weekend. but for now shes just how i like all my girls, down on all 4s begging for more!



[the ghoul]

omg,

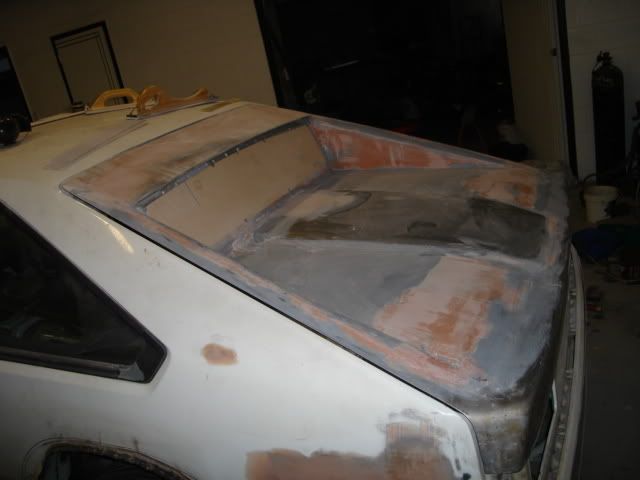

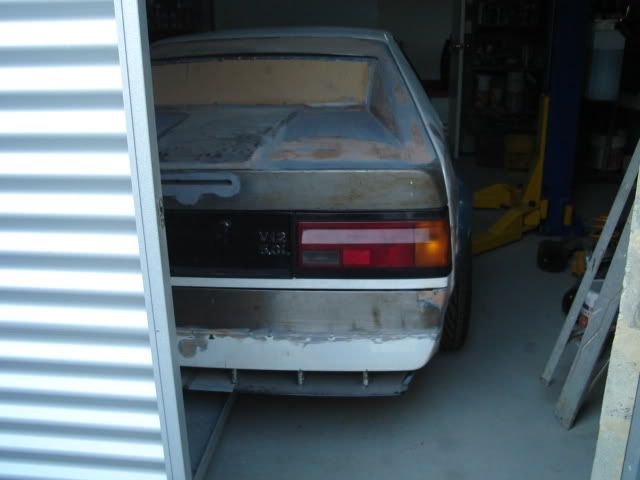

a nutter in Victoria Australia who is currently stuffing a v12 into his supra made this hatch

looks like he used an extra supra hood and a fiero rear window setup....
Im so making one...
er
after the car is running that is.
I love it its so 88 firbird GTA style!!!



[hvyman]

dam that car is going to be a beast. keep up the work man.



[the ghoul]

dam that car is going to be a beast. keep up the work man.

thanks man,
yeah im excited to see what it will do.
Im not too hopefull of numbers because that engine has been dynoed at 200rwhp in mk3 supras, but i think it will be plenty of fun factor.... plus i would love to hear a v8 rumble to this car :naughty:
I was so geeked this morning that i bit the bullett and got more wire work done.
The fuse block and relays are offically relocated to the trunk area. Hopefully next week i will get the front cross over section of the harness (ran along the front core support) sepperated, and get the 1uz bits wired in....
i know i have to start working on the exhaust manifolds soon, but thats going to be many long hours out in the cold to get those right.... im not looking forward to it!



[the ghoul]

noting worse than waking up early on your day off!!!
but it worked out for the best.
this morning i finished up the re-wire, relocated the last of the relays to the trunk area, and eliminated the stupid cross over wire loom across the radiator core support by routing all the wires thru the dash loom.
Now all that’s left is going to parts galore and grabbing the alternator loom and integrating all the 1uz wires into the works....



[milisakeracing]

Im not too hopefull of numbers because that engine has been dynoed at 200rwhp in mk3 supras, but i think it will be plenty of fun factor.... plus i would love to hear a v8 rumble to this car :naughty:

lol, that would be mine, without a proper tune and running pig rich with the stock SC400 exhaust manifolds. Still pushes harder and handles better than with the previous engine which was running at the stock boost level.



[the ghoul]

lol, that would be mine, without a proper tune and running pig rich with the stock SC400 exhaust manifolds. Still pushes harder and handles better than with the previous engine which was running at the stock boost level.

that is very nice to hear *for me, kinda bites for you!* seeing how i will be running re-arranged tundra tubular headers, a perfect power smt6 tuner, and 7mgte injectors!



[the ghoul]

ive got almost all the wire done. I didnt have any more stranded 10g and i still need to get some stranded 8 g from work for the last two connections...

at least its done enough to bind most of it with electrical tape and set in place in the car... that way on monday I can wire in the last two connections when its in the car...



OH, all that and i need to start plugging the wire harness onto the engine..



[the ghoul]

well i think the harness is just about ready to go into the car.... It kinda sucks that i have to take apart the intake manifold to swap out the wire harnesses between it and the valley pan, but hopefully i only have to do that once!

looks like its going to have to wait till Wednesday, tomorrow night i have to do homework (automotive electrical 101 BTW ) and Tuesday night i have to go to class...

I will at least get the last two lengths of wire soldered in tomorrow and possibly borrow dads hole saw for the harness loom...



[the ghoul]

Finally got some work done in the garage....

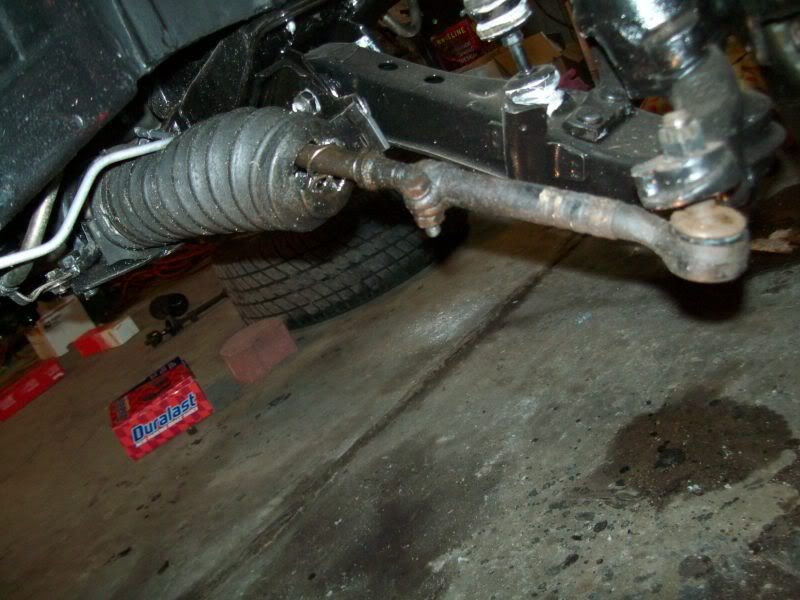

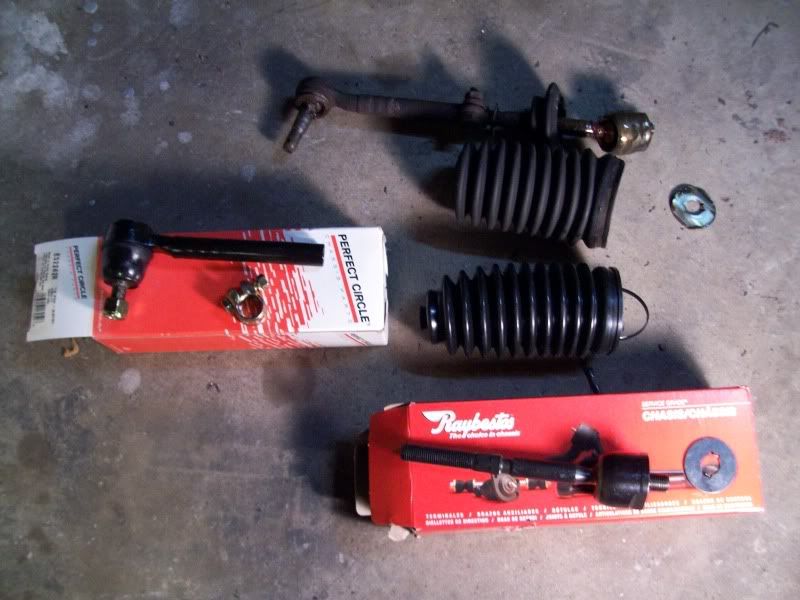

Inner/outter tie rods and rack dust boots...
went well.... a little too well.... damn the paranoia
got a buisy day tomorrow but i hope to get the ebrake shoes done and he brake lines in place...



[the ghoul]

e brake shoes are on... they are a little tight though, very tough to turn the rear wheels over by hand, damn near impossible to turn them backwards....
guess im just going to have to let them wear in and see how it goes....

just got work from Jake Breyck at www.Quantum-Auto.com hes going to be hooking me up with a flywheel, dual friction sprung clutch, 1800lb pressure plate, pilot bearing, throw out bearing, hardwear, and alignment tool for $700 shipped.... cant wait to get my hands on those bits!!!



[Spoolin]

I've been following this thread and this is going to be an awesome car once its finished.

Keep it up!



[the ghoul]

sweeet
i have a stalker!!! LOL
hey thank you, im glad you likes.
I will love to get behind the wheel one day turn the key and have every thing work! *little thigs right?*
