***SM Member Horsepower List***

[rodel]

7MGTE. 365 hp, 373 torque. Tuned for 16lbs of boost, but when 16lbs of boost was hit, it would immediately drop to 14. That issue is being resolved; we'll see the result of the next dyno session when the car holds 16lbs of boost.

AEM EMS.
Upgraded CT26 to 60 trim
550 injectors
3" exhaust.



[sr20psi]

1992 lexus sc300 1jz ,t66, 680cc, map ecu, fmic

http://gallery.me.com/sr20psi/100000

Username: sc300
Password: dyno

Enjoy the movie!



[jt2ma71]

844 RWHP, 646 RWTQ. 26 psi.

1992 MKIII, 2jz-gte, Dry sumped. Ron R. intake manifold, Ron R. exhaust manifold. Ron R. 4" loud exhaust with burns muffler. GT42R. MoTeC M820, MoTeC CDI8, MoTeC E888, MoTeC ADL, MoTeC TCMux, MoTeC etc.

video of 22 psi run



[sethron71]

Hey Ron very nice numbers! Do you have a graph and how high are you reving?

Awesome none the less!

Seth



[gravesdu_99]

Man that thing revved like hell. What kind of gas are you running.



[jt2ma71]

I have the graph somewhere but can't find it now. Let off at ~8500 rpm. Thanks



[kmfdmk]

407hp 392tq 19 psi.


7M-GTE .57 Trim CT-26 550 Injectors, Maft-Pro, Tial 50mm, 2.5" IC, 3" full Exh. 12x3x36 FMIC, Probe Forged Pistons, Eagle Forged Rods, Knife-Edged Crank, XTD Lightweight Flywheel, Stage III Clutch, P&P Int. Head & Exh Mani. Dual Oil Filter w/ Oil Cooler & Thermo. Crank Scraper... had the entire works blueprinted & balanced.



[wardog]

Put me on the list :
stock 7mgte, r154, ct26/60-1,K&n,lex afm,440's, ddp,3"exh, walbro,2.5 hardpipes to stock intercooler,evc4 set at 1 bar and 11psi 2nd run,safc2

1ST RUN IS THE ONE :evil2:

1st run was at 15psi and made 377rwhp and over 400+ rwtq (light blue)
2nd run was at 11psi made 344rwhp and 330rwtq (dark blue)



[sethron71]

New Numbers:

Results:
Pull #1 - 16psi 353rwhp 334rwtq
Pull #2 - 18psi 361rwhp 348rwtq
Pull #3 - 18psi 372rwhp 363rwtq better tune

Still went rich on topend and lost boost so would have been 385ish with a 11.5 tune!

Mod List:
-Stock head and exhaust manifold
-Upgraded 57 Trim CT
-Lex AFM, Walbro 550's, Aeromotive AFPR w/ Startlite hoses, S-AFC tuned
-K$N FIPK
-Divorced 3" DP
-Full Mandrel 3" Exhaust built by Me
-Long Runner FFIM with 3.25" TB built by Me
-FMIC and 2.5" IC piping built by Me
-GReddy BOV
-2MM MHG w/ ARP's
-Treated pistons and ARP's throughout bottom end
-Fidanza mated to SPEC Stage 3+
-One-Piece driveshaft

Built Thead here: http://www.supramania.com/forums/showthread.php?t=68790

Thanks,
Seth



[sethron71]

Nice numbers, you might want to post the numbers in your list. I had to seriously zoom in to read them.

Thanks!

Results added!

Seth



[brett]

here is my sheet:

MODS:
1993 Nissan 240sx Coupe
1jz w/r154
440cc injectors
-6 feed and return
GT4082 .86a/r
Crower 264 cams
S-AFC
Aeromotive AFPR
Dual Walbro's
RPS Max 6-puck
and so on...
this was done on 11psi

thanks,
brett



[Sawbladz]

My graph and mods are in post 7 but I'm not on the list...



[honestabe]

PM Slow66 and let him know.

Brett, what were your numbers? I can't seem to find them



[brett]

sorry if i didnt highlight them, i figured you would have seen them on the dyno sheet. the numbers were:

346whp
290tq

thanks,
brett



[brett]

uh.........where am i on the list guys?!?! if you need more backup sorry, this is all i have. if you feel it is not enough information, that too is fine. thanks,

brett



[Raven97990]

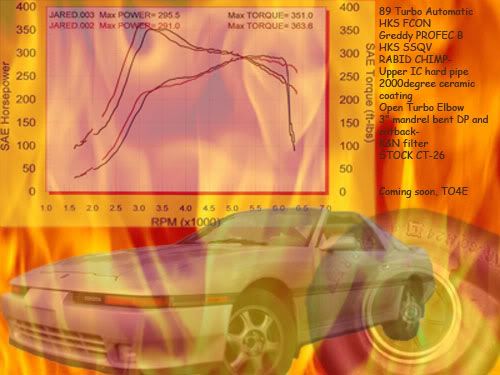

Um, I cant find just the dyno, so here is my old gay sig, with the mod list attached
7mgte with STOCK CT-26
295.5 hp 363.6tq(@2800rpm =D )

That make me the SM "record holder" for a stock CT-26? Mike was there for the dyno...

and does it matter that its been 4 years since it's been down the road? >.<



[Slow66]

List updated.

I think its 100&#37; up to date but if I messed somone up, let me know.



[jugodegolf]

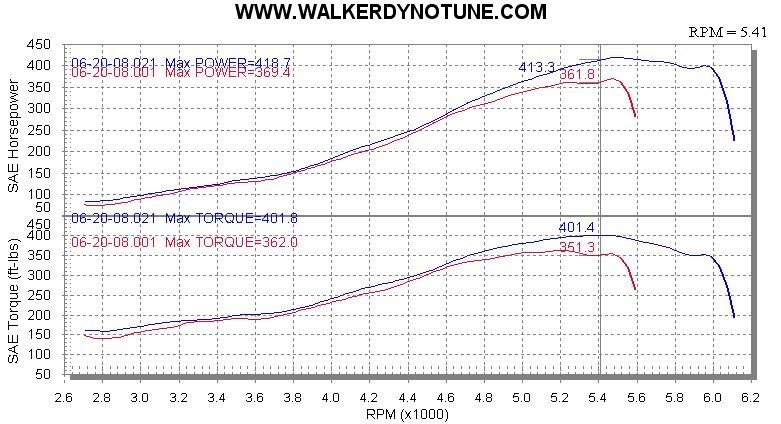

Base tune at 17lbs on the 92 w/7m. 418 hp 401 tq.
Mods: T66, 750 injectors, dual walbros, stinger, rsrII.



[Raven97990]

I'll type out all the mods for you Slow, and its a 26, not a 36, damn FFS.

Upper intercooler hard pipes, open turbo elbow, 3" down pipe and exhaust. 3" k&n filter. Automatic car.



[Zazzn]

here's my sheet.

mods
2jz, PT67H DDB, AEM, 880, twin walbros, 4' ic, 4" exhaust, 3" ic pipes, meth/water 50/50, 26 PSI

My other setup was

1jz twin k26's, 2.75 " ic pipes, 4" ic, 550's, 1 walbro, twin 2.5" exhuast to 3" dump.

7m setup

sp63, manifold adapter for turbo, hks wg, 2.5" hardpipes, 3.5" spearco IC, 550's, 1 walbro, 26 PSI (on a hurt engine)
