Put a few things back in the car to mock every thing up i still have a few custom parts to make ps tank coolant tank ss lower hard rad hose even tought its tube not a hose.




Last edited:

wesbeech

Beech Performance Motorsports
Feb 26, 2006
1,022
0
0
Akron Ohio
Supra28 said:
Damn, amazing work! At first I thought this was another 2J cause of the valve covers haha. Spark plugs setup is sick.

Thanks it alot of work but worth it in the end if it ever comes.


wesbeech

Beech Performance Motorsports
Feb 26, 2006
1,022
0
0
Akron Ohio

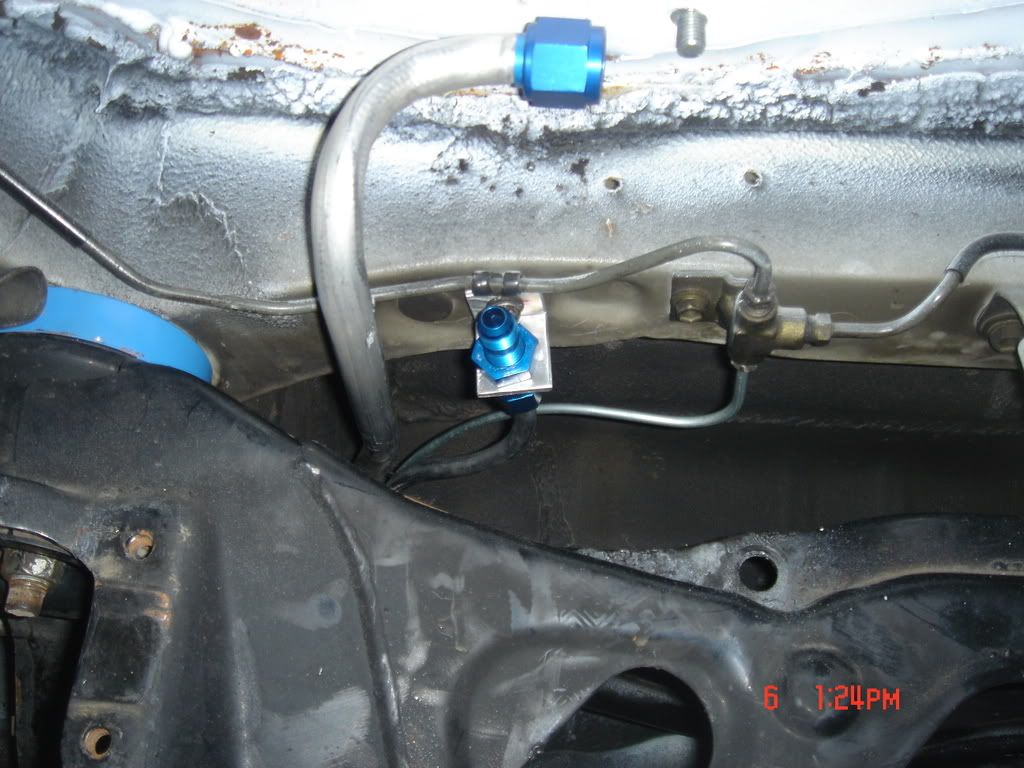

Well i did some work making a new rear brake line today. And put the rear subframe back in again.

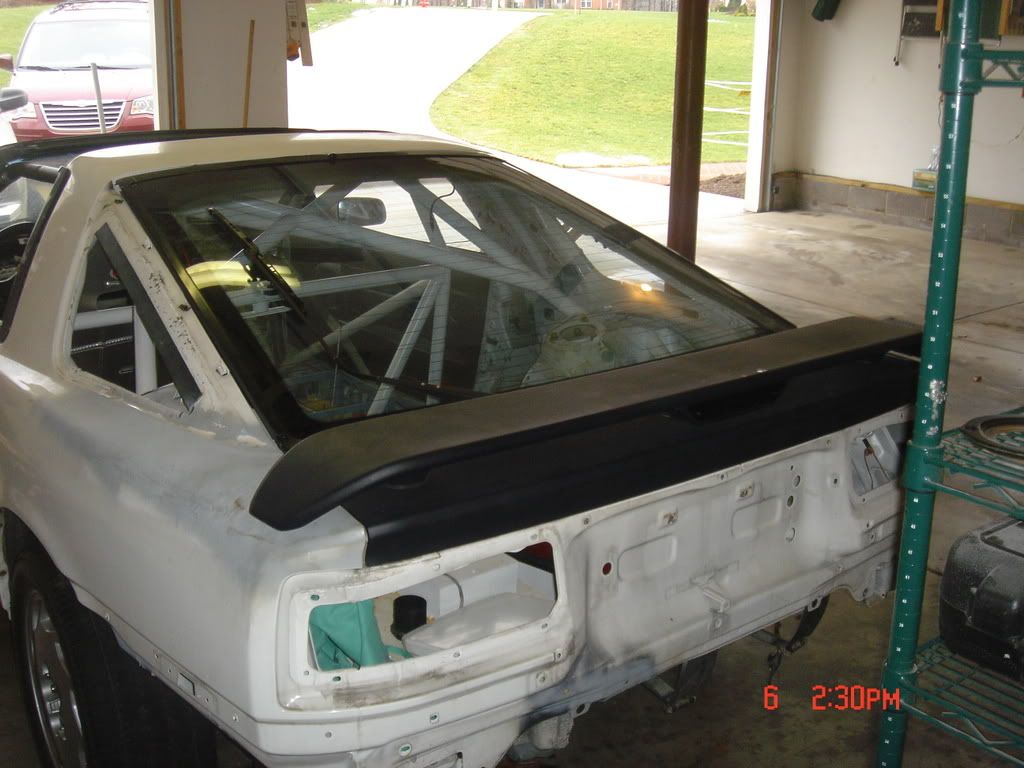

Put the hatch back on for now

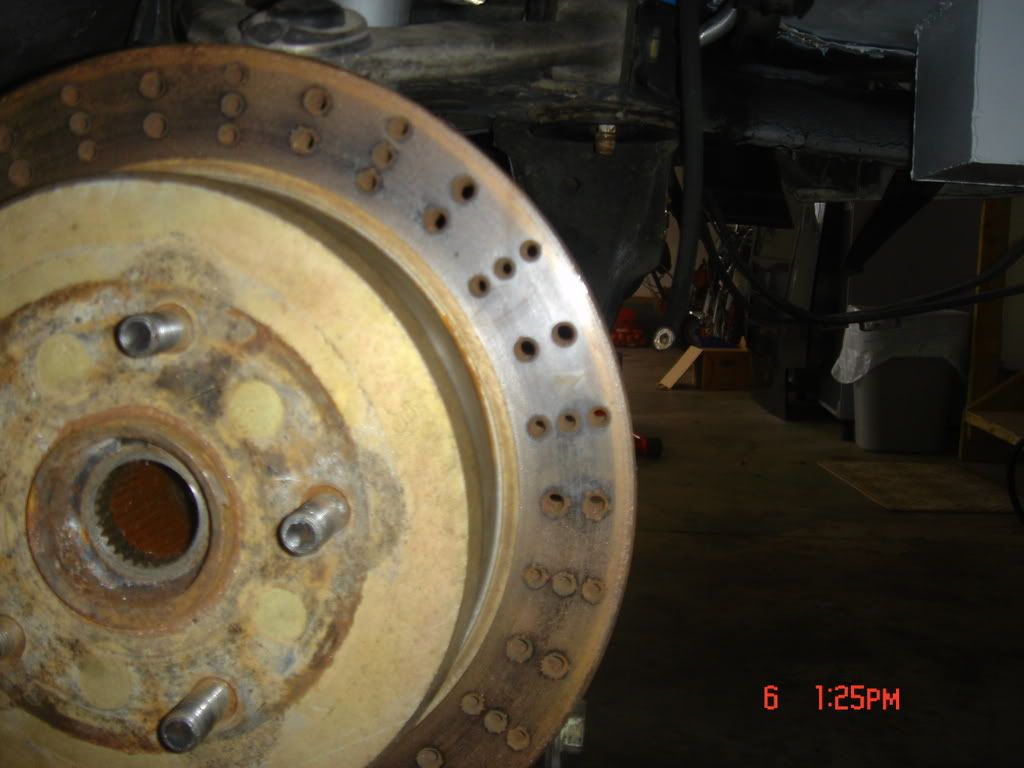

And took a random pic of my rear rotors which dont look to bad for how much i have beat on them


IJ.

Grumpy Old Man
Mar 30, 2005
38,728
0
0
62
I come from a land down under
Wes: A few small points ;)

I prefer to mill the TB flange on the FFIM to the same shape as the TB and I make my Cable mounts from a piece of angle so they have a support back to the manifold.



wesbeech

Beech Performance Motorsports
Feb 26, 2006
1,022
0
0
Akron Ohio
IJ. said:
Wes: A few small points ;)

I prefer to mill the TB flange on the FFIM to the same shape as the TB and I make my Cable mounts from a piece of angle so they have a support back to the manifold.

Makes sence im actuly making another ffim for a guy donw by me kinda and that how im gonna do the flange this time . That was the first real custom part i ever made so there are a few thing i would change but i bet it has one feature no other ffim has ill see if i can go get a pic brb.


Supraholics

.928 RWHP & Climing!
Apr 1, 2006
1,577
0
0
PA
www.supraholics.com
AF1JZ said:
I am very impressed!!! You have made the 7M look totally different. It is sooo smooth looking and flows awesome.

Yup, I would just dress it up a bit because I like things to look clean, but the custom work is looking great!

Where are you running your fuel? Opposite side of the intake mani???


wesbeech

Beech Performance Motorsports
Feb 26, 2006
1,022
0
0
Akron Ohio
Supraholics Where are you running your fuel? Opposite side of the intake mani???


You lost me?
And most the alu pars are gonna get chrome p.c.


wesbeech

Beech Performance Motorsports
Feb 26, 2006
1,022
0
0
Akron Ohio

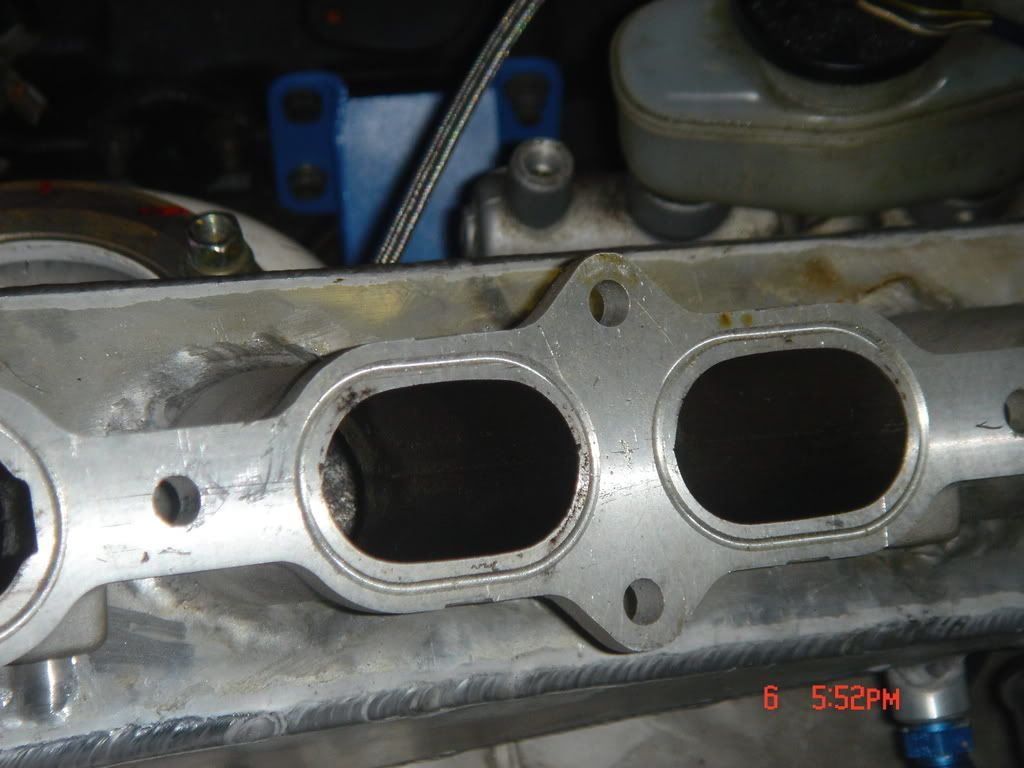

Here you go ian i milled oring groves around each runner so i can run high temp oring and lose the gasket that almost always overlaps and gets in the way



wesbeech

Beech Performance Motorsports
Feb 26, 2006
1,022
0
0
Akron Ohio
IJ. said:
Wes: Very nice! :)

Were the grooves milled before the rest was welded on?
(just trying to imagine the clamp/jig as I just milled the flange on mine flat)


After the main flange the plentum is welded to. O it was fun using shims and blocks to get the angle right then get it indicated in stright and flat real fun
Yea no jig just the mills table with tslots.


IJ.

Grumpy Old Man
Mar 30, 2005
38,728
0
0
62
I come from a land down under
LOL that's how I did my full manifold ;)

Hung the intake pipe over the end of the table used T Slots and clamps with a piece of board and some aluminium blocks to get it flat/level then rotated the head around to that side and extended it as far as it would go then took lots of tiny cuts (.1mm) till I was happy that it was flat/true!

It wasn't the most elegant setup but it worked as the flange is too long for my Linisher to get in one go.


turbodriz

mk3 onwer
Feb 25, 2006
471
0
0
newyork....N.c
everything looks great. I wish I had the time and the shop area to make my own custom parts. Nothing like doing it yourself. Good work though. What size turbo is that. What size injectors are u running.


Supraholics

.928 RWHP & Climing!
Apr 1, 2006
1,577
0
0
PA
www.supraholics.com
wesbeech said:
You lost me?
And most the alu pars are gonna get chrome p.c.


Where are your fuel injectors and fuel rail?

I'm doing the same for my fuel and brake lines, but I'm getting Stainless Steel. Any reason why you chose aluminum?
