resistor pack

AZN MK3

New Member
Feb 12, 2006
341
0
0
Now in the U.S.

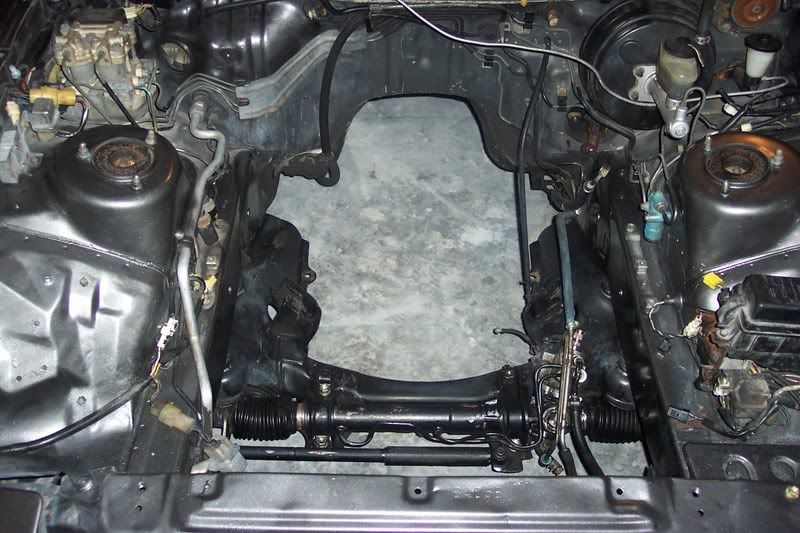

is this the resistor pack for the injectors...??? and whats on the other side i see ppl take it off when they did there 1jz swap... why???


tissimo

Stock is boring :(
Apr 5, 2005
4,238
0
0
40
Melbourne, FL
No, that is for you fuel pump.. The Inejctor resistors is on the left side of the car (right side of the pic)


86_sports_1jz

slow 700hp build...
Aug 27, 2006
1,217
0
0
OK
so you could take off the resistor pack if you use the 1jz stock injectors or the jdm 2jz 440s right?


tissimo

Stock is boring :(
Apr 5, 2005
4,238
0
0
40
Melbourne, FL
86 Sports 1jz - yea, that is correct, or even sard high impedance injectors

AZN MK3 - Take off the injector resistors or the resistor you have circled? When wiring in MKIV injectors they are low impedance and require a resistor or you will burn up your ecu, and the stock 7m resistor pack works fine for this and you usually have it.


JASONA70

nomnomnom
Oct 27, 2006
743
0
0
socal
AZN MK3 said:
is this the resistor pack for the injectors...??? and whats on the other side i see ppl take it off when they did there 1jz swap... why???

hey thats my car! :biglaugh: i was woah that car looks so similar to mine, and it is!


AZN MK3

New Member
Feb 12, 2006
341
0
0
Now in the U.S.
tissimo said:
86 Sports 1jz - yea, that is correct, or even sard high impedance injectors

AZN MK3 - Take off the injector resistors or the resistor you have circled? When wiring in MKIV injectors they are low impedance and require a resistor or you will burn up your ecu, and the stock 7m resistor pack works fine for this and you usually have it.

ok but if you said that, the thing i circled isnt the resistors for the injectors and its on the other side right... then how come people are taking it off and where do i connect it to on the 1jz harness... could you send me a pic showing where to plug it up at... or how i can by-pass the whole low inpedance injector thing...


tissimo

Stock is boring :(
Apr 5, 2005
4,238
0
0
40
Melbourne, FL
The fuel pump relay and resistor is wired to the body wiring. There wont be a plug on the 1jz or 7m harness. On my car I just moved mine into the fender to clean up the engine bay


AZN MK3

New Member
Feb 12, 2006
341
0
0
Now in the U.S.
tissimo said:
The fuel pump relay and resistor is wired to the body wiring. There wont be a plug on the 1jz or 7m harness. On my car I just moved mine into the fender to clean up the engine bay


do you happen to know where i can find a diagram for that or where to tap into those wires?? and if theres not a plug on the harness where do i get them from because both the plugs for the fuel pump relay and the resistor pack are empty... and i dont have a clue as to where they plug into....


EDIT: ok i see what your talkin about for the fuel pump relay i do have a plug for it... but for the resistor i dont... its just an open plug....

Last edited:

The Reaper

Single, and lovin' it!!
Jan 10, 2006
1,909
0
0
Florida
dont know if this will help you but its the yellow plug on the left side of the pic. there should be a yellow plug laying over there in a cylinder shape and it plugs into the Fuel pump relay/resistor



AZN MK3

New Member
Feb 12, 2006
341
0
0
Now in the U.S.
The Reaper said:
dont know if this will help you but its the yellow plug on the left side of the pic. there should be a yellow plug laying over there in a cylinder shape and it plugs into the Fuel pump relay/resistor



HUH??? ok... so thats the fuel pump right... then you said resistor.. is that for the injectors??? if so... what the other one that looks just like it on the other side of the car...(driver side) isnt that the resistor for the injectors???


AZN MK3

New Member
Feb 12, 2006
341
0
0
Now in the U.S.
crazysupra2JZ said:
the one on the driver side is the injector resistor. it has the boost sensor attached to it.
bottom right corner


ok but is there a plug for that on the 1jz harness??? cuz i know that the boost sensor is on the harness up left of the brake booster...


bigaaron

Supramania Contributor
Apr 12, 2005
4,692
1
0
50
Pomona, CA
www.driftmotion.com
There is no injector resistor on a 1jz! If you want to install low impedance injectors you will need to cut the injector wires and install a 7m resistor.

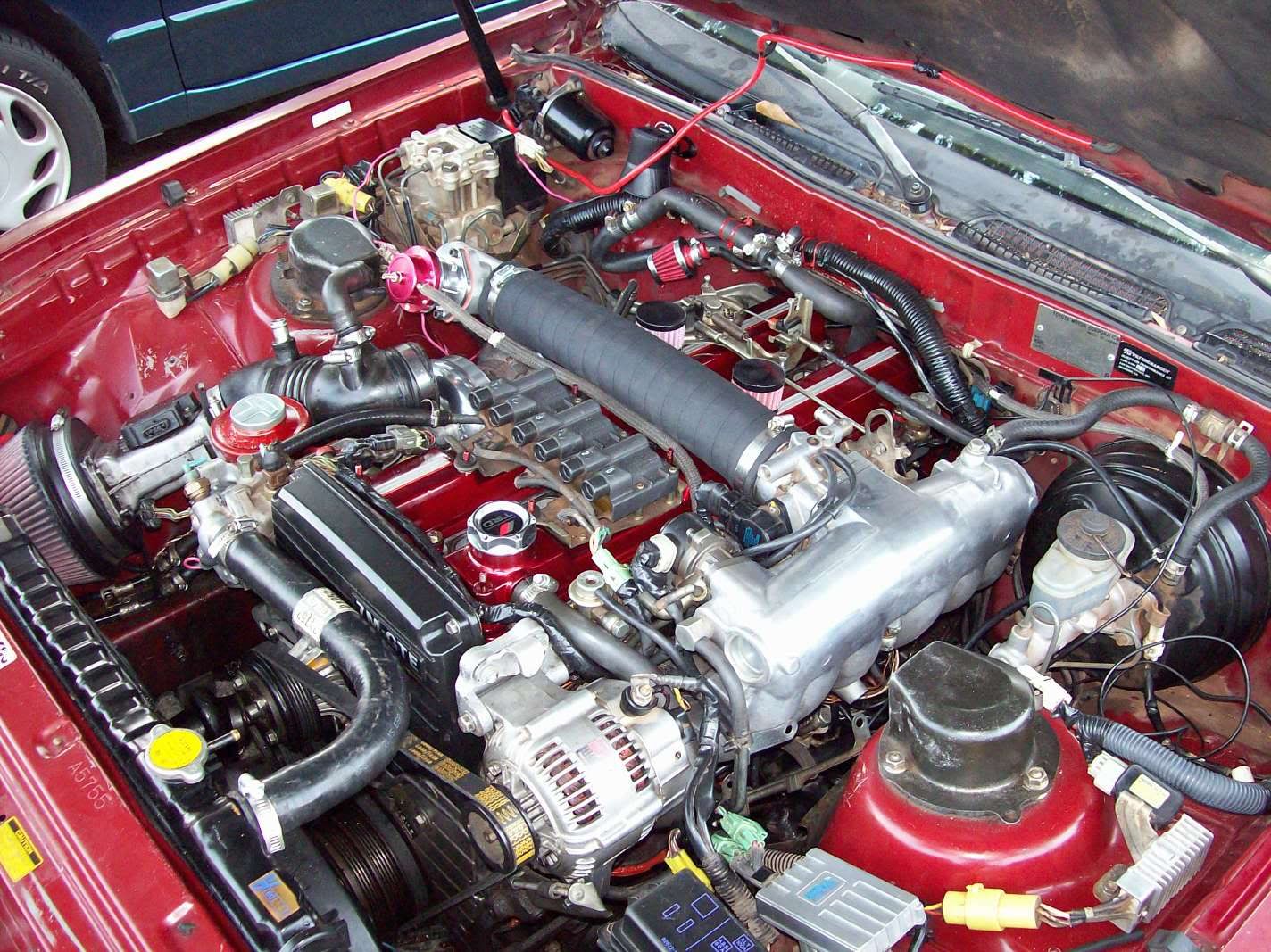

You can see the connector for it on the 7m in the very bottom right corner of the pic above. It is not part of the body wiring on a 7m, the plug comes off of the engine harness.


The Reaper

Single, and lovin' it!!
Jan 10, 2006
1,909
0
0
Florida
thats for the MAP sensor

the plug for the fuel pump relay/resistor is NOT ON THE ENGINE HARNESS

its on the BODY HARNESS


Ric

Setting the standard
Feb 22, 2007
1,432
0
0
Central Florida
www.1jzgte.us
bigaaron said:
There is no injector resistor on a 1jz! If you want to install low impedance injectors you will need to cut the injector wires and install a 7m resistor.

Yup, its easy. It bolts cleanly to the intake manifold for a stock look and to keep the wires short.

I reccomend it over the MKIV resistor pack, and over radioshack ones.


bigaaron

Supramania Contributor
Apr 12, 2005
4,692
1
0
50
Pomona, CA
www.driftmotion.com
The Reaper said:
thats for the MAP sensor

the plug for the fuel pump relay/resistor is NOT ON THE ENGINE HARNESS

its on the BODY HARNESS

The map sensor is at the firewall :icon_conf
And I was talking about the injector resistor, not the fuel pump resistor. The origional poster is confused, he's getting the two resistors mixed up.


AZN MK3

New Member
Feb 12, 2006
341
0
0
Now in the U.S.
bigaaron said:
The map sensor is at the firewall :icon_conf
And I was talking about the injector resistor, not the fuel pump resistor. The origional poster is confused, he's getting the two resistors mixed up.


yea... thanks bigarron.... thats what i was talking about... and that why i said how come i see that ppl dont have it on there cars who have done a 1jz swap... and my concern is do i have to have it or no??? and what will be the outcome if i dont have it plugged in???


The Reaper

Single, and lovin' it!!
Jan 10, 2006
1,909
0
0
Florida
bigaaron said:
The map sensor is at the firewall :icon_conf
And I was talking about the injector resistor, not the fuel pump resistor. The origional poster is confused, he's getting the two resistors mixed up.

i dont see how but ok
