Rear BBK anyone?
- Thread starter disturbed1
- Start date
i have a BMW M1 in the yard it had 6 pot front & 2 pot rear. I was going to try them out but my yard wanted 250 each caliper OUCH! When i sold 4 pot Mercedes AMG Calipers for 300 a set when they had them listed in there for 50 each!... got lucky.
I think i found the the part # for the Rear caliper mounting bolts and washers
(Bolt PN : MR370730 / Washer PN : MR407073) will need 4 of each
20 + 10 shipping... :/ ill prob go to a hardware store and get them there... think they are 10 x 30... not 100% sure
(Bolt PN : MR370730 / Washer PN : MR407073) will need 4 of each
20 + 10 shipping... :/ ill prob go to a hardware store and get them there... think they are 10 x 30... not 100% sure
Last edited:
As far as I know now, the calipers will bolt up, using the original Evo bolts, as the Supra brackets have no screw thread.
If you want to buy standard ones, the measures should be: 10.9 M10x1.5 and at least 36mm length.
One warning though. The bolt head size of the Supra bolt is 14, a standard bolt could easily be 17.
I did not use the Evo bolts, but could imagine that would be a 14 to, as you need more space if you wanna use a rattle to screw the lower bolt on.
A alternative to that would be to use an allen-screw.
(I know upside down, but this is just to show the fitment)
If you want to buy standard ones, the measures should be: 10.9 M10x1.5 and at least 36mm length.
One warning though. The bolt head size of the Supra bolt is 14, a standard bolt could easily be 17.
I did not use the Evo bolts, but could imagine that would be a 14 to, as you need more space if you wanna use a rattle to screw the lower bolt on.
A alternative to that would be to use an allen-screw.
(I know upside down, but this is just to show the fitment)
The (metric) measures for the WRX STi 2.5/2.0 '05- brake discs are:
A Diameter: 316mm
B Thickness: 20mm (Minimally: 18mm)
D Offset: 68.5mm
E centre hole: 58mm
F studs: 5
PCD: 114.3
Just one drawback on the Lancer Evo calipers vs. the Z32/R32-33 calipers: The costs of overhaul kits is about three times as high....
A Diameter: 316mm
B Thickness: 20mm (Minimally: 18mm)
D Offset: 68.5mm
E centre hole: 58mm
F studs: 5
PCD: 114.3
Just one drawback on the Lancer Evo calipers vs. the Z32/R32-33 calipers: The costs of overhaul kits is about three times as high....
@xzeror
I will take em to the machineshop as soon as they arrive (prob next week)
@Enraged
And what calipers would you mean? Evos?
I found these in the US, but bought mine in the UK.
http://www.ebay.com/itm/03-04-05-06...Parts_Accessories&vxp=mtr&hash=item3a6cf13b10
lol, try this maybe: http://www.ebay.com/sch/i.html?_from=R40&_trksid=m570.l2736&_nkw=lancer+evo+caliper to search some more.
Z32/R32-33 will probably be cheaper, but you'll need a bracket for those. R33/34 GTR Brembos look very similar to the Evos tbh.
I will take em to the machineshop as soon as they arrive (prob next week)
@Enraged
And what calipers would you mean? Evos?
I found these in the US, but bought mine in the UK.
http://www.ebay.com/itm/03-04-05-06...Parts_Accessories&vxp=mtr&hash=item3a6cf13b10
lol, try this maybe: http://www.ebay.com/sch/i.html?_from=R40&_trksid=m570.l2736&_nkw=lancer+evo+caliper to search some more.
Z32/R32-33 will probably be cheaper, but you'll need a bracket for those. R33/34 GTR Brembos look very similar to the Evos tbh.
Last edited:
could one of you guys with the calipers do me a favor, and measure the hole spacing of where it mounts to the hub? looking for the center to center distance, in mm if you can.
4 months on and people are still skeptical about fitment...
was kinda expecting somone to have bought a pair of front calipers to see if they bolt right up aswell
was kinda expecting somone to have bought a pair of front calipers to see if they bolt right up aswell
They don't: Front EVO calipers (and knuckles) have a 160mm distance between sittings. MKIII fronts have 110mm.....
http://www.dsmtuners.com/forums/art.../260580-diy-install-evo-brakes-brembo-2g.html
http://www.dsmtuners.com/forums/art.../260580-diy-install-evo-brakes-brembo-2g.html
Last edited:
Enraged;1780013 said:
Really? Just "2" things to keep in mind:
1. Be sure to compare the surface area of those 355's to say the 324 ones.
2. Check if they stop you really better than say a Night Pager or ARZ kit, by comparing 70mph to 0 stop distances f.i.
3. 18" or larger would be the way to go then, so if you are not on those yet ----> $$$$$
Bigger is not the same as better.....especially for road use, but a bigger surface mostly means better heat dissipation.
* "The unique Formula One-inspired braking system allowed the Supra MKIV Turbo to record a 70 mph (113 km/h) -0 braking distance of 149 ft (45 m), the best braking performance of any production car tested in 1997 by Car and Driver magazine. This record was finally broken in 2004 by a Porsche Carrera GT, which does it in 101 ft (31 m)."
* Skyline R34 GT-R with the Brembo 4 pot front calipers and 2 pot rears has a 70 to 0 braking distance of 151 feet, according to this site:http://www.jbskyline.net/r34/gtr/index3.php
Also: http://planetsoarer.com/suprabrakesII/SupraBrakeUpgrade.htm -> Wilwood 355mm vs 320mm performance! :icon_evil
Total cost of my setup is (CAD):
Use EVO 9 2007 caliper (2): $250
Standard Raybestos 2005 WRX STI disc (2) : $140
Standard raybestos Mitsubichi EVO 9 brake pads (4) : $50
Bolt (4): $2.00
58 to 60mm bore machining (2) : $25
TOTAL : $467.00 tx and everything include ( no labor, i do it myself)

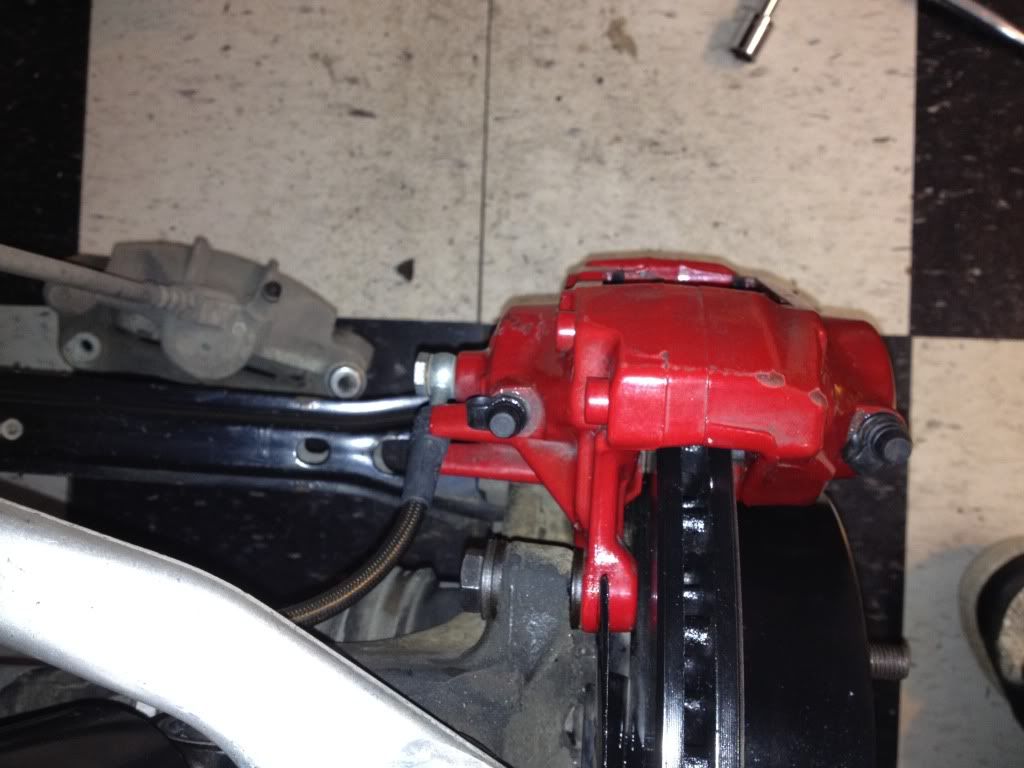

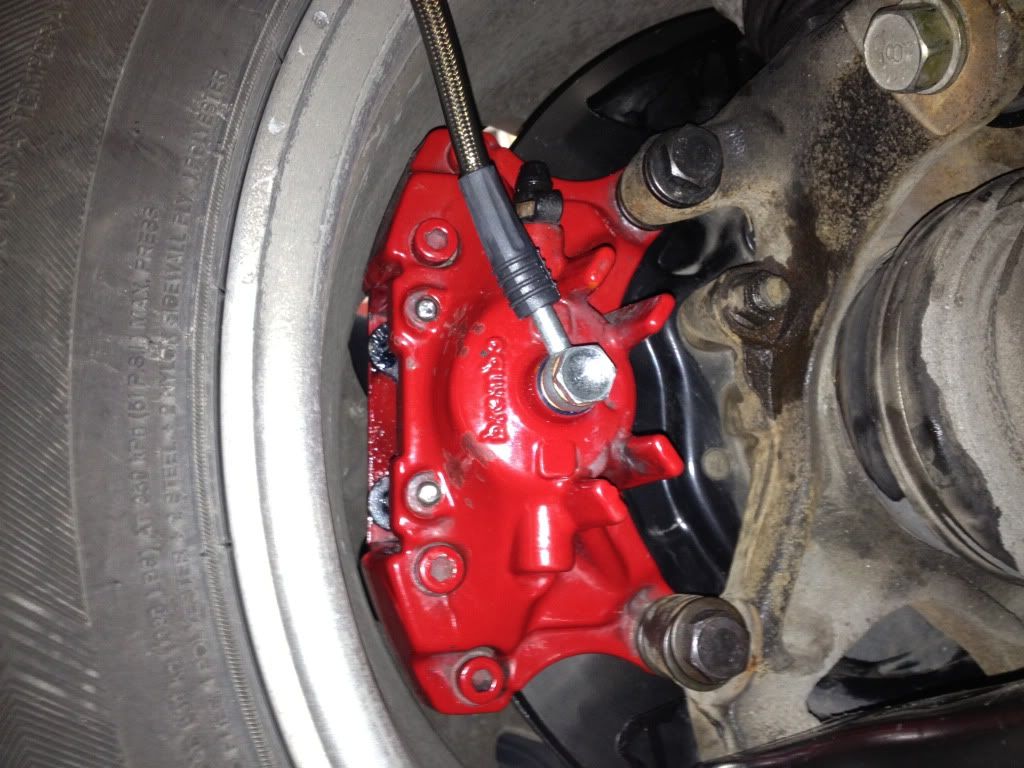

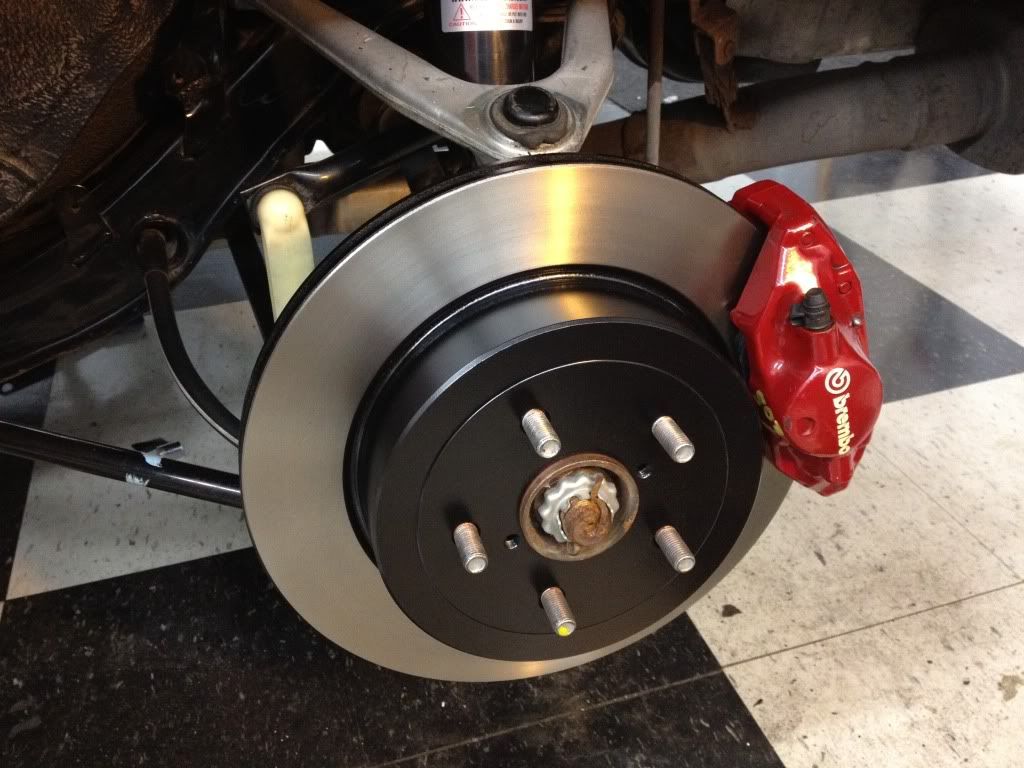

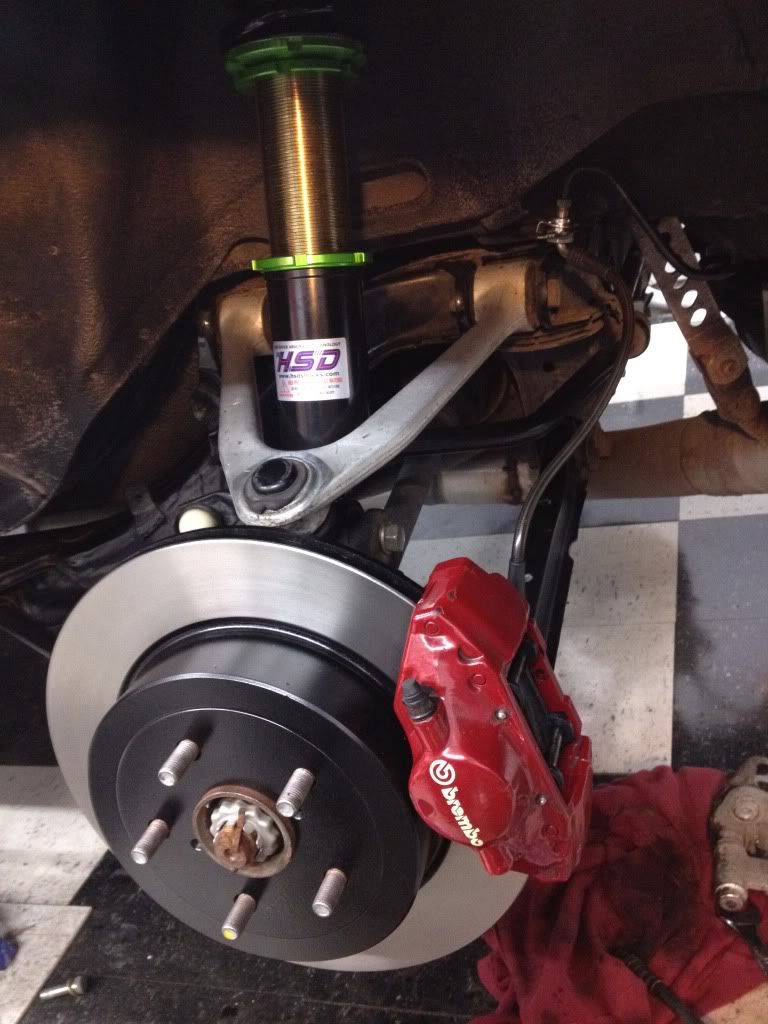

Here is some pics of my install + some tips :
Both MK3 and EVo bolt will not be correct to use. The evo bolt are not long enough. You need to buy 1/4-3/8 longer.
I use some 7mgte head bolt washer to space the caliper. They are perfect. So if you have some spare, go for it.
For the dust sheild, you only need to cut the 90 degre part of it (the lip). I apply paint where i cut to prevent rust.
I use the stainless brake line that come with my caliper, i think this is the stock one.
Oh, i did not mesure inside the disc for the hand brake, but it look like they are a little bit smaller. Reason is that my handbrake was in need of a little adjusting and now it is just perfect, 5-6 click make it perfect. So you may need a little adjusting depending of yours.
You can see the washer spacing the caliper
Sawblade fit (2-3mm space) But i will not run those anymore since i will be upgrading the front too. I test fit just for your info.
Use EVO 9 2007 caliper (2): $250
Standard Raybestos 2005 WRX STI disc (2) : $140
Standard raybestos Mitsubichi EVO 9 brake pads (4) : $50
Bolt (4): $2.00
58 to 60mm bore machining (2) : $25
TOTAL : $467.00 tx and everything include ( no labor, i do it myself)
Here is some pics of my install + some tips :
Both MK3 and EVo bolt will not be correct to use. The evo bolt are not long enough. You need to buy 1/4-3/8 longer.
I use some 7mgte head bolt washer to space the caliper. They are perfect. So if you have some spare, go for it.
For the dust sheild, you only need to cut the 90 degre part of it (the lip). I apply paint where i cut to prevent rust.
I use the stainless brake line that come with my caliper, i think this is the stock one.
Oh, i did not mesure inside the disc for the hand brake, but it look like they are a little bit smaller. Reason is that my handbrake was in need of a little adjusting and now it is just perfect, 5-6 click make it perfect. So you may need a little adjusting depending of yours.
You can see the washer spacing the caliper
Sawblade fit (2-3mm space) But i will not run those anymore since i will be upgrading the front too. I test fit just for your info.
Last edited:
well done ^^^. I currently have my calipers at the brake shop being rebuilt. So the brake line that came with your caliper bolts straight up to the supra? Can you give me a total length required for the caliper bolts?
I have priced mine up and its going to be about 800 dollars but that is with DBA 4000 rotors and Ferodo or project Mu pads. Still a worthy upgrade IMO.
I have priced mine up and its going to be about 800 dollars but that is with DBA 4000 rotors and Ferodo or project Mu pads. Still a worthy upgrade IMO.
I picked up my rotors the other day, I went with powerslot, they were $197 Canadian with tax. I'm currently looking for calipers, may have found a brand new set.
sylquebec;1788154 said:Total cost of my setup is (CAD):
Use EVO 9 2007 caliper (2): $250
Standard Raybestos 2005 WRX STI disc (2) : $140
Standard raybestos Mitsubichi EVO 9 brake pads (4) : $50
Bolt (4): $2.00
58 to 60mm bore machining (2) : $25
TOTAL : $467.00 tx and everything include ( no labor, i do it myself)
Here is some pics of my install + some tips :
Both MK3 and EVo bolt will not be correct to use. The evo bolt are not long enough. You need to buy 1/4-3/8 longer.
I use some 7mgte head bolt washer to space the caliper. They are perfect. So if you have some spare, go for it.
For the dust sheild, you only need to cut the 90 degre part of it (the lip). I apply paint where i cut to prevent rust.
I use the stainless brake line that come with my caliper, i think this is the stock one.
Oh, i did not mesure inside the disc for the hand brake, but it look like they are a little bit smaller. Reason is that my handbrake was in need of a little adjusting and now it is just perfect, 5-6 click make it perfect. So you may need a little adjusting depending of yours.
You can see the washer spacing the caliper
Sawblade fit (2-3mm space) But i will not run those anymore since i will be upgrading the front too. I test fit just for your info.
Thanks For Posting Pictures!
