Post 7mge dyno charts and info here.

[Toycoma]

here is a link to one.
http://whyturbothat.com/na7mgedyno.html
87 supra 7mge. 162 whp. the guy says it had intake and exhaust and it smoked when it ran. He also states that his friends car put down 169 hp at the wheels.
someone make this a sticky?
so anyone else who has dynoed a NA 7m, put your numbers and mods here I guess.

WHP:
Mods:
Year motor:



[BorHor]

Heres mine from today. HP sucked becaue I have the factory clutch with 150k miles on it and I need to replace it. Vid will come when I feel like ripping it off the cam.



[Big Wang Bandit]



[IJ.]

The way I'm reading it is shown by the blue lines with the red line being a spike to 166 ft/lbs.

128ft/lbs seems closer.



[ValgeKotkas]

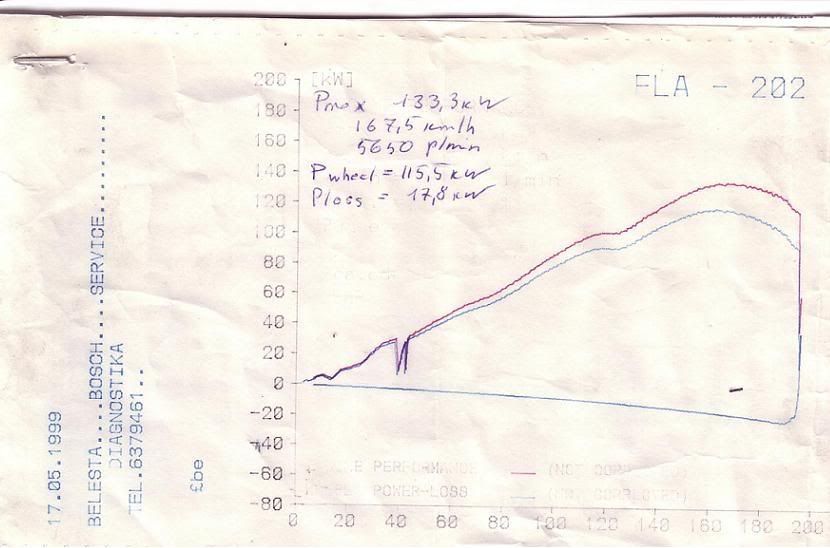

Here's my dyno, from year... umm... it says there:icon_razz
It's in km/h btw. :icon_bigg



[7MA61]

Thats my last figure, suspect tune on Microtech ECU ie 15 degrees of timing taken out, hoping to get cams in the GB and then send it to be tuned at a much better tuner.

Specs:
7mgte block with 10.7:1 comp 83.5mm Pistons
57mm twin throttle bodies
Tuned length extractors
Ported Head
Balanced bottom end etc etc

Yes its Ed MA61's old car for anyone who may be thinking the specs sound familiar. Car ran a 14.787 1/4 mile at 93.29mph



[IJ.]

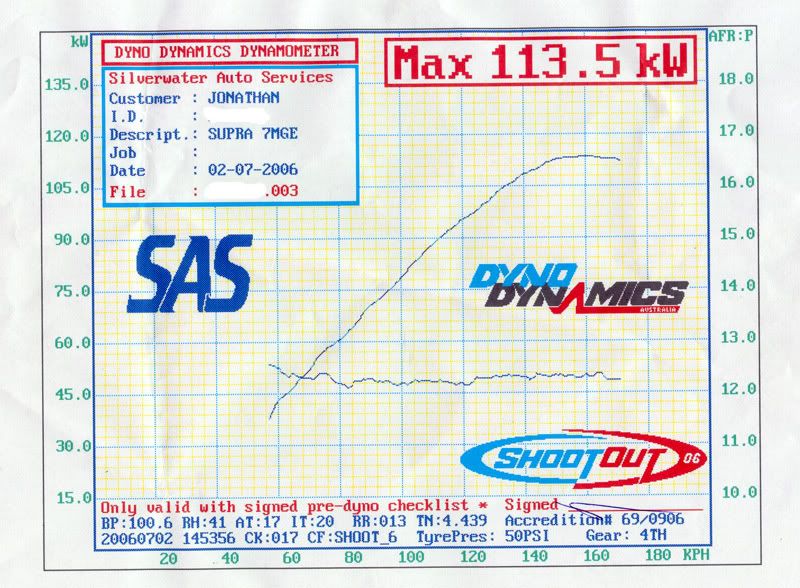

For those that don't speak Metric 113kw=152.2rwhp!



[Illusive MA70]

157.6 rwhp @ supras invades 05
MODS: Custom CAI
PaceSetter Headers (modified)
Exhaust 2.5".


Hopefully My car will be ready and running by this thursdays dyno event for Supras invades 06. If it is, I expect 178. WE WILL SEE.



[87supraman]

205hp at the rear wheels, Ram air intake, 2 1/2 in exhaust, high flow cat, electric cooling fan, advanced the timeing, 15 degrees above tdc



[Fuzz420]

Time to add mine to the official sticky:
141hp and 154ft/lbs

Click to enlarge:


Mods FIPK, 2 3/4 inch custom catback,1 peice aluminum d/s



[Inferno]

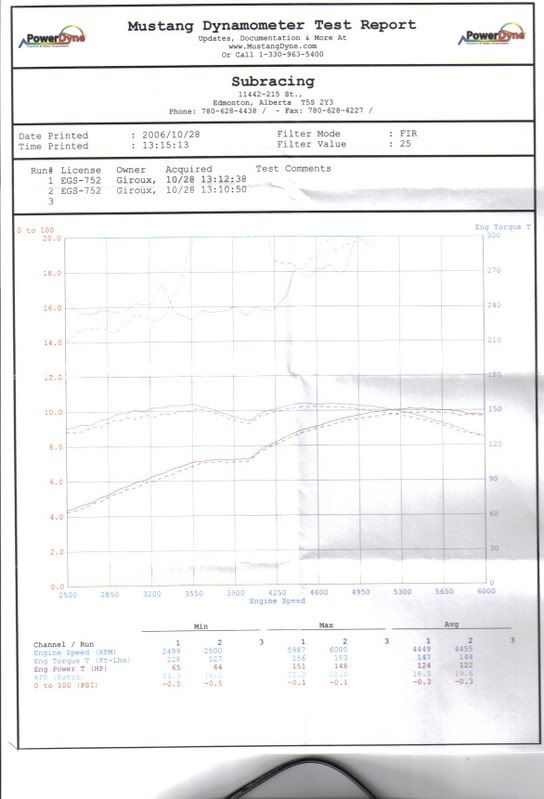

My car put down 151hp and 156ft/lbs, that was on a AWD mustang dyno, the only mods i have done is 2.5" exaust no cat and a custom intake.



[Inferno]

Its hard to see but here it is.



[Ma70.Ent]

I've cleared the thread so the dynos are easier to see.



[Fuzz420]

Its hard to see but here it is.

Great Numbers, especially on a mustang dyno :bigthumb:



[Inferno]

Meh i was hoping for alittle higher numbers but this mustang dyno was set to put down %15 less HP, but i am guessing i would get some better numbers from a dynojet?



[BlackMKIII]

Woowoo! This was done about a year or so ago, before I had my cold air intake. I'll just have to go do some more pulls.



[Ma70.Ent]

If you're not posting dynos, please try to keep posts to a minimum.



[Nalleywhacker]

I plugged mine up to a g-tech pro. and it was 198hp and 216tq. intake, 2.5 custom exaust,pacesetter headers, cams, bored .30, decked head.



[CRE]

Just got my car dynoed. It was on a Land + Sea DYNOmite (? I know nothing about this dyno or how it compares to a DynoJet or Mustang). Peak HP = 153.6 @ 5650RPM, Peak Torque 158.5 ft-lb. @ ~3600RPM

My AFR is at a pretty steady 11.7 at WOT from ~4000RPM through redline. No, my car isn't tuned yet.

I will post the sheet sometime soon.


Why isn't this thread stickied yet?



[Ma70.Ent]

This thread was stickied, then it was unstickied because it died off...
