MKIV Fuel pump install

[DETONATION666]

Very cool thank you for your help! so I guess its suggested to run 10 Gauge wire inplace of the original ? I have to get my POS running soon lol



[isnms]

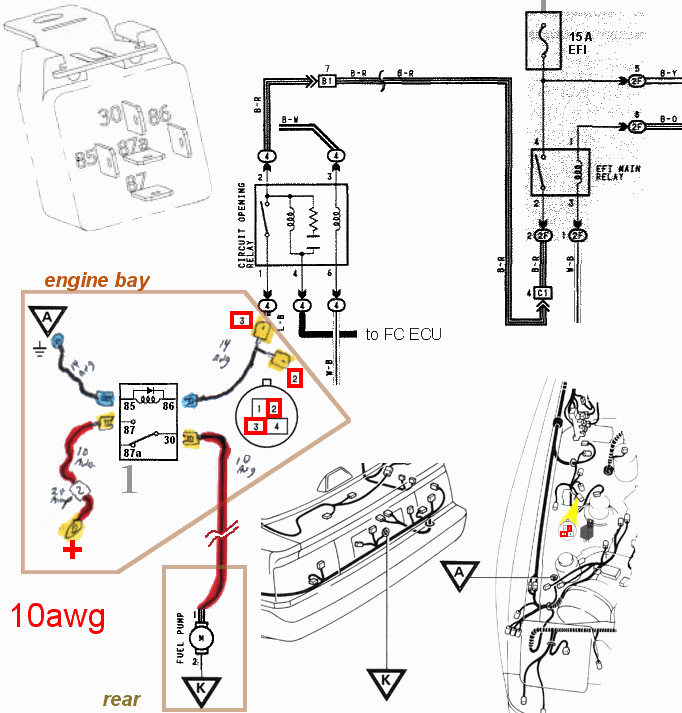

Cool ... crisp that's my diagram
but I'm going to go with this relay adam directed me to:

this is the relay I used:
http://www.bmotorsports.com/shop/product_info.php/cPath/150/products_id/504
it seems to be the most robust, and no soldering was required.

and keep it in the engine bay then just run a 10awg wire to the pump:
the 'Y' for pin 2&3 is to retain the ability to jumper FP and +B in the diag connector.



[crisp]

Cool ... crisp that's my diagram
[/IMG]

I was HOPING someone would recognize it!


Sometimes, you gotta just GRAB the good stuff when you see it, and share it when it comes up again!:biglaugh:




-crisp



[DETONATION666]

Thanks for the diagram it helps im just useless when it comes to wiring
