wiring problems....oh the horror!!

[UpbeatFish]

so im replacing any ugly wires with a harness i got at the junk yard and while im working on my car i notice 2 wires that are cut. so im thinking "oh, what ever ill just connected to the other si...side..... wheres the rest of the wire". i continue to look but nothing. there was actually wires that were the same color but they were smaller....

does anyone one know where these 2 wires go?

1(black and red)
2(red and black)

after that i found a black and blue wire going straight to the negative on the battery. i followed it from the batter and it lead me to 3 same color wires that merge into one.

does one of these black and blue wire need to be grounded?

ps.
does anyone know where this hose goes as well.

thank you all for your help



[j3pz]

the hose is to the bvsv or bov. i dont know about the wires

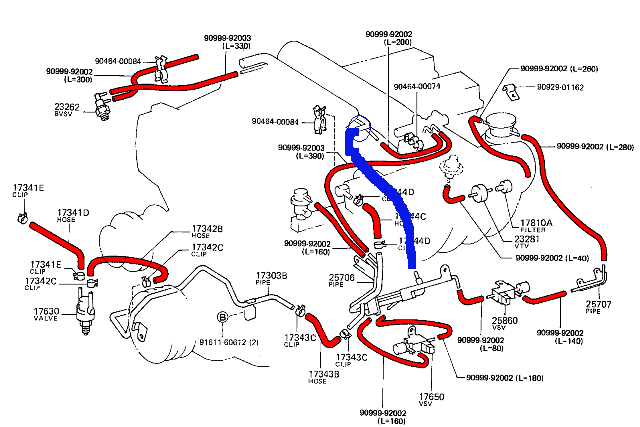

edit: my bad that is one the other side of the 3000 pipe. look at this pic

hope that helps



[UpbeatFish]

the hose is to the bvsv or bov. i dont know about the wires

edit: my bad that is one the other side of the 3000 pipe. look at this pic

hope that helps

dude you dont know how long i was looking for that diagram and everyone i found it had all the hoses but the one i needed. thank you!



[j3pz]

dude you dont know how long i was looking for that diagram and everyone i found it had all the hoses but the one i needed. thank you!

ya i tried to figure out where that went for someone else, had to go outside and look, then use my awesome paint skills



[UpbeatFish]

ya i tried to figure out where that went for someone else, had to go outside and look, then use my awesome paint skills

lmao thanks man
but i went to go look when i got your message. but that hose is connected to some metal rode like thing and then its converts into a little hose...



[suprastanger507mgte]

One of those Red/Black wires is live, im sure. It could be going to the vsv valve under the intake. Look tpo see if the connector is broken or not. Kinda hard to tell where near the fuel rails that wire is comingout of.

About those Blue/Black wires - depends on what year/model you have. It is usually the NSW signal for the Automatic transmission.



[UpbeatFish]

One of those Red/Black wires is live, im sure. It could be going to the vsv valve under the intake. Look tpo see if the connector is broken or not. Kinda hard to tell where near the fuel rails that wire is comingout of.

About those Blue/Black wires - depends on what year/model you have. It is usually the NSW signal for the Automatic transmission.

yeah the car was converted to manuel



and the car is turbo... so intake?
umm the wires are bunched up with all these other wires going to the firewall on the left side, then they go inside the car.



[UpbeatFish]

where is that notorious jetjock? (i thnk thats his name haha) when you need him haha



[jetjock]

Based on your post history of poor communication, substandard grammar, bad spelling, atrocious punctuation, a continuing unwillingness to help yourself through what appears to be terminal laziness (how's that "live n learn" thing working out for ya?) and not getting his name right when asking for help, he has decided to remain amused from the sidelines...



[IJ.]

Yeah what Jetjone said yeah!



[tbcmorris]

howd you tick off the one person that could really help you?



[UpbeatFish]

jaguar was right about this supramania.
