wiring diagrams

[#1StunnaVic]

hey i found some diagrams on 1jz-gte.us on how to wire up the 1j in ma70 supras and i just wanted to know if anyone has used them and can they vouch for them that they are correct and accurate?? i searched but didn't find anything on them. thanks also i saw some wiring information on how to wire a soarer 1j into a ma70 on this forum and i wanted to kno if anyone can vouch for that one as well.



[Ric]

It might be hard to find soarer diagrams how to put that motor in a a70, since most people put supra motors in supras and soarer motors in sc300.

You can search soarercentral.com for jzz30 ECU pinouts, and the jdm z30 body pinouts are the same as the z31 american sc300. It's in any repair manual



[foreverpsycotic]

comeon bro, this thread is less than a day old.

http://www.supramania.com/forums/showthread.php?t=43888



[AF1JZ]

also i saw some wiring information on how to wire a soarer 1j into a ma70 on this forum and i wanted to kno if anyone can vouch for that one as well.

I can vouch for it. I posted it and used those instructions to do mine and it runs. But, that's entirely up to you though. Odomd spent countless hours doing the wiring to make sure it's right. Good luck

http://www.supramania.com/forums/showthread.php?t=43888


Ninja edit: Damnit, you beat me foreverpsycotic.



[Ric]

sick!!



[AF1JZ]

sick!!

:biglaugh:



[foreverpsycotic]

Ninja edit: Damnit, you beat me foreverpsycotic.

im just a beast like that :biglaugh:

remember, even if you get a soarer 1j clip, you need to get a bellhousing and flywheel (either r154 from a 1jz or w58 from a 2jz, whatever you have) if you want to go manual, you will also need to swap the oil pans.



[#1StunnaVic]

i havent bought the motor yet but i just wanted to kno in case i cant get a supra 1j and ended up with a soarer i wanted to kno that this works



[AF1JZ]

if you want to go manual, you will also need to swap the oil pans.

I didn't have to



[foreverpsycotic]

wait what?? you can use the front sump oil pans with the soarer 1jz and the aristo 2jz? i thought they didnt clear the crossmember...



[AF1JZ]

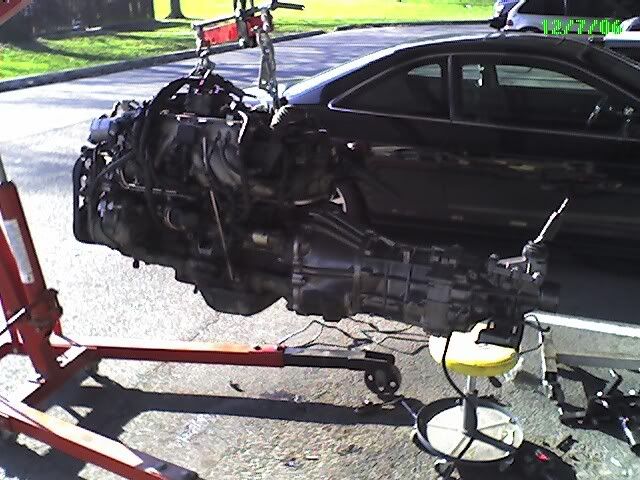

It is a rear sump. See....



[foreverpsycotic]

o...sex. that makes things cheaper (just more work involved)



[AF1JZ]

Not really. All the hard part is in post 1 :biglaugh: .
