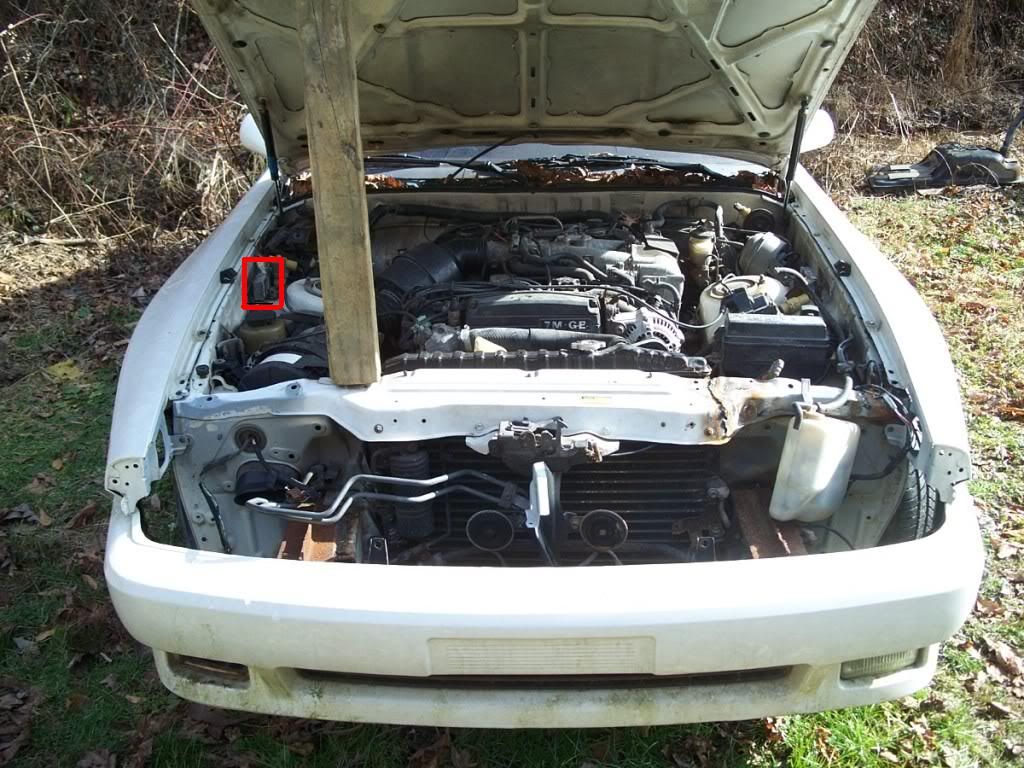

Hey guys, I have a quick question. I have a '87 7mge in my '82. It runs great, has plenty of torque, yet smokes like a coal train. I cannot figure out why it is running so rich. If I pull 1st or 2nd gear up too many rpm's, it floods out, and dies. I have to pull over, crank it for about 30 seconds, and keep out of the pedal on the way home. Anyway, I'm wondering what this little box does. It's on the passenger side of the engine bay. It looks like the injector resister. I just realized tonight that I did not install it into the '82 when I did the conversion. Just so everyone knows, their is no oil in the coolant, no coolant in the oil, and it has a new Toyota head gasket, and arp head studs. But, what is this? What's its function? *edit* Also, if I drive it, I can shut it off, and start it fine as long as I don't wait more than 5 or so minutes. If I drive it and shut it off, then go out to start it 10 minutes later, I'll have to crank on it for about 30 seconds before anything happens. Thanks.

http://www.youtube.com/watch?v=9Fv_JVwdLdI



[jetjock]

It's the fuel pump resistor. Without going into too much detail it's used to run the pump at lower speed except when starting and at WOT...



[89nasupra]

Is there a difference between the turbo and non turbo models?



[jetjock]

No



[BlackDynamite]

Ok, well, on my 86.5 and my 88 i have one on each side. On my 89 there is only one on the passenger side. I looked for another plug but there is nothing...



[89nasupra]

The one on the drivers side is the resistor pack for the injectors on a turbo model. They look the same.



[BlackDynamite]

cool....but i've only owned NA's... and they all have had them except my 89 :\

---------- Post added at 08:15 PM ---------- Previous post was at 08:15 PM ----------

There is even a spot for one to go, but NO connector...



[Moy]

The one on the drivers side is the resistor pack for the injectors on a turbo model. They look the same.

are you sure about this one? I know the turbo pressure sensor (turbo) and voltage sensor (n/a) are located on the driver side shock tower



[hvyman]

Yes there are 2 one on each shock tower. Theirs a boost pressure sensor that mounts on the resister pack on the drivers side and then the fuel pump relay for the one on the passenger side.



[Dirgle]

This website comes in really handy for identfying these sort of things.

http://www.ma70.com/bishop92t/techtips/index.html

Namely this link:

http://www.ma70.com/bishop92t/techtips/7mlayout.jpg

This one:

http://www.ma70.com/bishop92t/techtips/7mlayout1.jpg

And this one:

http://www.ma70.com/bishop92t/techtips/7mlayout2.jpg



[BlackDynamite]

Is there any N/A Pictures like this ROFL....i know most of this...but I'm still stumped on why i don't have one on my 89 :[



[Dirgle]

Nope don't have any pictures for N/A, But I was browsing your build thread and noticed your pictures. Are your injectors Yellow or Green?

The post-89 7MGE came with high impedance injectors so had no need for the resistor pack, and as such wasn't incorporated into the harness. You need the Green top injectors to work with this system.



[BlackDynamite]

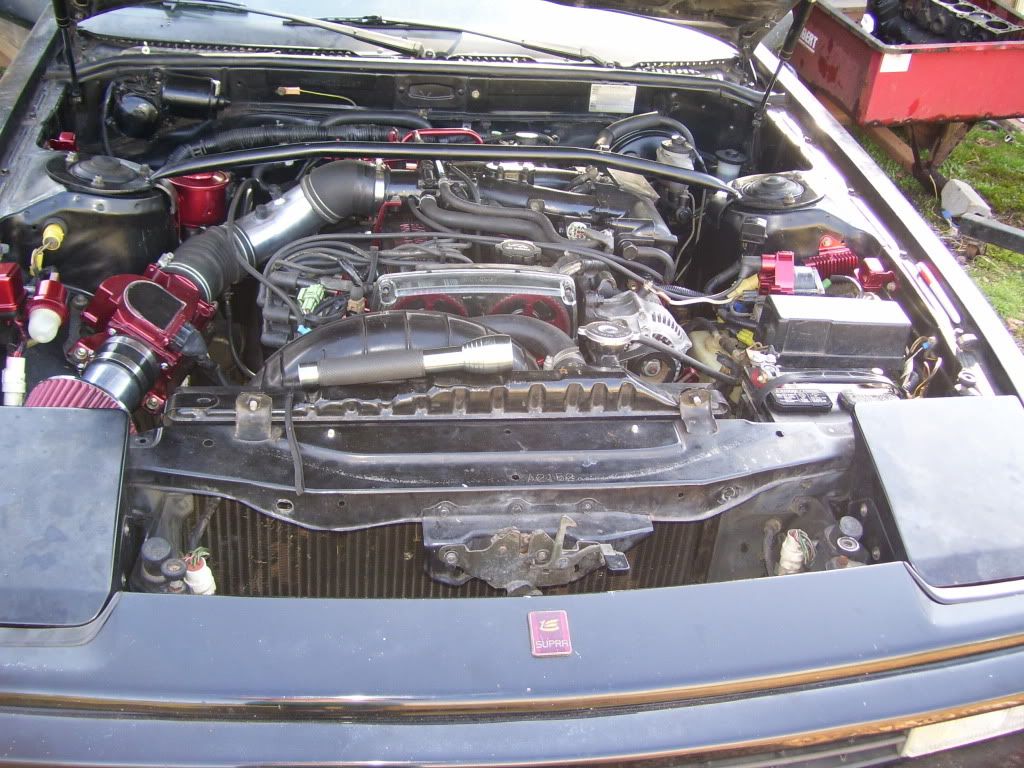

Well, when i got the car, it was in shambles...but i found 2 injectors inside the car and ordered some the same color. I MADE sure they were lime green, instead of yellow....they were used of course, but if one fails, i have about 8 more...I bought a mega pack....ROFL
