I was browsing the TRD online work catalog and came across this.

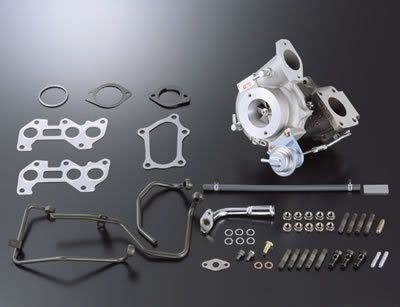

Replacement Turbine kit for 1JZ-GTE engines (single turbo)
ŸA turbine kit that does an excellent job of improving performance without sacrificing control.
Boasting high reliability, the TRD Turbine Kit is great for refreshing the 1JZ-GTE engine of late model, single-turbo cars.
ŸThe newly designed turbine for the 1JZ-GTE can be simply bolted on.
* Supercharging efficiency was improved by eliminating the tip clearance (gap between impeller and housing).
* Friction was decreased and response improved by employing a water-cooled ball bearing.
* Reliability was improved by employing the superior ??NIREJISTO?? material for heat proofing the turbine housing.
* Kit includes all parts required for installation, including gaskets, hoses, and pipes.
* Because factory parts are used in the ECU and fuel system, no special settings are required.
yTRD specificationz
Intake series
Box, plumbing Original
Air filter TRD product (or original product)
Exhaust series Exhaust manifold Original
Turbine outlet Original
Front pipe Original
Muffler TRD product (or original product)
Fuel series | Original
Restriction series | Original
* Never install parts from other companies that do not satisfy the above specifications. Doing so may damage the engine.

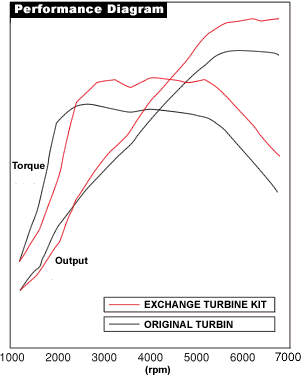

yOutput comparative tablez
Exchange Turbine Kit installed vehicle Original vehicle
Max. Output Approx. 227.85kw(310ps)
22.05kw(30ps) increased from original spec. Approx. 205.8kw(280ps)
Max. Torque Approx. 403.8N¥m(41.2kg¥m)
26.5N¥m(2.7kg¥m) increased from original spec. Approx. 377.3N¥m(38.5kg¥m)
* The engine performances listed above are bench test values obtained under TRD specifications using the latest 1JZ-GTE engine.
They do not agree with measurements obtained from a mounted chassis dynamo.
œInstallation significantly improves output and torque. Note that, depending on usage conditions, the durability of power and drive systems may be inferior to that of a standard system.
œAs a rule, we cannot respond to complaints about brand-name parts (including the engine itself) related to installation of this turbine kit.
