Show me your intercooler brackets

[CSquared]

My intercooler is already installed, but I hate the brackets I came up with on the fly. I am planning on re-doing and I'm looking for some ideas. Was thinking about mounting it to the bumper support somehow.

Looking for pictures on how you mounted yours. Preferably something clean.

Ready. Set. Go.

Sent from my SAMSUNG-SGH-I747 using Tapatalk



[CSquared]

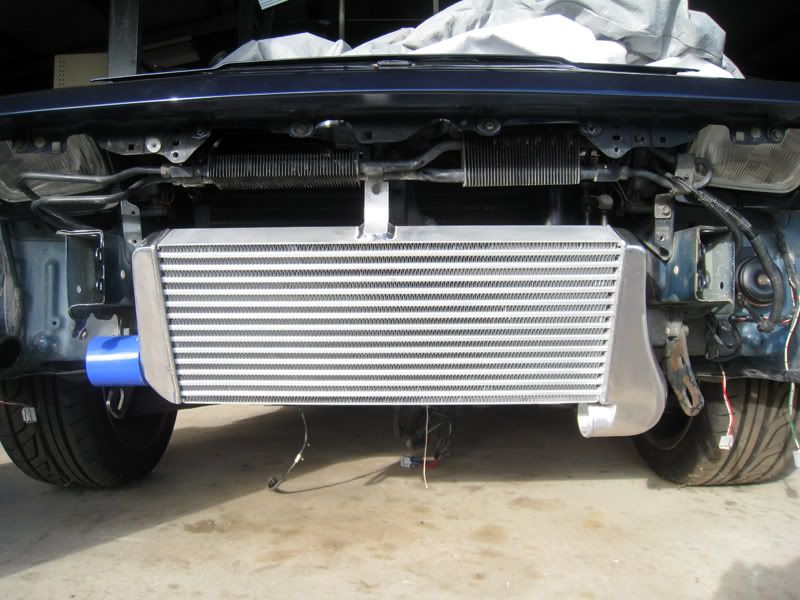

Here is my absolute pos setup for reference.

Sent from my SAMSUNG-SGH-I747 using Tapatalk



[toyotanos]

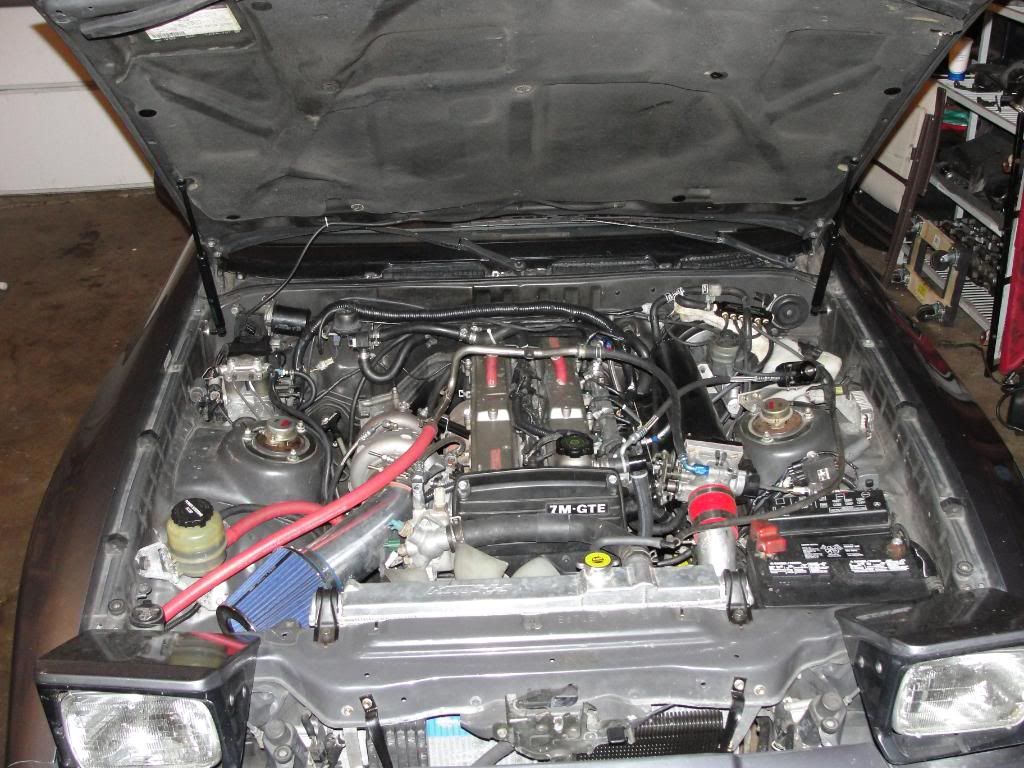

First iteration, I had to make a custom hood latch support for it to work right, but that was no more difficult than making the brackets themselves.

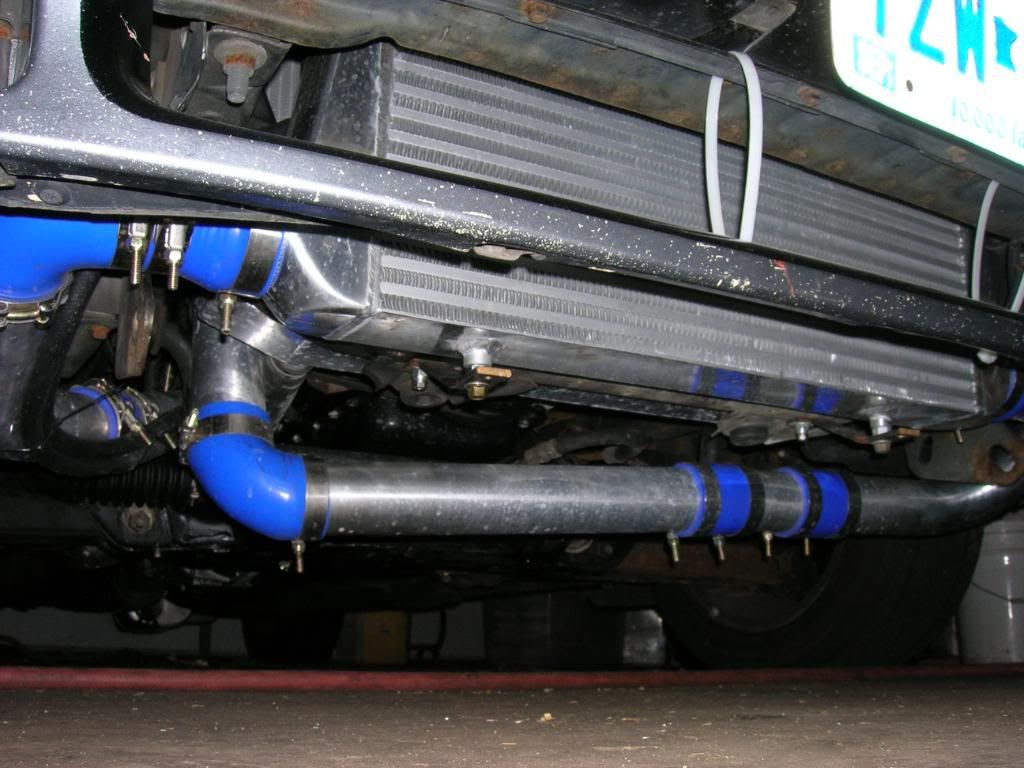

Lower mounts:

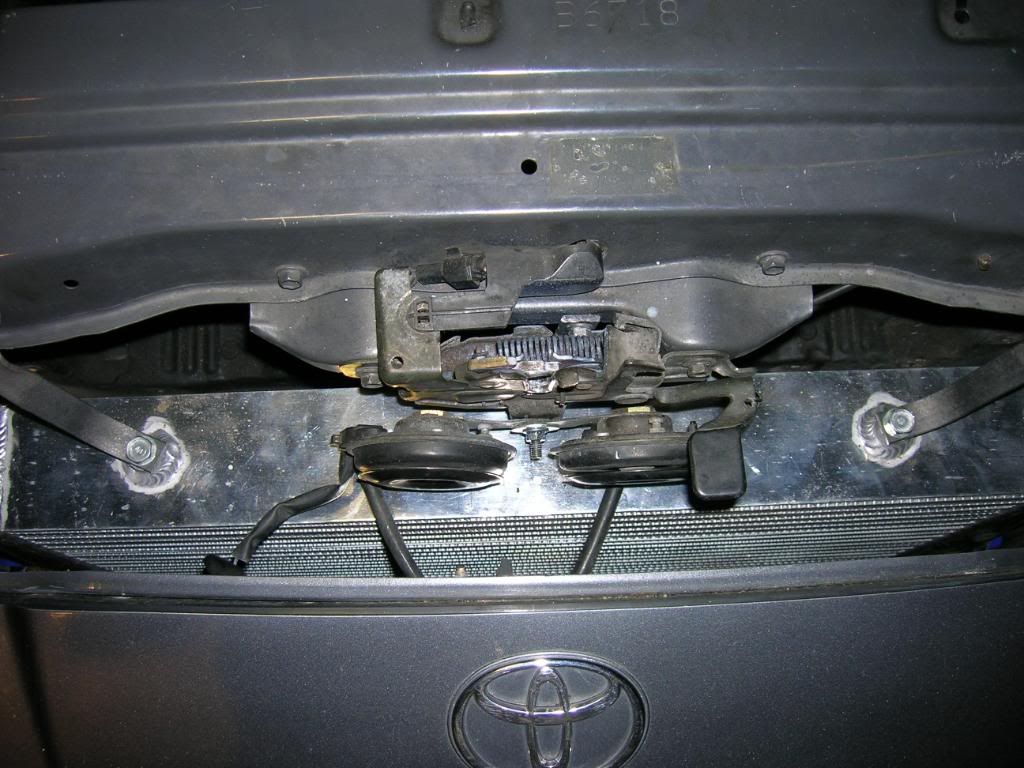

Re-done uppers to look better, even though the hood latch is gone, it fits the same.


Newer IC is similar. Works pretty well!



[gats]

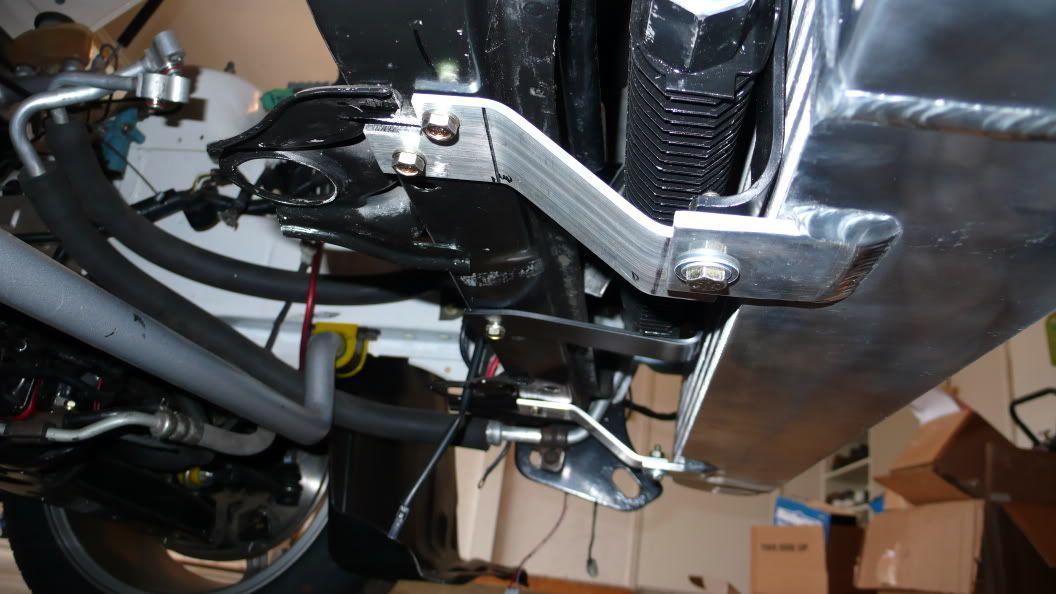

2 lower brackets that mount to the lower radiator support also...



[Mikael_7m]

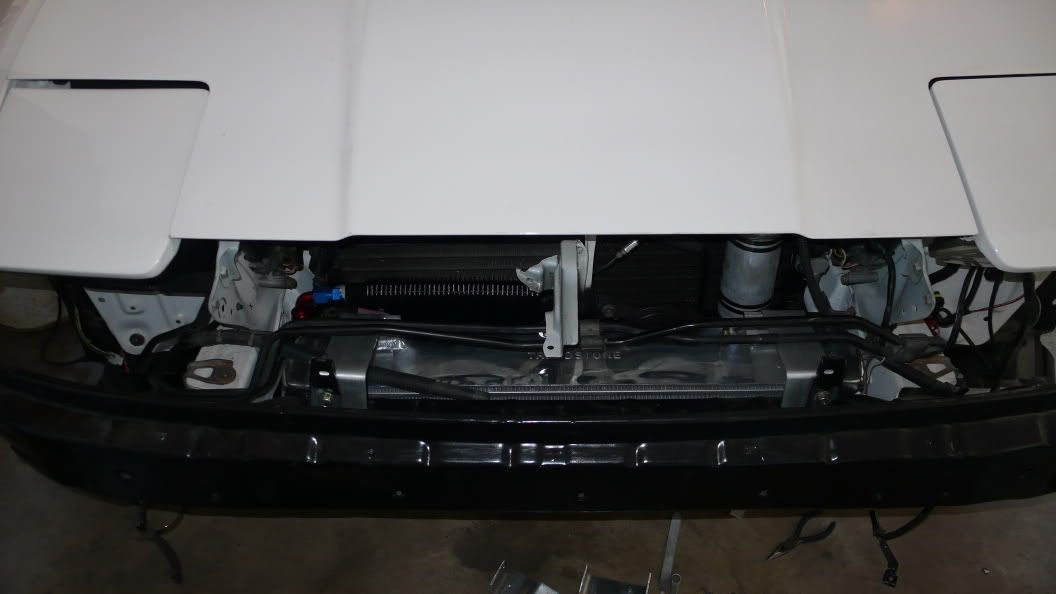

Also have brackets at the bottom...



[Suprapowaz!(2)]

It's functional, right? Why don't you get one of those "cooling panels" to conceal it. It'll dress up the engine bay as well.
http://www.supramania.com/forums/sh...cturing-Cooling-panel&highlight=cooling+panel
You can contact him and see if he still makes and sells them.



[adampecush]

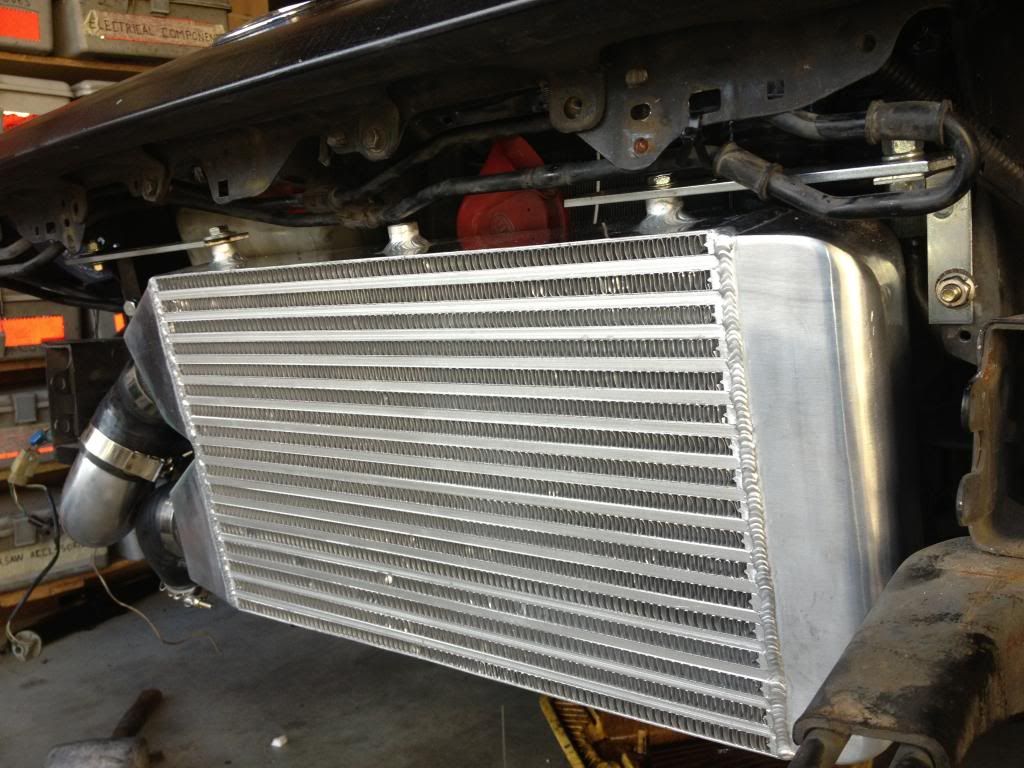

Used aluminum bar, mocked the mounts up with cardboard, and went from there.



[akito]

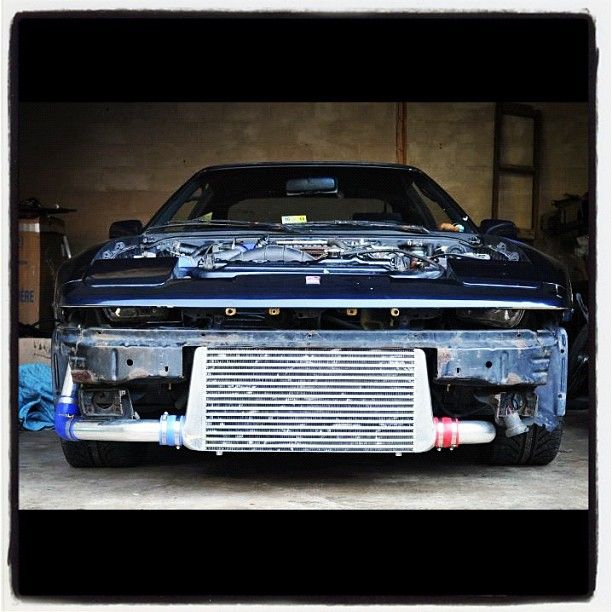

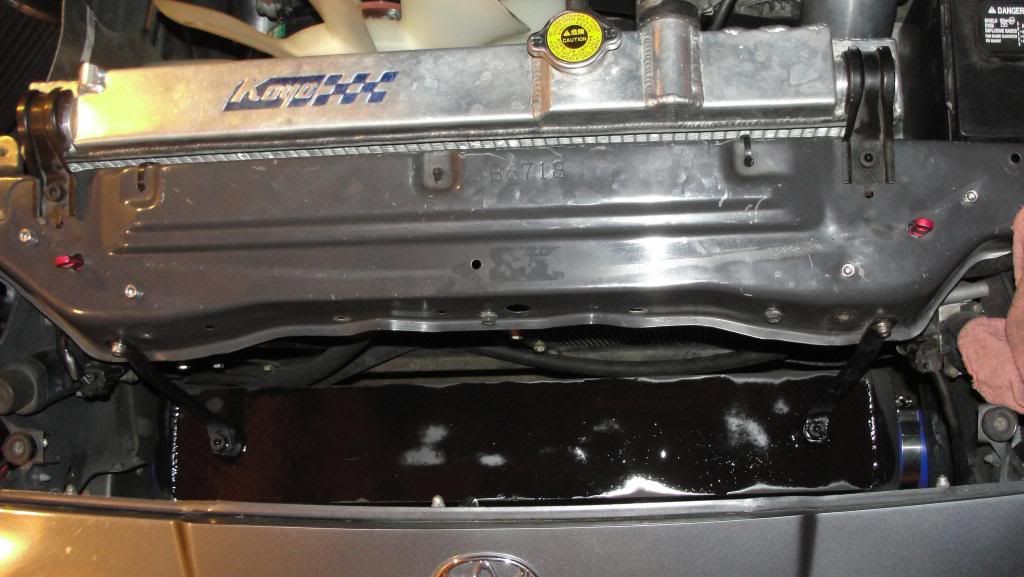

Here's how i mounted mine.



The ic is bolted directly onto the bar, i haven't the bottom brackets but haven't added in there yet.With this you're pushing the ic out a good amount and i had to trim the bottom of the bumper to clear it. But there's plenty of room.



[CSquared]

Lol a couple of you guys have made me feel even worse about my fabrication skills.

Sent from my SAMSUNG-SGH-I747 using Tapatalk
