SAFC helpp PLEASE.

[s383mmber1]

Hey guys. Im getting pretty frustrated over here and have been searching for hours. Im installing my SAFC today (trying to at least) and i can NOT find what wires go were.

On the end of the SAFC, there are the following wires:

orange
pink
red
yellow
brown
green
blue
white
black
grey

Can someone please tell me which each wire is. Everywere i look says something different. And its not listed on APEXi website.

87 supra turbo.

Thanks



[tissimo]

afc 1?.. i had trouble finding them as well.. here you go

http://www.apexi-usa.com/pdfWiring/7.pdf

Grey wire is TPS (not listed in that)

Use the neo wiring locations for it..

http://www.apexi-usa.com/pdfWiring/13.pdf



[isnms]

The wiring diagram, in my sig, includes the 87 ecu pinout. Just need to correspond it to the detailed connections.



[suprahero]

I'm sure they're all the same, but here is what I used.
http://www.supramania.com/forums/showthread.php?t=33094

orange.....Airflow signal input
pink.........Airflow signal output
red..........Power supply
yellow......
brown......Ground
green.......RPM Signal
blue
white.......Speed signal
black........Ground
grey........Throttle signal


I don't know if this helps or not, but one of these links has got to be right. Good luck



[s383mmber1]

orange - Illumination (doesnt go into ecu?)
yellow - air flow
brown - ground?
red - Power supply
blue - ?
black - ground?
white - air flow?
pink
grey
green

I jsut dont get it guys. What can i do to get the CORRECT wiring. Apexi's manual does NOT tell me what color wire is what! It just gives me pin diagrams. Hell, ill pay someone if they can help me out! Its really frustrating.



[s383mmber1]

Ok im gonna try that out Jay, thanks.

Lets see how badly i can blow my car up.



[suprahero]

Let's don't and say we did. Good luck, it worked for mine, but mine is a 91. Hopefully there isn't much difference or maybe one of the above links will work better.



[suprastanger507mgte]

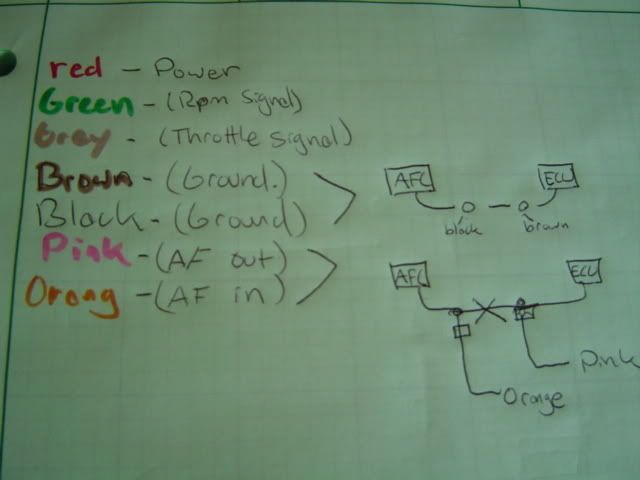

Maybe this will help :
