Pics of your mk3 intercooler piping

[turbulance_cressida]

Hey guys i've been on here for a while and i never seen a thread on intercooler piping.so i said let me try and start one.



[arizzle]

well heres what i have, dont have the complete but used a couple U-bends to make it.

in my 87



[RazoE]

and this is the pipe coming out the IC, with my BOV..

sorry, don't have any good pics at the moment..



[IJ.]



[radiod]

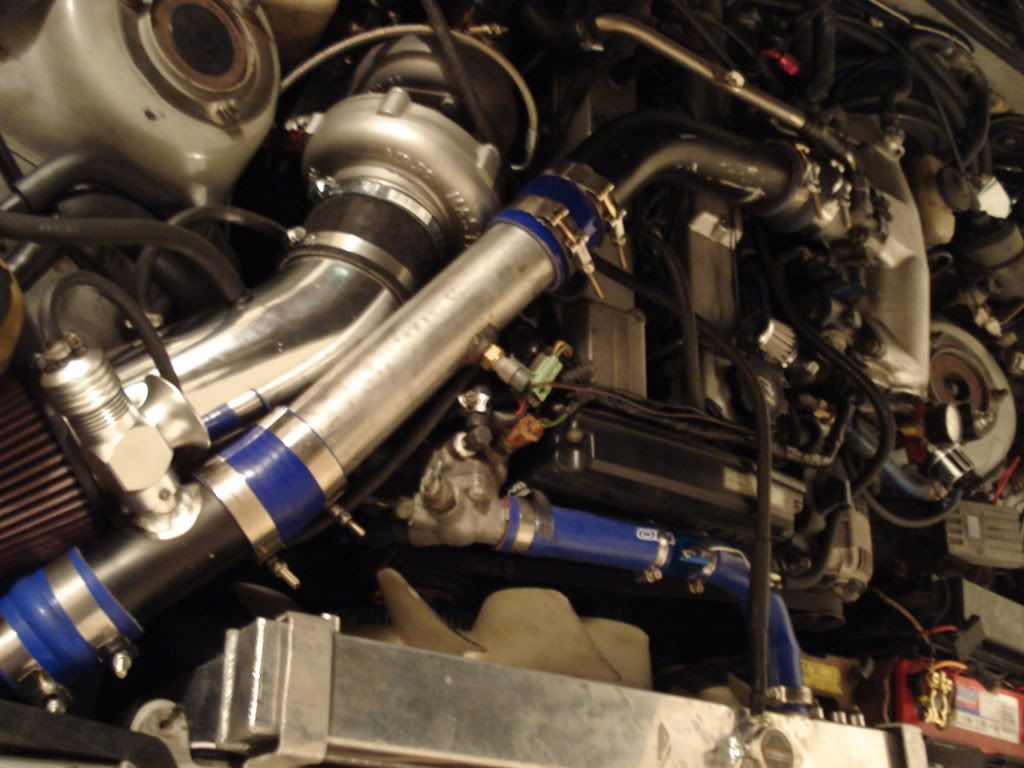

Just some pics from my head swap thread...



[toyotanos]

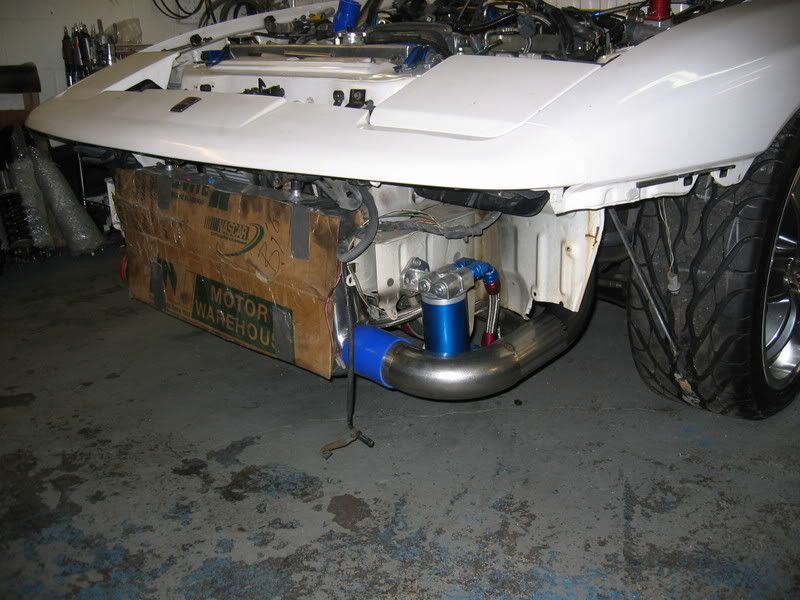

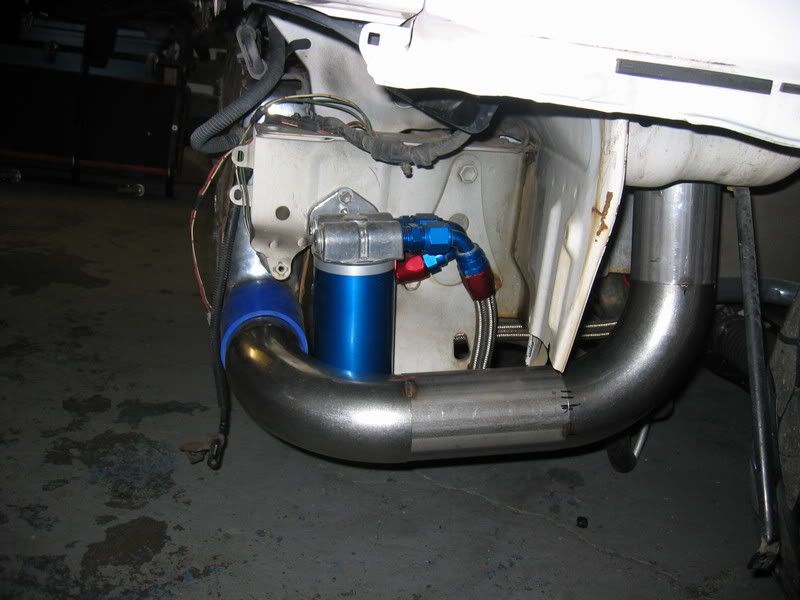

Here's my setup, used a $200 universal ebay 2.5" IC kit, but it's not welded up nice like Ian's.
BOV pipe missing, BTW

This bit hangs up higher, but the pipes are disconnected right now.



[Gilsdorf]

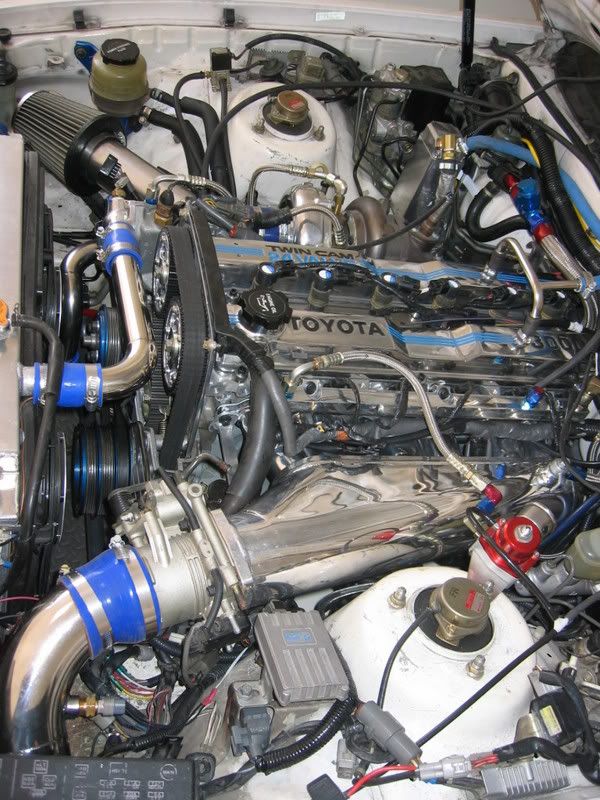

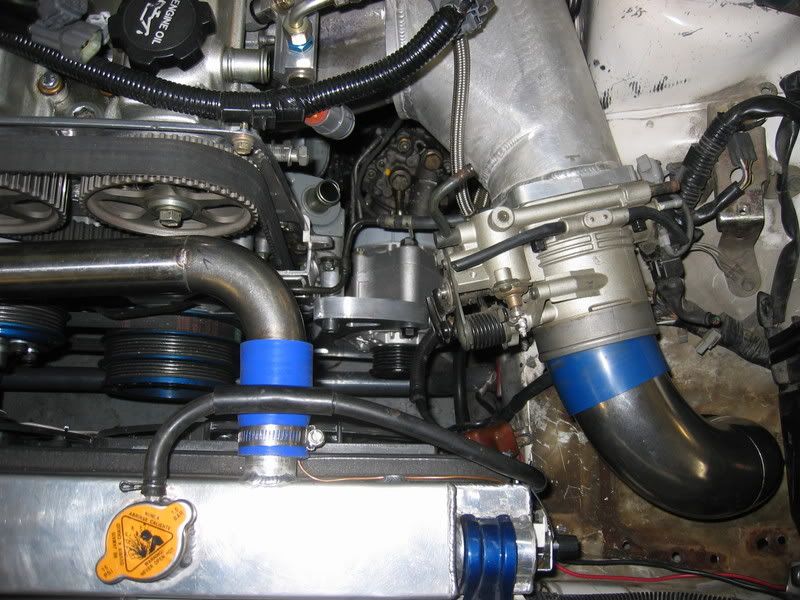

2.5" from turbo to IC, 3" from IC to FFIM. All polished stainless and now T-Bolt clamps throughout, only uses 4 silicone couplers total and IC to Manifold is very hard to remove from vehicle, so no other pictures until rebuild, paint job or part-out.

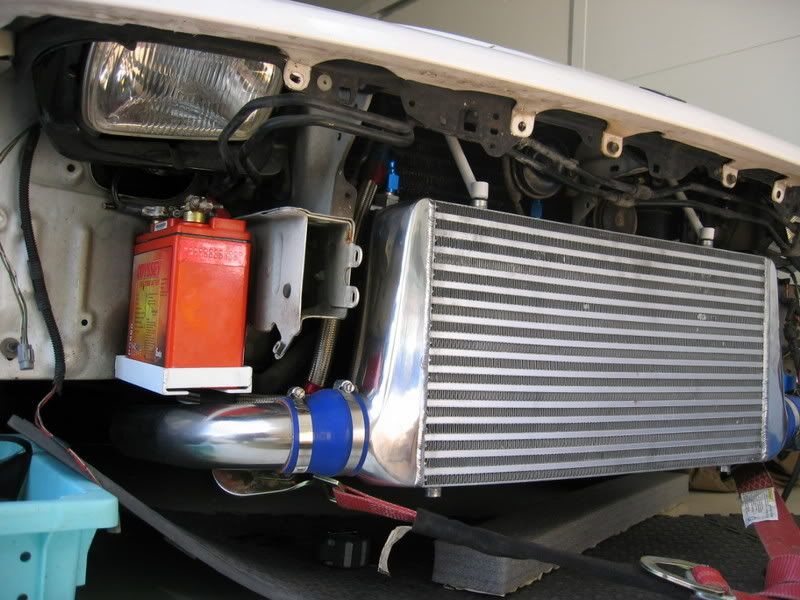

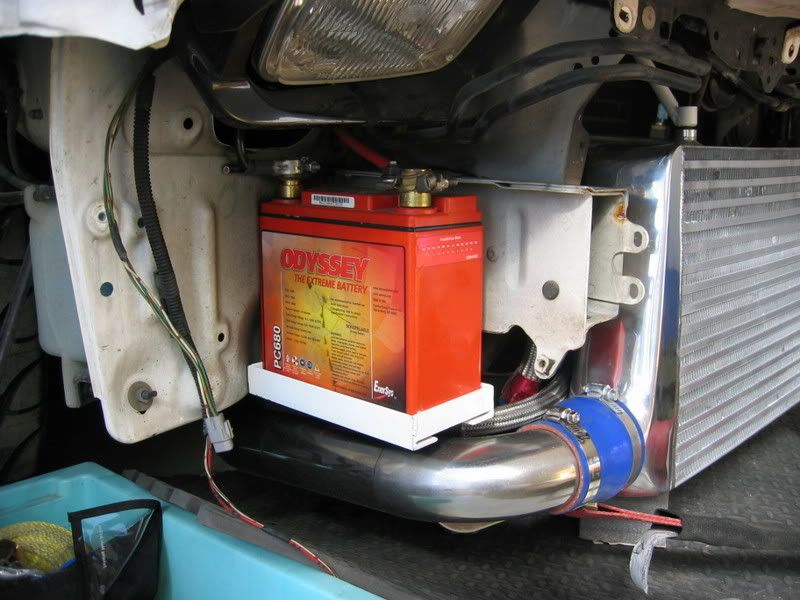

IC and PC680 battery location

Custom IC brackets

Test fit before final weld and polish

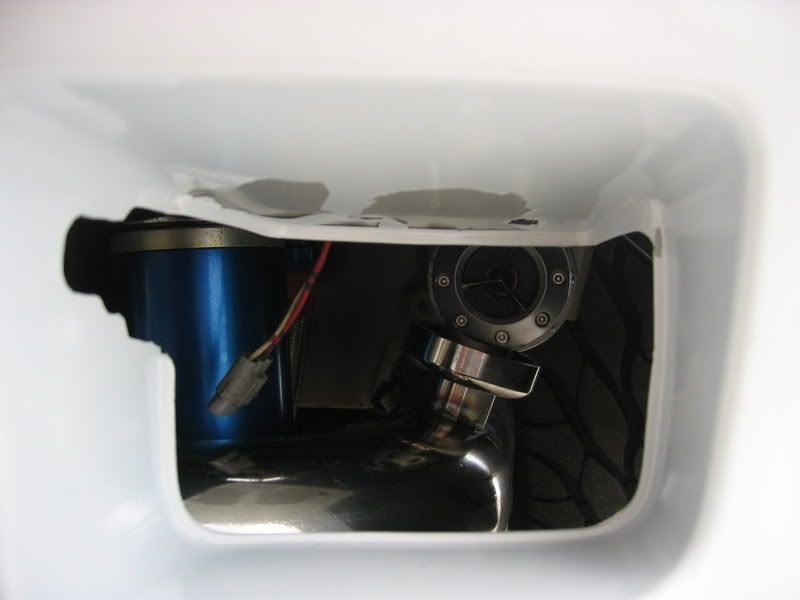

New style HKS SSQV on custom flange



[RazoE]

you should definitely switch to a same-side intercooler, that piping is way too low..!!

I have a spearco replica, driftmotion sell them as well, you should look into it..

http://store.driftmotion.com/static/i-biggerspearcoreplica.php



[toyotanos]

Yep, it's too low for me too, but it was just a temporary thing so I could drive the car. I plan to have a ffim and welded pipes this spring. Ooooh, it'll be so nice!



[IJ.]

Revised for the V8.



[gaboonviper85]

I see dirt on your fender wells Ian.....:3d_frown:



[IJ.]

shhh I won't tell if you don't



[Steve_N]

Are those IC pipes aluminum? If so were did you get the bungs for the AIT Sensor & Vac source? I need those bungs to correctly complete my IC set up.


This is my TEMP set up till I find those bungs. Once I do I will replace the mild steel pipe with alum. & weld together then coat eliminating 2 couplers.

TIA
