Need some vacum diagrams, where can i find them?

[86_sports_1jz]

I tried searching it but no luck, can anyone help me? I have no idea where any of the vacum lines go, i got the motor like that



[youp]

its about the mkiv but its the same..
.zip

or this one in japanes :icon_conf



[cnewingham]

the .zip doesnt work in that link



[youp]

then i'm out of options. except that Rich has it on his pc



[Rich]

Do I? Just looked but I couldn't find it.



[annoyingrob]

doesn't www.1jz-gte.us have vacuum line diagrams?



[MA717MGTE]

doesn't www.1jz-gte.us have vacuum line diagrams?

that site has been down for a while now!



[86_sports_1jz]

i don't think that site works anymore, any other ideas? o yea sorry it is for a 1jz



[annoyingrob]

dammit. I knew I should have backed up that site.



[spipedong]

dammit. I knew I should have backed up that site.

I actually did archive all of the 1JZ specific information from the site a few months ago. I'll upload it somewhere tomorrow for people that need it.



[OneJoeZee]



[MA717MGTE]

hey joe, where did you come across that?

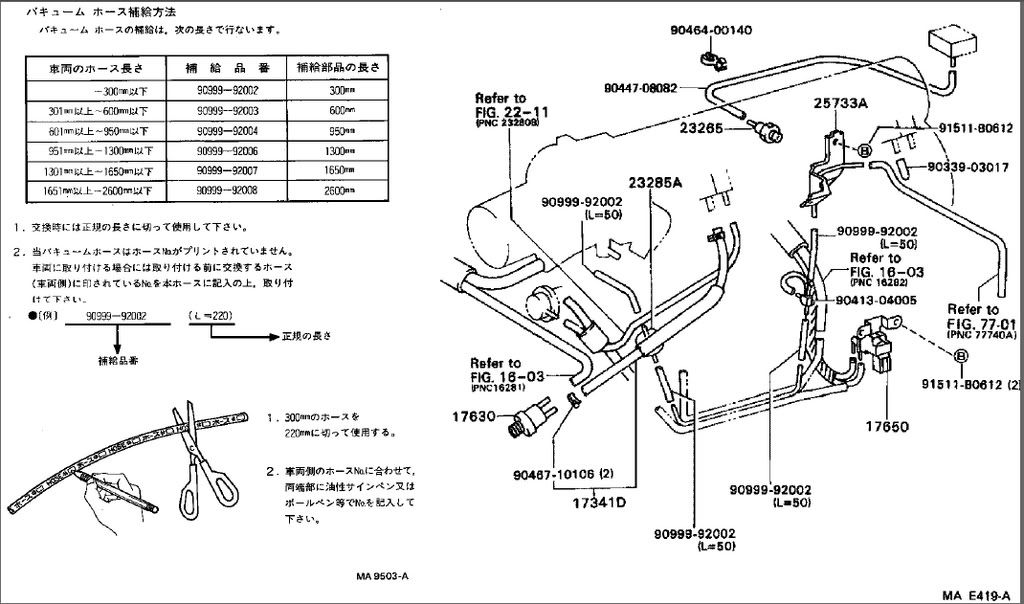

btw that really dosnt look complete to me.. or is it just me?



[86_sports_1jz]

thanks, is there one for the turbo side?
