Name where this goes/hooks up!

[radiod]

Ok, just about ready to put my head back on and I wanted to figure things out BEFORE I couldn't see them anymore (it's all on the intake side). Unfortunately I took it apart with a friend, and he's on vacation now while I'm putting it back together . Here's number 1....

The hardpipe. It runs along (underneath?) the intake manifold and connects up to 2 electrical pieces (solenoids?) that I have in the second picture.

Second is a set of electrical connectors...I don't usually have a problem with ones that have a plug but these are just O connectors...they come out of the harness just beyond the rear knock sensor along with a plug that goes in to the starter.



[Mk3runner]

the second one is a set of grounds and that vacuum manifold is under the intake and routes to around the block somewhat.

theres a vac diagram that will help.

http://www.supramania.com/forums/showpost.php?p=1365235&postcount=6



[radiod]

Think those grounds are off the starter? I do remember pulling SOMETHING off the bottom of the starter that had a 10mm or 12mm nut on it...but I figured that might have been the main line from the batter...I dunno.

Thanks for the diagram, thanks a ton for the vacuum diagram, that will help me clean up my engine bay a TON....looked too much like spaghetti with the line routing that was in there before >_<.



[Sside]

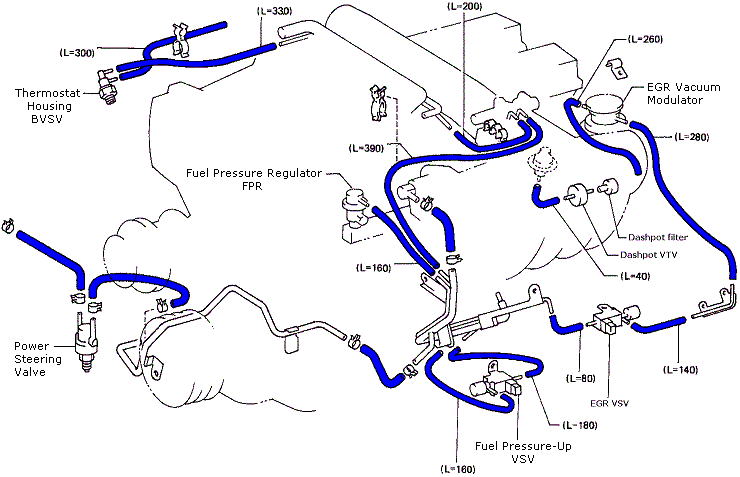

Here is a better view.....



[Mk3runner]

no those wires mount right under the intake where the brace is so its a good ground.



[jdub]

Nope, not starter ground wires...they are the ECU ground wires
Might want to make sure you clean them up good and get a solid ground...unless you want all kind of ECU weirdness.

Concerning the "clean-up" for those vac lines...I would not just randomly disconnect and plug those. They control the fuel pressure up VSV, EGR VSV, power steering idle up, charcoal canister BVSV, and route to the BOV. Misrouting on any one of these can/will cause the car to run like crap.



[radiod]

Will keep that in mind. Above all else I want to make sure they're routed properly. As long as I stick those diagrams I'm guessing/hoping I won't have any issues.



[Sside]

Nope, not starter ground wires...they are the ECU ground wires
Might want to make sure you clean them up good and get a solid ground...unless you want all kind of ECU weirdness.

Concerning the "clean-up" for those vac lines...I would not just randomly disconnect and plug those. They control the fuel pressure up VSV, EGR VSV, power steering idle up, charcoal canister BVSV, and route to the BOV. Misrouting on any one of these can/will cause the car to run like crap.

Wait a minute.... Wht?? Both of my VSV's are broken but I was told there was no need to replace them because all they do is help my car start on a hot day........ Does this mean my car could be running better if these were replaced...?



[jdub]

That is correct for the FP up VSV...in Houston I would imagine you would need it.

For the EGR VSV, that is what the ECU uses to shut the EGR off above ~4000 RPM. You do not want exhaust gas recirculated above that.



[Sside]

Sweet, only bad thing now is toyota sales them for 80$ each.....



[Mk3runner]

junkyard or forums. easy to come by.



[gtsfirefighter]

Here is a better view.....

This!

And when you start putting stuff back together it will all pretty much fall into place and be obvious what goes where.



[radiod]

Quick question...the L-260 line (off the EGR Modulator), does that just open to air? Just looks like that in the diagram.



[Mk3runner]

hooks into the vacuum piping under the intake



[radiod]

Up to the empty connection to the left of L-80 and the EGR VSV?



[jdub]

One side of the modulator routes to the VSV...the other side goes to the EGR valve to allow it to open/close.
