My Custom Sub Enclosure (loads of pics)

[Poatree]

Hi people...

This is a project i did a few months ago around new years. I thought i'd share some pics and if you guys have any comments or questions i'd love to hear them

I have carpeted the box since then.
___________________________________________________________

Well i got another 12" JL at the A&B sound sale so i decided to go ahead and build my own enclosure with the help of a few friends.

Specs:
Built with 3/4" MDF.
4" Ported to tune to 20hz.
Offset T-Baffled to reduce standing waves.
Oxygen-free wiring inside the enclosure.
Insulated all inside walls of enclosure to further reduce occurance of standing waves.
Length/Width ratio is the Golden ratio (1.63:1)
The subwoofers themselves are set flush to the face of the enclosure. (they mount on rings that are set inside the box.

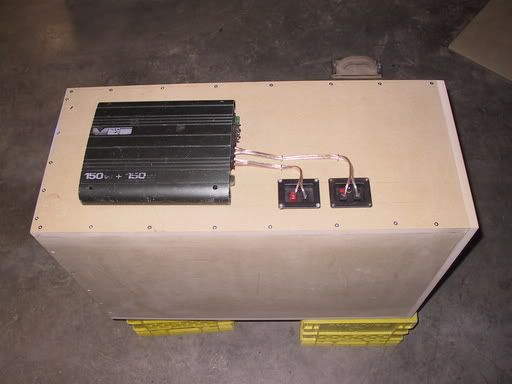

Also incorporated into this enclosure is a "quick-connect" feature... the 12V, Ground, and Signal wires simply plug in and out with the use of two banana clips and a modified molex connector (think computer connector)

Of course, all edges are caulked and sealed with professional grade wood glue and counter-sunk screws.

The Pics:

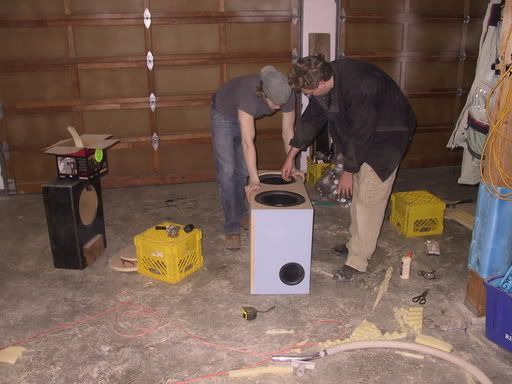

I'm on the left, my buddy Karl is on the right:

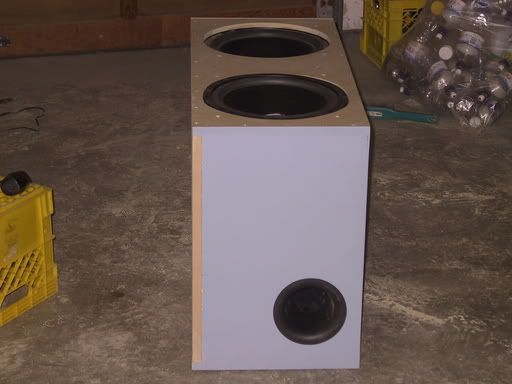

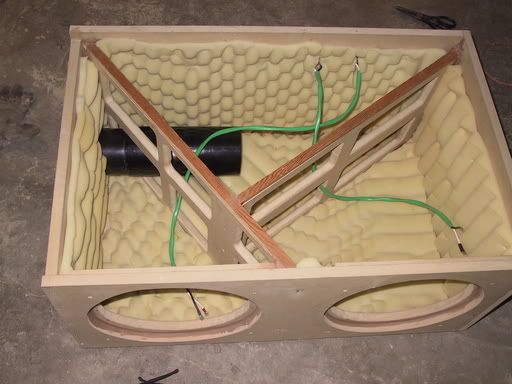

This is a good pic of the baffling:

Another good pic of the Baffling:

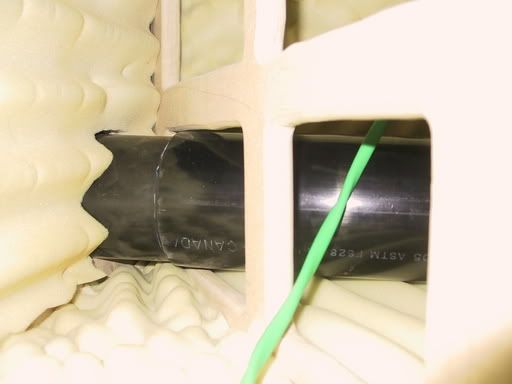

Closeup:



[Poatree]

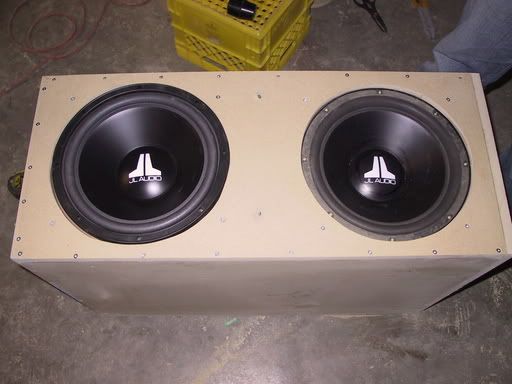

The subs going in:

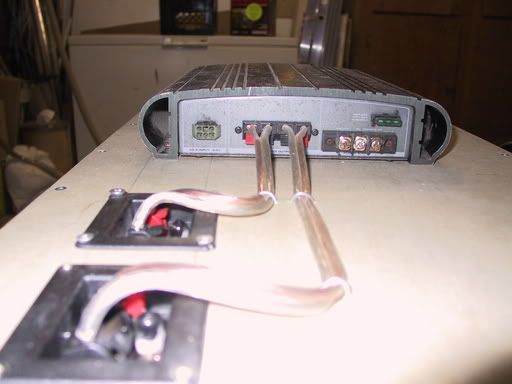

Signal Wiring Half Done:

Sorry about the glare:



[Poatree]

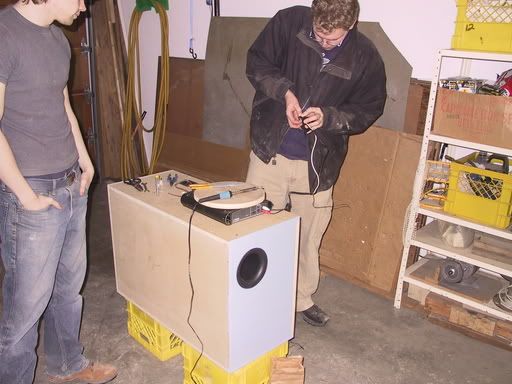

My bud Owen doing some of the tricky soldering

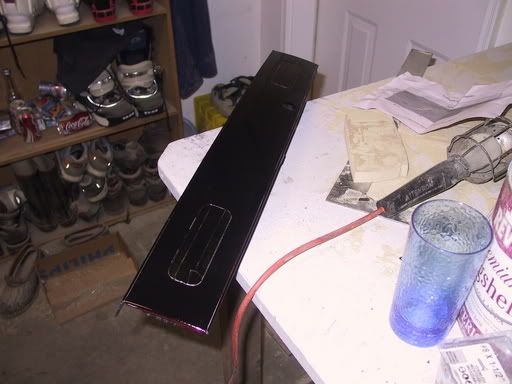

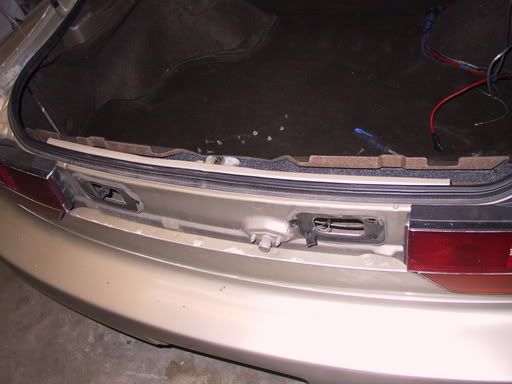

While i was poking around my trunk i decided to black out the middle portion of my taillights... i don't think it looks that great but w/e haha:



[Poatree]

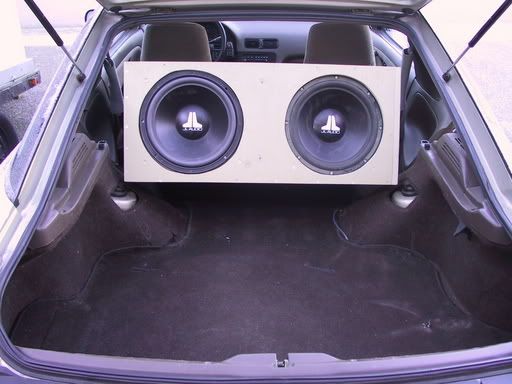

with it in all the way its too tall!!! a mis-measurement indeed i'm working on a solution but damn haha :

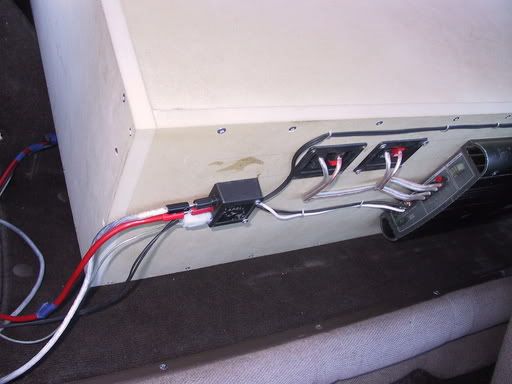

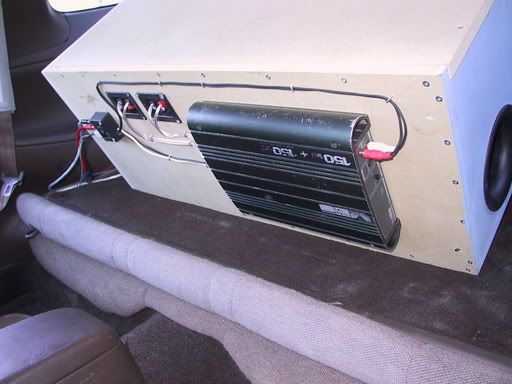

The Wiring (Thats the quick-connect box on the left):

Holy shit its cold this morning

Thats all the pics, hope you guys like it..



****

That was in the 240 the subs fit BARELY into the supra.
