Help please! Where do these wires go??

[aloshan]

Hi Guys

Ok after the help of everyone here(especially Dave aka Daddio from sf.com.au) I managed to solve my power drain problem.seems like my efi relay was stuck open.

Anyway, while trying to find the cause of the problem Ive disconnected 4 wires from what seems to be another relay without noting down where I took it from.

Now my car wont start! It cranks fine but just wont catch. Ive filled fuel but this only happened after I disconnected the wires you see below.

Can anyone tell me where each of the wires go?

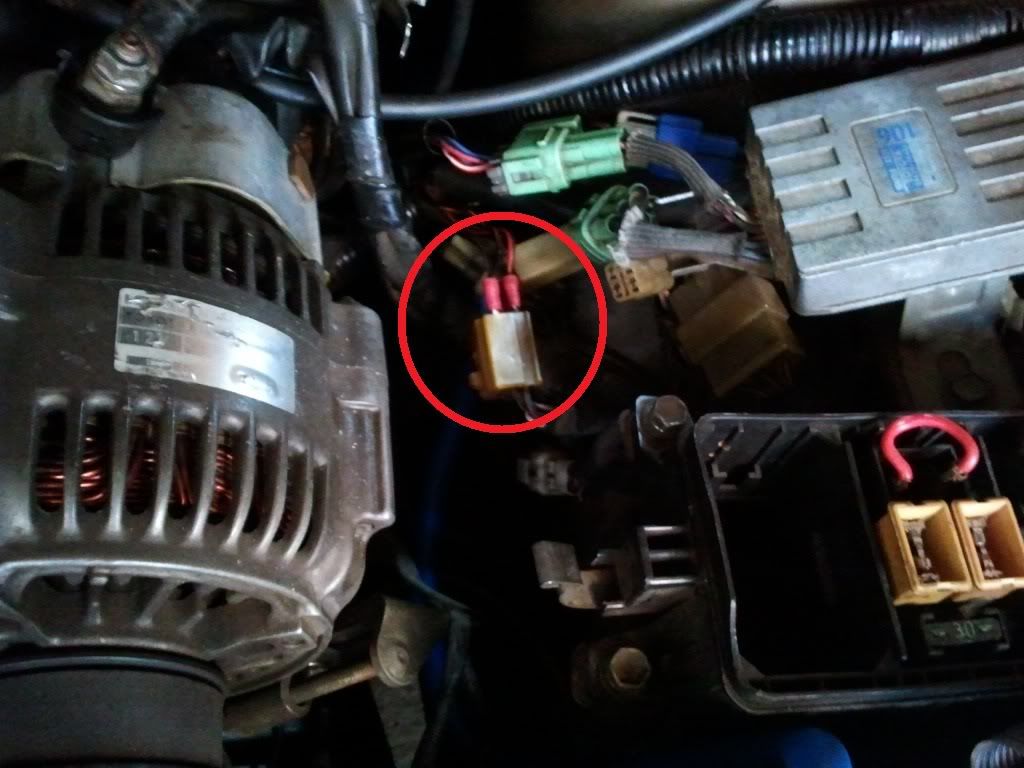

Location of what I think is a relay in the engine bay. Is this the fuel pump relay?

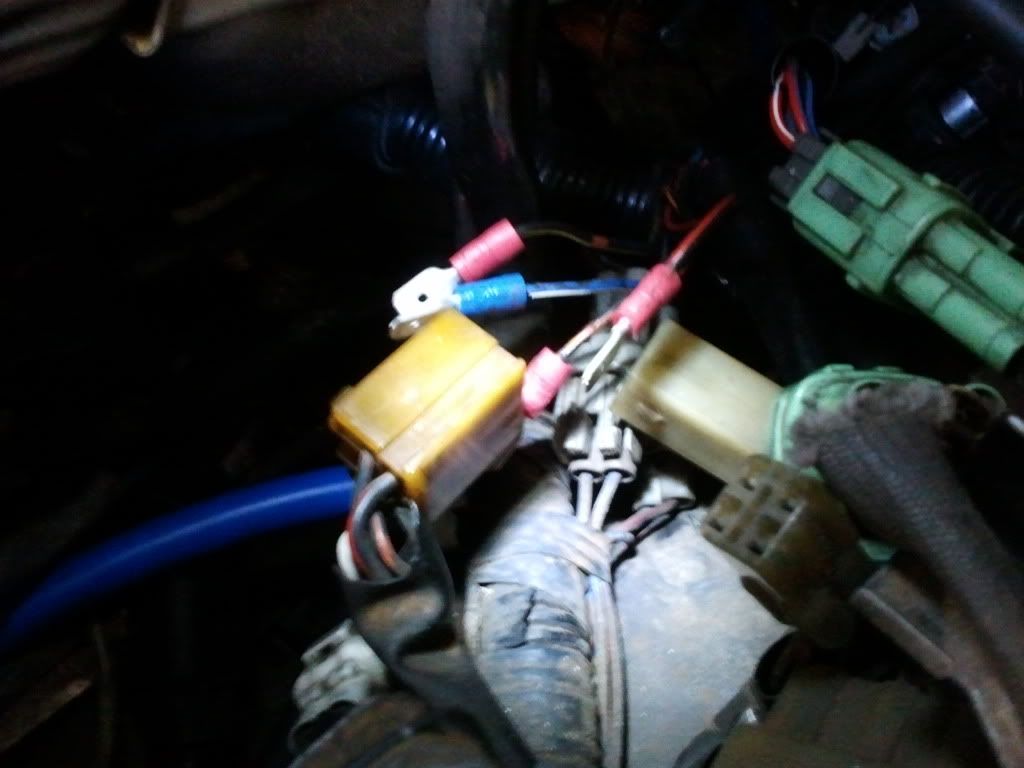

Closer view of the wires that I am unsure off, Not sure which wire connects where on the relay.

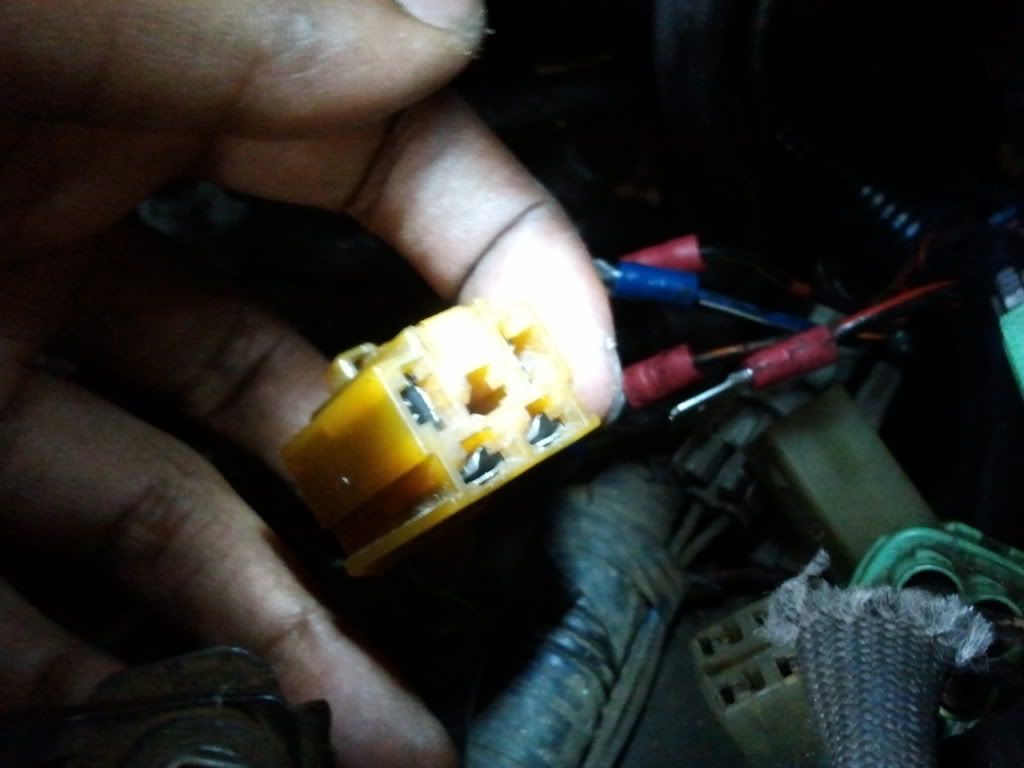

The relay with the 4 connection points. Which wire goes where?

There are 4 wires already connected to one side of the relay
- Black & red
- yellow & black
- white & black
- orange & black

The are another 4 wires that need to be connected to the relay
- yellow & black
- black & white
- red & black
- orange & black

Please help with where on the relay I have to plug them in, You can use the colour of the wires to refer to them. Ive already tried simply matching the colours up on each side but the car still would crank and wouldnt catch.

Im quite sure it has something to do with that relay as Ive basically touched nothing else and the car only started having this problem after I disconnected these wires.

Thanks in advance for any help



[aloshan]

Note: I have already tried connecting each wire to the same color , still no luck

i replaced the efi relay.... and cranking and not starting is indicative of either no spark or no fuel, since i affected the efi system im thinking maybe its a fuel problem?

is there any fuse that I might have blown that could cause my fuel pump to not operate?



[jetjock]

Not a relay. Connector C1. Supplies main ECU power among other things. Engine is not gonna run until that's fixed.



[aloshan]

seems like 15a efi fuse was blown.replaced fuse , joined like colour to like colour and BAM car started. Left everything connected overnight and it started this morning. Doesnt seem to be a power drain anymore either
