Cyberdx16's 500hp holset build

C

cyberdx16

New Member
Sep 15, 2009
57
0
0
Madison
Hey, guys I'm a first time supra owner and have had my car for about 5months (bought old skool's 91T). I'm slowly acquiring parts and hoping to get all the parts I need by April and get this going asap. My idea is to try to find quality parts for reasonable prices. Looking to hit high 400s or maybe even break into the 500s on the stock block and a good tune, but I'm not sure if the 550s and walbro 255 is gonna hold up but we'll see.



What's done so far is

1.2mm hks metal head gasket
AVC-R @ 12psi
rebuilt turbo ~12k ago
5spd manual
Centerforce stage 2 clutch
Factory LSD
hardpipe intake
lexus V8 afm/550cc injectors
blitz bov
3" HKS cat-back & HKS down pipe
test pipe
aeromotive FPR
WB o2
tokico blues w/ H+R race springs
greddy turbo timer
egt

what I've recently purchased is

HKS manifold (paid $333)




Meth kit ($180)


What's in the mail or waiting to be shipped is
-Holset HX40 ($130)
-MAP ECU 2 ($432.60)

What I still need is
-Reservoir for meth inj
-T25 to T3 adapter
-Intercooler (actually found a treadstone TR10, just waiting for the seller to get me more info)
-IC piping, not sure if I want to go with Al because I can't weld Al, so I might have to go with mild steel
-Misc oil lines, mandrel bends, etc.

Last edited:
C

cyberdx16

New Member
Sep 15, 2009
57
0
0
Madison

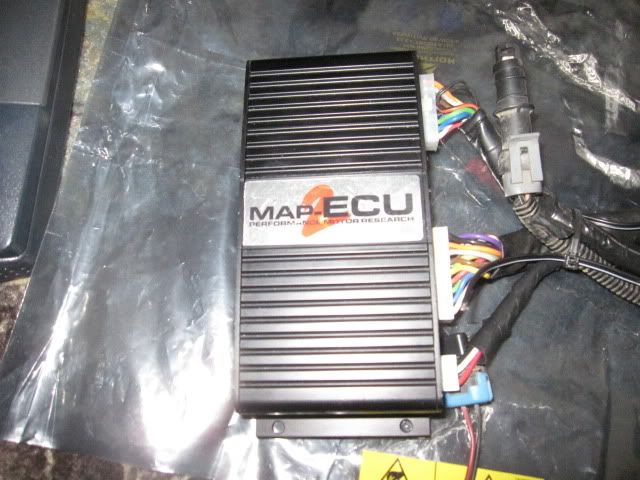

just an update* just picked up MAP ECU 2 off ebay for $432 shipped, not bad i guess, I was getting to the point where I was going to purchase it brand new for $700

C

cyberdx16

New Member
Sep 15, 2009
57
0
0
Madison
Didn't get the turbo last night because fedex had the wrong address on the package but' i'll pick it up today.

anyways for those of you who are interesed in map ecu timing I think I figured out how to get this to work on the 7mgte coil and plug setup

Last edited:
C

cyberdx16

New Member
Sep 15, 2009
57
0
0
Madison
Sorry for the late update, just uploaded the pics of what I did a few weeks ago. Intercooler, manifold, and turbo are on. Colder plugs are in, changed the valve cover gaskets, and mapecu2 is all wired up.

Things still to do are:
-Aluminum braze my blitz bov flange on to charge pipe
-Fab a DP with toyota O2 and wide band O2 bung
-wire up the LC-1 to mapecu2
-put the bumper back together, it turned out I didn't even need to remove a single bolt from the bumper to put on the IC. Its kinda ridicules how many nuts and bolts are needed to remove this thing...
-hook up all necessary vac lines
-finish up the charge piping from turbo to ic
-maybe fab a wastegate dump tube...
-tap charge pipe for methanol injector
-mount meth pump and reservoir
-relocate PS reservoir
-drop the tank and install walbro 255
-hook up turbo coolant lines to the hx40
-relocate oil cooler
-2step switch
-and a good street tune!

Won't be able to work on this till next week but hopefully by then this thing will be up and running








Last edited:
C

cyberdx16

New Member
Sep 15, 2009
57
0
0
Madison

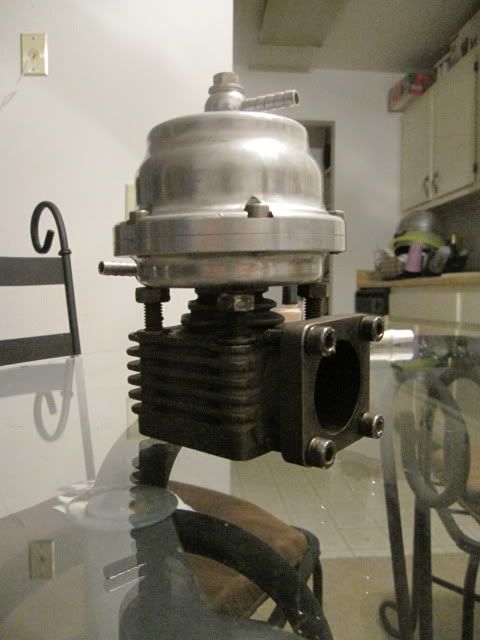

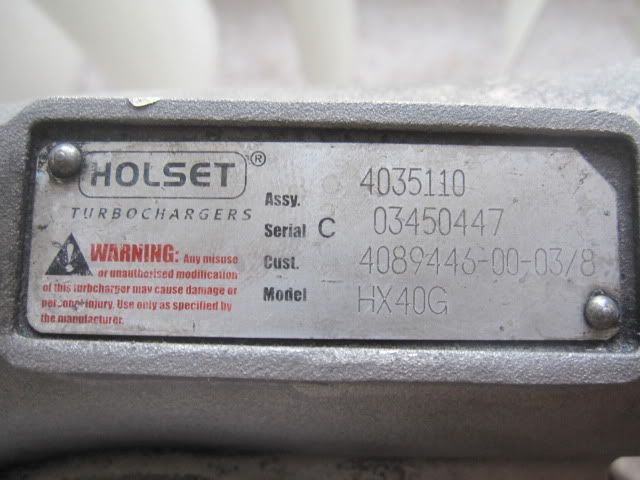

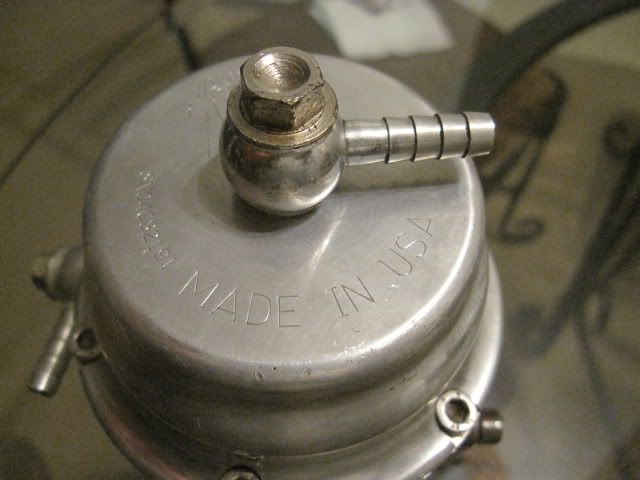

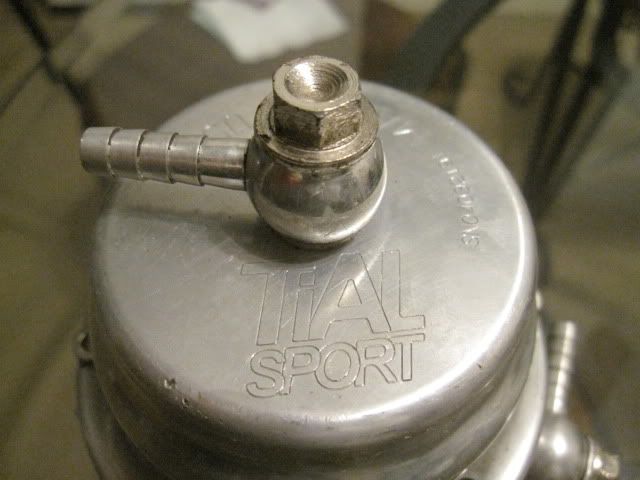

Got the turbo off of homemadeturbo.com and found mapecu off ebay. Here's a few pics of what I've been doing, havent had anytime to go back home and work on it so took a few parts back to work on.

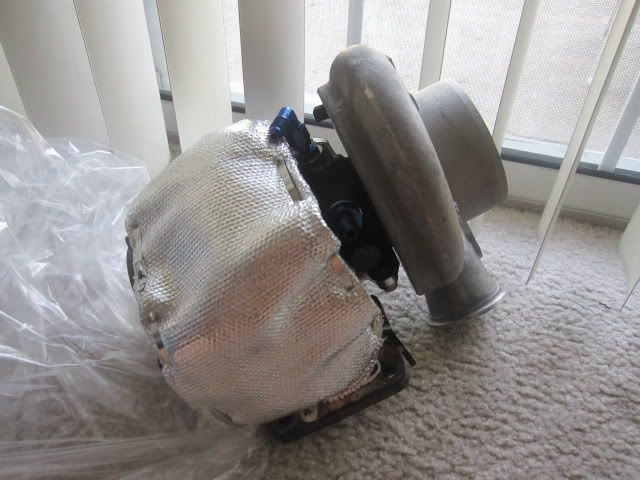

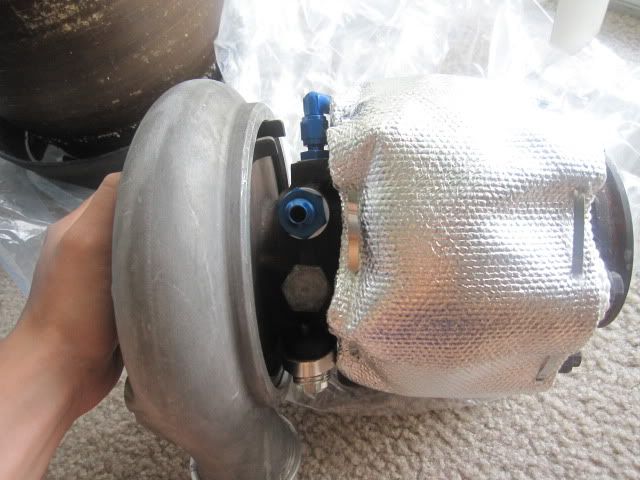

oil and water cooled!

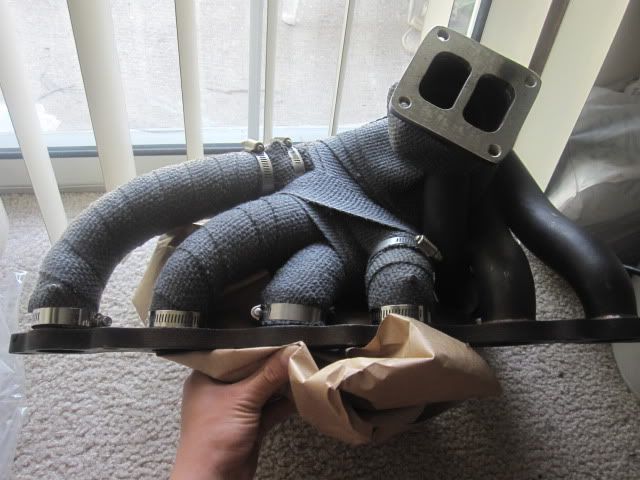

Almost done wrapping the header, just need to weld the egt bung

supra90turbo

supra90turbo

shaeff is FTMFW!
Mar 30, 2005
6,152
32
48
40
MA, 01440
Looks awesome! I'm sure you know, but in case you don't, you will have to run a restrictor in the oil feed line to the turbo.
