Custom DDP Progress Pix

[Proficio]

Ive been fabbing up a custom divorced downpipe for like a year now...............:icon_redf The project kept being put on the shelf. Finally got some time to work on it this week...........

-3" Main port
-1 5/8" Wastegate port
-Wastegate reroute
-Bosch Universal O2 Sensor port

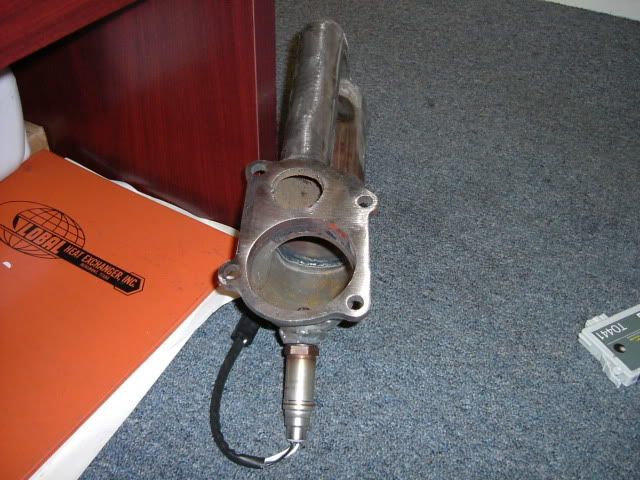

Starting to come together nicely, pix below

]



[MK3Brent]

Looks like the hard part was trying to weld the WG tube to the flange with the 3" main already mated.



[Proficio]

Looks like the hard part was trying to weld the WG tube to the flange with the 3" main already mated.

Damn right it was...................................:eek2:



[MKIIINA]

looks good man! glad to see its all comin together for ya! cant wait to see what kinda numbers it makes.



[blackout_89t]

Your wideband O2 is to close! Its "supposed" to be at least 12" or so from the turbo. EGT's are to high there.

Otherwise it looks bitchin'!



[z1turbo]

Im pretty sure thats not a wideband sensor. Its only got 4 wires and there exposed at the end of the sensor.



[7MGTEsup]

looking good, will look even better when its coated. Where did you get the flange from??



[Proficio]

looking good, will look even better when its coated. Where did you get the flange from??

I used a regular 3" DP flange from Randy, he wouldn't sell me the DDP flange..............:icon_evil I filled in a large portion of the middle and then used a 4 jaw chuck to bore out the ports. It will be Jet Hot Ceramic coated just like my exhaust mani!!!

Your wideband O2 is to close! Its "supposed" to be at least 12" or so from the turbo. EGT's are to high there.

Otherwise it looks bitchin'!

Its a narrow band, just replaces the stock one with a screw in type so I don't have to fab/buy a flange.

looks good man! glad to see its all comin together for ya! cant wait to see what kinda numbers it makes.

Thanks man.............we will see tomorrow. I think we should all put 20 on dialing in our HP too!!!!



[silvergsx623]

that looks pretty good *thumbsup*



[empera]

good job man, i like it...make me one too



[Proficio]

good job man, i like it...make me one too

I'll get right on it..............unfortunately you want have it until like March of 2007........:1zhelp: ..............lol



[empera]

hahahah nice waitin period



[CPT Furious]

At least he's honest about it!



[MK3Brent]

The WG tube will serve as a nice reliever of pressure from the turbine area... and also serve as a nice handle bar for when you oil-filter changes.



[IJ.]

Agreed the 02 is way too close to the flame front.

Isn't it fun making custom bits!
(esp when you sit down and add up the hours involved and find your custom part cost x10 )



[Proficio]

Agreed the 02 is way too close to the flame front.

Its only a thread on stock replacement, its located exactly where the stock one was. I will be plumbing in a wide band port but it will be 12-14" from the turbo.

Isn't it fun making custom bits!
(esp when you sit down and add up the hours involved and find your custom part cost x10 )

No shit............................:nono:



[IJ.]

I put mine both down in front of the Cat as they're both heated.
