couple 1jz problems please help!

[wornoutsupra]

So I am in my final stages of this thing being done and I am having a issue where my starter wont turn over to start the car. I am wondering if this is because of a fusebox wiring issue or what. The swap is for a 89 supra and here is a list of what wires I wired together any help would be great.

fusebox - engine
yellow w/ green to fat black and small black w/ white

black w/ red to fat black w/ red and 2 small black w/ red

white w/ red dots to white

another white w/ red dots to white w/ silver dots

black w/ yellow to black w/ yellow

black w/ orange to black w/ orange

these are wires i didn't see on any diagrams that weren't used I guess

fuse box was just a white w/ black

engine was blue wire, brown wire, and a small black w/ red

whenever i get to my car i will take pics if it would help i do believe i have a soarer/chaser motor and ecu and this is all in a MA70 supra. Any help would be great i am using this as a last resort, thank you again for any help.



[wornoutsupra]

ok so no one has a clue?



[87supraguy]

hmmm well i have to actually wire up my harnes to my fuse box tomorrow and won't get my car back until then... i can take a picture of what i have so we can compare

---------- Post added at 08:55 AM ---------- Previous post was at 08:53 AM ----------

what car is your 1jz out of? cause colors of wires are different



[S.A. supra]

Is this what your talking about?
http://web.archive.org/web/20051216115540/www.1jz-gte.us/documents/SubDocs4/EA21989.pdf



[87supraguy]

it would be a little different if he has a jzz30 harnes cause that is for a jza70 harness... wire color difference



[wornoutsupra]

thanks for your replies guys I do believe that my motor came out of a soarer or chaser and my car is a ma70. S.A.supra I tried looking at that page a couple times and it didnt help at all. I have tried the section that is a sticky in this section and i think i kinda got lost if anyone needs me to take pics I will try to get them up tonight of the wires I have connected and if I can answer any questions so anyone can farther help me I will answer the best I know. thanks guys



[87supraguy]

yeah pics will help and i'll try to get mine up asap too



[wornoutsupra]

ok cool thanks alot do you guys just want a pic of the fuse box wires that I am asking about?



[87supraguy]

yes please...



[rockn yota]

if you have a chaser their is 3 gray plugs all together between the ecu, and engine, and right by the ecu their is 2 white plugs one has a plastic cover over it and looks like one big jumper box, if this is the harness you have i might be able to help a bit.



[wornoutsupra]

well there was no plugs on alot of the harness except for connections on the engine and the ecu the rest I had to have my buddy help me do and I tried to look at diagrams. I plan on getting pics up today so hopefully they will help out



[mkiiichip]

The small wire on the starter. where do you have that going to?

All you need to crank the motor is power on this terminal (as long as the big wire goes to the + battery terminal).



[wornoutsupra]

you lostme oon that one. And sorry I havent been able to get pics up my camera is acting all weird and stupid so hopefully today I can get some good pics for everyone.



[87supraguy]

something has come up.... it appears my harness is actually out of a chaser and not a soarer... this changes everything



[wornoutsupra]

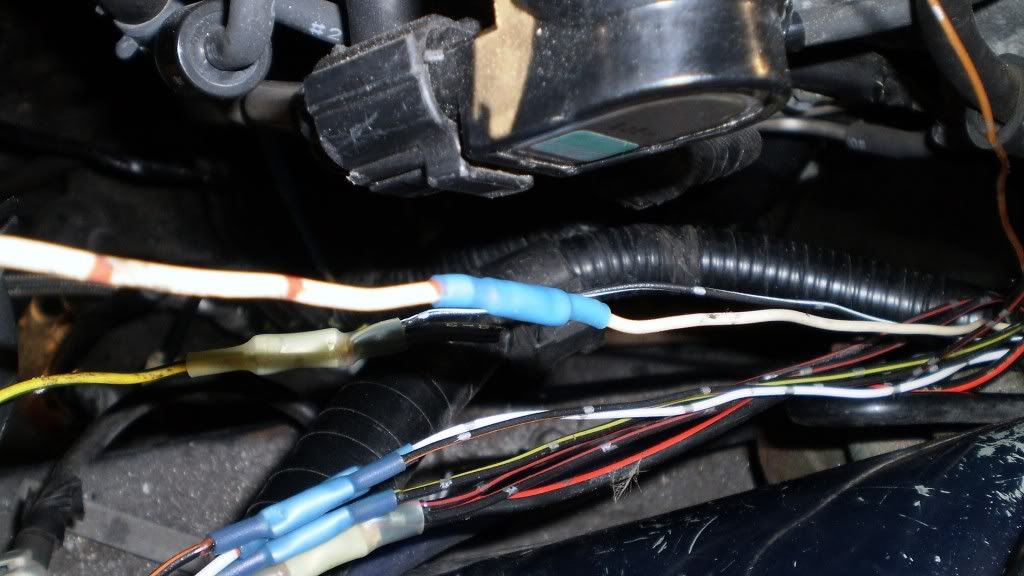

hey guys well I got one pic that came out decent before my camera took a crap on me no I am pretty sure this is a 2nd gen soarer / chaser here is the only pic that came some what out decent lol

I just need to know where the eb1 and eb2 wires match up to on my ma70 fuse box hope everyone can see the wires and also I looked at the sticky and it had some wires that i didnt have. And what was left over from the engine harness wire wise was small blue, small brown and a smal black w/ red stripe



[87supraguy]

what you have connected here work for you?



[wornoutsupra]

I dont think any of these work honestly cause I am getting nothing to the motor and at this point I am just baffeled by this and lost at what it could be ha
