cooling hoses under intake manifold

[ross1]

dose someone have a diagram of the cooling hoses under the intake manifold, i was out driving tonight after putting the new radiator in and all of the sudden my BHG guage pins itself to the top so i pulled over popped the hood and mass quantities of steam come pooring from under the intake manifold, thought BHG but its a HK$ with arp studs and 85 ft/lbs and i was told thats a tough one to blow on a fairly stock car. then i was told that there were 2 or 3 hoses under the intake but i don't know where i'm looking. sorry to drag that out but like i said at the top looking for a diagram of cooling hoses... btw i did search and i've read most of the old threads but need pictures.

thanx
ross



[shaeff]

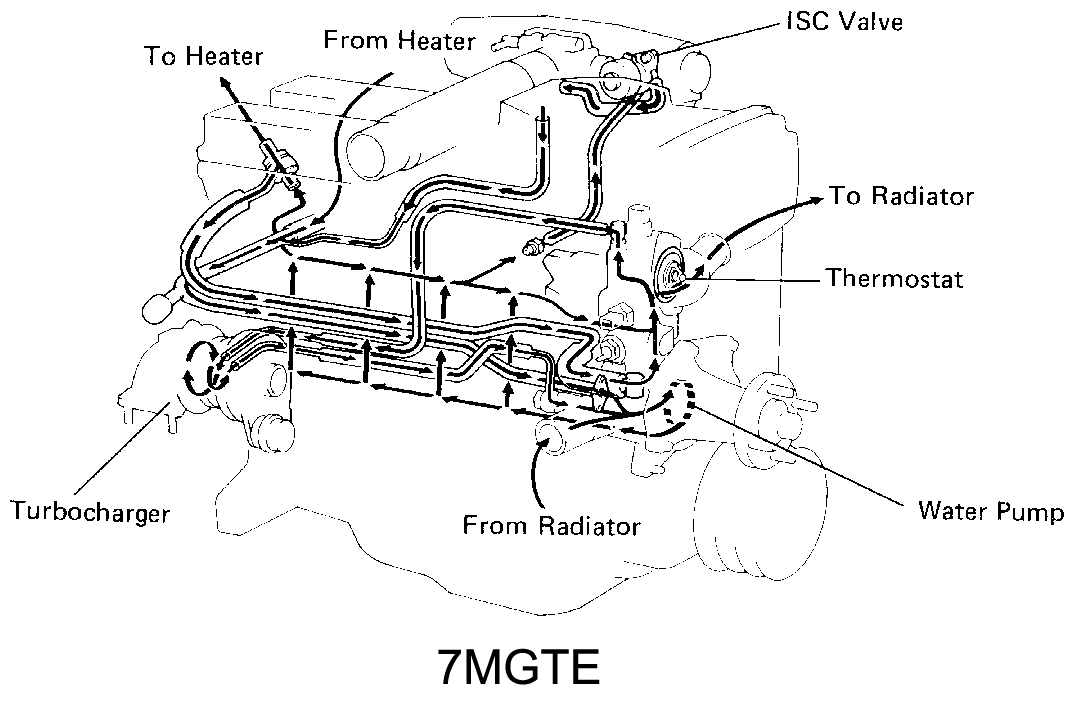

here ya go.

-shaeff



[ross1]

thanx, shaeff i'd seen that in the tsrm but couldn't get it to blow up and with as small as it was couldn't tell were i was looking , ended up pulling most of that side apart to get to them but hopefully that was the problem...

thanx,
ross



[Allan_MA70]

they are evil hoses, thankfully iceing the isac/tb here is never going to happen so they get the big chop'n'block!
