Boost leaks / Vacuum leaks
- Thread starter isnms
- Start date
Well thats fancy/probably very effective way. I dont know if I could put something together like that, but do you think my Scunci steam cleaner would work like this?
Glad I could help. My machine is much fancier but considering commercial ones cost from $600-$2000 I'd say you did pretty darn good for a first try. Try adding a little baby oil to the glycerin or spring for some commercial fluid when you get the design tweaked in. Once you learn how to use it you'll wonder how you ever lived without one. Higher pressure is better for boost leaks but for all the other stuff a low pressure smoker can't be beat. You'd have to pry mine from my cold dead fingers. Do some searching for use tips. Here's a couple of the many helpful articles out there:
http://tinyurl.com/344an4
http://tinyurl.com/ysws7g
http://tinyurl.com/344an4
http://tinyurl.com/ysws7g
I'll see if I can find my laundry list of parts.
Just off hand:

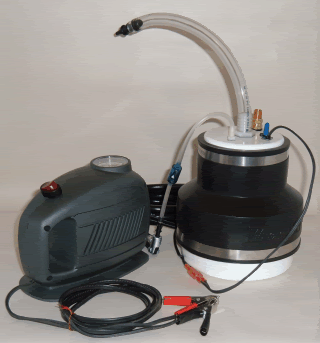

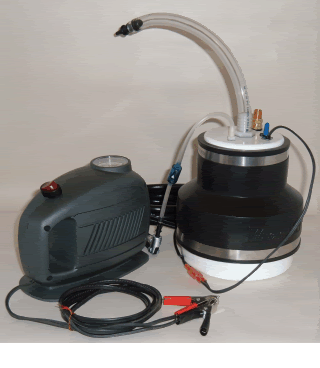

It's a tire pump with a auto resetting circuit breaker. A pipe reducer with large and small pvc caps. A 4psi relief valve. Hairdryer wire as my heating element. Tuna can as fluid reservoir.
Just off hand:
It's a tire pump with a auto resetting circuit breaker. A pipe reducer with large and small pvc caps. A 4psi relief valve. Hairdryer wire as my heating element. Tuna can as fluid reservoir.
Okay, I have found my concept diagram with shopping list labeled.
Also a link to the check valve I used (~3-4psi) mfg site and couple pdf's.
At the bottom are some larger pics of my assembly for you to improve on
The base is a 6"pvc cap and Hairdryer wire as my heating element. Tuna can as fluid reservoir.
http://www.generant.com/inline_check_valves.htm
http://www.snapdrive.net/files/91304/Supra/Smokemachine/Series VRV-E.pdf
http://www.snapdrive.net/files/91304/Supra/Smokemachine/Series ICV-E.pdf
[thumb]http://www.snapdrive.net/files/91304/Supra/Smokemachine/DSCF0575.JPG[/thumb]
[thumb]http://www.snapdrive.net/files/91304/Supra/Smokemachine/DSCF0574.JPG[/thumb]
[thumb]http://www.snapdrive.net/files/91304/Supra/Smokemachine/DSCF0573.JPG[/thumb]
[thumb]http://www.snapdrive.net/files/91304/Supra/Smokemachine/DSCF0569.JPG[/thumb]
[thumb]http://www.snapdrive.net/files/91304/Supra/Smokemachine/DSCF0568.JPG[/thumb]
[thumb]http://www.snapdrive.net/files/91304/Supra/Smokemachine/DSCF0567.JPG[/thumb]
[thumb]http://www.snapdrive.net/files/91304/Supra/Smokemachine/DSCF0564.JPG[/thumb]
[thumb]http://www.snapdrive.net/files/91304/Supra/Smokemachine/DSCF0560.JPG[/thumb]
Also a link to the check valve I used (~3-4psi) mfg site and couple pdf's.
At the bottom are some larger pics of my assembly for you to improve on
The base is a 6"pvc cap and Hairdryer wire as my heating element. Tuna can as fluid reservoir.
http://www.generant.com/inline_check_valves.htm
http://www.snapdrive.net/files/91304/Supra/Smokemachine/Series VRV-E.pdf
http://www.snapdrive.net/files/91304/Supra/Smokemachine/Series ICV-E.pdf
[thumb]http://www.snapdrive.net/files/91304/Supra/Smokemachine/DSCF0575.JPG[/thumb]
[thumb]http://www.snapdrive.net/files/91304/Supra/Smokemachine/DSCF0574.JPG[/thumb]
[thumb]http://www.snapdrive.net/files/91304/Supra/Smokemachine/DSCF0573.JPG[/thumb]
[thumb]http://www.snapdrive.net/files/91304/Supra/Smokemachine/DSCF0569.JPG[/thumb]
[thumb]http://www.snapdrive.net/files/91304/Supra/Smokemachine/DSCF0568.JPG[/thumb]
[thumb]http://www.snapdrive.net/files/91304/Supra/Smokemachine/DSCF0567.JPG[/thumb]
[thumb]http://www.snapdrive.net/files/91304/Supra/Smokemachine/DSCF0564.JPG[/thumb]
[thumb]http://www.snapdrive.net/files/91304/Supra/Smokemachine/DSCF0560.JPG[/thumb]
very nice, my boost leak is killing me and I cant seem to get the pieces together, but I now have 4 setups to choose form. So no more excuses for me.
