avc-r hardwire question

Disced

Disced

Pie + NYQuil = FTW
Apr 5, 2005
500
0
0
39
Edmonds, Wa
Was wondering if someone who has an avc-r wired up or even sitting around could tell me which color wires connect to each other from the avc-r to the boost pressure sensor. For some reason my plug that goes from the avc-r to plug into the boost pressure sensor plug isn't there so I have to hard wire it...

Just need to know which wires go to which since they are different colors...

S

suprastanger507mgte

2x88+2x89+1x91+2x92=ME
Apr 5, 2005
3,148
6
38
Hayward , Ca
Disced said:
Was wondering if someone who has an avc-r wired up or even sitting around could tell me which color wires connect to each other from the avc-r to the boost pressure sensor. For some reason my plug that goes from the avc-r to plug into the boost pressure sensor plug isn't there so I have to hard wire it...

Just need to know which wires go to which since they are different colors...
Click to expand...

I will get that to you later today.....

Disced

Disced

Pie + NYQuil = FTW
Apr 5, 2005
500
0
0
39
Edmonds, Wa
ok cool... and i don't mean the diagram for the ecu ... i need the 3 wires that connect to the boost pressure sensor plug hardwire diagram...like to cut off the two sensors and then hardwire it...

Just to make sure.. =)

Gotta install this bitch today so I can finally run 18 lbs~

Last edited:
Disced

Disced

Pie + NYQuil = FTW
Apr 5, 2005
500
0
0
39
Edmonds, Wa
come on guys.. running out of daylight.. need to crank this shit up but can't cuz i can't wire up this gay sensor...lol

S

suprastanger507mgte

2x88+2x89+1x91+2x92=ME
Apr 5, 2005
3,148
6
38
Hayward , Ca

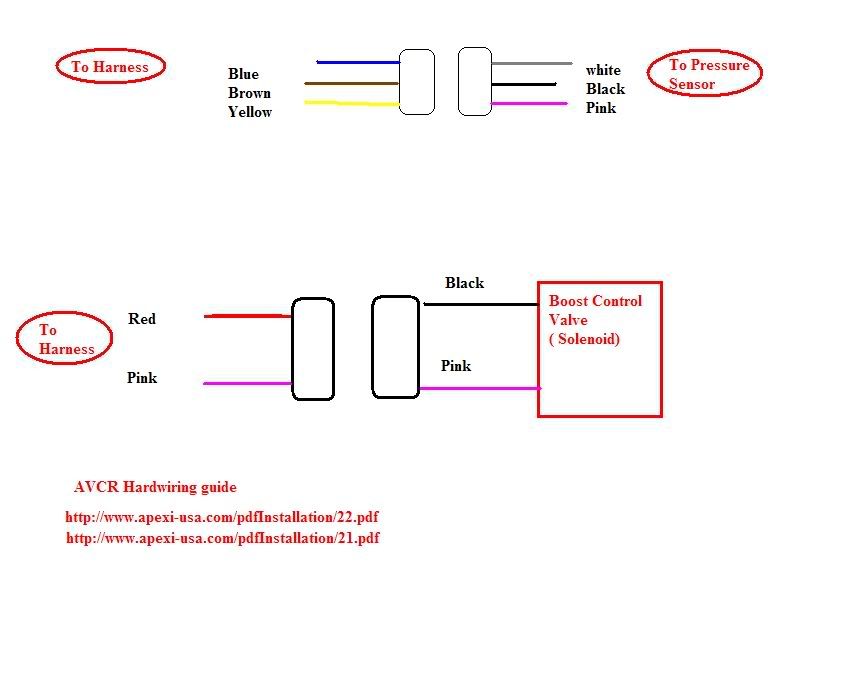

Here you go. I hope this is what you were looking for,
Moe.
