Anyone has the alarm installation guide for MKIII?

[MA70_452]

Does anyone knows the alarm installation guide for the supra MKIII?
Like which wires do i tap into, etc?



[Clip]

check the tewd, on the same site as the tsrm. the supra had a factory theft deterrent system on it, if youre looking for an aftermarket alarm installation guide, it shoulda come with the alarm.



[suprastanger507mgte]

yup....thanks to ISNMS here is a wonderful writeup:

http://www.supramania.com/forums/showthread.php?t=101

Check his signature, there is a few other kool writeups.



[chriso]

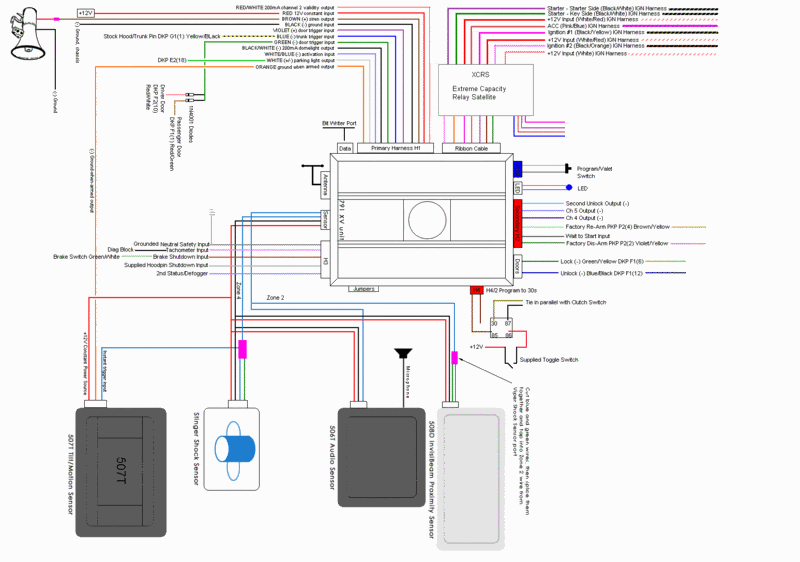

Here is a diagram I made in Paint for my Viper Installation last summer:



[suprastanger507mgte]

Chris,
Email me the real file please. I need one for an larm Im trying to install.
Thanks.
TOOOFAAAN@YAHOO.com



[taka21]

does that diagram work for a pre 89 as well?



[Satan]

^^Should. The basics are the same for most of the signals/wires are standard in most cars. There will be a handfull of wires you do not use... Like extra triggers or output for accessories, etc. As far as pre-89, even the wire colors should be the same. You can always, doublecheck the colors listed in the wire diagram in the TRSM. I remember using the vehicle-specific color/map available from www.the12volt.com... They have lots of install tips/guidelines and troubleshooting threads from pro-installers.



[Koenigturbo]

Chris,
Email me the real file please. I need one for an larm Im trying to install.
Thanks.
TOOOFAAAN@YAHOO.com

do you think you could email me as well, I'd realy like to see it,better (since it will only enlarge so much) ,...Please.
f430turbo@aol.com



[taka21]

Here is a diagram I made in Paint for my Viper Installation last summer:

could you email it to me as well if its not too much trouble
panthergraphic@gmail.com



[deabionni]

If you have a bigger copy, I'd like one as well.

deabionni@gmail.com

Thanks!
