89+ round motor mounts

[Bri7man]

So I surprisingly don't have the right size lower bolts to tighten my mounts up.
I bought em from a member and it didn't come with lower bolts. The ones that were on before don't fit these newer ones.

Does anyone know the thread pattern/size for the newer 89+ round mounts so i can go buy em?



[Bill UK]

Looks like M8 x 1.25 x 16mm long if you are referring to the mount bracket fixing to the block.



[Suprapowaz!(2)]

Oh my, this needs to be stickied.



[mk3concepts]

yah it does..sry bro i didnt know you needed the bolts also..i used them on my car..you can just bring the mounts to Dales Hardware and get the grade 8 bolt to match the threads



[Another MkIII]

Agreed this needs to be a sticky. It would have saved me like 3 hours of figuring out where those washers came from, lol.
-AM3



[Bill UK]

You can also download a pdf version from this site Link, plus lots of other useful documents.



[Bri7man]

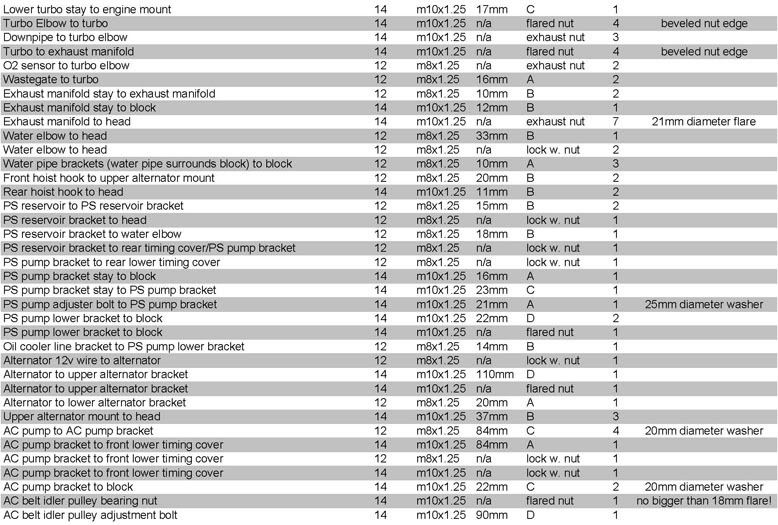

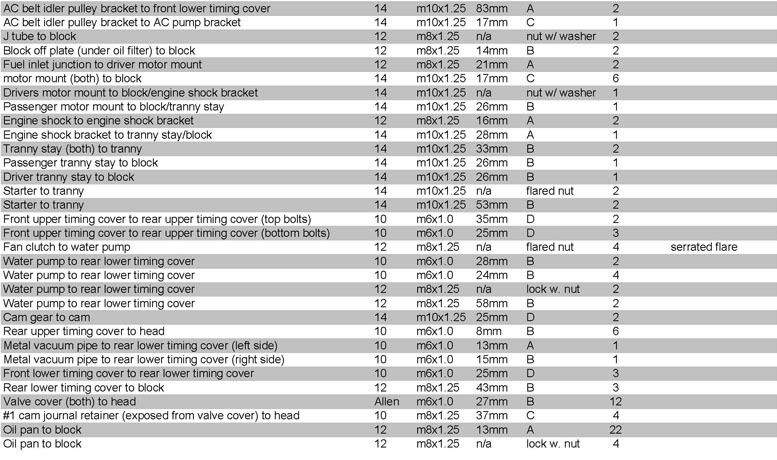

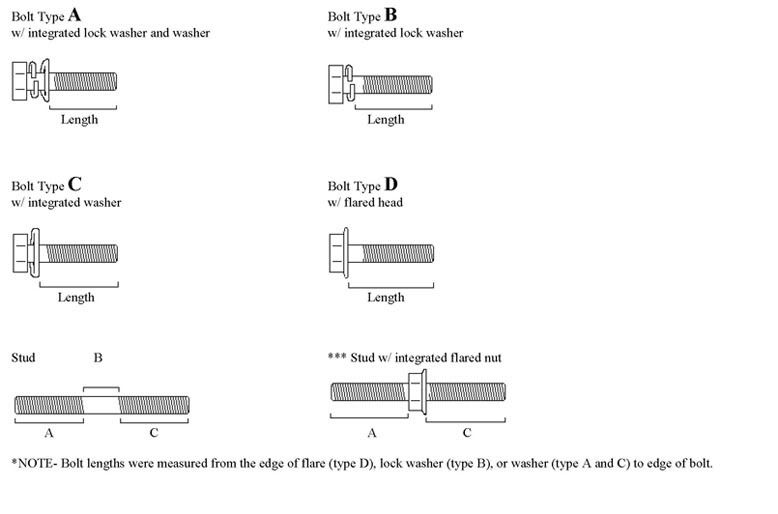

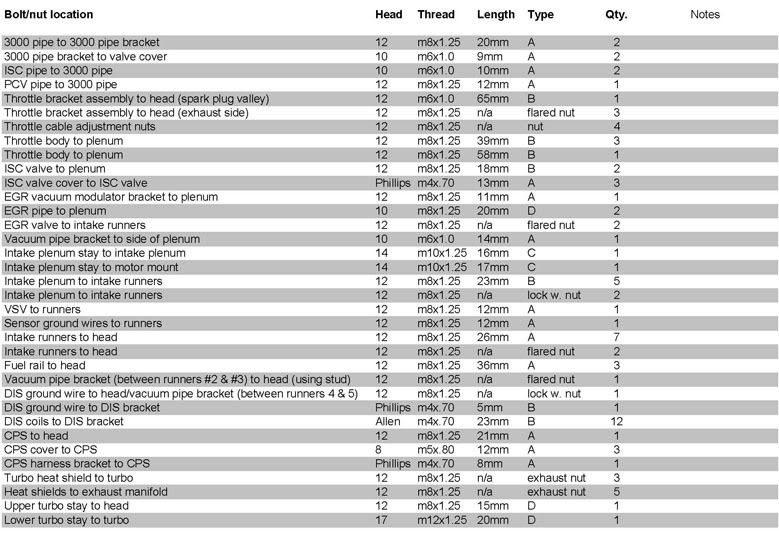

That is a bad ass chart!

I was referring to the nut that goes on the lower half of the actual mount on the 89+ round mounts.

Today I actually rubbed the bolt threads on a piece of paper and brought them to Love ladies which is an insane hardware store in my area about 4x more useful than ace hardware. They have every odd or specialty bolt/nut in the book and the guy in the "bolt room" which is actually a separate room in the store for just this, was able to match the threads and size within 10 seconds.

It was pretty crazy.

It's cool mk3concepts I wasn't expecting them or anything just trying to make everything work. :biglaugh:



[Bri7man]

Trying to find bolts specs for what hold the shifter boot down where exactly in that link are the specs I can't find em for interior...
