1990 MK3 1JZ Megasquirt Build

[gennro]

Here is my build thread for my 1990 Toyota Supra 1JZ Megasquirt swap. The swap is already completed but I do have pictures. Listing the parts off memory as of right now.

1JZ Rev B + R154 from Ebay
MS2 W/ EDIS 6 Ignition Control
Innovate LC-1 Wideband Controller
IS300 Coil Packs
CXRacing Inter-cooler/piping kit with HKS BOV
CXRacing Radiator
Prosport White/Blue Oil PSI, Water Temp, Boost guages
HKS Dragger 3" Exhaust
Falken Torque 5 18 Wheels w/ Hancook Ventus 245/45/R18
Tokico Blue Shocks
Energy Suspension Bushings
Walboro 255 Fuel pump
Driftmotion Power Steering line
All gaskets etc from Driftmotion
Toyota Red coolant (The best)
Autozone 55 Watt Halogen aux lights
Ebay Drilled/Slotted Rotors
SS Braided Brake lines
New Brake Master Cylinder
New rear brake calipers
Jaz power steering reservoir
Top feed 650cc saturated injectors w/rail
Ebay T4 turbo Manifold
EBay downpipe
Ebay 46MM wastegate
4-Bar map sensor for MS2
Boost control for MS2
Modified Holset HE351VE
ARP Head Studs
Eibach Springs
ACT 6 Puck sprung ceramic clutch w/ ACT PP
Blue samco radiator hoses
Prosport Blue/White Premium EGT Guage
New Toyota valve seals
New Toyoyta MLS headgasket
Shaftmasters Aluminum driveshaft
Dash Designs Dash mat (covers up those big cracks and looks nice also)

Took me about two and a half months to complete this swap. Had to do lots of rust repair since this was orignally a Ohio car..... I hate rust. Pulled the old 7mgte and sold it to a local guy it had 3 spun bearings. I put all new Toyota gaskets on the 1JZ installed it and wired up the MS2.

The car is up and running now have cold start and cruising tuned.

I'll post up pics later since I am at work and Photobucket is blocked. So stay tuned.



[gennro]

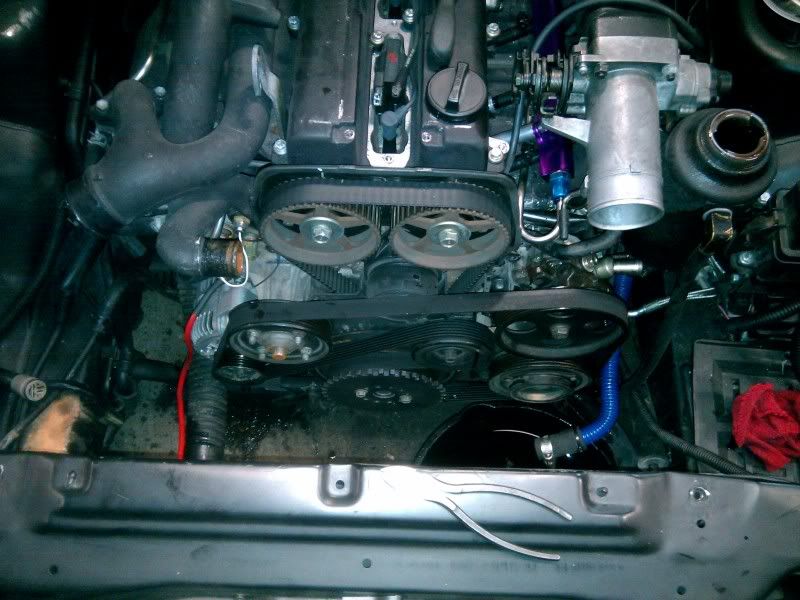

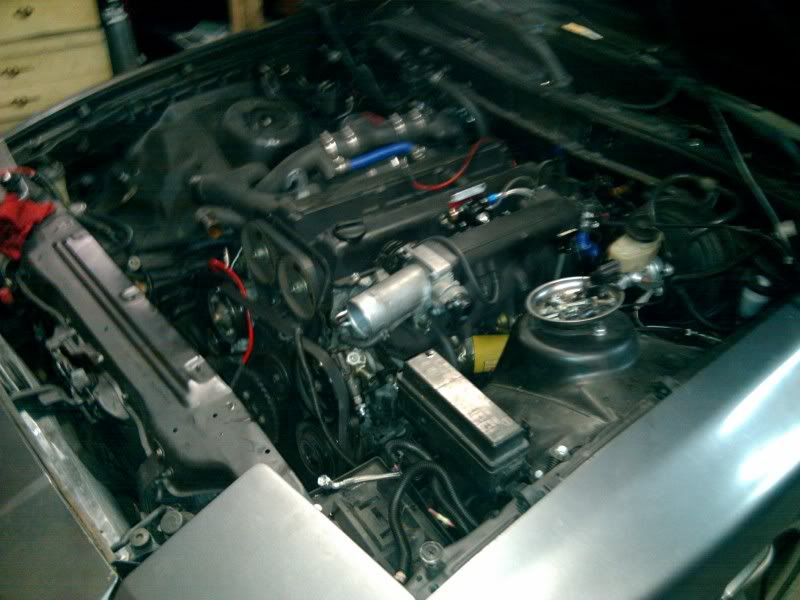

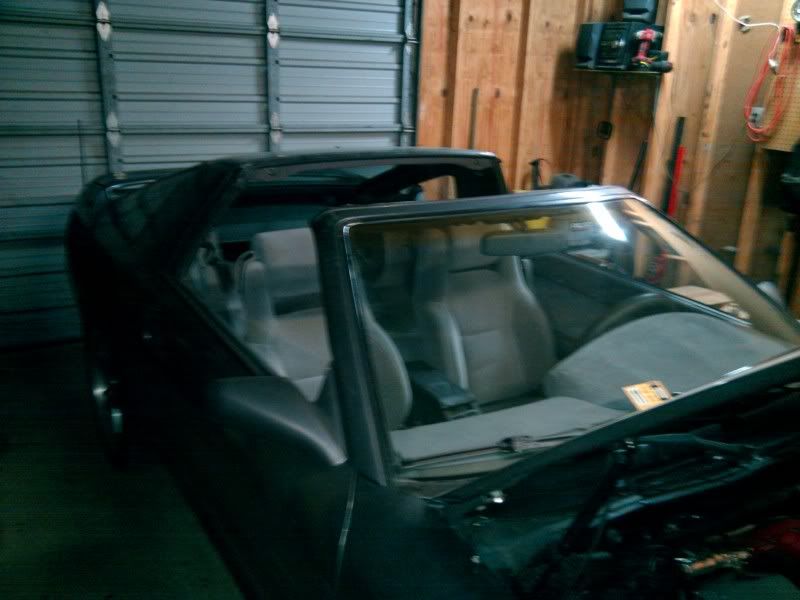

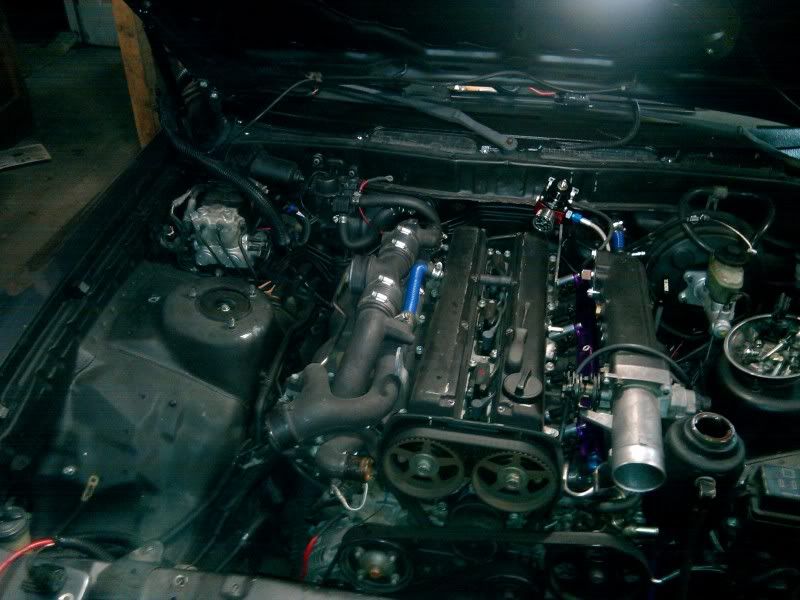

Pictures....



[terror]

pretty sweet, what are you doing now that you dont have the stock idle contol valve?



[2tonebb6]

ive been considering using the ms2 also,did you assmble yours or was it pre- built?



[gennro]

This is whats I use to control the idle air http://www.diyautotune.com/catalog/...ody-for-use-with-jeep-40l-iac-valve-p-69.html

I bought the MS2 -pre-assembled from the same company.

---------- Post added at 07:54 PM ---------- Previous post was at 07:52 PM ----------

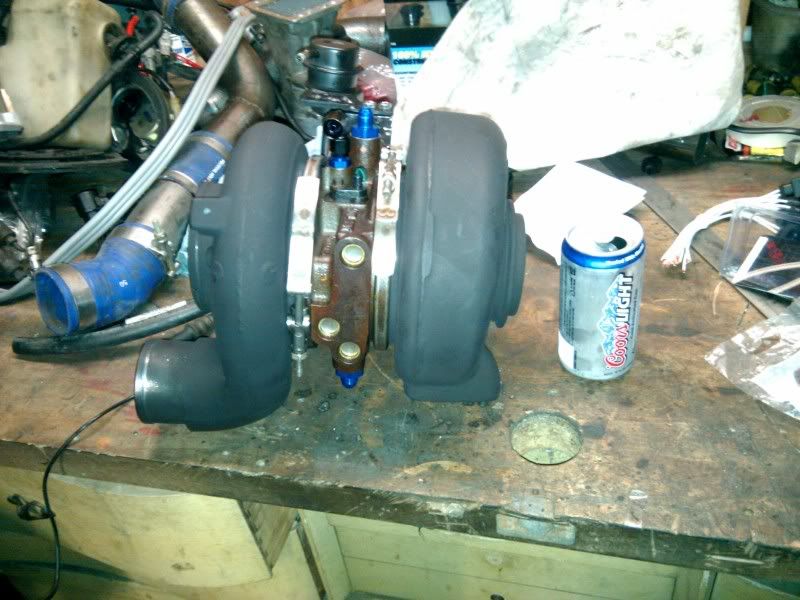

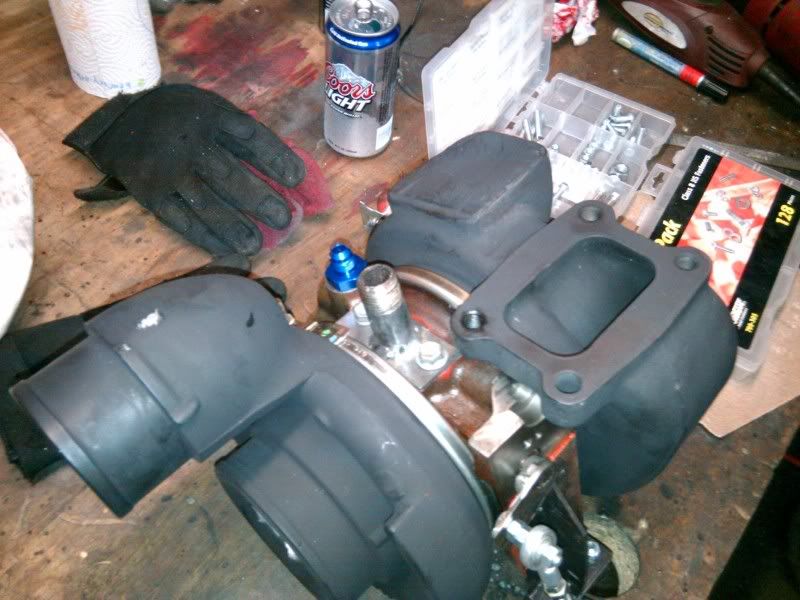

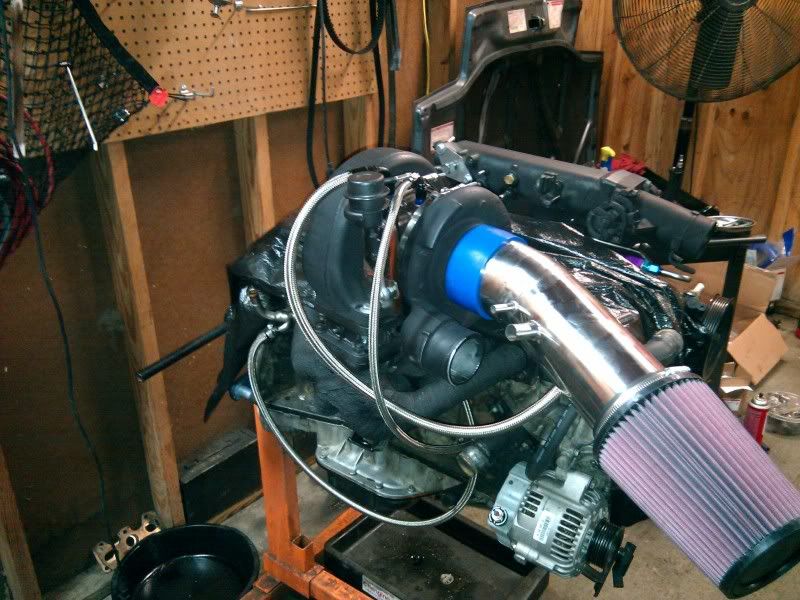

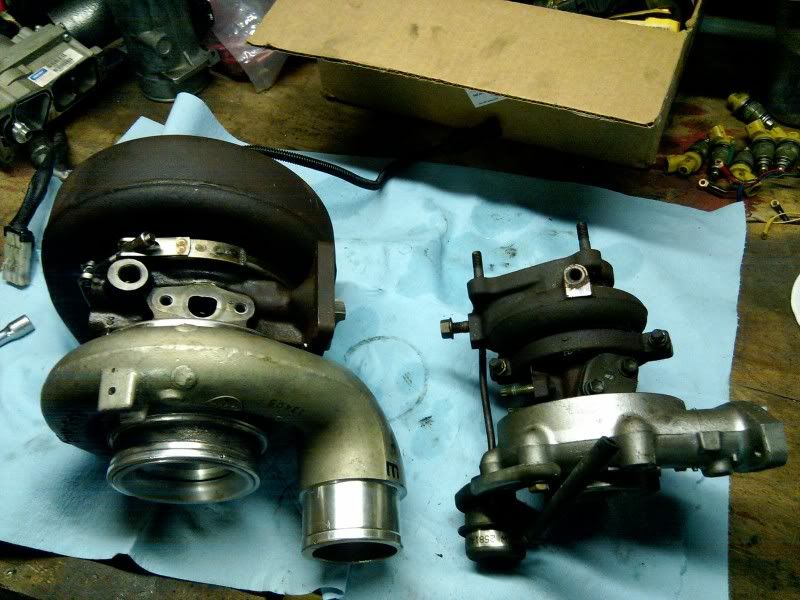

Here is my HE351VE I picked up for my single swap....

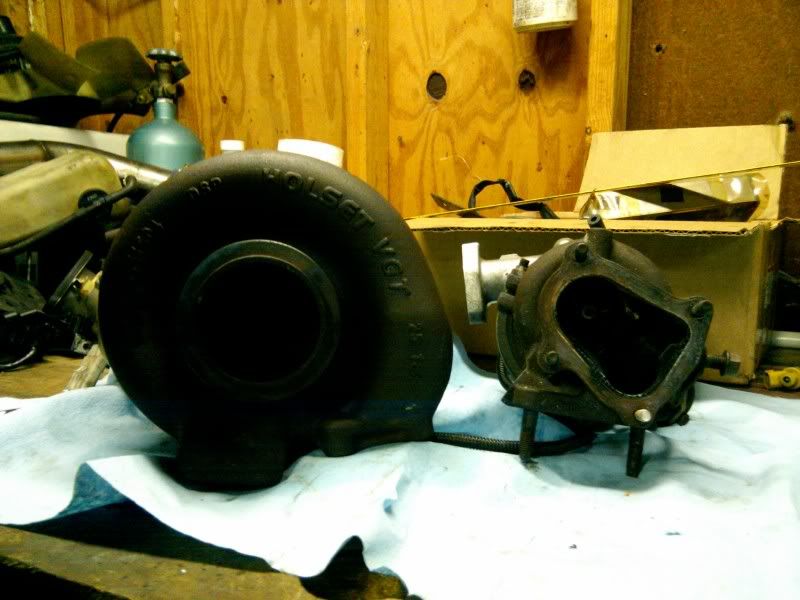

Next to a CT12A

I also found another 1990 supra that is in much better shape then mine so here in the next few months I'll be updating this thread with the new car. So will be going with a single turbo setup with the HE351VE.



[gennro]

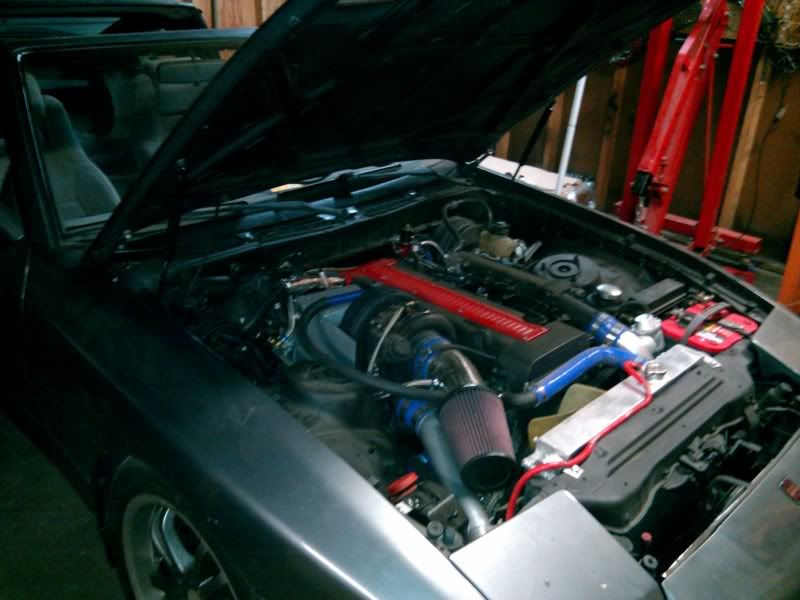

Didn't get the supra shell so going to stick my my current shell and make due with it. Here are some updates though and tons of pictures!!!!!!!!!!!



[gennro]

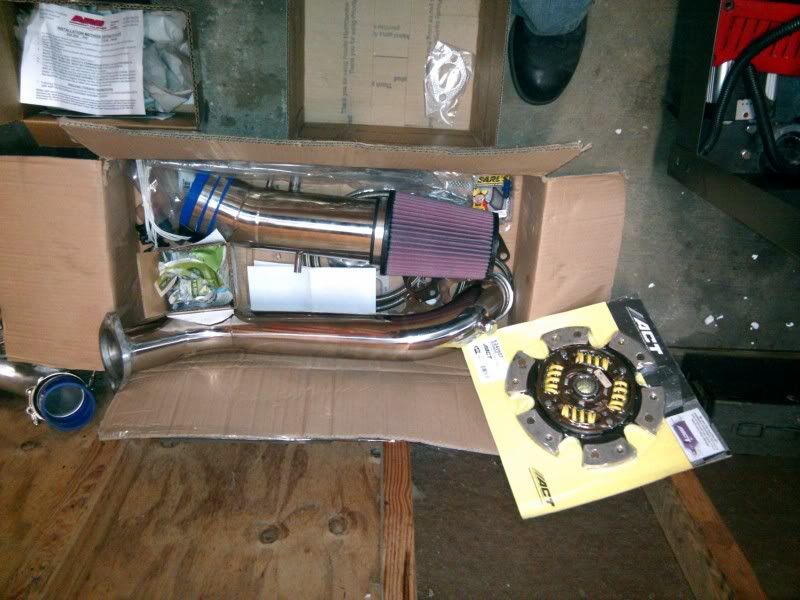

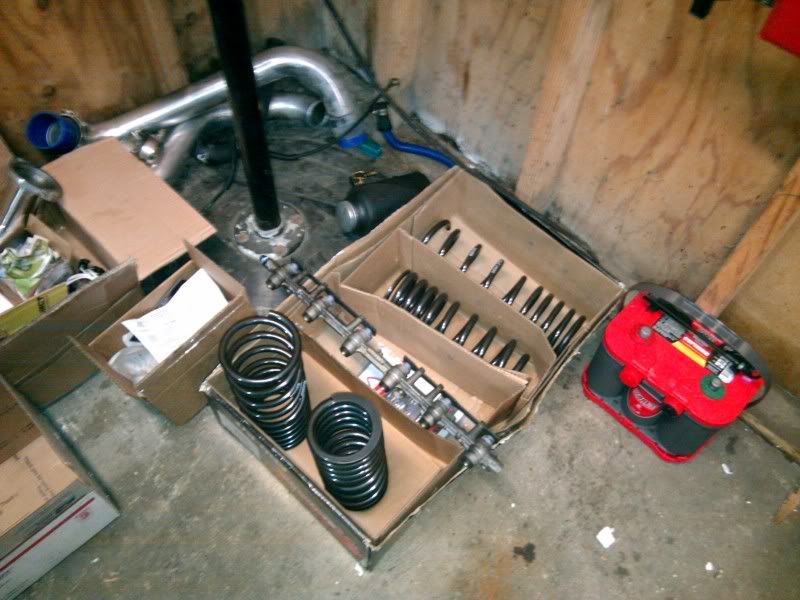

PARTS!!!!!!

Drain flange I made for the Holset turbo

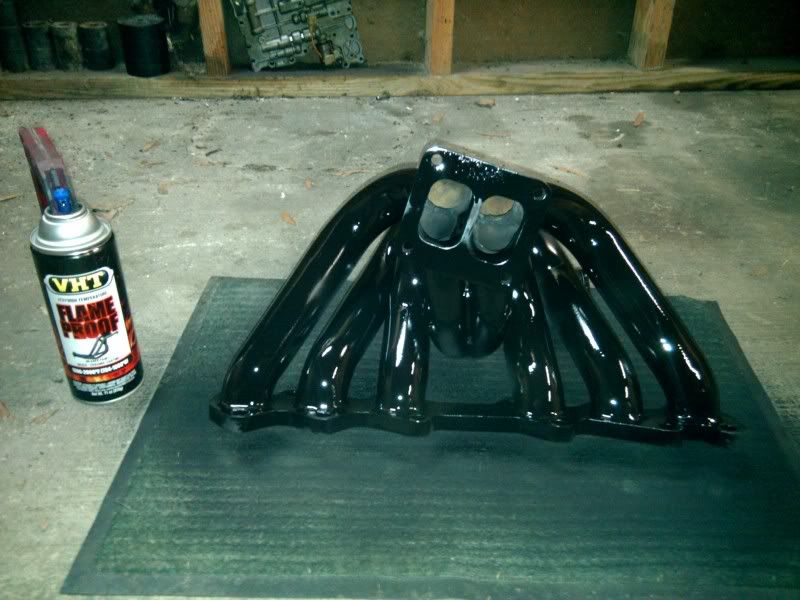

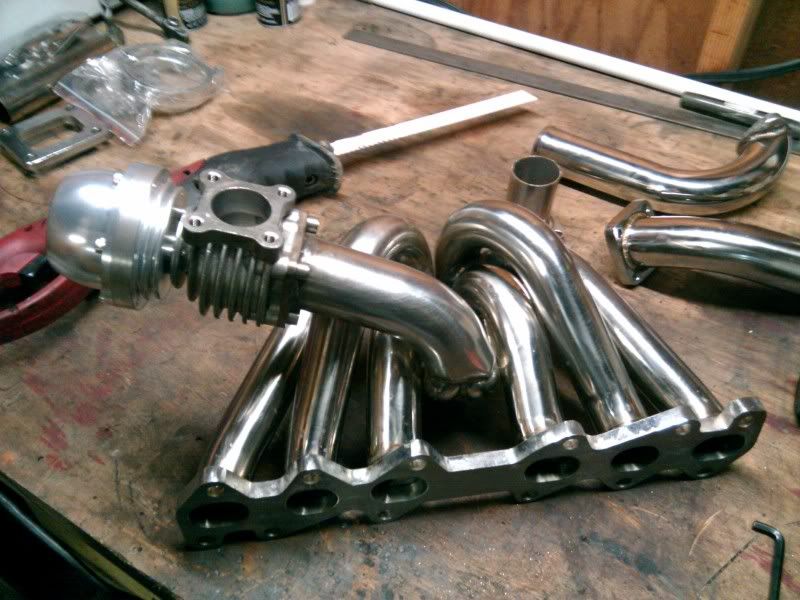

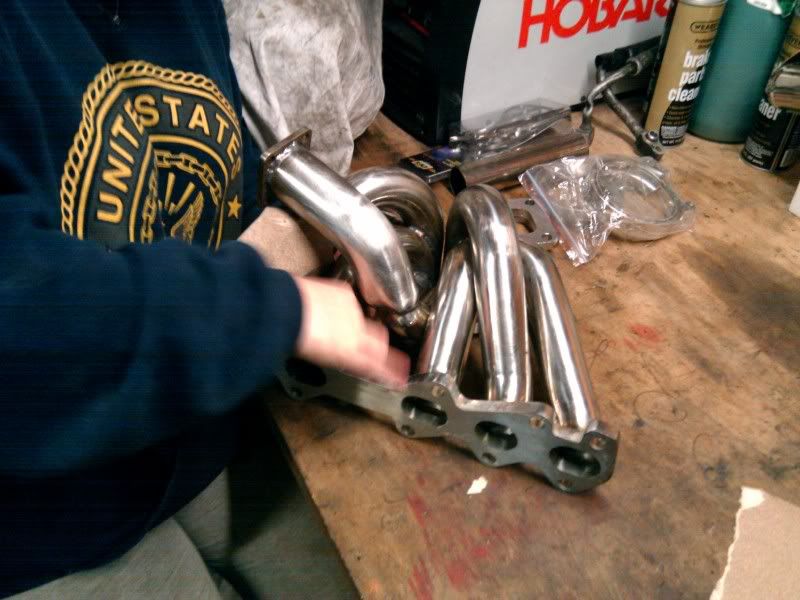

Ebay manifold getting some VHT Ceramic coat and new wastegate flange welded on w/ the 46mm wastegate

Rest of the pictures here http://s9.photobucket.com/albums/a60/gennro/Supra single swap/



[SURUKO]

Great work and collection of parts man keep up the good work



[gennro]

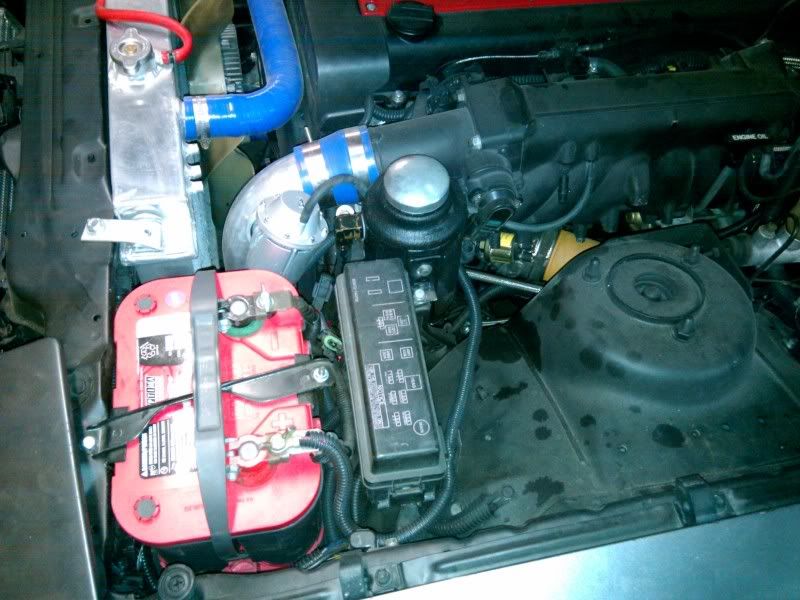

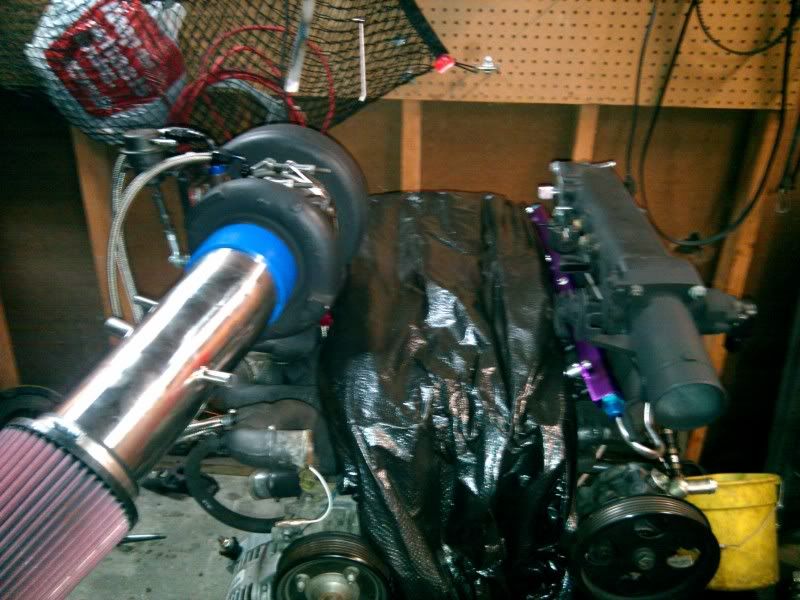

Here some pictures I may feel like telling you what I did later on or not.



[oldsking]

Where's that DP from?
Dude it's coming together niiiiiice! I like the VHT paint I used it on my motor and cleared it after, looks pretty slick



[gennro]

Where's that DP from?

DP= Downpipe?



[gennro]

Hey mike where is my steak?

18 PSI before 4k rpms..... Should be hitting up the dyno in a month.



[Bri7man]

Oh lawdy... that is mighty



[Dirty Monkey]

Nice Build man. Let me know what HP.



[gennro]

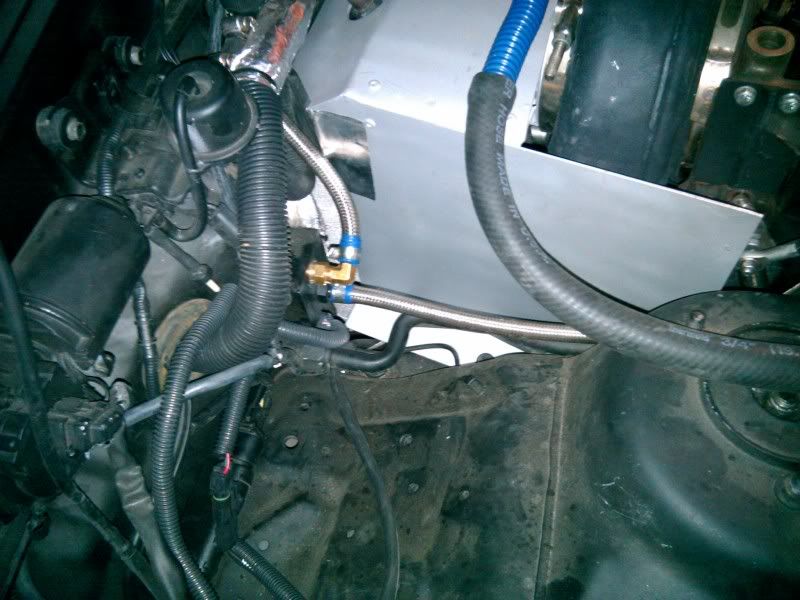

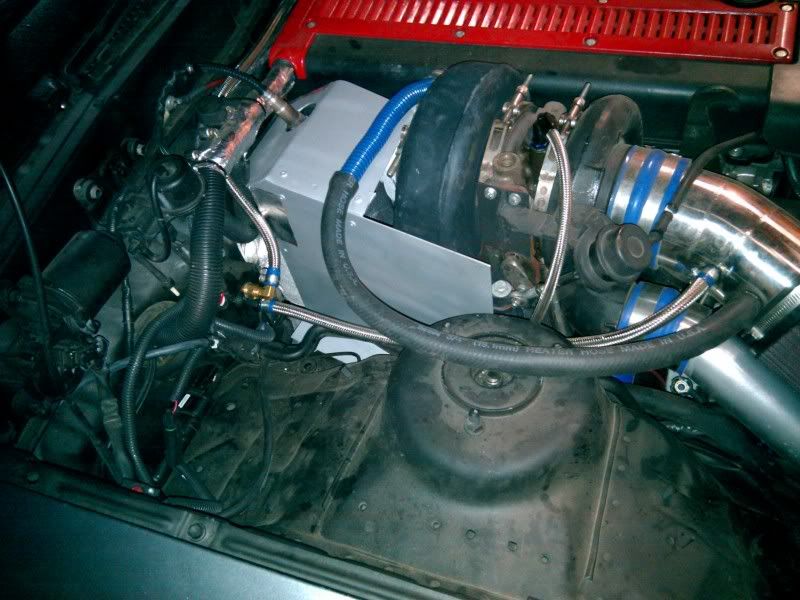

Alright have been having some heat issues under the hood. Built a heatshield last night to help keep some of the heat contained around the turbo and the downpipe. I'll post some more recent pictures later. Also replaced the IAC valve hoses with some -6an SS hose I had left over to clean it up some.

Been doing some more tuning with cruising and some under boost. The Megasquirt with Tunerstudio makes doing this a breeze compared to other standalone's software. The timing map has been a pain in the ass to get timing right so I get a good spool and keeping the EGTs under control.

Also anyone got any good info on EGT temps such as cruising temps etc. During a good cruise for me my EGTs get up around 1100 now and is kinda hot under the hood. Been keeping the cruising AFRs around 14.7:1 - 15.0:1 and timing around 30 to 36 degrees.



[SURUKO]

Looking great man



[gennro]

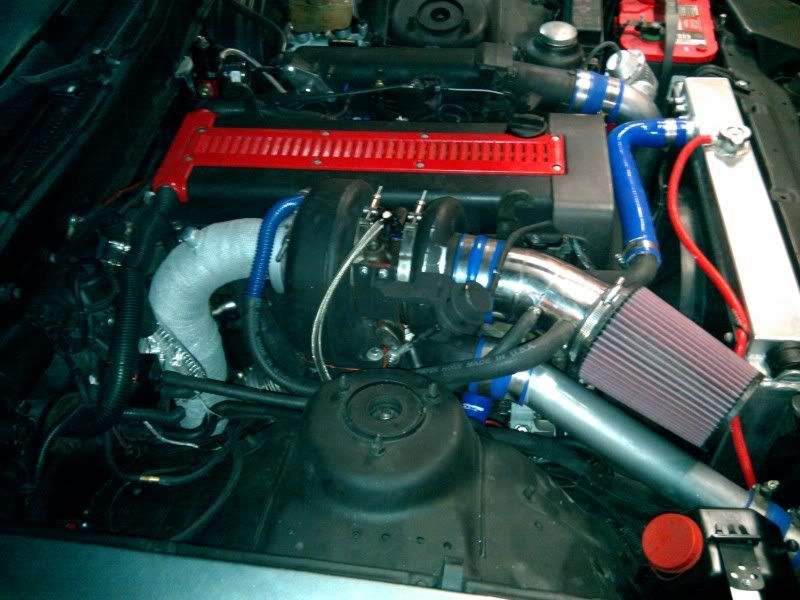

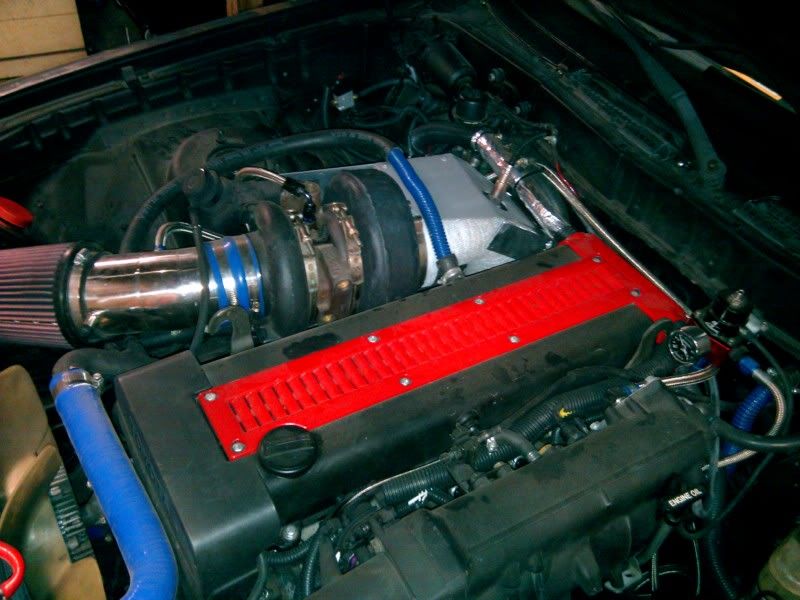

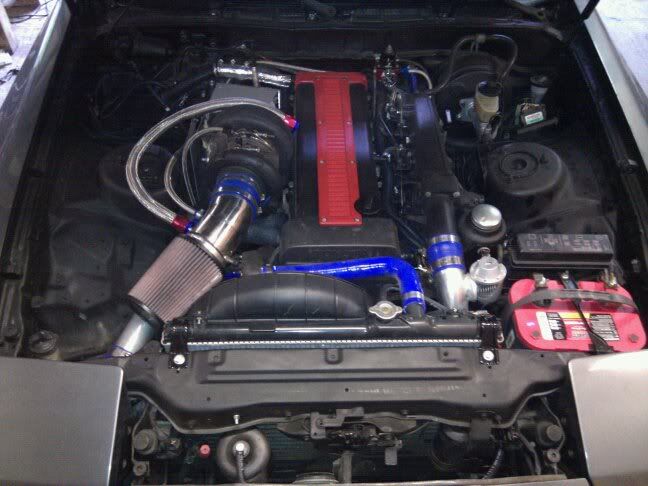

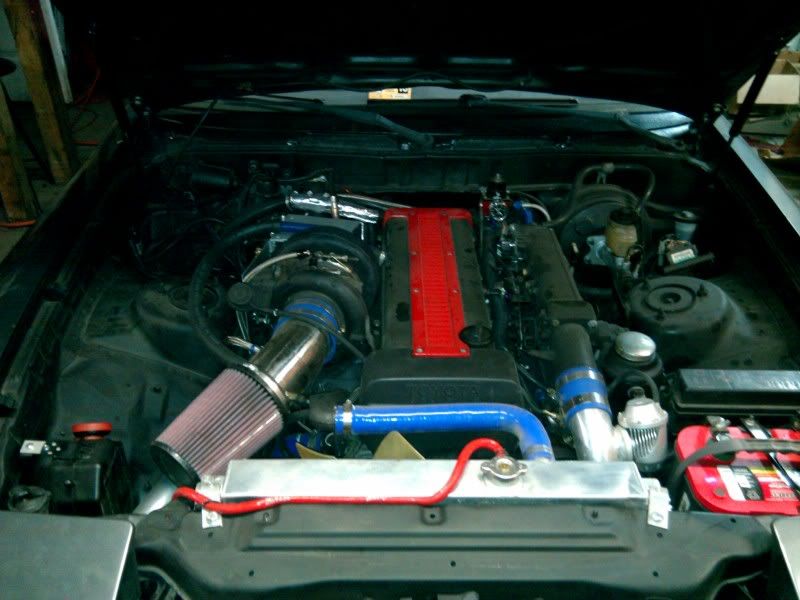

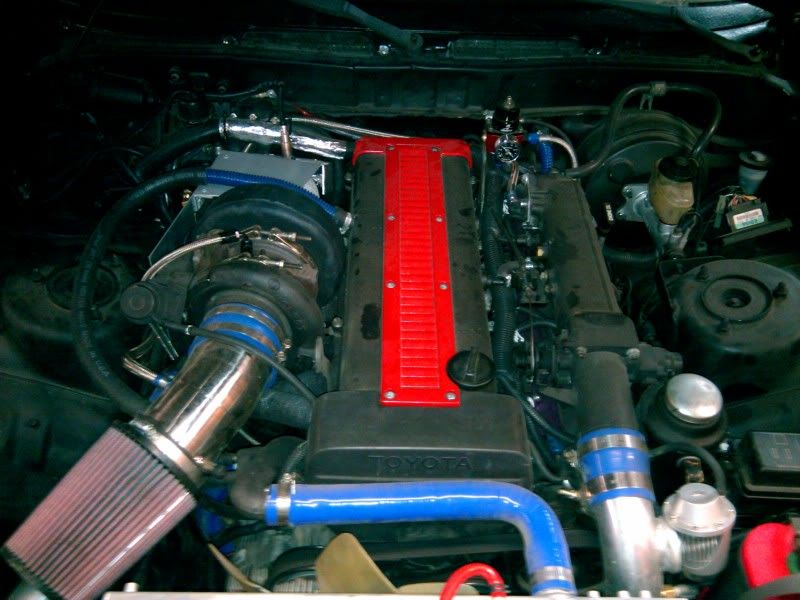

Some pictures after I took it out for a drive a tweaked the heat shield just a bit. Going to be installing some 2J cams since it is suppose to rain tomorrow.



[gennro]

Small update

A/C is working using R-134A.
Installed AUX fan on intercooler to pull air through the intercooler and push through the condenser. Comes on when A/C is on.
Installed new anti-freeze overflow bottle.
Installed new CCV SS 3/4 hose.
New fan shroud also.
